Whirlpool AWM 8103/3 INSTRUCTION FOR USE

3gb05457.fm Page 1 Wednesday, March 5, 2003 2:53 PM

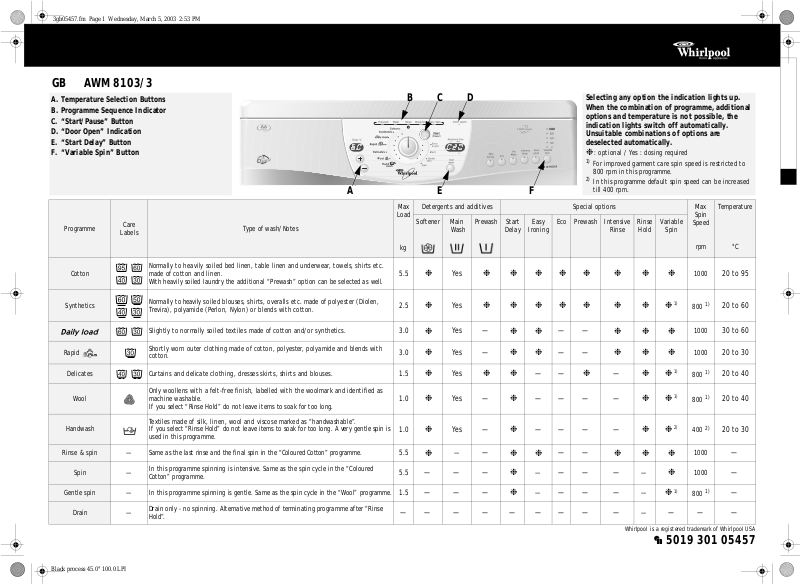

AWM 8103/3

A. Temperature Se lection Buttons B. Programme Sequence Indicator C. “Start/Pause” Button D. “Door Open” Indication E. “Start Delay” Button F. “Variable Spin” Button

Programme

Cotton

Synthetics

Rapid

Care

Labels

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

With heavily soiled laundry the additional “Prewash” option can be selected as well.

Normally to heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetics. Shortly worn outer clothing made of cotton, polyester, polyamide and blends with

cotton.

Type of wash/Notes

BCD

Selecting any option the indication lights up. When the combination of programme, additional options and temperature is not possible, the

indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

❉

: optional / Yes : dosing required

For improved garment care spin speed is restricted to 800 rpm in this programme.

In this programme default spin speed can be increased

Max

Detergents and ad d i tives Special options Max

Load

Softener Main

5.5

2.5

3.0

❉

❉ ❉

Prewash Start

Wash

Yes

Yes —

❉❉❉❉❉ ❉❉❉

❉ ❉ ❉❉❉ ❉ ❉❉

Delay

Easy

Ironing

❉❉ ❉❉

Eco Prewash Intensive

——

till 400 rpm.

Rinse

Hold

❉❉❉ ❉❉❉

Variable

Spin

Speed

rpm

1000

800

1000

Temperature

°C

20 to 95

20 to 60

30 to 60

20 to 30

Delicates

Wool

Handwash

Rinse & spin —

Spin —

Gentle spin —

Drain —

Black process 45.0° 100.0 LPI

Curtains and delicate clothing, dresses skirts, shirts and blouses. Only woollens with a felt-free finish, labelled with the woolmark and identified as

machi ne washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. A very gentle spin is used in this programme.

Same as the last rinse and the final spin in the “Coloured Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the “Coloured

Cotton” programme. In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. Drain only - no spinning. Alternative method of terminating programme after “Rinse

Hold”.

1.5

❉

1.0

❉

1.0

❉

5.5

❉

5.5

———

1.5

———

Yes

Yes —

—

❉❉

❉

❉❉ ❉ ❉

——

❉

—

——— —

——

—

—— —

—

—— —

❉❉❉

—— — — ———— —

Whirlpool is a registered trademark of Whirlpool USA

❉❉

—

800

400

1000

❉

800

—— —

5019 301 05457

20 to 40

20 to 30

—

3gb05457.fm Page 2 Wednesday, March 5, 2003 2:53 PM

CONSUMPTION DATA

Temperature Selector

Programme

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)* Cotton 95 5.5 54** 1.90 2:05 Cotton 60 5.5 49 1.04 2:25 Cotton 40 5.0 44 0.60 2:10

Synthetics 60 2.5 55 0.80 1:35 Synthetics 40 2.5 55 0.60 1:25

40 3.0 45 0.50 1:00

Rapid

30 3.0 37 0.40 0:35

Delicates 40 1.5 60 0.60 0:50

Wool 30 1.0 60 0.30 0:45

Handwash 30 1.0 45 0.30 0:45

Prewash might increase programmme duration. Consumption values were measured in normalized conditions in compliance with Standard IEC 60 456. Consumptio n d ata in the h o me ma y vary with r espect to th e val ues in th e table in r elati on to the water supply pressure and temperature, the load and the type of wash. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the

household conditions applicable at that time.

**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before th e pump drain s the

water out.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergents as described in the programme table or in the chapter “Detergents and Additives” in the booklet.

1. Turn the

programme selector knob

to the

desired programme.

2. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp of the

“Start/Pause”

button

is flashing.

3. The programme sequence and the predefined spin speed indication corresponding to the selected programme lights up. The recommend ed temper ature (see th e indi cator) can be altered by pressing “+” or “-” button.

“Easy Ironing” button

• Can be used together with Cotton, Syn th eti cs an d Daily programmes to make ironing easier.

• Increases the water quantity and the clothes are spun very soft.

“Eco Wash” button

• The duration of the wash is extended and the temperature reduced to save up to 40% of energy but maintaining good washing results.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. The cycle time increases approximately 15 min.

“Intensive Rinse” button

• More water and a lon ger tim e in rinse cycle is ad ded .

• This option is particularly suitable for areas with very soft water, washing baby linen and helps people with allergies.

“Rinse Hold” button

SELECT ANY DESIRED OPTION

Selecting any option the indication lights up. When the combination of programme, additional options and temperature is not possible, the indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

• The laundry rem ain s in th e last rin se w ater without progressing to the final spin cycle to avoid creasing and prevent colours from chan ging.

• This option is particularly recommended for the programme “Synthetics”, “Daily” and “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Note:

The programme stops to “Rinse Hold” at the time the “Rinse Hold” light in the programme flow indication is on.

Terminate the “Rinse Hold” option:

• Press the “Rinse Ho ld” button again; the

programme will termin ate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the

programme selector knob to the “Drain” programme and pr ess the

“Start/Pause”

button

again when flashing.

“Variable Spin” button

• Every programme has an automatic predefined

maximum spin speed.

• Press the button to set another spin speed.

• If the spin speed “0” is selected, the final

spinning is cancelled but interm edi ate spin peaks remain during rin se . Th e water is d r ain ed out only.

START DELAY

The “Start Delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start Delay” button to select the

delay time by 1 to 23 hours;

•Press the

“Start/Pause”

button.

• The time delay indication disappears when the

programme starts and it is replaced by the remaining time.

• The number of hours preselected can later be

reduced pr essing again the “Start Delay” button.

To cancel the “Start Delay”.

• Turn the progr amm e selector to th e “ ” positi on.

• Reselect the desired programme and options

and press the

“Start/Pause”

button.

PROGRAMME START

Open the tap and press the The pilot lamp of the

“Start/Pause”

button.

button lights up.

The indicator lamps show the sequence reached in the programme. After starting the programme, the sequence indication runs from left to right through Wash, Rinse, Spin.

When the sequence of the programme is finished the corresponding lamp goes out.

DOOR LOCK

The door can be opened when the “Door Open” indication is on.

PROGRAMME END

• The remaining time is on “0:00” and all the lights of the programme sequence indication are off.

1. Turn the programme selector to the

“”

position.

2. Turn the water supply tap off.

3. Open the door and unload the machine.

4. Close the tap and leave the door ajar to allow

the drum to dry out.

CHANGE THE PROGRAMME, TEMPERATUR E, OPTIONS AFTER PROGRAMME START

1. Press the

“Start/Pause”

button to pause the

programme. The light flashes.

2. Select the new programme (with temperature),

any options and another spin speed if you want.

3. Press the

“Start/Pause”

button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL A PROGRAMME BEFORE THE END

1. Press the

“Start/Pause”

button to pause the

programme. The light flashes.

2. Set the programme selector to “Drain”. The spin indicators show

“0”

and the

remaining time shows “0:02”.

3. Press the

“Start/Pause”

button to start the

drain programme.

Whirlpool is a registered trademark of Whirlpool USA

5019 301 05457
