Whirlpool AWM 279, AWM 288, AWM 4700, AWM 283-NL, AWM 279(0901) QUICK REFERENCE GUIDE

...

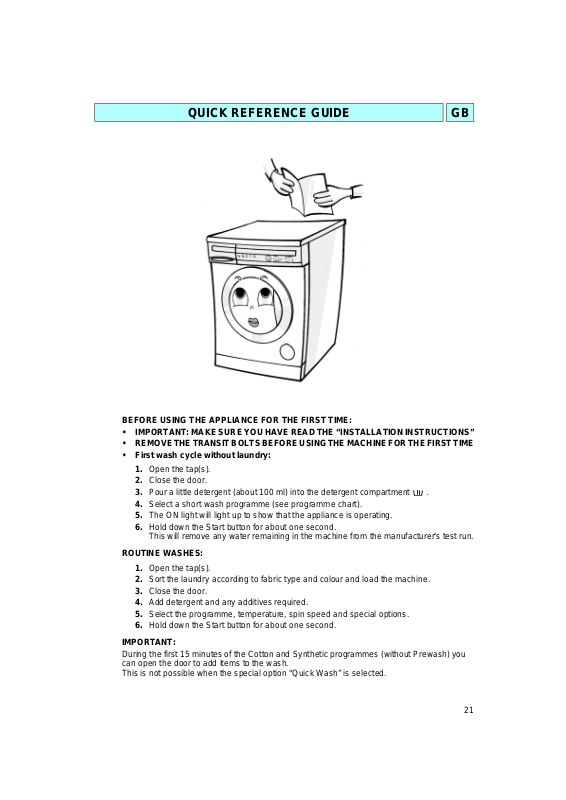

QUICK REFERENCE GUIDE GB

BEFORE USING THE APPLIANCE FOR THE FIRST TIME:

• IMPORTANT: MAKE SURE YOU HAVE READ THE “I NSTALLATION INSTRUCTIO NS”

• REMOVE THE TRANSIT BOLTS BEFORE USING THE MACHINE FOR THE FIRST TIME

• First wash cycle without laundry:

Open the tap(s).

Close the door.

Pour a little detergent (about 100 ml) into the detergent compartment .

Select a short wash programme (see programme chart).

The ON light will light up to show that the appliance is operating.

Hold down the Start button for about one second. This will remove any water remaining in the machine from the manufacturer's test run.

ROUTINE WASHES:

Open the tap(s).

Sort the laundry according to fabric type and colour and load the machine.

Close the door.

Add detergent and any additives required.

Select the programme, temperature, spin speed and special options.

Hold down the Start button for about one second.

IMPORTANT:

During the first 15 minutes of the Cotton and Synthetic programmes (without Prewash) you can open the door to add items to the wash. This is not possible when the special option “Quick Wash” is selected.

GB CONTENTS

APPLIANCE AND ACCESSORIES PROTECTING THE ENVIRONMENT SAFETY INSTRUCTIONS MOVING AND TRANSPORTING THE APPLIANCE SORTING THE WASH DETERGENT AND ADDITIVES DYEING AND BLEACHING SELECTING THE PROGRAMME / PROGRAMME START SELECTING SPECIAL OPTIONS PROGRAMME SEQUENCE INDICATOR

PAGE

23 24 24 24 25 26 27

28 29

30 DOOR LOCK / PROGRAMME END PROGRAMME RESELECTION /

INTERRUPTING THE PROGRAMME REMOVING THE FILTER /

DRAINING RESIDUAL WATER CARE AND MAINTENANCE CHILD SAFETY DEVICE TROUBLE-SHOOTING GUIDE AFTER-SALES SERVICE INSTALLATION INSTRUCTIONS

PAGE

APPLIANCE AND ACCESSORIES

Worktop

Control panel

Detergent drawer

After-Sales Service sticker (inside door)

Door

Door handle

To open: press the button on the inside of the handle and pull

To lock: press the door firmly (the lock will click into place)

Door lock child safety device (inside door)

Filter (behind hatch)

Residual water drain (depending on model).

PROTECTING THE ENVIRONMENT

• Packing

The packaging is marked with the recycling symbol , si gnify in g that it can be 100 % recycled.

• Appliance

The appliance is made of recyclable materials. Dispose of the appliance in conformity with environmental regulations. Make it inoperable, pull out the plug and cut off the power cable so that the appliance cannot be connected to the mains.

• Eco-tips

A full load (depending on the programme

selected) gives the best energy and water consumption.

Laundry which is lightly to moderately soiled

does not require a prewash.

SAFETY INSTRUCTIONS

The appliance must only be used in the

•

household for the prescribed uses. All connections to the water and electrical

•

mains must be made in accordance with the manufacturer's instructions and following local utility company safety regulations (see Installation Instructions).

Before any cleaning and maintenance switch

•

off the machine or disconnect it from the mains.

Switch off the washing machine and turn off

•

the tap(s) whenever the machine is not in use.

Lightly soiled laundry should be washed at a

low temperature or with a short programme. When washing small loads press the “Lightly

Soiled / Half Load” button (if present) and use less detergent.

If you wish to dry the laundry in a household

dryer, use the highest spin speed (depending on the programme). The dryer will then consume less energy.

Do not exceed the recommended dosages

on the detergent packet. Only use stain remover or bleach if

absolutely necessary.

Never use excessive force to open the door.

•

Children must not be allowed to play with or

•

inside the machine. Do not rest any weight on the door.

Packaging materials can be dangerous for

•

children. Keep the packaging material (plastic bags, polystyrene, etc.) well out of their reach.

The appliance conforms to European safety

•

regulations, EC directive n. 93/68/EWG and EN 60555.

MOVING AND TRANSPORTING THE APPLIANCE

Pull out the mains plug.

Shut off the water tap(s).

Disconnect the inlet and drain hoses.

Drain residual water from the appliance and

hoses (see “Removing The Filter / Draining Residual Water”).

Fit the transit bolts (see “Installation

Instructions”).

SORTING THE WASH

1. Sort the load according to:

• Fabric type / care label symbol

Cotton, mixed fibres, synthetics, wool, silk, viscose.

• Colours

Separate coloured and white articles. Wash new coloured articles separately.

• Article size

Washing articles of different sizes together improves wash efficiency and distributes the load better in the drum.

• Fabric delicacy

Wash delicates separately. Select the appropriate special programme for machine-washable wool , curtains or silk and other delicate fabrics. Either remove curtain hooks or tie into a cloth bag. Only wash machine-washable fabrics. Wash small articles (e.g. nylon stockings, belts etc.) and articles with hooks (e.g. bras) in a cloth bag or pillow case with zip.

2. Empty all pockets

Coins, safety pins etc. can damage the laundry, drum and tub.

3. Closures

Close zips and hooks and eyes. Loose belts or ribbons should be tied together.

WASHING AND CARING FOR SILK ARTICLES

Washing:

Note:

wash them separately the first time.

Drying and ironing

•

To ensure correct care of silk articles

Check the care instructions on the label and make sure that the article is machinewashable (30°C).

Wash articles of the same colour preferably together.

Check that new articles are colour fast and

Use only special detergent for silk or wool. This programme has no spin cycle. If you select the “Rinse Hold” function, do not

leave the wash in the rinse water for too long.

Open the garment out on a towel and squeeze the water out without wringing.

Never dry silk garments in the sun. Iron from the reverse side when the fabric is

still slightly damp. To avoid water marks, don't spray on water

and don't use a steam iron.

STAIN REMOVAL

Blood, milk, egg, and other organic

•

substances are generally removed by the enzyme phase of the programme.

To remove red wine, coffee, tea, grass and

•

fruit stains, etc. add a biological stain removing agent to the main wash in compartment or a chlorine bleach in compartment of the detergent drawer (if fitted).

Particularly stubborn stains can be treated

•

with stain remover before the wash.

LOADING THE WASH

Open the door.

Load the articles one at a time, loosely into

the drum, without overfilling. Close the door.

LOAD CAPACITY

See the separate programme chart.

Overloading the machine reduces the

Note:

wash efficiency and encourages creasing.

DETERGENT AND ADDITIVES

CHOOSING THE RIGHT DETERGENT

The type of detergent depends o n:

•

the type of fabric (cottons, synthetics, delicates, wool, silk);

Note:

Use only specific detergents for washing

wool and silk articles;

•

colour;

•

wash temperature;

•

degree and type of soiling.

Note:

•

Whitish residues on dark fabrics are due to the insoluble water softeners in modern phosphate-free detergents. If this occurs, shake or brush out the fabric or use liquid detergents.

•

Keep detergents and additives in a safe, dry place out of the reach of children.

•

Use only detergent and fabric conditioner specifically produced for automatic domestic washing machines.

•

When using water softeners, descaling agents and dyes, make sure that they are suitable for use in domestic washing machines.

•

Do not use solvents in the machine (e.g. turpentine, benzine, etc.). Do not wash fabrics in the machine which have been treated with solvents or flammable liquids.

DETERGENT DOSAGES

Do not exceed manufacturers' recommended dosages as shown on the detergent package . The amounts depend on:

• degree and type of soiling;

• size of wash;

full load: according to manufacturers' instructions;

half load: 3/4 of the normal amount;

minimum load (about 1 kg): 1/2 the amount used for full load;

• water hardness in your area

information from the water company): soft water requires less detergent than hard water.

Note:

•

Overdosing the detergent results in excessive foaming and reduces the wash efficiency. If the washing machine detects too much foam, it may prevent spinning.

•

Using insufficient detergent results in grey laundry. The heating elements and drum also build up scale.

•

If using chlorine bleach, follow the bleach instructions carefully. Overdosing the bleach can damage the wash.

(request

WATER HARDNESS
