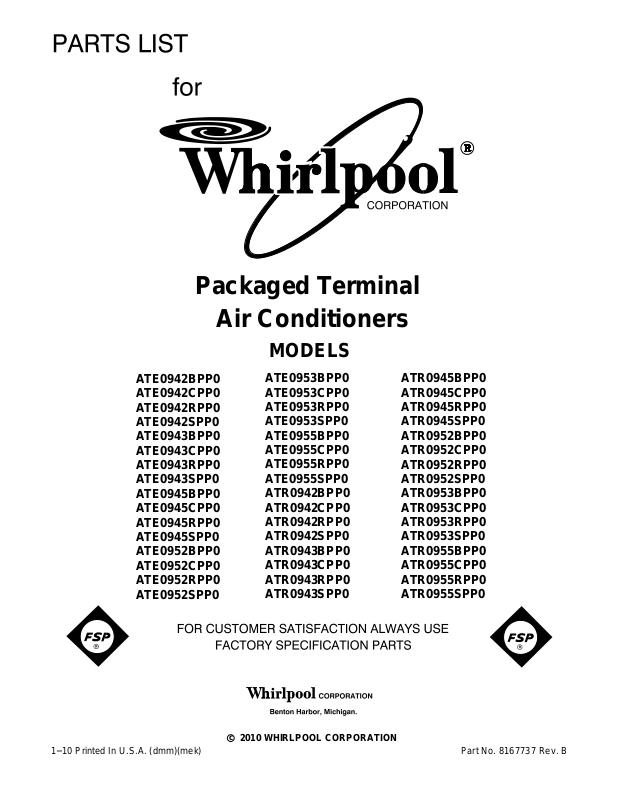

Page 1
Packaged Terminal
Air Conditioners
MODELS
ATE0942BPP0
ATE0942CPP0
ATE0942RPP0
ATE0942SPP0
ATE0943BPP0
ATE0943CPP0
ATE0943RPP0
ATE0943SPP0
ATE0945BPP0
ATE0945CPP0
ATE0945RPP0
ATE0945SPP0
ATE0952BPP0
ATE0952CPP0
ATE0952RPP0
ATE0952SPP0
ATE0953BPP0
ATE0953CPP0
ATE0953RPP0
ATE0953SPP0
ATE0955BPP0
ATE0955CPP0
ATE0955RPP0
ATE0955SPP0
ATR0942BPP0
ATR0942CPP0
ATR0942RPP0
ATR0942SPP0
ATR0943BPP0
ATR0943CPP0
ATR0943RPP0
ATR0943SPP0
ATR0945BPP0
ATR0945CPP0
ATR0945RPP0
ATR0945SPP0
ATR0952BPP0
ATR0952CPP0
ATR0952RPP0
ATR0952SPP0
ATR0953BPP0
ATR0953CPP0
ATR0953RPP0
ATR0953SPP0
ATR0955BPP0
ATR0955CPP0
ATR0955RPP0
ATR0955SPP0
1−10 Printed In U.S.A. (dmm)(mek)
c
2010 WHIRLPOOL CORPORATION
Part No. 8167737 Rev. B
Page 2
Whirlpool PTAC Model Number Code
For Model: ATE09 / ATR09
A
R 12 4 3 S P P 0
T
8167737
2
Page 3
CABINET PARTS
For Model: ATE09 / ATR09
Illus. Part
No. No. DESCRIPTION
1 8210019 Knob, Control
2 8210047 Cover, Front
3 8210048 Door, Control
4 8210049 Grille, Discharge
5 8210050 Filter, Air
3
8167737
Page 4

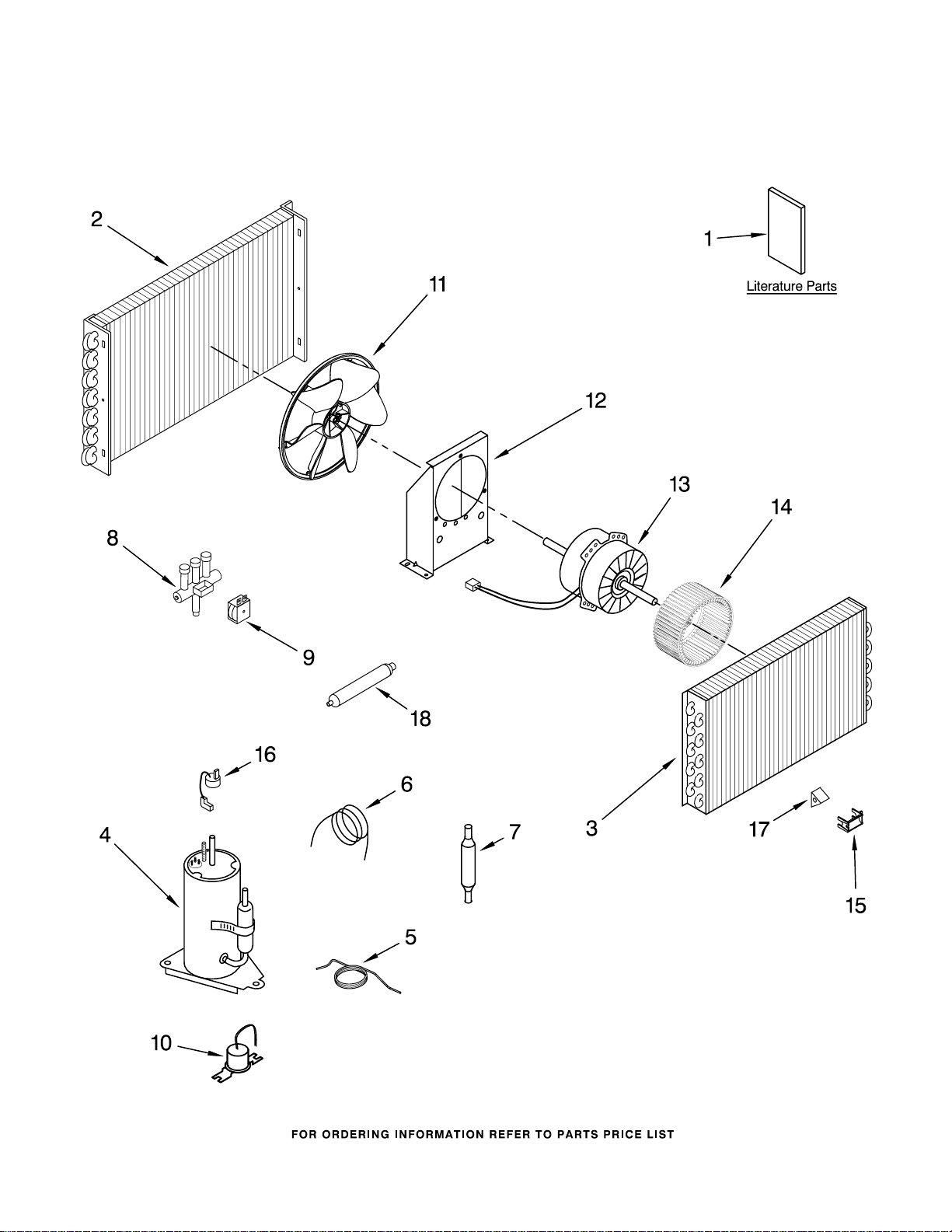

UNIT PARTS
For Model: ATE09 / ATR09
8167737
4
Page 5
UNIT PARTS
For Model: ATE09 / ATR09
Illus. Part
No. No. DESCRIPTION
1 LITERATURE PARTS
Manual,
Installation
8210051 English
8210060 French
Wiring Diagram
8210052 Mdl ATE094−Standrd
8210053 Mdl ATE094−Remote
8210054 Mdl ATE095−Standrd
8210055 Mdl ATE095−Remote
8210056 Mdl ATR094−Standrd
8210057 Mdl ATR094−Remote
8210058 Mdl ATR095−Standrd
8210059 Mdl ATR095−Remote
2 Condenser
8209951 Non−Seacost Models
8209952 Seacoast Models
3 8210028 Evaporator
4 Compressor
8209956 230 Volt Models
8209960 265 Volt Models
Illus. Part
No. No. DESCRIPTION
5 8209964 Restrictor Tube,
Electric Units
6 8209964 Restrictor Tube
Heat Pump Units
7 8209975 Valve, Check
8 8209976 Valve, Reversing
w/o Coil
9 Solenoid Coil
8209978 230 Volt Models
8209979 265 Volt Models
10 8209980 Valve, Drain
11 8209991 Blade, Fan
(Condenser)
12 8209995 Bracket, Motor
13 Motor, Fan
8209996 230 Volt Models
8209998 265 Volt Models
14 8210000 Wheel, Blower
(Evaporator)
15 8210005 Clip, Thermostat
16 Overload,
8210031 230 Volt Models
8210033 265 Volt Models
Illus. Part
No. No. DESCRIPTION
17 8210020 Anticipator
18 8210043 Dryer, Suction
Tube
REFRIGERANT CHARGE
32.0oz For ATE09 Models
30.0oz For ATR09 Models
FOLLOWING PARTS
NOT ILLUSTRATED
W10122470
W10150584
W10150586
W10150587
W10138325
Thermostat,
Suction Line
Top Gasket
Right Gasket
Left Gasket
Relay,
Fan/RV/Cooling
5
8167737
Page 6

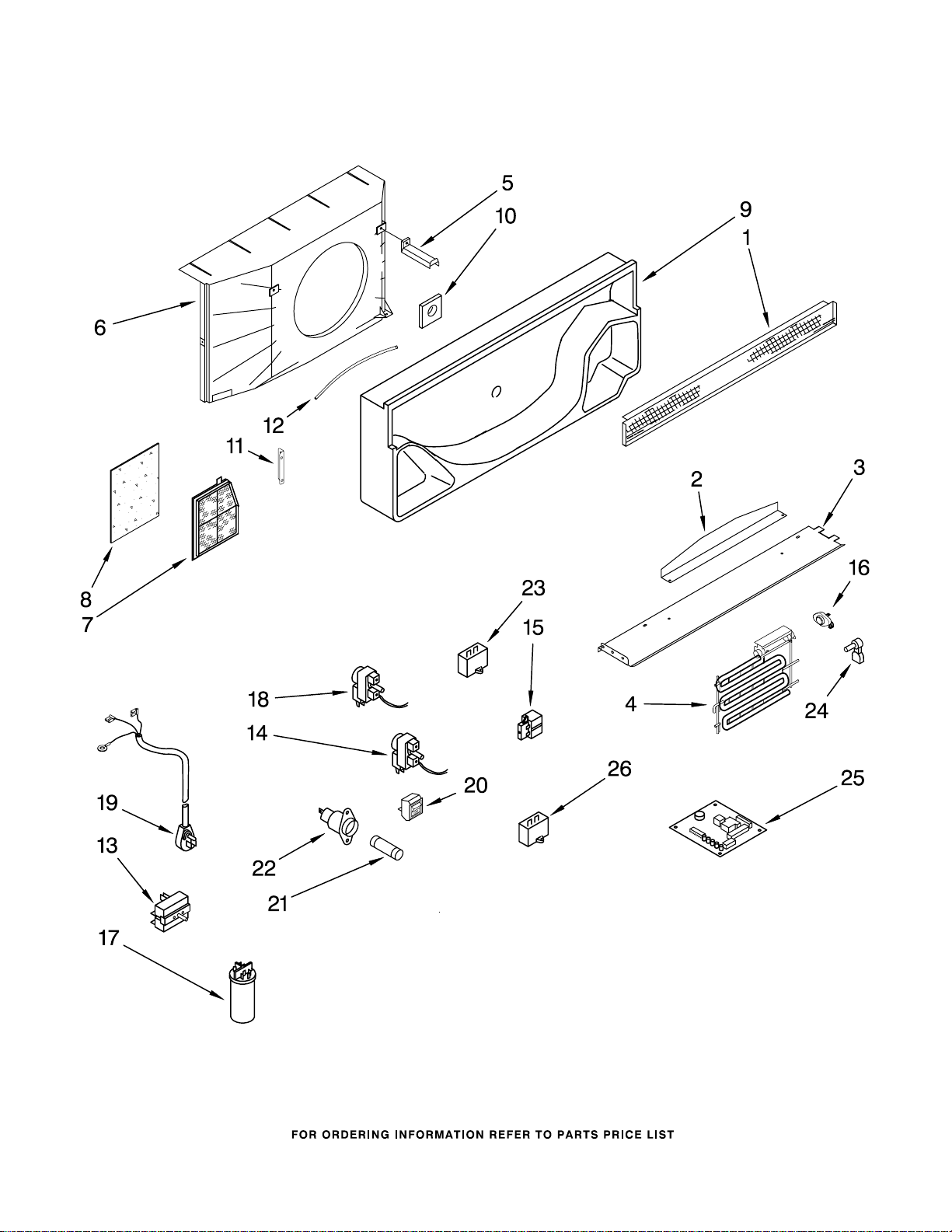

AIRFLOW AND CONTROL PARTS
For Model: ATE09 / ATR09
8167737
6
Page 7
AIRFLOW AND CONTROL PARTS
For Model: ATE09 / ATR09
Illus. Part
No. No. DESCRIPTION
1 8209981 Screen, Discharge
2 8209982 Baffle, Air
3 8209983 Cover, Heater
4 Heater
8209984 3.4Kw, 230 Volt
8209985 2.5Kw, 265 Volt
8209986 5.0Kw, 265 Volt
8209987 3.4Kw, 265 Volt
8209988 5.0Kw, 230 Volt
8209989 2.5Kw, 230 Volt
5 8209990 Brace, Support
6 8209992 Shroud, Condenser
7 8209993 Door, Fresh Air
8 8209994 Insulation, Fresh
Air Door
9 8209967 Scroll
10 8210035 Seal, Motor
11 8210036 Latch, Fresh Air
Door
12 8210037 Cable, Fresh Air
13 Switch, Rotary
8210002 Heating & Cooling
8210003 Cooling Only
14 8210004 Thermostat
15 Relay, Hot Start
8210006 230 Volt
8210007 265 Volt
8210008 24 Volt
16 8210009 Sensor, Hot Start
17 Capacitor
8210012 230 Volt
8210013 265 Volt
18 8210014 Thermostat,
Defrost
19 Cord, Appliance
8210015 15 Amp, 2.5Kw−230V
8210016 20 Amp, 3.4Kw−230V
8210017 30 Amp, 5.0Kw−230V
20 8210018 Switch, Rocker
21 Fuse, Time Delay
8210021 15 Amp (2.5Kw)
8210022 20 Amp (3.4Kw)
8210023 30 Amp (5.0Kw)
22 Holder, Fuse
8210024 15 Amp (2.5Kw)
8210025 20 Amp (3.4Kw)
8210026 30 Amp (5.0Kw)
23 8210027 Relay, Remote for
Heat Pump Units
24 Switch, Limit
8210038 One Shot
8210039 Resettable
25 8210045 Terminal Board,
Low Voltage for
Remote Control
Units
26 Transformer
8210075 230 Volt
8210076 265 Volt
7
8167737
Page 8
OPTIONAL PARTS (NOT INCLUDED)
For Model: ATE09 / ATR09
Illus. Part
No. No. DESCRIPTION
8210061 Chassis Shipping
Pallet
8210062 Chassis Top
Carton
8210063 Pad, Chassis
Carton Top
8210064 Chassis Inner
Carton
8210065 Wall Sleeve Carton
8210066 Label, Power
Disconnect
8210067 Label, Fan
Cycle Switch
8210068 Label, Heat Pump
Defrost Control
8210069 Label, Compressor
8210070 Label, Single
Outlet
8210071 Label, Power Cord
8210072 Supply Wire
8210073 Overpack, Canadian
Chassis
8210074 Overpack, Canadian
Sleeve
8167737
8
