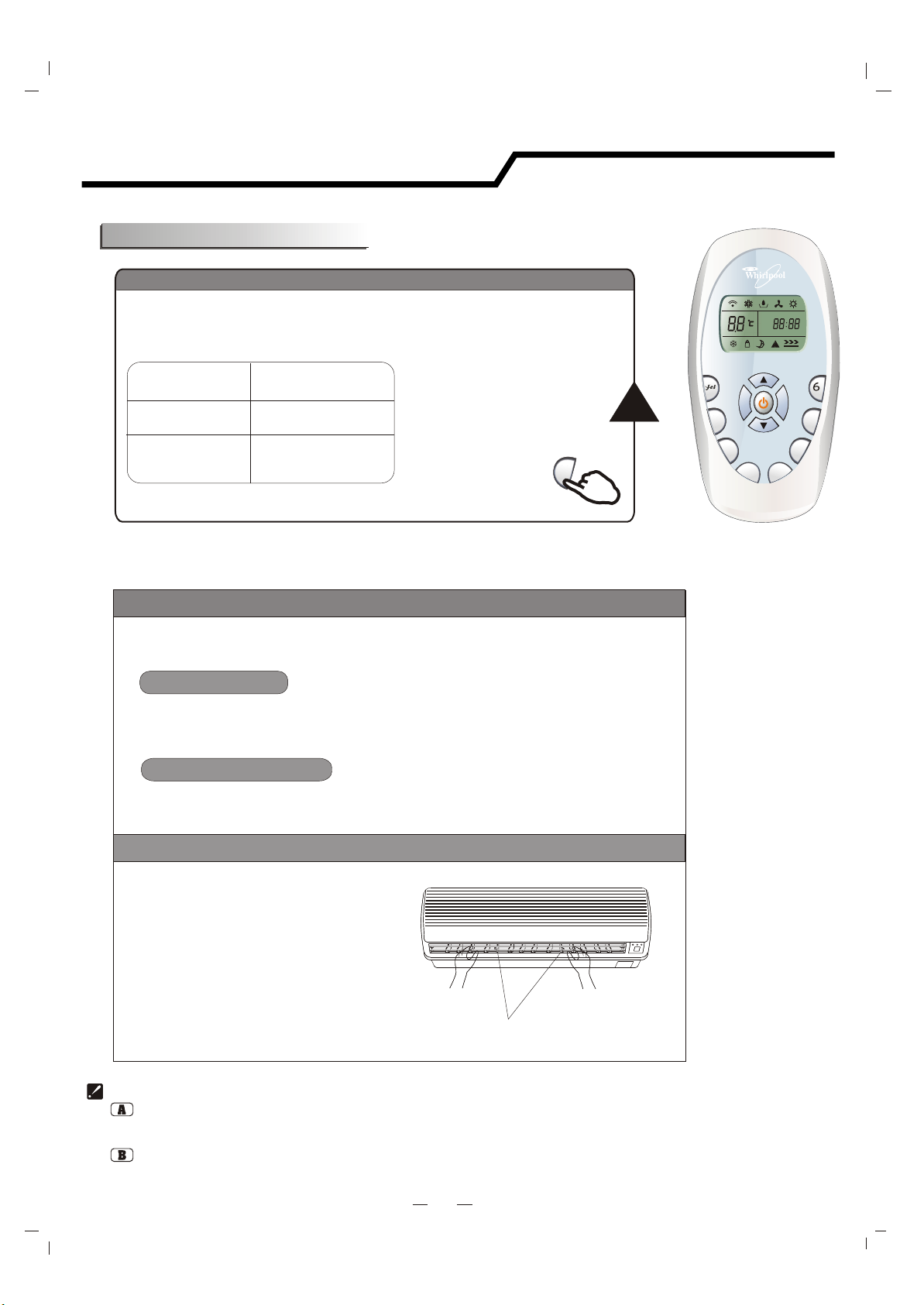

Preparation before use
Before using the air conditioner, be sure to check and preset the following.
Remote Controller presetting
The remote controller is NOT presetting as Cooling Only Air Conditioner or Heat Pump by manufacturer.
Each time after the remote controller replaces batteries or is energized, the Cooling indicator and
Heating indicator will flashes alternately on LCD of the remote controller.
User can preset the remote controller type depending on the air conditioner type you have purchased
as follows:
Press any button when flashes, Heat Pump is set.
Press any button when flashes, Cooling Only is set.
If you don't press any button within 12 seconds, the remote controller is preset as Heat Pump automatically.
Note:
If the air conditioner you purchased is a Cooling Only one, but you preset the remote controller as Heat Pump, it doesn't
bring any matter. But if the air conditioner you purchased is a Heat Pump one, and you preset the remote controller as
Cooling Only, then you CAN NOT preset the Heating operation with the remote controller.
Back-light function (optional)
Hold down any button of remote controller for about 2 seconds, back-light turns on. Release the button,
it lights off automatically 10 seconds later.
Note: Back-light is an optional function.
Auto Restart Presetting
If you want auto restart function,let the appliance is energized, hold down the Emergency
button (ON/OFF) on the indoor unit for over 5 seconds, auto restart function is set with buzz sound,
air conditioner is on standby.
If auto restart has been set, hold down the Emergency button (ON/OFF) on the indoor unit for over 5
seconds, auto restart function is canceled with buzz sound, air conditioner is on standby.
1
Page 3
Safety precautions
Symbols in this Use and Care Manual are interpreted as shown below.
Be sure not to do.
The feature of the appliance,
instead of a fault.
Pay attention to such a situation.
Use correct power supply in
accordance with the rating plate
requirement. Otherwise, serious
faults or hazard may occur or a
fire maybe break out.
Keep the power supply circuit breaker
or plug from dirt. Connect the power
supply cord to it firmly and correctly,
lest an electric shock or a fire break out
due to insufficient contact.
ON
OFF
Be sure to follow this instruction.
Grounding is essential.
Warning: Incorrect handling could
cause a serious hazard, such as death,
serious injury, etc.
ON
OFF
Do not use the power supply circuit
breaker or pull off the plug to turn it off
during operation. This may cause a fire
due to spark, etc.
Do not knit, pull or press the power supply
cord, lest the power supply cord be broken.
An electric shock or fire is probably caused
by a broken power supply cord.
ONON
OFF OFF
T
J
R
E
A
T
M
S
FAN
MODE
T
I
M
G
E
N
R
I
O
W
N
S
T
IM
E
R
EP
E
O
L
F
S
F
CL
O
K
C
C
O
K
L
Turn off the appliance by remote control
firstly before cutting off power supply if
malfunction occurs.
Do not touch the operation buttons
when your hands are wet.
Never insert a stick or similar obstacle
to the unit. Since the fan rotates at high
speed, this may cause an injury.
Do not repair the appliance by yourself.
If this is done incorrectly, it may cause an
electric shock, etc.
Do not put any objects on the outdoor
unit.
2
It is harmful to your health if the cool air
reaches you for a long time. It is advisable
to let the air flow be deflected to all the room.
Prevent the air flow from reaching the gas
burners and stove.
It is the user's responsibility to make the
appliance be grounded according to
local codes or ordinances by a licenced
technician.
Page 4
Identification of parts
Indoor unit
O
NO
N
O
O
J
F
F
E
F
F
T
T
IME
R
O
F
N
A
N
T
I
M
E
R
M
O
OD
F
E
F
T
R
A
M
S
C
L
O
C
K
G
IN
W
S
P
E
E
L
S
L
O
C
K
Air Intake
Front Panel
Emergency Panel
Display Panel
Air Outlet
Vertical Adjustment
Louver
Horizontal Adjustment
Louver
Air Filter
Outdoor unit
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
3
Remote Controller
Air Intake
Pipes and Power
Connection Cord
Drain Hose
Note: Condensate water drains
at COOLING or DRY operation.
Air Outlet
Page 5
Identification of parts
UH series operating and display
Timer Indicator
It lights up during the
set time.
Compressor indicator
It lights up when
.
compressor is running.
Run Indicator
It is on during operation.
It flashes during
defrosting.
Temperature display
Display actual room
temperarure.
Display set temperature.
Sleep Indicator
It lights up when
unit is in sleep mode.
The shape and position of the switches and indicators may vary from different models, but their function are similar.
4
Page 6
Remote controller
Remote controller
The remote controller transmits signals to the system.
ON/OFF BUTTON
1
The appliance will be started when it is
energized or will be stopped when it is
in operation, if you press this button.
MODE BUTTON
2
Press this button to select the operation mode.
3
FAN BUTTON
Used to select fan speed in sequence
auto, high, medium or low.
ROOM TEMPERATURE
5
4
SETTING BUTTONS
Used to adjust the room temperature and
the timer, also real time.
th
BUTTON
sense
Used to enter fuzzy logic operation directly,
regardless of the unit is on or off.
SWING BUTTON
Used to stop or start vertical adjustment
louver swinging and set the desired up/down
airflow direction.
SLEEP BUTTON
Used to set or cancel Sleep Mode operation.
LOCK BUTTON
When you press this button, all the buttons
are locked and not available. Press again to
cancel it.
CLOCK BUTTON
Used to set the current time.
TIMER ON/OFF BUTTON
Used to set or cancel the timer operation.
10
11
6
7
8
9
12
13
12
11
10
4
ONON
OFF OFF
3
th
sense
FAN
TI
M
ER
O
N
T
IMER
O
FF
CLOCK
MODE
LOCK
G
SWIN
EP
E
SL
1
2
6
7
5
8
9
13
BUTTON
Used to start or stop the fast cooling.
(Fast cooling operates at high fan speed with
18 C set temp automatically )
Indication symbols on LCD:
Cooling indicator
Dry indicator
Fan only indicator
Heating indicator
Note: Each mode and relevant function will be further specified in following pages.
Auto fan speed 6th sense indicator
High fan speed
Medium fan speed
Low fan speed
Sleep indicator
Lock indicator
Jet indicator
5
Signal transmit.
ONON
OFF OFF
Display set timer
Display current time
Display set temperature
Page 7
Remote controller
Remote controller
How to Insert the Batteries
Remove the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of
battery are matched correctly.
Reattach the cover by sliding it back into position.
Note:
Use 2 LR03 AA(1.5volt) batteries. Do not use rechargeable batteries.
Replace batteries with new ones of the same type when the display
becomes dim.
If the replacement is done within 1 minute, the remote controller
will keep original presetting. However, if you want to change the
presetting from Heat Pump to Cool Only or Cool Only to Heat Pump,
you should reload batteries 3 minutes after removing the old ones.
(Please refer to page 1 for details.)
Storage and Tips for Using the Remote Controller
The remote controller may be stored mounted on a wall with a holder.
Note: The remote controller holder is an optional part.
ON
ON
OFF
OFF
F
A
A
N
NF
MO
MO
D
D
E
E
How to Use
To operate the room air conditioner, aim
the remote controller to the signal receptor.
The remote controller will operate the air
conditioner at a distance of up to 7m when
pointing at signal receptor of indoor unit.
Choose Cooling Only Remote controller or Heat Pump
ON
ON
OF
F
F OF
F
F
A
A
N
N
M
M
O
O
D
D
E
E
S
U
P
E
O
O
R
N
N
O
O
F
F
F
F
T
I
ME
R
O
N
F
A
N
T
I
M
E
R
O
F
F
M
OD
E
C
L
O
T
C
R
A
K
M
S
G
N
I
SW
L
O
C
P
E
K
E
L
S
Signal receptor
Please refer to page 1 " Preparation before use" for details.
6
Page 8

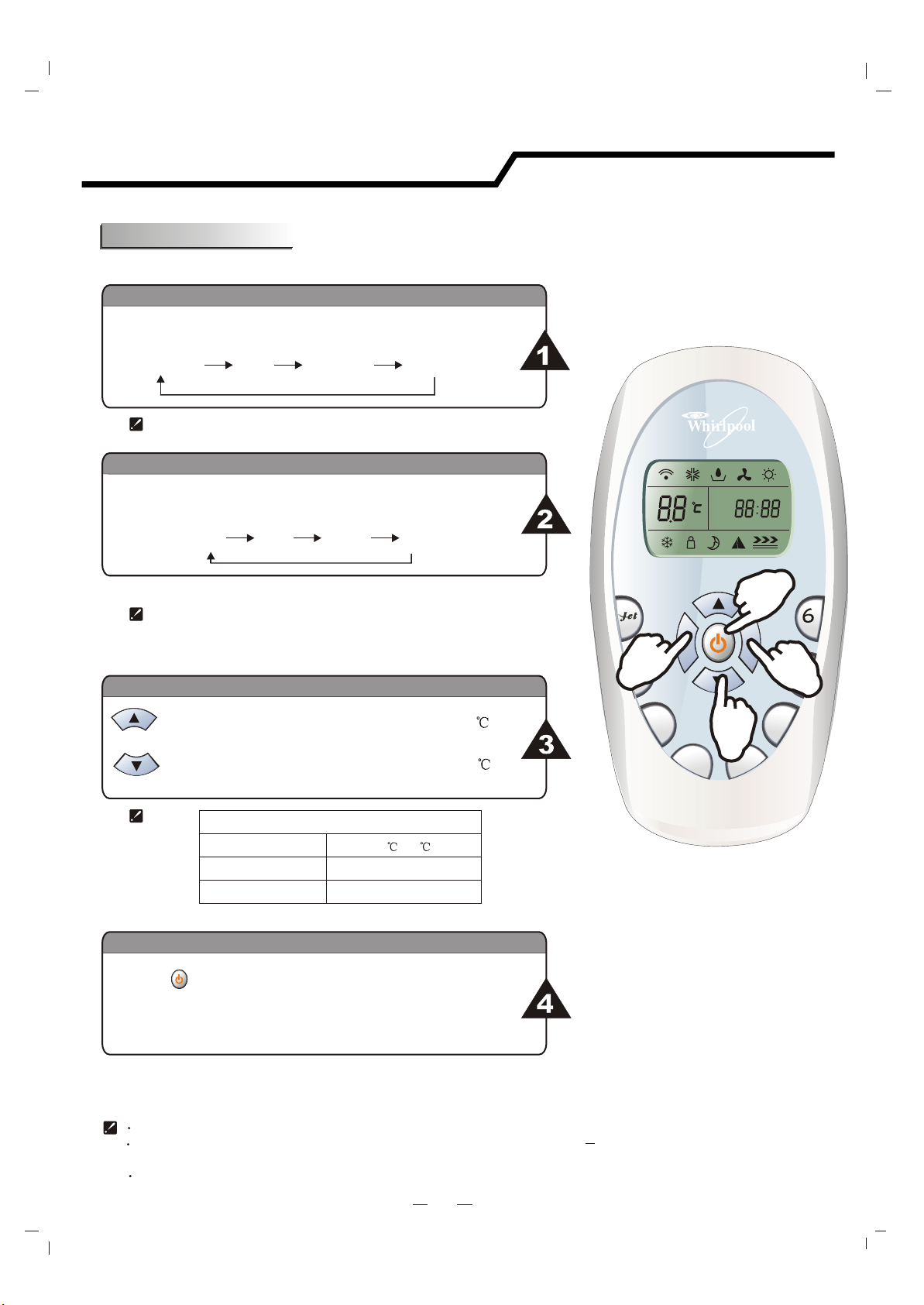

Operation instructions
Operation modes
Selecting mode
Each time MODE button is pressed, the operation mode
is changed in sequence:
COOLING
Heating mode is NOT available for cooling only air conditioner.
DRY
FAN ONLY
FAN mode
HEATING
Each time the "FAN" button is pressed, the fan speed is
changed in sequence:
Auto
At "FAN ONLY" mode, only "High","Medium" and "Low" are available.
At "DRY" mode, Fan speed is set at "Low" automatically, "FAN" button
is ineffective in this case.
High Medium
Low
Setting temperature
Press once to temperature setting by 1raise
Press once to temperature setting by 1lower
Range of available set temperature
*HEATING, COOLING
DRY
ONLY
FAN
*Note: Heating mode is NOT available for cooling only models.
18 ~32
unable to set
unable to set
Turning on
ONON
OFF OFF
4
FAN
T
IME
2
R
ON
T
IMER
O
FF
CLOCK
3
LOC
MODE
K
th
sense
ING
1
SW
EP
E
L
S
Press button, when the appliance receives the
signal, the RUN indicator of the indoor unit lights up.
SWING, 6th sense, TIMER ON, TIMER OFF, CLOCK, SLEEP and Jet operation modes will be
specified in the following pages.
Changing modes during operation, sometimes the unit does not response at once. Wait 3 minutes.
During heating operation, air flow is not discharged at the beginning. After 2 5 minutes, the air flow will be discharged
until temperature of indoor heat exchanger rises.
Wait 3 minutes before restarting the appliance.
7
Page 9
Operation instructions
Airflow direction control
Airflow direction control
Vertical airflow is automatically adjusted to a certain angle
in accordance with the operation mode after turning on the unit.
The direction of airflow can be
Operation mode
Direction of airflow
also adjusted to your own
requirement by pressing the
COOLING, DRY
horizontal
"SWING" button of the
remote controller.
*HEATING,
FAN ONLY
*Heating mode is only available for heat pump models.
downward
G
IN
SW
Vertical airflow control (with the remote controller)
Using remote controller to set various angles of flow or specific angle
as you like.
Swinging airflow
Pressing "SWING" button once, the vertical adjustment
louver will swing up and down automatically.
5
ONON
OFF OFF
th
FAN
T
I
M
E
R
ON
T
IM
E
R
OFF
C
LO
CK
sense
MODE
ING
W
S
P
E
E
L
S
K
C
LO
Desired direction airflow
Pressing the "SWING" button again when the louvers swing
to a suitable angle as desired.
Horizontal airflow control (with hands)
Turning the control rods of the
horizontal adjustment louvers to
change horizontal air flow as shown.
Note: The shape of the unit may look different
from that of the air conditioner you have selected.
control rods of horizontal
adjustment louvers
Do not turn the vertical adjustment louvers manually, otherwise malfunction may occur. If that happens, turn off the unit
first and cut off the power supply, then restore power supply again.
It is better not to let the vertical adjustment louver tilt downward for a long time at COOLING or DRY mode to prevent
condensed water from dripping.
8
Page 10

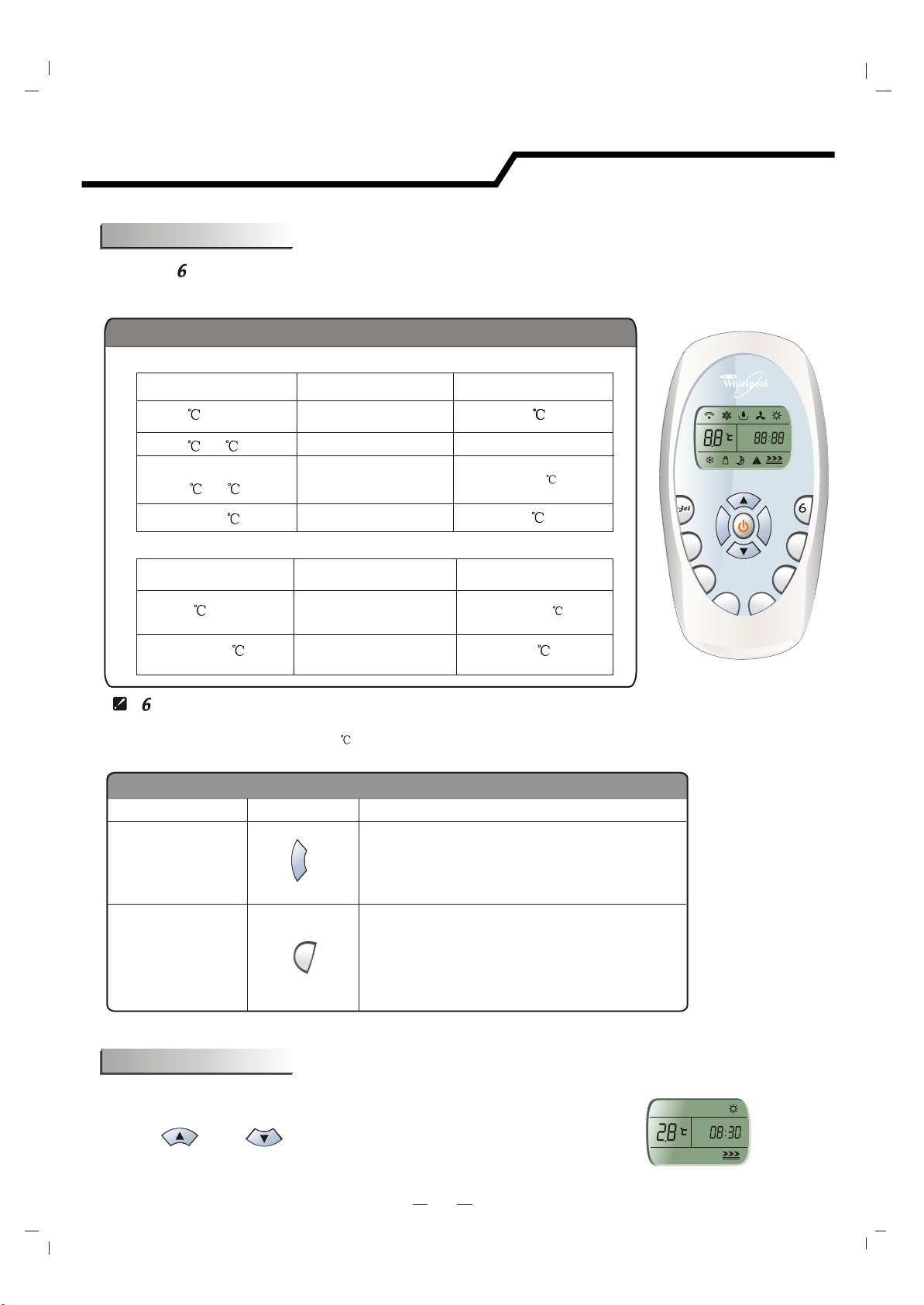

Operation instructions
6th sense mode
Press the button, the unit enters 6th sense mode(fuzzy logic operation) directly regardless of
the unit is on or off. In this mode, temperature and fan speed are automatically set based on the
actual room temperature.
Operation mode and temperature are determined by indoor temperature
Heat pump models
th
sense
Indoor temperature
21 or below
21 -23
Operation mode
HEATING
FAN ONLY
Target temperature
22 22
Room temperature
23 -26
Over 26
DRY
COOLING
decrease 1.5 after
operate for 3 minutes
26
Cooling only models
Indoor temperature
26 or below
Over 26
th
Button is ineffective in Jet mode.
sense
Operation mode
DRY
COOLING
Note: Temperature, airflow and direction are controlled automatically in 6th mode.
However, a decrease or rise of up to 2 can be set with the remote controller if you still
feel uncomfortable.
Target temperature
Room temperature
decrease 1.5 after
operate for 3 minutes
26
What you can do in 6th sense mode
Your feeling
button
adjustment procedure
Uncomfortable
because of
unsuitable air
flow volume.
FAN
Indoor fan speed alternates among
High, Medium and Low each time this
button is pressed.
ONON
OFF OFF
th
FAN
T
I
M
E
R
O
N
T
IM
ER OF
F
C
L
O
C
K
sense
MODE
WING
S
P
EE
L
S
CK
O
L
Uncomfortable
because of
unsuitable flow
direction.
G
IN
W
S
Press it once, the vertical adjustment
louver swings to change vertical airflow
direction. Press it again, swings stops.
For horizontal airflow direction, please
refer to the previous page for details.
CLOCK button
You can adjust the real time by pressing CLOCK button, then
using and buttons to get the correct time, press
CLOCK button again the real time is set.
9
Page 11

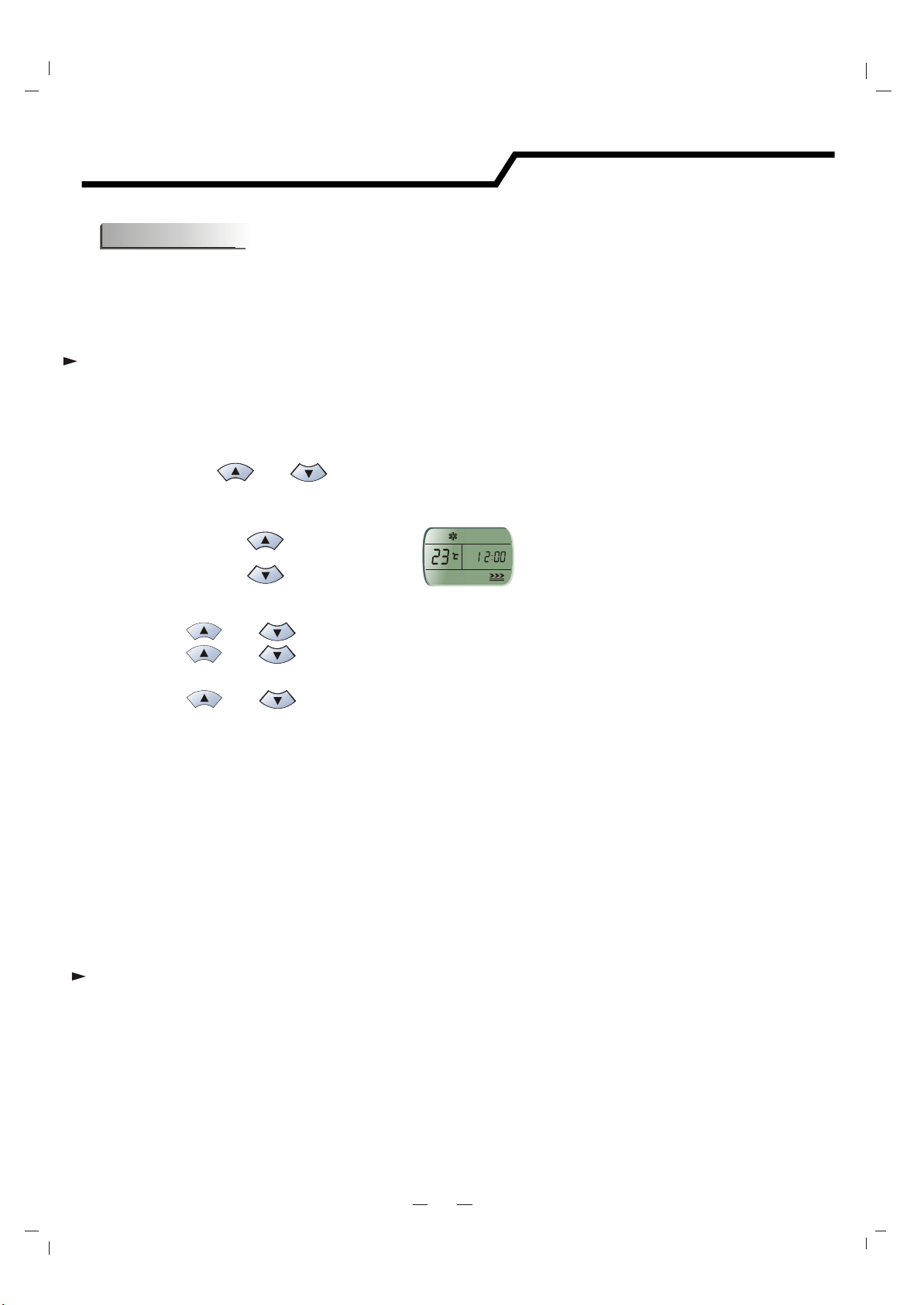

Operation instructions
Timer mode
It is convenient to set the timer on with TIMER ON/OFF buttons when you go out in the
morning to achieve a comfortable room temperature at the time you get home. You can
also set timer off at night to enjoy a good sleep.
How to set TIMER ON
TIMER ON button can be used to set the timer programming as wished in order to
switch on the appliance at your desired time.
i)
Press TIMER ON button, "ON 12:00" flashes on the LCD, then you
can press the or buttons to select your desired time for
appliance on.
Increase
Decrease
Press the button once to increase or decrease the time setting by 1 minute.
Press the button one and a half seconds to increase or decrease the time
or
or
ONON
setting by 10 minute.
Press the button for a longer time to increase or decrease the time by 1 hour.
or
Note: If you don't set the time in 10 seconds after you press TIMER ON button, the remote controller
will exit the TIMER ON mode automatically.
When your desired time displayed on LCD, press the TIMER ON button and confirm it.
ii)
A "beep" can be heard.
"ON" stops flashing.
The TIMER indicator on the indoor unit lights up.
iiI)
After the set timer displayed for 5 seconds the clock will be displayed on the LCD
of the remote controller instead of set timer.
How to cancle TIMER ON
Press the TIMER ON button again, a "beep" can be heard and the indicator disappears,
the TIMER ON mode has been canceled.
Note: It is similar to set TIMER OFF, you can make the appliance switch off automatically at your
desired time.
10
Page 12

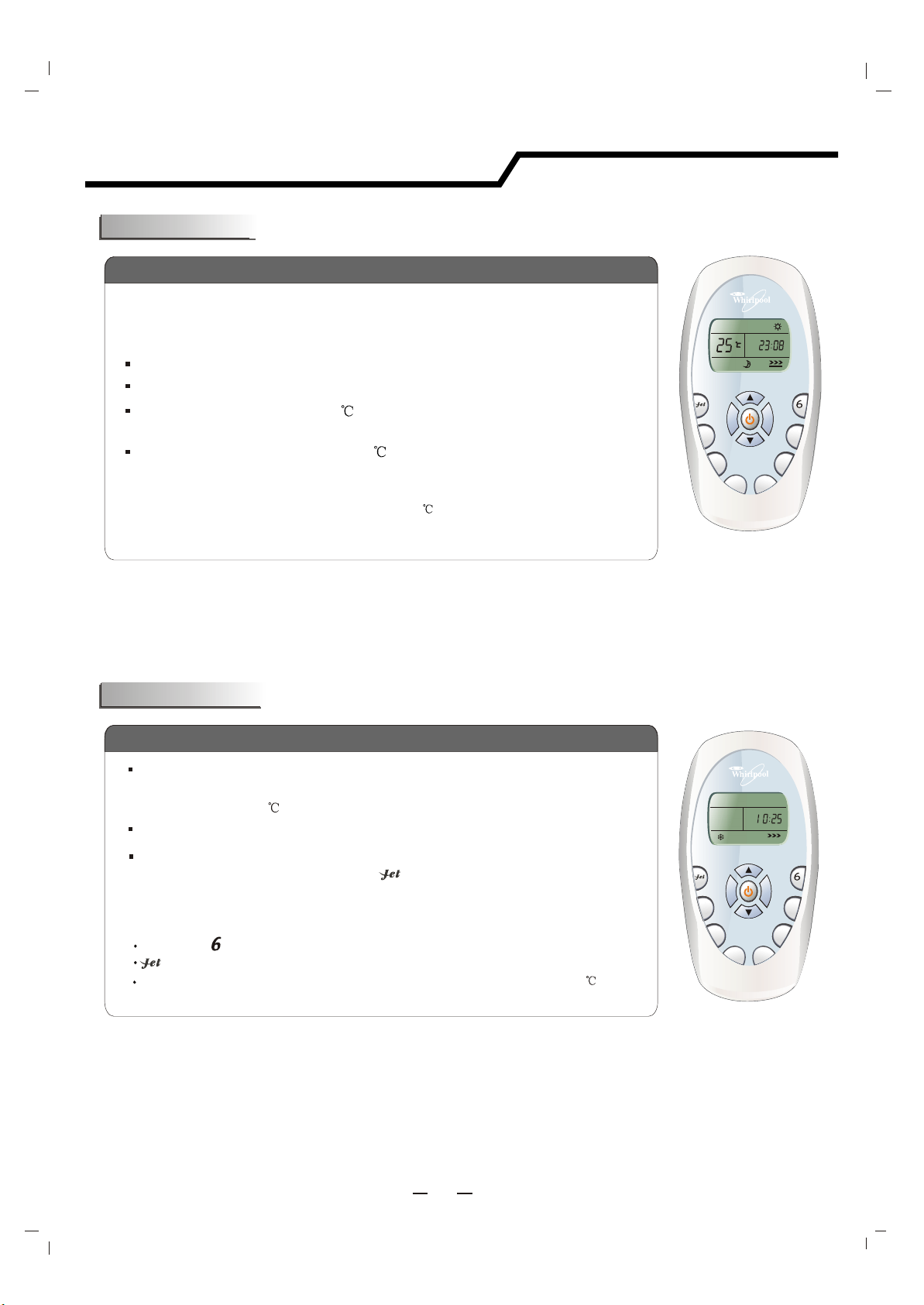

Operation instructions
SLEEP mode
SLEEP mode
SLEEP mode can be set in COOLING or HEATING operation mode.
This function gives you a more comfortable environment for sleep.
In SLEEP mode,
The appliance will stop operation automatically after operating for 8 hours.
Fan speed is automatically set at low speed.
*Set temperature will rise by 1 if the appliance operates in cooling at most
mode for 2 hours constantly, then keeps steady.
Set temperature will decrease by 3 at most if the appliance operates in
heating mode for 3 hours constantly, then keeps steady.
*Note: In cooling mode, if room temperature is 26 or above, set temperature
will not change.
Note: Heating is NOT available for cooling only air conditioner.
ONON
th
FAN
T
I
ME
R
O
N
T
IM
E
R
O
FF
C
L
O
C
K
sense
MODE
G
IN
SW
P
E
E
L
S
K
C
O
L
Jet mode
Jet mode
Jet mode is used to start or stop fast cooling.
Fast cooling operates at high fan speed, changing the set temperature
automatically to 18 .
Jet mode can be set when the appliance is in operation or energized.
In Jet mode, you can set airflow direction or timer. If you want to
escape from Jet mode, press any - , MODE, FAN, ON/OFF
or TEMPERATURE SETTING button, the display will return to the original
mode.
Note:
SLEEP and buttons are not available in Jet mode.
Button is ineffective in HEATING mode.
The Appliance will continue working in Jet mode with set temperature of 18 , if
you don't escape from it by pressing any of the buttons mentioned above.
.
th
sense
th
FAN
T
IM
E
11
R
O
N
T
IMER
OF
F
C
L
OC
K
sense
MODE
G
IN
SW
P
E
E
SL
CK
O
L
11
11
Page 13

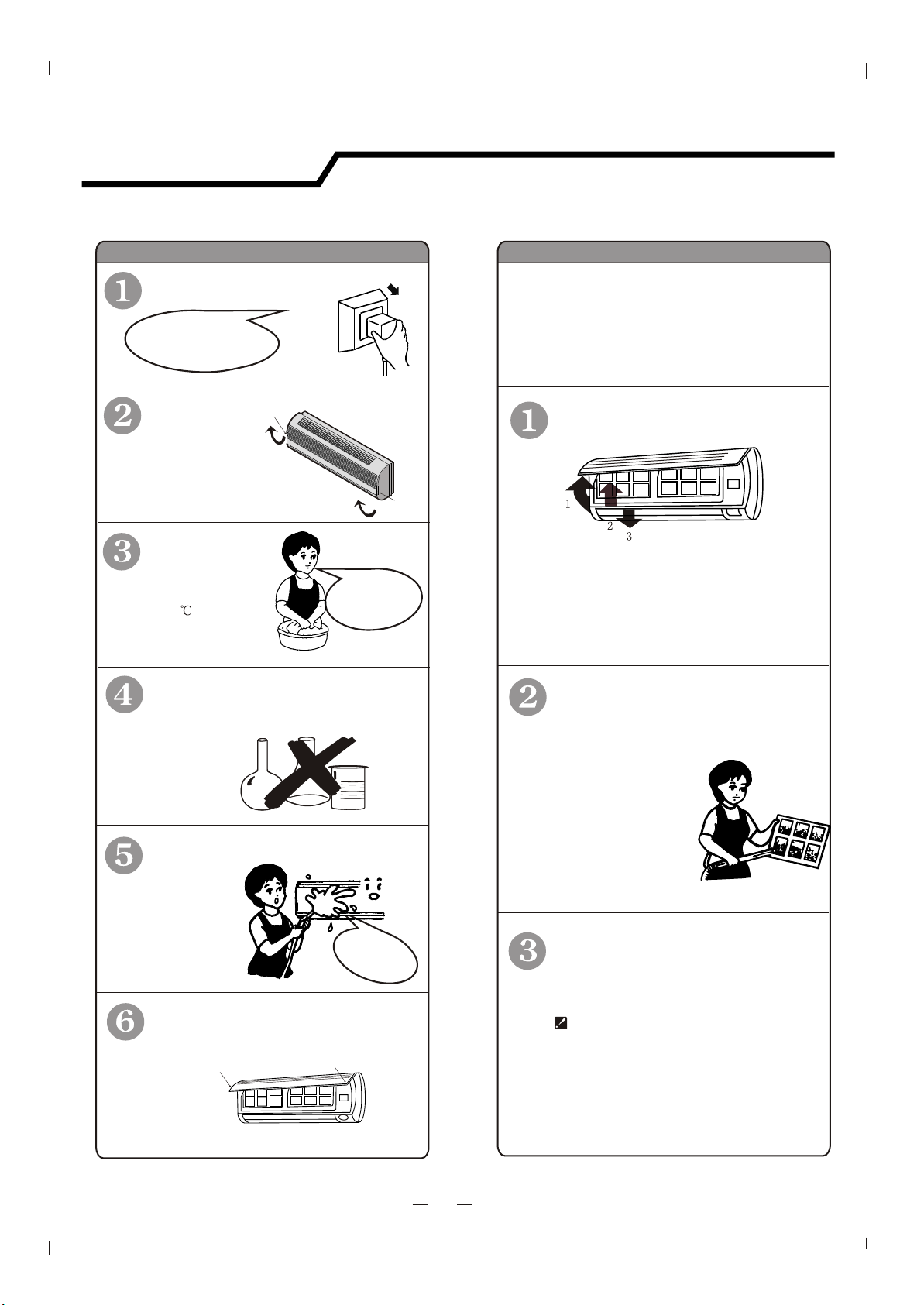

Maintenance
Front panel maintenance Air filter maintenance
Cut off the power supply
Turn off the appliance
first before disconnecting
from power supply.
It is necessary to clean the air filter
after using it for about 100 hours.
Clean it as follows:
a
Grasp position "a" and
pull outward to remove the
front panel.
Wipe with a soft
and dry cloth.
Use lukewarm water
(below 40 ) to clean
if the appliance
is very dirty.
Never use volatile substance
such as gasoline or polishing
powder to clean the appliance.
Never sprinkle water onto the
indoor unit
Use a dry and
soft cloth to
clean it.
Stop the appliance and remove
the air filter.
a
1.Open the front panel.
2.Press the handle of the filter gently
from the front.
3. Grasp the handle and slide out the filter.
Clean and reinstall the air filter.
If the dirt is conspicuous,
wash it with a solution of
detergent in lukewarm water.
After cleaning, dry well in
shade.
Dangerous!
Electric
shock!
Reinstall and shut the front panel.
Reinstall and shut the front panel by
pressing position "b" downward.
b
b
Close the front panel again.
Clean the air filter every two weeks
if the air conditioner operates in an
extremely dusty environment.
12
Page 14
Protection
Operating condition
The protective device maybe trip and stop
the appliance in the cases listed below.
COOLING
Outdoor air temperature is over *43 C
Room temperature is below 21 C
DRY
If the air conditioner runs in COOLING or DRY mode with
door or window opened for a long time when relative
humidity is above 80%,dew may drip down from the outlet.
Room temperature is below 18 C
o
o
o
Features of protector
The protective device will work at following cases.
Noise pollution
Install the air conditioner at a place that
can bear its weight in order to operate
more quietly.
Install the outdoor unit at a place where
the air discharged and the operation noise
would not annoy your neighbors.
Do not place any obstacles in front of the
air outlet of the outdoor unit lest it increases
the noise level.
Restarting the unit at once after operation stops or changing mode during operation, you need to
wait 3 minutes.
Connect to power supply and turn on the unit at once, it may start 20 seconds later.
If all operation has stopped, press ON/OFFbutton again to restart, Timer should be set again
if it has been canceled.
13
Page 15

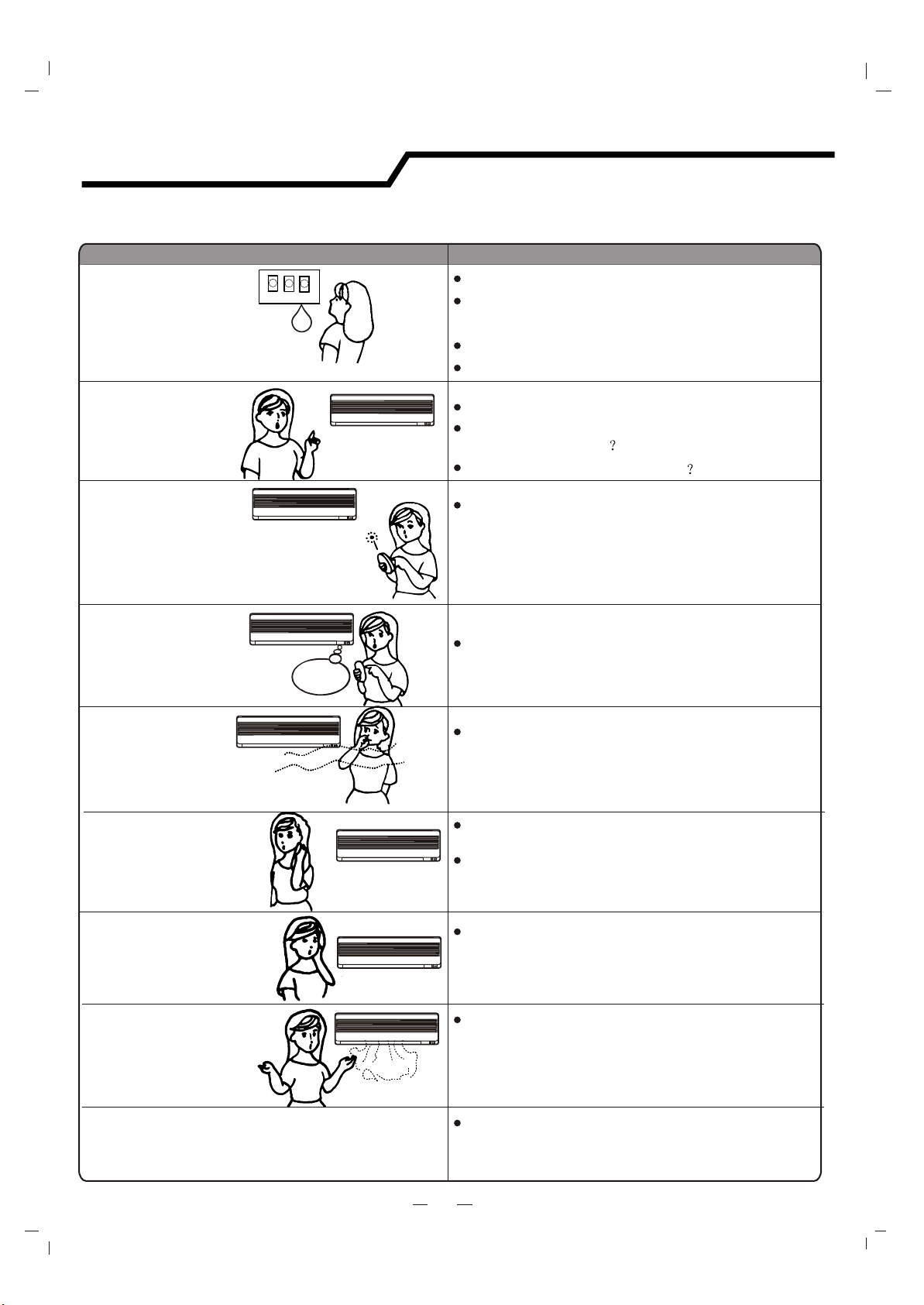

Troubleshooting
The following cases may not always be a malfunction, please check it before asking for service.
Trouble Analysis
If the protector trip or fuse is blown.
Does not run
Please wait for 3 minutes and start again,
protector device may be preventing unit to work.
.
If batteries in the remote controller exhausted.
If the plug is not properly plugged.
No cooling or
heating air
Ineffective control
Does not operate
immediately
Peculiar odor
A sound of
flowing water
Is the air filter dirty?
Are the intakes and outlets of the air
conditioner blocked
Is the temperature set properly
If strong interference(from excessive static
electricity discharge, power supply voltage
abnormality)presents, operation will be
abnormal. At this time, disconnect from the
power supply and connect back 2-3 seconds later.
Changing mode during operation, 3 minutes
will delay.
don't run
This odor may come from another source
such as furniture, cigarette etc, which is
sucked in the unit and blows out with the air.
Caused by the flow of refrigerant in the
air conditioner, not a trouble.
Defrosting sound in heating mode.
Cracking sound is
heard
Spray mist from
the outlet
The compressor indicator(red) lights on constantly,
and indoor fan stops.
14
The sound may be generated by the expansion
or contraction of the front panel due to change
of temperature.
Mist appears when the room air becomes
very cold because of cool air discharged
from indoor unit during COOLING or DRY
operation mode.
The unit is shifting from heating mode to defrost.
The indicator will lights off within ten minutes and
returns to heating mode.
Page 16

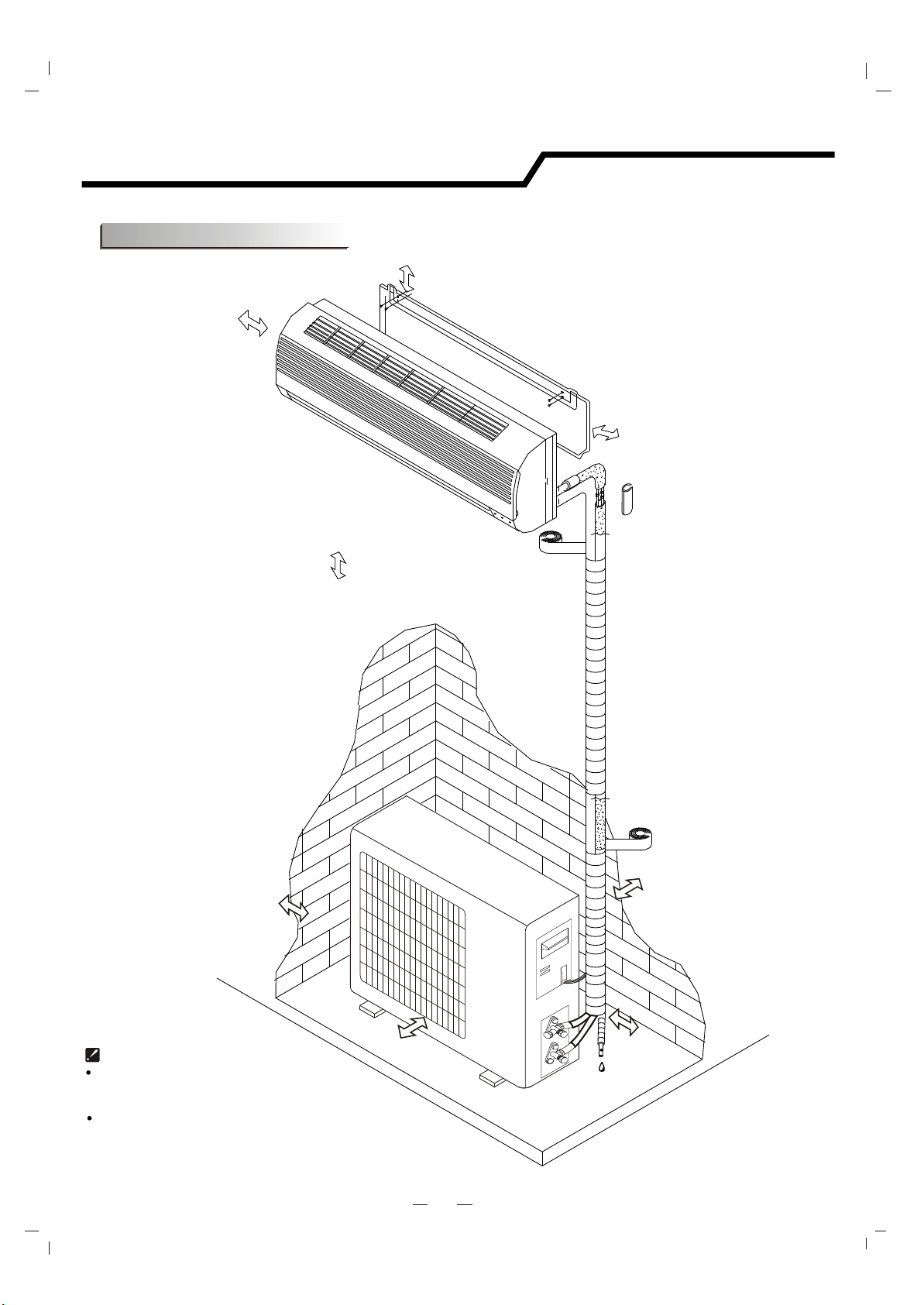

Installation instructions
Installation diagram
Distance from ceiling
Distance from wall
should be over 50mm
Distance from floor
should be over 2000mm
should be over 50 mm
Distance from the wall
should be over 50mm
Air intake distance from
the wall should be
over 250mm
air
ou
should
tlet d
istance
be
ov
er 500m
from the w
Above figure is only a simple presentation
of the unit, it may not match the external
appearance of the unit you purchased.
Installation must be performed in accordance with
the national wiring standards by authorized personnel only.
m
15
all
Air intake distance from the wall
should be over 250mm
over 250mm
Page 17
Installation instructions
Select the
best l
oca
tion
Location for Installing Indoor Unit
Where there is no obstacle near the air outlet and air can be
easily blown to every corner.
Where piping and wall hole can be easily arranged.
Keep the required space from the unit to the ceiling and wall
according to the installation diagram on previous page.
Where the air filter can be easily removed.
Keep the unit and remote controller 1m or more apart from
television, radio etc.
To prevent the effects of a fluorescent lamps, keep as far as
possible.
Do not put anything near the air inlet to obstruct it from air
absorption.
Where there is strong enough to bear the weight
and is not tend to increase operation noise and vibration.

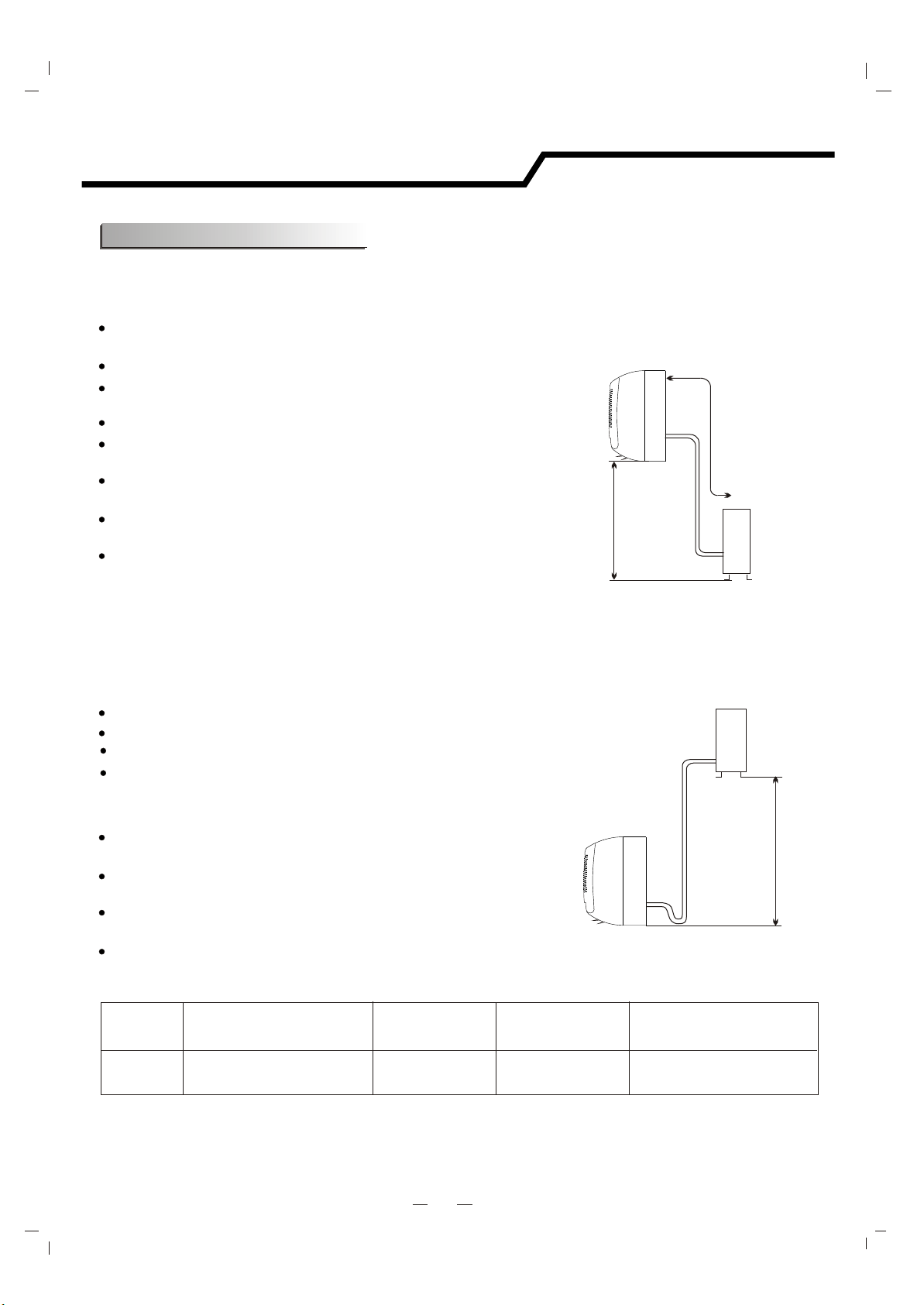

Location for Installing Outdoor Unit
Where it is convenient to install and well ventilated.
Avoid installing it where flammable gas could leak.
Keep the required distance apart from the wall.
The distance between Indoor and outdoor unit should
be 5 meters and can go up to maximum 15 meters
with additional refrigerant charge.
Keep the outdoor unit away from a place of greasy dirt,
vulcanization gas exit.
Avoid installing it at the roadside where there is a risk of
muddy water.
A fixed base where is not subject to increasing operation
noise.
Where there is not any blockage for air outlet.
m
d
ul
n 5
a
h
sho
t
t
ess
gh
l
i
e
e
H
b
Pipe length is
15 meters Max.
Indoor unit
Indoor unit
Pipe length is
15 meters Max.
Outdoor unit
Outdoor unit
m
uld
n 5
o
a
h
s
h
t
t
gh
less
ei
e
H
b
Model
Max. Allowable Tubing
Length at Shipment (m)
Limit of Tubing
Length (m)
Limit of Elevation
Difference H (m)
Required amount of
additional refrigerant (g/m)
9K~18K 5 15 5 20
16
Page 18

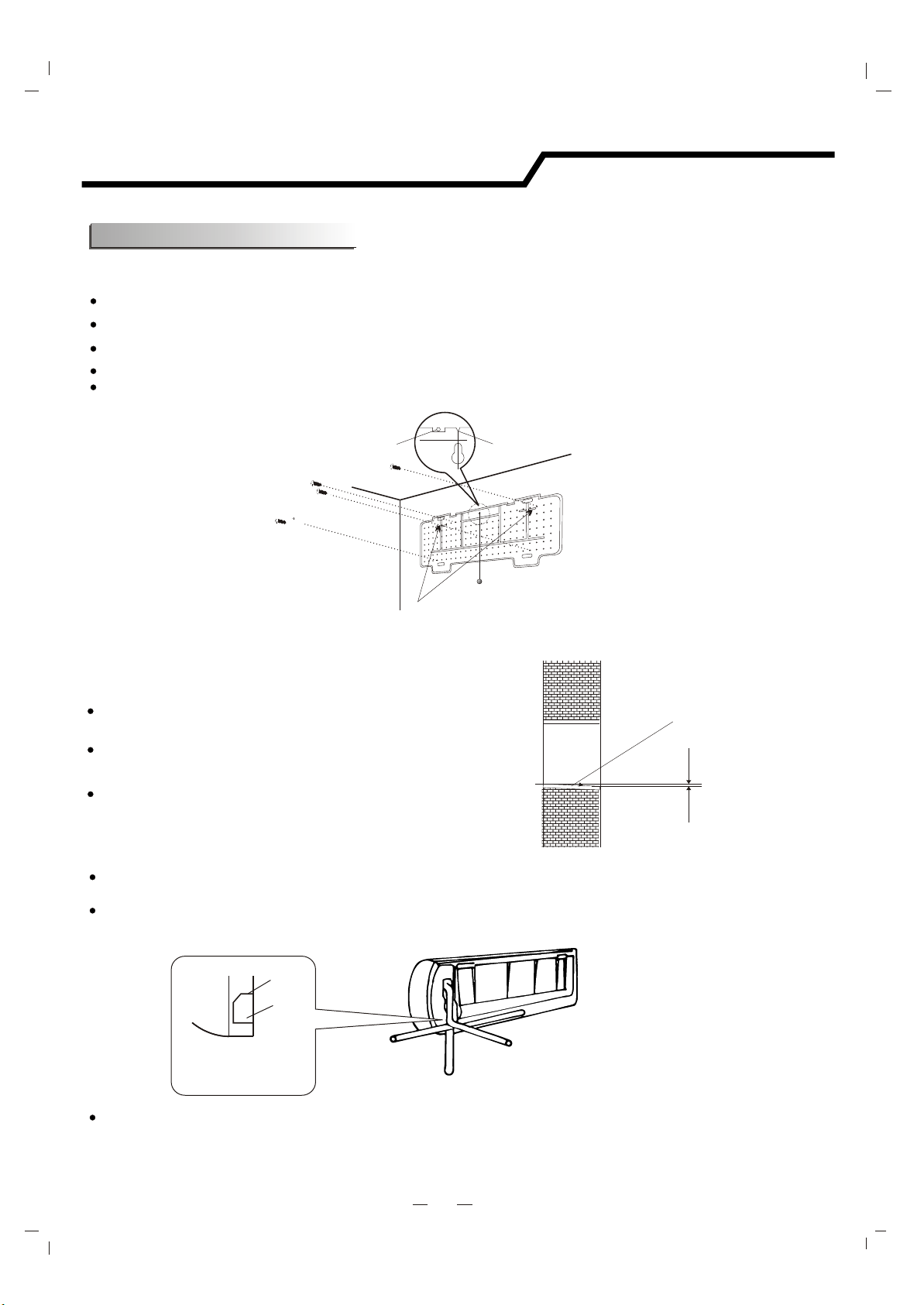

Installation instructions
Indoor unit installation
1. Installing the Mounting Plate
Decide an installing location for the mounting plate according to the indoor unit location and piping direction.
. Keep the mounting plate horizontally with a horizontal ruler or dropping line.
Drill holes of 32mm in depth on the wall for fixing the plate.
Insert the plastic plugs to the hole, fix the mounting plate with tapping screws.
Inspect if the mounting plate is well fixed. Then drill a hole for piping.
Hook the line here
holes for fixing
Note: The shape of your mounting plate may be different from the one above, but installation method is similar.
2. Drill a Hole for Piping
Decide the position of hole for piping according to the
location of mounting plate.
Line drops from here
Mounting plate
Dropping line
r
o
o
nd
I
Wall hole sleeve
( hard polythene tube
prepared by user)
Outdoor
Drill a hole on the wall. The hole should tilt a little
downward toward outside.
Install a sleeve through the wall hole to keep the wall
tidy and clean.
5mm
(tilt downward)
3. Indoor Unit Piping Installation
Put the piping (liquid and gas pipe) and cables through the wall hole from outside or put them through
from inside after indoor piping and cables connection complete so as to connect to outdoor unit.
Decide whether saw the unloading piece off in accordance with the piping direction.(as shown below)
Piping direction
trough
Unloading
piece
Saw the unloading piece
off along the trough
1
2
4
3
Note: When installing the pipe at the directions
1,2 or 4, saw the corresponding unloading piece
off the indoor unit base.
After connecting piping as required, install the drain hose. Then connect the power cords. After connecting,
wrap the piping, cords and drain hose together with thermal insulation materials.
17
Page 19

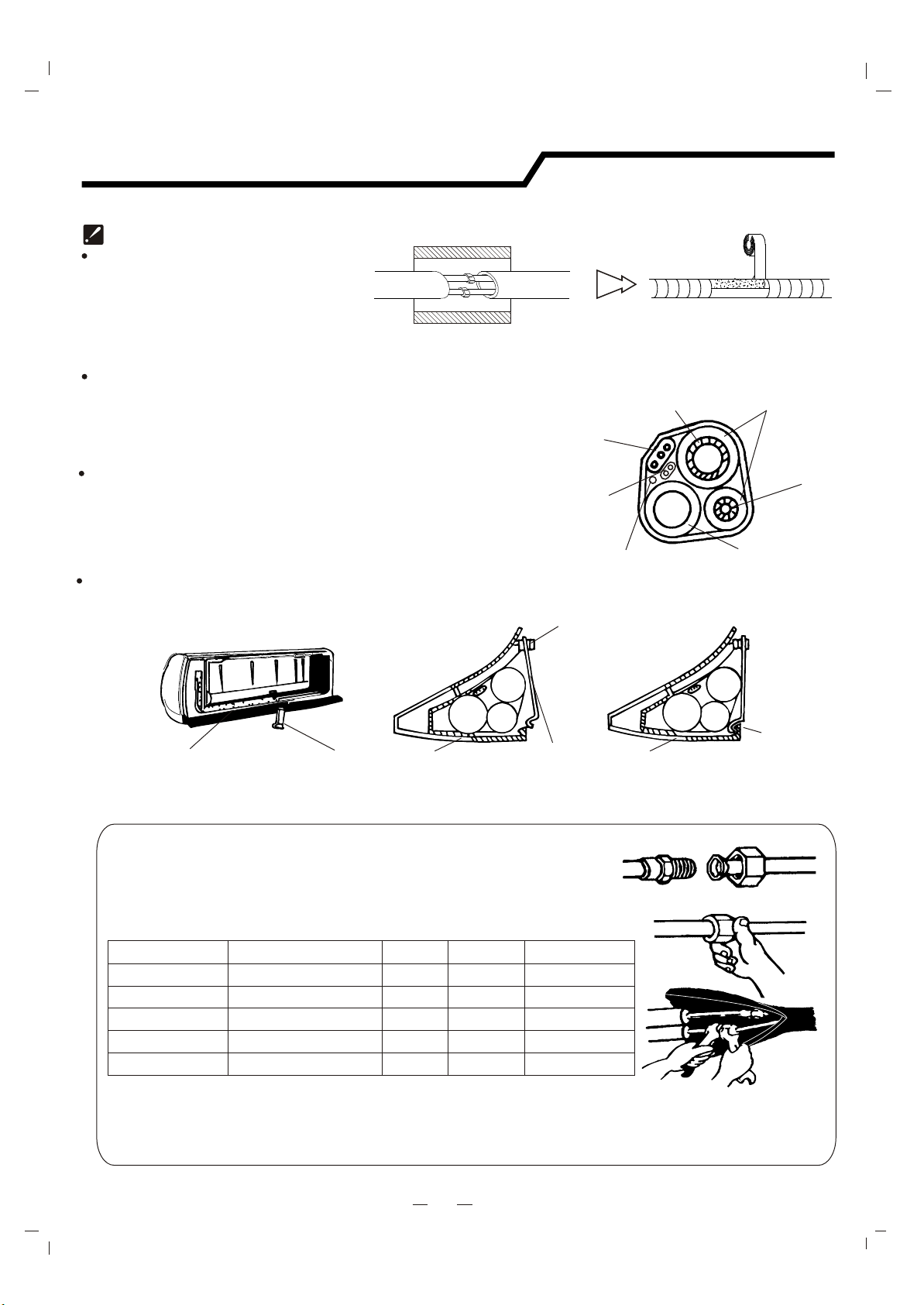

Installation instructions
Piping Joints Thermal Insulation:
Wrap the piping joints with thermal
insulation materials and then wrap
with a vinyl tape.
Thermal insulation
Piping Thermal Insulation:
wrapped with vinyl type
a. Place the drain hose under the piping.
b. Insulation material uses polythene foam over 6mm in thickness.
Note: Drain hose is prepared by user.
Drain pipe should point downward for easy drain flow.
Do not arrange the drain pipe twisted, sticking out or wave
around, do not immerse the end of it in water.
Power cord 1
(for heat-pump)
If an extension drain hose is connected to the drain pipe, make
sure to thermal insulated when passing along the indoor unit.
When the piping is directed to the right, piping, power
Cord and drain pipe should be thermal insulated and
fixed onto the back of the unit with a piping fixer.
large
pipe
drain
small
hose
pipe
Base
Piping fixer
A. Insert the pipe fixer to the slot.
Base
B. Press to hook the pipe fixer onto the base.
Piping fixer
Piping Connection:
a. Connect indoor unit pipes with two wrenches. Pay special attention
to the allowed torque as shown below to prevent the pipes, connectors
and flare nuts from being deformed and damaged.
b. Pre-tighten them with fingers at first, then use the wrenches.
Large pipe
Power cord
Defrost cable(for heat-pump)
Insert here
drain
hose
Base
Thermal insulation
tube
Drain hose
(prepared by user)
large
pipe
small
pipe
Hook here
Small
pipe
Model
9,12K
18K
9K
12K
18K
Pipe size
Liquid Side (1/4 inch)
Liquid Side (3/8 inch)
Gas Side (3/8 inch)
Gas Side (1/2 inch)
Gas Side (5/8 inch)
1.8kg.m
3.5kg.m
3.5kg.m
5.5kg.m
7.5kg.m
Torque
Nut width
17mm
22mm
22mm
24mm
27mm
18
Min.thickness
0.6mm
0.6mm
0.6mm
0.6mm
0.6mm
Page 20
Installation instructions

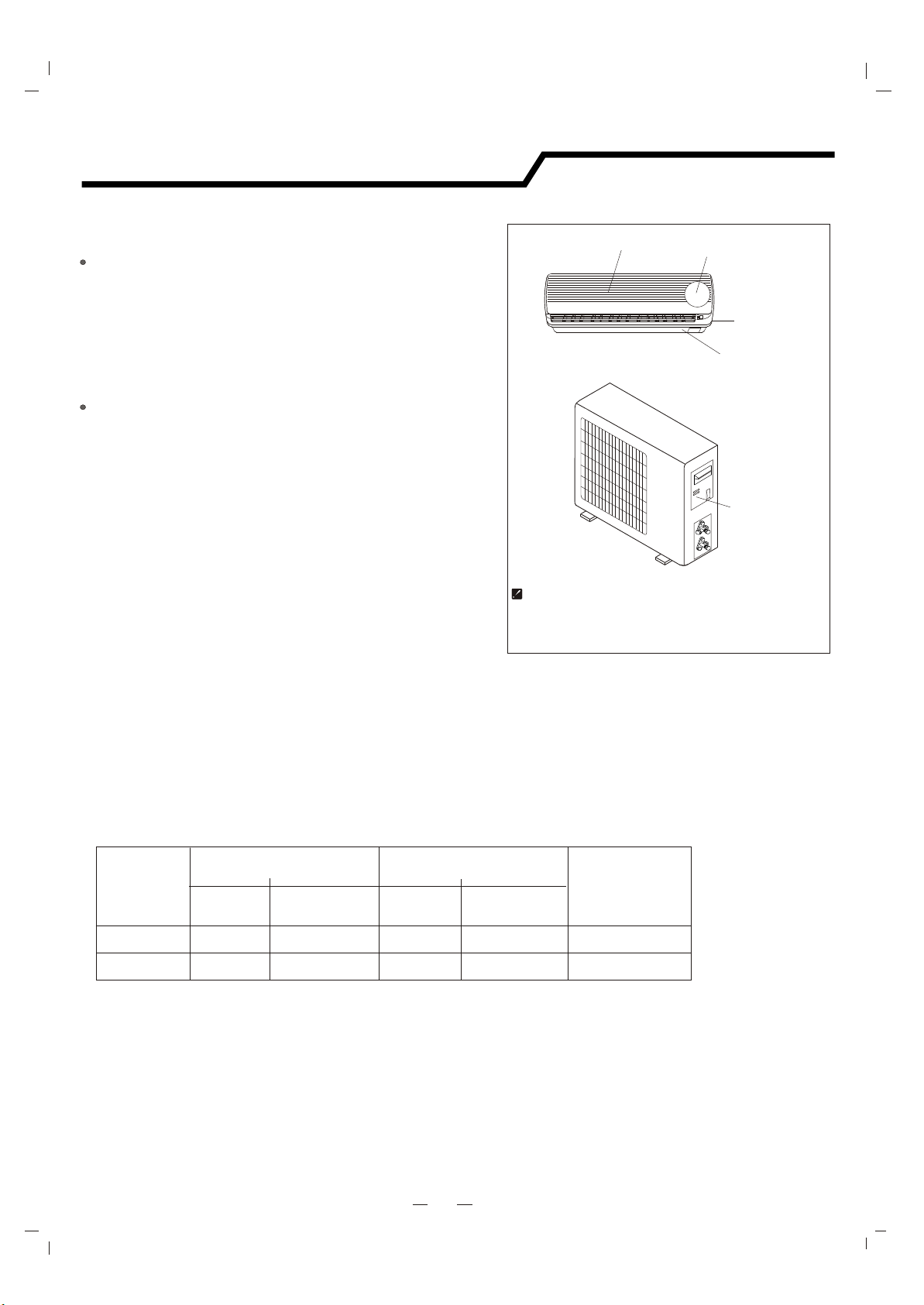

4. Connecting of the Cable
Front panel
Terminal (inside)
Indoor Unit
Connect the power connecting cord to the indoor unit
by connecting the wires to the terminals on the control
board individually in accordance with the outdoor unit
connection.
Note: For some models, it is necessary to remove the cabinet to
connect to indoor unit terminal.
Indoor unit
Cabinet
Chassis
Outdoor Unit
1). Remove the access door from the unit by loosening
the screw. Connect the wires to the terminals on the
control board individually as the following.
2). Secure the power connecting cord onto the control
board with cable clamp.
Access door
Terminal(inside)
3). Reinstall the access door to the original position
with the screw.
Outdoor unit
The figures in this manual are based on the external
view of a standard model. Consequently, the shape
may differ from that of the air conditioner you have
selected.
Caution:
1. Never fail to have an individual power circuit specifically for the air conditioner. As for the method of
wiring, refer to the circuit diagram posted on the inside of the access door .
2.Comfirm that the cable thickness is as specified in the power source specification.
(See the cable specification table below)
3.Check the wires and make sure that they are all tightly fastened after cable connection.
4. Be sure to install an earth leakage circuit breaker in wet or moist area.
Cable Specifications
Capacity
(Btu/h)
9K,12K
18K
Power cord
Typ e
H05VV-F
RVV
Normal cross
- sectional area
1.0~1.5mm X3
1.5~2.0mm X3
Power connecting cord
Normal cross
- sectional area
2
2
Typ e
H07RN-FH05VV-F
H07RN-F
1.5mm X3
1.5mm X3
2
2
Main
power
supply
To indoor
To indoor
Attention:
Accessibility to the plug must be guaranteed even after the installation of the appliance to disconnect
it in case of need. If not possible, connect appliance to a double-pole switching device with contact
separation of at least 3 mm placed in an accessible position even after installation.
19
Page 21
Installation instructions

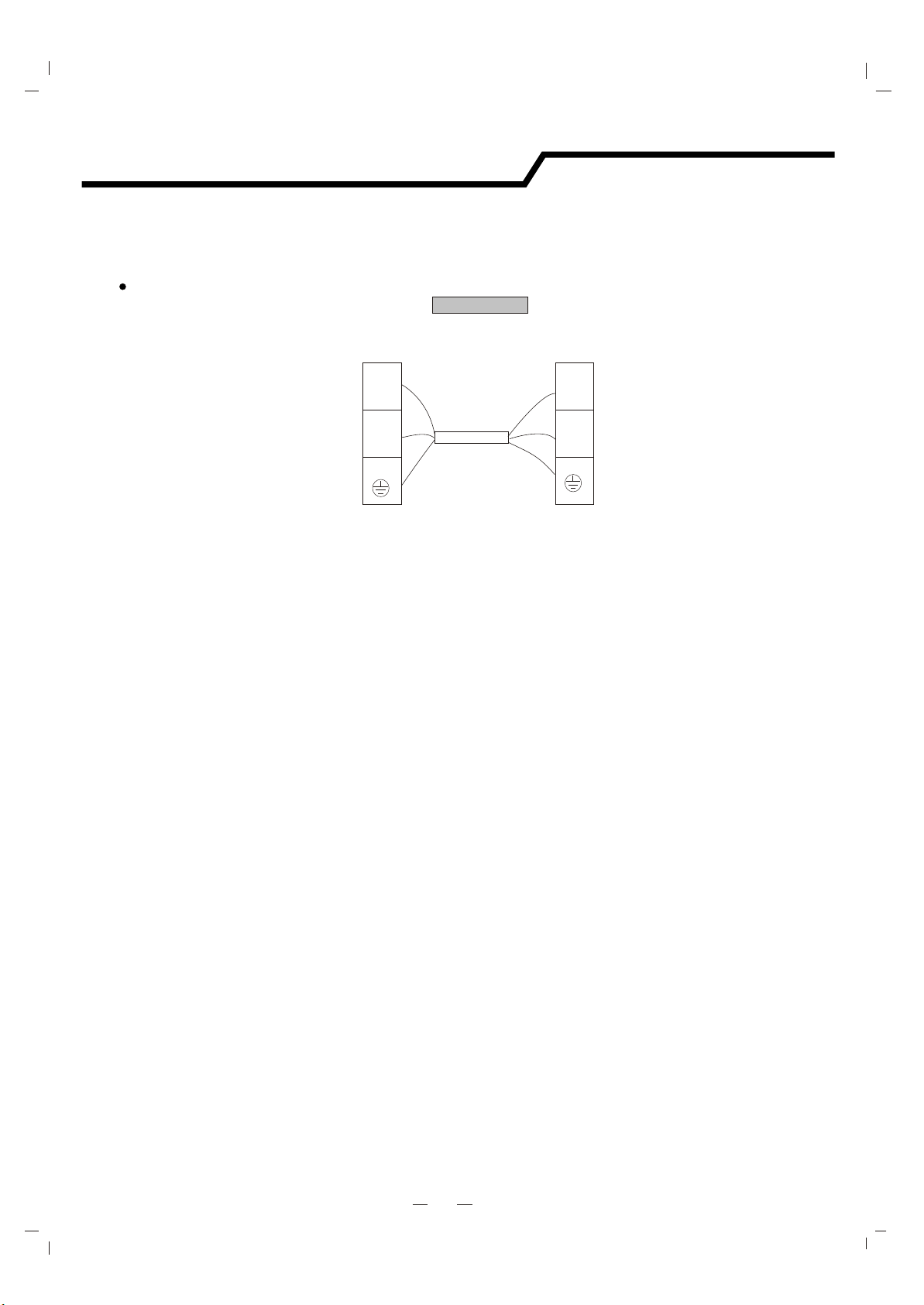

Wiring Diagram
Make sure that the color of wires of the outdoor unit and the terminal No. are the same as those
of the indoor unit.
9K,12K,18K Model
COOLING ONLY
Indoor unit
Outdoor unit
Terminal Terminal
1L
Brown
Blue
Power connecting cord
Yellow/Green
Brown
Blue
Yellow/Green
1L
NN
For above models, the power supply are connected from indoor unit.
20
Page 22

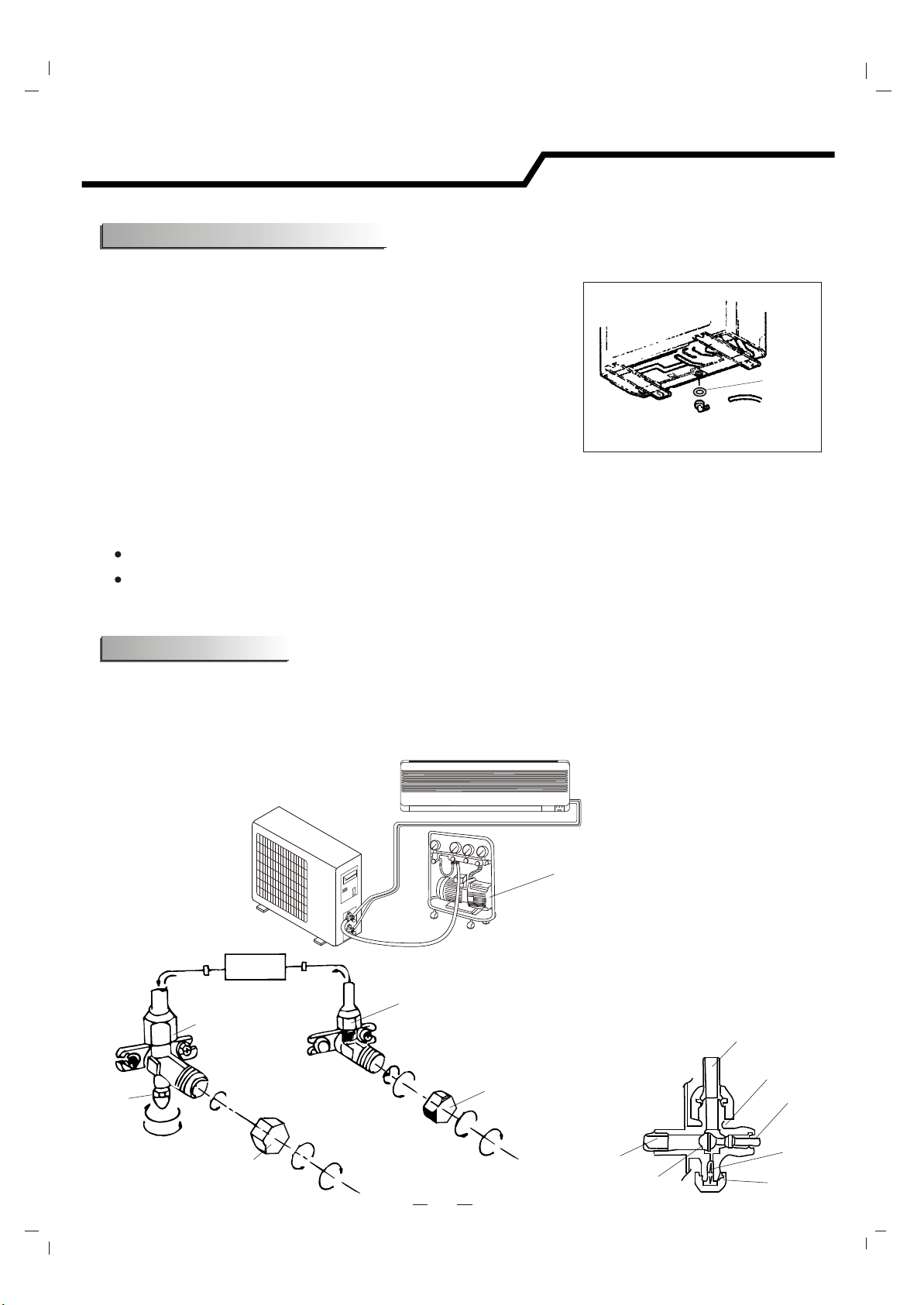

Installation instructions
Outdoor unit installation
1.Install Drain Port and Drain Hose (for heat-pump model only)
The condensate drains from the outdoor unit when the unit operates
in heating mode. In order not to disturb your neighbor and protect
the environment, install a drain port and a drain hose to direct the
condensate water. Just install the drain port and rubber washer to
the chassis of the outdoor unit, then connect a drain hose to the
port as the right figure shown.
2. Install and Fix Outdoor Unit
Fix with bolts and nuts tightly on a flat and strong floor.
If installed on the wall or roof, make sure to fix the supporter well to prevent it
from shaking due to serious vibration or strong wind.
3. Outdoor Unit Piping Connection
Remove the valve caps from the 2-way and 3-way valve.
Connect the pipes to the 2-way and 3-way valves separately according to the required torque.
4. Outdoor Unit Cable Connection (see previous page)
Drain port
Washer
Drain hose
(prepare by user)
Air purging
The air which contains moisture remaining in the refrigeration cycle may cause a malfunction on the
compressor. After connecting the indoor and outdoor units, evacuate air and moisture from refrigerant
cycle using a vacuum pump, as shown below.
Note: To protect the environment, be sure not to discharge the refrigerant to the air directly.
See next page for air purging steps.
Vacuum pump
indoor unit
Service
port
(2) Turn
(8) Tighten
Refrigerant flow direction
3-way valve
(7) Turn to fully open the
valve
Valve cap
(1) Turn
2-way valve
(8) Tighten
(6) Open 1/4 turn
(7) Turn to fully open the valve
valve cap
(1) Turn
(8) Tighten
3-way valve diagram
Connect to outdoor unit
Valve core
connect to indoor unit
open position
service port cap
21
spindle
needle
Page 23
Installation instructions
How to Purge Air Tubes:
(1). Unscrew and remove caps from 2 and 3-way valves.
(2). Unscrew and remove cap from service valve.
(3). Connect vacuum pump flexible hose to the service valve.
(4). Start vacuum pump for 10-15 minutes until reaching a vacuum of 10 mm Hg absolutes.
(5). With vacuum pump still running close the low pressure knob on vacuum pump manifold. Then stop
vacuum pump.
(6). Open 2-way valve 1/4 turn then close it after 10 seconds. Check tightness of all joints using liquid
soap or an electronic leak detector.
(7). Turn 2 and 3-way valves stem to fully the valves. Disconnect vacuum pump flexible hose.
(8). Replace and tighten all valve caps.
Notes
Please read this manual before installing and using it.
Do not let air enter the refrigeration system or discharge refrigerant when moving the air conditioner.
Testing run the air conditioner after finishing installation, and record details of operation.
Type of fuse used on indoor unit controller is 50T, with rating 2.5A,AC250V.
The fuse for the whole unit is to be provided by the user according to the current at maximum power
Input or use other over-current protective device instead.
Only the air conditioner can be connected to the power line.
The power connection for the air conditioner has to be done at the main power distribution which has
to be of a low impedance.
In order to ensure the suitability of the equipment for connection, the user should consult with the
supply authority, if necessary, that the service current capacity at the interface point is sufficient
for the equipment.
Refer to the rating plate of the equipment for power consumption details.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
similarly qualified person in order to avoid a hazard.
22
Loading...
