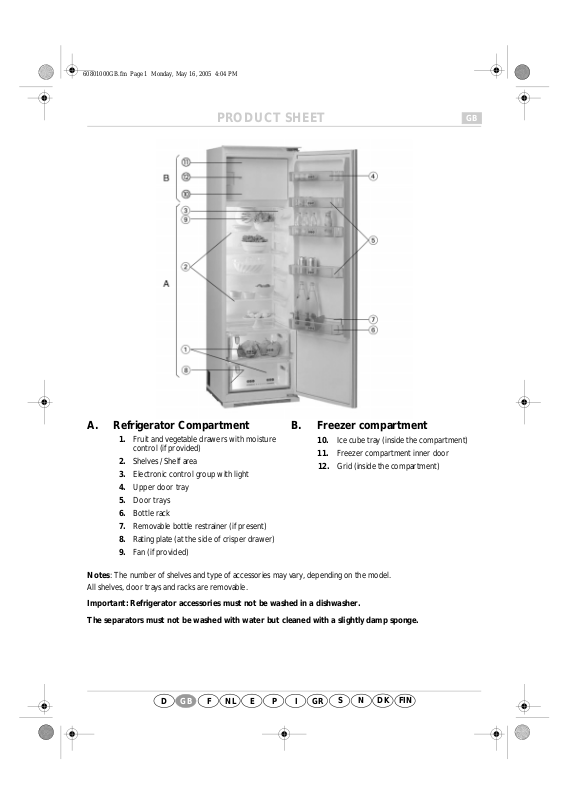

PRODUCT SHEET

A. Refrigerator Compartment

1. Fruit and vegetable drawers with moisture

control (if provided)

2. Shelves / Shelf area

3. Electronic control group with light

4. Upper door tray

5. Door trays

6. Bottle rack

7. Removable bottle restrainer (if present)

8. Rating plate (at the side of crisper drawer)

9. Fan (if provided)

Notes: The number of shelves and type of accessories may vary, depending on the model.

All shelves, door trays and racks are removable.

Important: Refrigerator accessories must not be washed in a dishwasher. The separators must not be washed with water but cleaned with a slightly damp sponge.

B. Freezer compartment

10. Ice cube tray (inside the compartment)

11. Freezer compartment inner door

12. Grid (inside the compartment)

ID F NL E P GR

S N FIN

60801000GB.fm Page 2 Monday, May 16, 2005 4:04 PM

Refrigerator compartment controls

Refrigerator compartment temperature control buttons (+/-)

Displays indicating selected temperature in °C

ON/OFF button for refrigerator compartment

Fast freeze button

Light diffuser release button

Light diffuser

Bulb (max 25 W)

The average recommended thermostat setting is 5.

The refrigerator can operate at ambient temperatures between +10° C and +32° C. Optimal performance is obtained at temperatures between +16° C and +32° C.

: The ambient air temperature, the frequency of door opening and the position of the appliance can affect the

Note

internal temperatures of the refrigerator. These factors must be taken into account when setting the thermostat.

Fan

The fan operates automatically. The fan gives more even temperature distribution inside the refrigerator compartment, thus allowing better

conservation of stored food and reduction of excess moisture.

Do not obstruct the fan intake area (11a) with food.

Removing the light diffuser

1 - Hold the diffuser as shown in the illustration above and press button “E” 2 - Slide cover “F” towards the rear of the appliance

5019 608 01000
