S E R V I C E |
Whirlpool Europe |
Customer Services |
ARG 666/01
Service Manual
Freestanding Cooling
Double Door NO Frost
ARG 666/01
Model |
ARG 666/01 |
|
Version |
8534 666 01030 |
Page |
|
Technical data |
2 |
|
Spare part list |
3 - 4 |
|

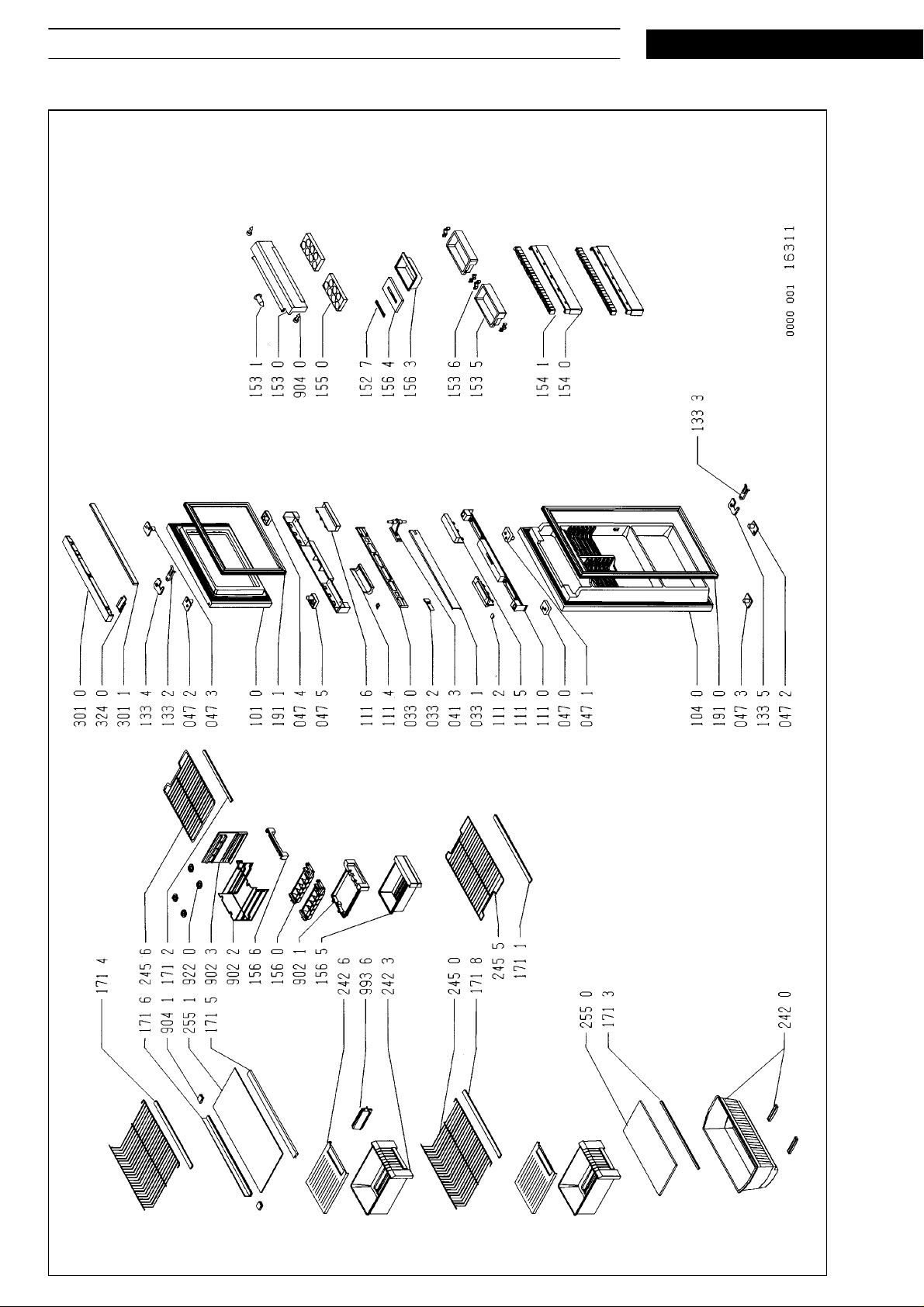

Exploded view |
5 - 7 |
|
Circuit diagram |
8 |
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations. |
|
Date: 18.07.1996 |
Subject to modification |
Document-No.: 4812 711 15305 |
|
18.07.1996 / Page 2 |
|
|
Whirlpool Europe |
|
S E R V I C E |
||
Doc. No: 4812 711 15305 |
|
|
Customer Service |
||||
Technical data |
|
|
|
|
|
|
|
Dimensions |
|
|
Compressor (for service) |
|
|
||
|
|
|
|
||||
Height |
167,0 |
cm |
Type |
B 1119 B |
|||
Width |
71,5 |
cm |
Capacity (CECOMAF) |
160 |
W |
||
Depth |
60,0 |
cm |
|
|
|
|
|
|
|
|
Cooling agent |
|
|
||
Capacity |
|
|
|
|
|
|
|
|
|
|
Type |
R 12 |
|
||
Total |
|
|
Quantity |
200 |
g |
||
|
|
|
|
|
|
||
gross |
352 |
l |
Thermostat |
|
|
||
net |
347 |
l |
|
|
|
|
|
|
|
|
Switching value |
|
|
||
Cooling |
|
|
|
|
|
|
|
|
|
|
Switch on temperature |
|
|
||
gross |
267 |
l |
min. |
- 16,0 |
˚C |
||
net |
265 |
l |
Switch on temperature |
|
|
||
|
|
|
max. |
- 24,0 |
˚C |
||
Freezing |
|
|
Switch off temperature |
|
|
||
|
|
min. |
- 22,0 |
˚C |
|||
|
|
|
|||||
gross |
85 |
l |
Switch off temperature |
|
|
||
max. |
- 30,0 |
˚C |
|||||
net |
82 |
l |
|||||
|
|
|
|
||||
Electrical connection |
|
|
Freezing capacity |
|
|
||
|
|
|
|
|
|
||
Voltage |
220 - 240 V |
in 24 hours |
5,0 |
kg |
|||
|
|
|
|
||||
Frequency |
50 |
Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S E R V I C E |
|
Whirlpool Europe |
|
|
|
18.07.1996 / Page 3 |
||||
|
|
Customer Service |
|
|
|
Doc. No: 4812 711 15305 |
|||||
|
Spare part list |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Model |
|
ARG 666/01 |
|
|
|
|
|
|||
|
Service No. |
853466601030 |
|
|
|
|
|
|
|||
|
Version |
|
853466601030 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|||||
|
Pos. No. 12NC Code |
Description |
|
Pos. No. 12NC Code |
Description |
||||||
011 0 |
4819 500 18124 |
Foot |
|
|
156 5 |
4819 418 78401 |
Icecube,contain |
||||
021 0 |
4819 466 69661 |
Panel,insulatin |
156 6 |
4819 442 28635 |
Panel,front |
||||||
024 0 |
4819 440 99811 |
Cover plate |
171 1 |
4819 460 88516 |
Trim |
||||||
024 1 |
4819 460 49402 |
Insert |
|
|
171 2 |
4819 460 88704 |
Profile |
||||
033 0 |
4819 460 49619 |
Holder |
|
|
171 3 |
4819 460 88416 |
Trim,ornamental |
||||
033 1 |
4819 460 49972 |
Strip,middle |
171 4 |
4819 460 88485 |
Profile |
||||||
033 2 |
4819 401 18677 |
Insert |
|
|
171 5 |
4819 460 88487 |
Profile |
||||
033 4 |
4819 460 49976 |
Front |
|
|
171 6 |
4819 466 98471 |
Spacer |
||||
033 5 |
4819 460 49401 |
Insert |
|
|
171 8 |
4819 460 88486 |
Trim,ornamental |
||||
041 0 |
4819 417 18977 |
Hinge upper,left |
190 0 |
4819 466 69569 |
Gasket |
||||||
041 1 |
4819 417 19372 |
Hinge,upper |
190 1 |
4819 466 69571 |
Gasket |
||||||
041 2 |
4819 417 19289 |
Hinge |
|
|
190 2 |
4819 466 98626 |
Gasket |
||||
041 3 |
4819 417 19238 |
Hinge middle |
191 0 |
4819 466 69644 |
Gasket |
||||||
041 4 |
4819 417 19291 |
Hinge |
|
|
191 1 |
4819 466 69643 |
Gasket |
||||
045 8 |
4819 502 18176 |
Pin,hinge |
200 0 |
4819 418 78807 |
Box |
||||||
045 9 |
4819 535 18048 |
Pin,hinge |
200 1 |
4819 466 98728 |
Insert piece |
||||||
047 0 |
4819 532 68268 |
Bushing lower le./fr.upper |
200 2 |
4819 466 98458 |
Spacer |
||||||
047 1 |
4819 532 68267 |
Bushing lower ri./fr upp. |
200 3 |
4819 462 78842 |
Cover |
||||||
047 2 |
4819 532 68685 |
Bushing |
204 0 |
4819 462 79523 |
Bonnet |
||||||
047 3 |
4819 532 68674 |
Bushing |
204 1 |
4819 466 98729 |
Insert piece |
||||||
047 4 |
4819 532 68389 |
Bushing right |
204 2 |
4819 466 88805 |
Cover f.Evaporator |
||||||
047 5 |
4819 532 68388 |
Bushing left |
231 3 |
4819 401 18338 |
Clamp thermost. |
||||||
071 0 |
4819 442 28127 |
Pedestal |
232 0 |
4819 418 78215 |
Cup,thaw water |
||||||
071 1 |
4819 462 79582 |
Cover plate |
232 1 |
4819 259 38078 |
Heating element f.tray 220V |
||||||
071 3 |
4819 528 38316 |
Excenter |
242 0 |
4819 418 49958 |
Crisper |
||||||
084 0 |
4819 462 48234 |
Buffer piece |
242 2 |
4819 418 78402 |
Drawer |
||||||
084 1 |
4819 462 48235 |
Buffer piece |
242 3 |
4819 418 78294 |
Crisper |
||||||
084 2 |
4819 462 48236 |
Buffer piece |
242 6 |
4819 462 79102 |
Cover plate |
||||||
084 3 |
4819 529 18067 |
Buffer piece |
245 0 |
4819 458 19536 |
Grid |
||||||
101 0 |
4819 442 28308 |
Door |
|
|
245 5 |
4819 458 19614 |
Grill |
||||
104 0 |
4819 442 28312 |
Door |
|
|
245 6 |
4819 458 19708 |
Grid |
||||
105 0 |
4819 532 68272 |
Striker right |
251 3 |
4819 440 99455 |
Diffusor |
||||||
105 1 |
4819 532 68265 |
Striker left |
252 0 |
4819 418 78213 |
Casing |
||||||
111 0 |
4819 460 88481 |
Trim, handle |
252 1 |
4819 460 88473 |
Bracket f.lamp holder |
||||||
111 2 |
4819 462 78906 |
Stopper |
|
|
253 0 |
4819 528 38148 |
Pushbutton cam |
||||
111 4 |
4819 498 69381 |
Handle,door |
255 0 |
4819 466 78148 |
Crisper cover |
||||||
111 5 |
4819 460 88484 |
Cover f.handle |
255 1 |
4819 466 78143 |
Crisper cover |
||||||
111 6 |
4819 452 98641 |
Cover |
|
|
263 2 |
4819 462 38523 |
Rail right |
||||
133 0 |
4819 535 98482 |
Pin |
|
|
263 3 |
4819 462 38524 |
Rail left |
||||
133 1 |
4819 535 98489 |
Pivot |
|
|
301 0 |
4819 442 28131 |
Front |
||||
133 2 |
4819 492 68414 |
Spring |
|
|
301 1 |
4819 442 28625 |
Upper, front |
||||
133 3 |
4819 492 68457 |
Spring |
|
|
320 0 |
4819 442 28306 |
Panel,control |
||||
133 4 |
4819 404 49679 |
Holder f.spring upper |
324 0 |
4819 460 49368 |
Small plate |
||||||
133 5 |
4819 404 49681 |
Holder f.spring lower |
324 1 |
4819 466 98559 |
Spacer |
||||||
152 7 |
4819 458 38036 |
Air regulator |
324 2 |
4819 466 98395 |
Holder f.tube |
||||||
153 0 |
4819 442 28152 |
Trapdoor |
324 3 |
4819 466 98468 |
Cover |
||||||
153 1 |
4819 535 18023 |
Bolt f.flap |
324 4 |
4819 404 49907 |
Cover clamp |
||||||
153 5 |
4819 418 78314 |
Box |
|
|
324 5 |
4819 460 88472 |
Plate distance f.air guide |
||||
153 6 |
4819 492 68427 |
Spring |
|
|
324 6 |
4819 466 98446 |
Air guide |
||||
154 0 |
4819 418 78313 |
Door,dairy |
324 7 |
4819 460 49603 |
Cover f.tube |
||||||
154 1 |
4819 460 88418 |
Bottle holder |
335 0 |
4819 411 28572 |
Knob thermostat |
||||||
155 0 |
4819 460 88483 |
Rack,egg |
335 2 |
4819 535 98369 |
Axle Thermostat |
||||||
156 0 |
4819 418 78391 |
Icecube,contain |
342 0 |
4819 452 98863 |
Thermostat dial |
||||||
156 3 |
4819 418 78717 |
Box,butter |
402 0 |
4819 360 38579 |
Compressor B 1119 B |
||||||
156 4 |
4819 462 79208 |
Lid |
|
|
402 1 |
4819 418 79035 |
Tray,compressor |
||||
|
|
|
|
|
|
|
|
|
|
|
|
