Whirlpool ARC 1790/IX DATASHEET

6gb33053.fm5 Page 1 Tuesday, March 12, 2002 9:47 AM

A

B

3

9

2

11

10

8

PRODUCT SHEET

GB

4

5

7
6

1

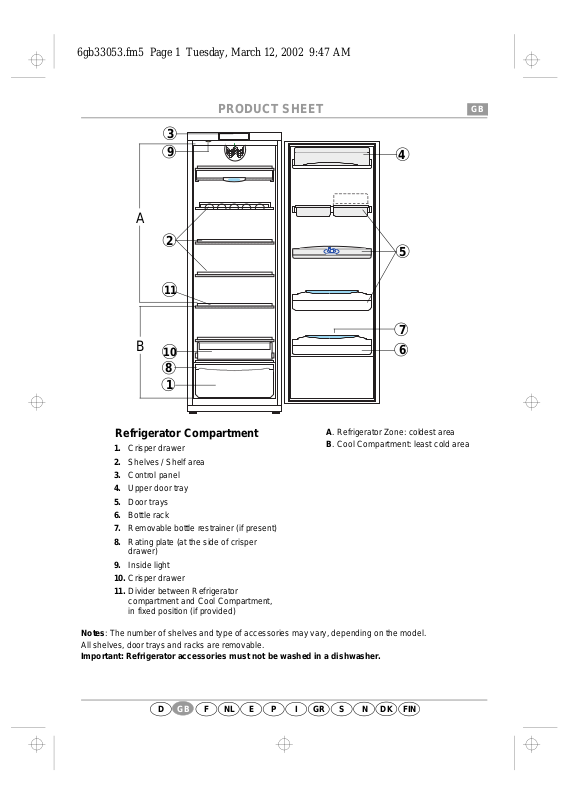

Refrigerator Compartment

1. Crisper drawer

2. Shelves / Shelf area

3. Control panel

4. Upper door tray

5. Door trays

6. Bottle rack

7. Removable bottle restrainer (if present)

8. Rating plate (at the side of crisper

drawer)

9. Inside light

10. Crisper drawer

11. Divider between Refrigerator

compartment and Cool Compartment,
in fixed position (if provided)

Notes: The number of shelves and type of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.

Important: Refrigerator accessories must not be washed in a dishwasher.

A. Refrigerator Zone: coldest area
B. Cool Compartment: least cold area

D F NL E P GR

GB

I

S N FIN

DK

6gb33053.fm5 Page 2 Tuesday, March 12, 2002 9:47 AM

Refrigerator compartment controls

Thermostat knob.

A.

Green LED: indicates that the appliance is

B.

ON. If the LED blinks, contact the After­sales Service.

Fast Cooling button; the function switches

C.

off automatically after approximately 6
hours.

Fast Cooling function activated.

D.

Thermostat knob setting indicator.

E.

(depending on the model)

Display indicating the set temperature. If

A.

the display indicating the set temperature
blinks, contact the After-sales Service.

ON/OFF button.

B.

Temperature selection button.

C.

Fast Cooling button. The function switches

D.

off automatically after approximately 6
hours.

Fast Cooling function activated.

E.

“Vacation” function activation button: for

F.

prolonged disuse.
“Vacation” function activation indicator.

G.

The refrigerator can operate at ambient temperatures between +10°C and +38°C. Optimal performance is
obtained at temperatures between +16°C and +32°C.

: The ambient air temperature, the frequency of door opening and the position of the appliance can

Note

affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.

Removing the light bulb

1 - Unscrew the light bulb as illustrated in the picture.

5019 602 33053
