Whirlpool AKT 805/NE INSTALLATION

AKT 805

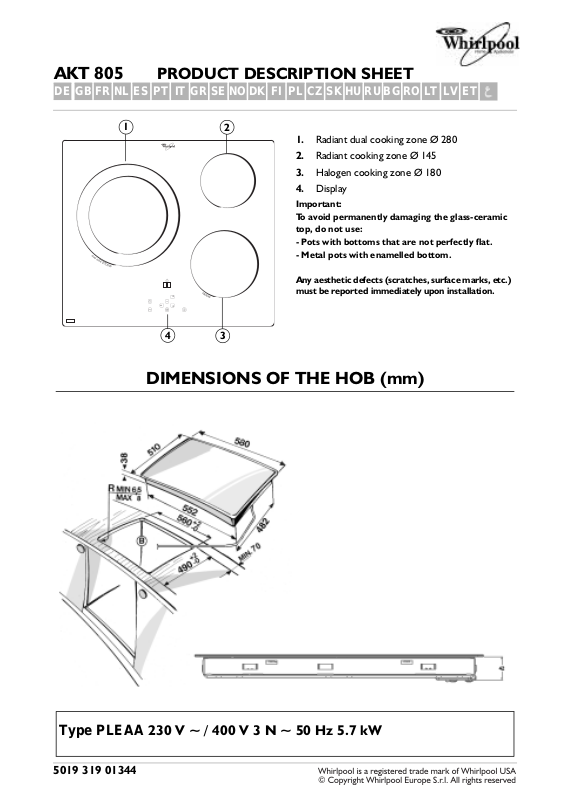

PRODUCT DESCRIPTION SHEET

DE GB FR NL ES PT IT GR SE NO DK FI PL CZ SK HU RU BG RO LT LV ET

1

4

2

1.

Radiant dual cooking zone Ø 280

2.

Radiant cooking zone Ø 145

3.

Halogen cooking zone Ø 180

4.

Display

Important:
To avoid permanently damaging the glass-ceramic

top, do not use:

- Pots with bottoms that are not perfectly flat.

- Metal pots with enamelled bottom.

Any aesthetic defects (scratches, surface marks, etc.)
must be reported immediately upon installation.

3

DIMENSIONS OF THE HOB (mm)

Type PLEAA

5019 319 01344

230 V ~ / 400 V 3 N ~ 50 Hz 5.7 kW

B

E

C

E

A

D

A On/Off D Activates/deactivates the dual cooking zone
B Cooking zone selection and heat setting increase E Child safety device

C Heat setting decrease F Timer

To switch the hob on, hold down button “A” for about 2 seconds. The 4 cooking zone displays show “0”.
If within 20 seconds none of the cooking zones is activated, the hob switches off automatically as a safety
precaution.
Press one of the buttons “B” corresponding to the cooking zone you intend to use.

Select the heat setting required with buttons “B” or “C”. Heat settings go from 1 to 9. Press buttons +/- at the
same time to cancel all settings.
IMPORTANT: the control is deactivated 10 seconds after the heat setting has been selected. To change the heat
setting, first press the selection button “B” again, then proceed to change the setting, using buttons “B” or “C”.

The CHILD SAFETY function is switched on by holding down button “E” until a dot lights up above the function
button. The Child Safety function locks all the hob’s other functions, with the exception of the On/Off button
“A”. This function remains on even after the hob has been switched off and on again. It can cancelled by holding
down button “E” until the dot above the function button switches off.
The TIMER function (if available) can be used both as a minute minder and as a timer for a selected cooking zone.
To programme the timer for a given cooking zone, first select the desired cooking zone using one of the buttons “B”.
To select the function, press the button with the clock symbol “F”. A dot lights up next to the timer display, indicating
the cooking zone selected. Within 20 seconds, set the cooking time using buttons “F”-“C” (1-99 min.). After 20
seconds, the timer function begins automatically and the red indicator dot remains lit.
At the end of the set cooking time, an acoustic signal sounds. If a cooking zone has been programmed to operate
with the timer, it is switched off and the red indicator dot switches off too.
The timer can be used to programme all cooking zones to work simultaneously.
To use the function as a minute minder, press button “F” and then buttons “F”-“C” to set the desired time.
When the set time has elapsed, an acoustic signal sounds.
DUAL COOKING ZONE function (if available). Press the button “D” to deactivate or activate the outer ring
of the dual cooking zone.

RESIDUAL HEAT INDICATOR.
When the cooking zone is switched off, the residual heat indicator “H” remains on or flashes alternating with “0”

H

until the temperature of the hob returns within safety levels.

IMPORTANT: For safety reasons, the hob is equipped with an automatic cut-off function. Prolonged use of the same heat
setting triggers automatic switch-off of the cooking zone (for example, after around 1 hour at maximum heat setting, the
cooking zone switches off).
