Whirlpool AKP 638 WH PROGRAM CHART

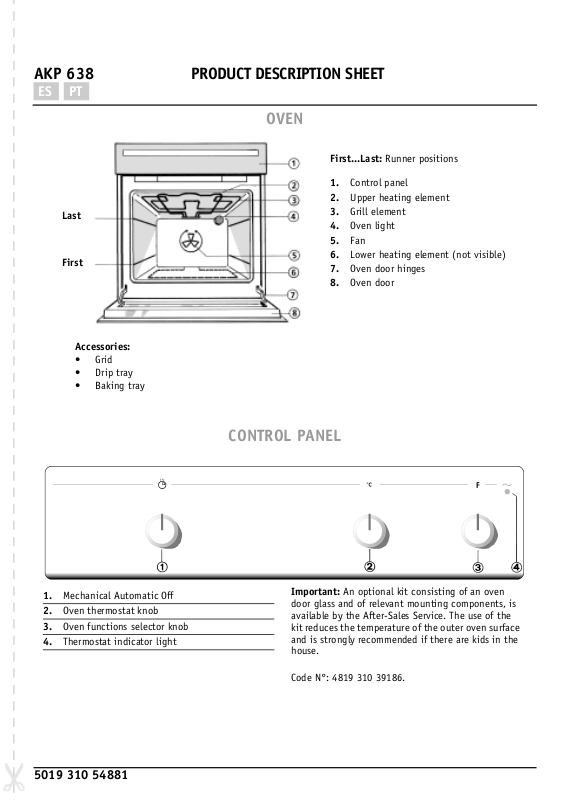

AKP 638 PRODUCT DESCRIPTION SHEET
ES PT
OVEN
Last
First
Accessories:
•Grid
•Drip tray
• Baking tray
First...Last:
1.
2.
3.
4.
5.
6.
7.
8.
CONTROL PANEL
Runner positions
Control panel
Upper heating element
Grill element
Oven light
Fan
Lower heating element (not visible)
Oven door hinges
Oven door
Mechanical Automatic Off
1.
Oven thermostat knob
2.
Oven functions selector knob
3.
Thermostat indicator light
4.
5019 310 54881
Important:
door glass and of relevant mounting components, is
available by the After-Sales Service. The use of the
kit reduces the temperature of the outer oven surface
and is strongly recommended if there are kids in the
house.
Code N°: 4819 310 39186.
An optional kit consisting of an oven
OVEN FUNCTIONS
Off
0
Oven light
STATIC FUNCTION
Use when all the food is on the same runner level.
Pre-heat the oven to the required cooking
-
temperature and place the food inside as soon as the
red thermostat indicator light switches off.
Ideally, the shelf should be on the second runner
-
level when using the static function.
STATIC FUNCTION + FAN
Use this function when cooking on two different levels.
Oven pre-heating is not necessary (except for pizzas
-
and focaccia).
Switch the position of the dishes in the oven 10
-
minutes before the end of cooking time.
Remove the cooked dish and, if necessary, continue
-
cooking the other one for as long as required.
GRILL FUNCTION
Use the grill function to cook small pieces of meat
(steaks, sausages) and for making toasts.
SWITCHING THE OVEN ON
The oven door must be closed during the cooking
-
cycle.
Pre-heat the grill for about 5 minutes.
-
Arrange the meat on the grid with the drip tray
-
underneath. Pour water in the drip tray to cover the
bottom to reduce smoke and fat spatters.
Turn over the meat about half-way through cooking
-
time.
GRILL + FAN FUNCTION
Ideal for large joints, pork, chicken and roast beef.
The oven door must be closed during the cooking
-
cycle.
Place the meat on the grid with the drip tray
-
underneath. Pour water in the drip tray to cover the
bottom to reduce smoke and fat spatters.
Turn over the meat about half-way through cooking
-
time.
DEFROST FUNCTION
Ideal for thawing frozen food to room temperature.
The food should be inserted in the oven in its
-
wrapping to prevent it from drying out.
Turn the selector knob to the required symbol.
The oven light switches on.
• Turn the thermostat knob clockwise to the required
temperature.
The red thermostat indicator light switches on.
PROGRAMMING COOKING TIME
Turn the knob fully anti-clockwise.
1.
Return the knob to the required cooking time.
2.
When the preset cooking time has elapsed, the oven
3.
switches off.
To use the oven without programming the cooking
-
time, set the knob to .
Warning:
switch on: to switch on the oven, either set the
programmer knob to or set the required cooking time.
5019 310 54881
If the programmer is on “0” the oven will not
• When the required temperature is reached, the red
thermostat indicator light switches off.
End of the cooking cycle
• Return the knobs to the OFF position (
GB
0-•
).
