Whirlpool AKP 528, AKP 528 WH, AKP 528 IX PROGRAM CHART

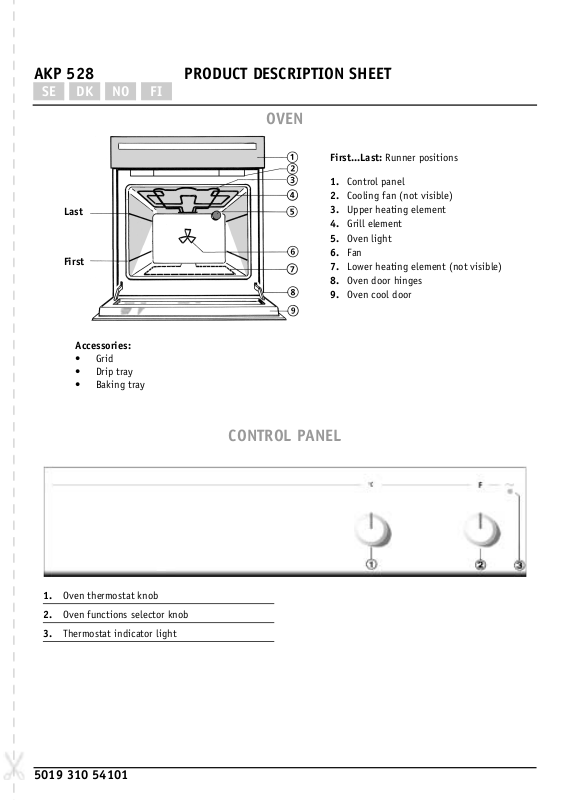

AKP 528 PRODUCT DESCRIPTION SHEET
SE DK NO FI
OVEN
Last
First
Accessories:
•Grid
•Drip tray
•Baking tray
First...Last:
1.
2.
3.
4.
5.
6.
7.
8.
9.
CONTROL PANEL
Runner positions
Control panel
Cooling fan (not visible)
Upper heating element
Grill element
Oven light
Fan
Lower heating element (not visible)
Oven door hinges
Oven cool door
Oven thermostat knob
1.
Oven functions selector knob
2.
Thermostat indicator light
3.
5019 310 54101
OVEN FUNCTIONS
Off
0
Oven light
STATIC FUNCTION
Use when all the food is on the same runner level.
Pre-heat the oven to the required cooking
-
temperature and place the food inside as soon as the
red thermostat indicator light switches off.
Ideally, the shelf should be on the second runner
-
level when using the static function.
STATIC FUNCTION + FAN
Use this function when cooking on two different levels.
Oven preheating is not necessary (except for pizzas
-
and focaccia).
Switch the position of the dishes in the oven 10
-
minutes before the end of cooking time.
Remove the cooked dish and, if necessary, continue
-
cooking the other one for as long as required.
GRILL FUNCTION
Use the grill function to cook small pieces of meat
(steaks, sausages) and for making toasts.
The oven door must be closed during the cooking
-
cycle.
Preheat the grill for about 5 minutes.
-
Arrange the meat on the grid with the drip tray
-
underneath. Pour water in the drip tray to cover the
bottom to reduce smoke and fat spatters.
Turn over the meat about half-way through cooking
-
time.
GRILL + FAN
Ideal for large joints, pork, chicken and roast beef.
The oven door must be closed during the cooking
-
cycle.
Place the meat on the grid with the drip tray
-
underneath. Pour water in the drip tray to cover the
bottom to reduce smoke and fat spatters.
Turn over the meat about half-way through cooking
-
time.
DEFROST FUNCTION
Ideal for thawing frozen food to room temperature.
The food should be inserted in the oven in its
-
wrapping to prevent it from drying out.
SWITCHING THE OVEN ON
Turn the selector knob to the required symbol.
The oven light switches on.
• Turn the thermostat knob clockwise to the required
temperature.
5019 310 54101
The red thermostat indicator light switches on.
• When the required temperature is reached, the red
thermostat indicator light switches off.
End of cooking cycle:
• Return the knobs to the OFF position (0 - •).
GB
