AKP 229

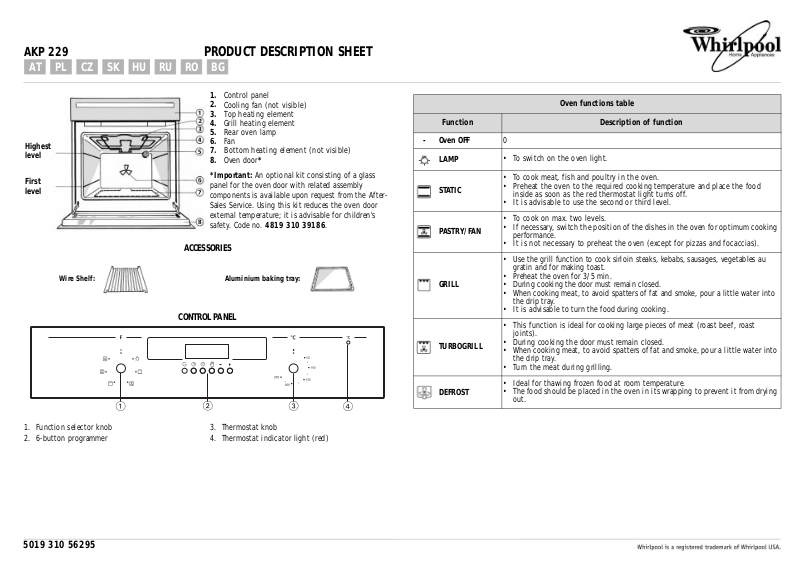

PRODUCT DESCRIPTION SHEET

AT PL CZ SK HU RU RO BG

Highest level

Control panel Cooling fan (not visible) Top heating element Grill heating element Rear oven lamp Fan Bottom heating element (not visible) Oven door

Oven functions table

Function Description of function

- Oven OFF LAMP

• To switch on the oven light.

First level

Wire Shelf:

*Important:

panel for the oven door with related assembly components is available upon request from the AfterSales Service. Using this kit reduces the oven door external temperature; it is advisable for child ren's safety. Code no.

ACCESSORIES

Aluminium baking tray:

CONTROL PANEL

An optional kit consisting of a glass

4819 310 39186

STATIC

PASTRY/FAN

GRILL

TURBOGRILL

DEFROST

• To cook meat, fish and poultry in the oven.

• Preheat the oven to the required cooking temperature and place the food inside as soon as the red thermostat light turns off.

• It is advisable to use the second or third level.

• To cook on max. two levels.

• If necessary, switch the positi on of the dish es in the oven for optimum cookin g performance .

• It is not necessary to preheat the oven (except for pizzas and focaccias).

• Use the grill function to cook sirloin steaks , kebabs, s ausages, vegetables au gratin and for m aking toast.

• Preheat the oven for 3/5 min.

• During cooking the door must rema in closed.

• When cooking meat, to avoid spatters of f at an d smoke, pour a little water into the drip tray.

• It is advisable to turn the food d urin g cookin g.

• This function is ideal for cooking large pieces of meat (roast beef, roast joints).

• During cooking the door must remain closed.

• When cooking meat, to avoid spatters of fat and sm oke , pour a little wa ter into the drip tray.

• Turn the meat during grilling .

• Ideal for thawing frozen food at room temperature.

• The food should be placed in the oven in its wrapping to prevent it from d rying out.

1. Function selector knob

2. 6-button programmer

5019 310 56295

3. Thermostat knob

4. Thermostat indicator light (red)

Page 2

COOKING TABLES

FOOD Function Preheating

MEAT

Lamb, Kid, Mutton

Veal, Beef, Pork

Chicken,

Rabbit,

Duck

Turkey

(3-5 kg)

Goose (2 kg)

(1 kg)

FISH

Gilt-head, Bass, Tuna, Salm on, Cod

FISH

(<1 kg - cutlets) Sword fish, Tuna

VEGETABLES

Peppers, tomatoes, roast potatoes

SWEETS, PASTRIES, ETC.

Raising cakes

Filled pies

(with cheese)

Tarts

Apple strudel, crèpes

Biscuits, sponge rings, sh ortbread

Choux buns, sweet sponge rolls

Savoury pies, filled fruit pies, e.g.

Pineapple, Peach

Lasagna, potatoes au gratin, cann elloni,

pasta timbales

Bread

Pizza

Vol-au-vents

Soufflés

Level

(from the bottom)

X 2 200 90 - 110 X 2 200 100 - 110 X 2 200 90 - 110 X 2 200 90 - 110 X 2 200 70 - 80 X 2 200 70 - 80 X 2 210 160 - 180 X 2 200 170 - 180 X 2 210 100 - 130 X 2 200 100 - 130 X 2 200 60 - 80 X 2 190 60 - 80 X 2 190 50 - 60 X 2 190 50 - 60 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2 X 2

Temperature

(°C)

190 190 180 40 - 50 180 40 - 50 190 60 - 90 180 60 - 90 190 40 - 50 180 40 - 50 200 50 - 60 190 50 - 60 180 20 - 30 180 30 - 40 180 35 - 45 180 35 - 45 200 50 - 60 190 45 - 55 200 40 - 50 190 40 - 50 210 30 - 40 210 30 - 40 225 15 - 20 210 20 - 30 210 20 - 30 200 30 - 40 200 40 - 50 190 50 - 60

Cooking time

(min)

50 - 60 50 - 60

COOKING TABLE FOR GRILL FUNCTION

FOOD Function Preheating

Toast X 3-4 200-225 10 - 15

Sirloin steak X 3-4 200-225 30 - 40

Cutlets X 3-4 200-225 30 - 40

Sausages X 3 200-225 30 - 40

Pork chops X 3 200-225 30 - 40

Fish (cutlets) X 3 200-225 30 - 40

Chicken legs X 3 200-225 40 - 50

Kebabs X 3 200-225 40 - 50

Spare ribs X 3 200-225 40 - 50 Chicken halves X 3 200-225 40 - 50 Chicken halves - 3 200-225 40 - 50 Whole chicken - 2-3 200-225 60 - 70

Roast

(pork, beef)

Duck - 1-2 200-225 60 - 80

Leg of lamb - 1-2 200-225 80 - 100

Roast beef - 2 200-225 60 - 70

Baked potatoes - 2-3 200-225 40 - 50

Fish, e.g.: Gilt-head, Trout - 3 190-200 40 - 50

- 2-3 200-225 60 - 80

Level

(from the bottom)

Note: Cooking times and temperatures are approximate only.

Temperature

(°C)

Cooking time

(min)

Page 3

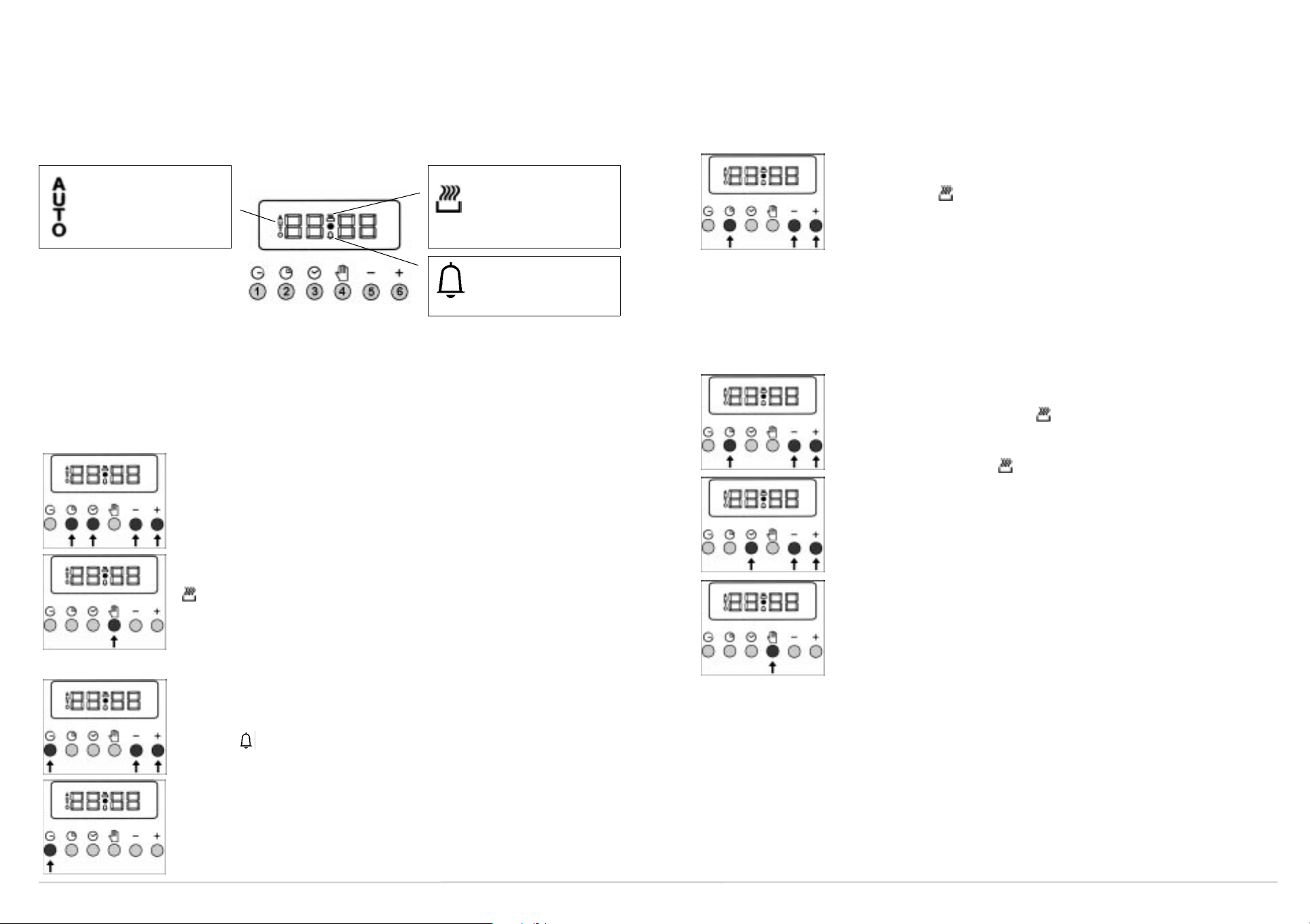

Display & button description

AUTO lights up and stays lit to indicate Automatic Mode, blinks to confirm end of cooking time.

1. Minute Minder with acoustic signal selection button

2. Cooking duration selection button

3. End of cooking time selecti on button

4. Manual operation selection button

5. Data settings or change button

6. Data settings or change button

Setting the clock and selecting the Manual Mode

Upon installation or after a power failure digits -0:00 and Keep buttons 2 and 3 pressed simultaneously while setting the clock through

the usage o f buttons 5 and 6.

Press button 4 Manual operation selection button to proceed with the Manual operating mode.

will light up.

Manual operation when lit indicates Manual Mode is operating

Minute Minder when lit indicates Minute Minder is operating

AUTO

both blink.

Programming the Cooking Time

Press button 2 digits -0:00 are displayed. Press button 5 or 6 to set the desired cooking time. 12:00 and

• Set the oven by turning the Oven thermostat knob to the desired

• Set the oven by turning the Selector knob to

• Press button 2 to check or to change the remaining cooking time.

• Press button 3 to display the remaining cooking time when desired.

AUTO

temperature, the oven will immediately come into operation. The acoustic signal will start to indicate elapsing of cooking time and that the oven has switched off.

silence the acoustic signal.

Programming Duration and End of Cooking Time

Press button 2 Press button 5 or 6 to set the desired cooking time. Actual time of the day and

release.

• Press button 3 and consequently press button 5 or 6 to set the desired cooking time . The symbol will turn off and reappear when oven g oes into

automatic operation at the start of the previously programmed duration.

• Set the oven by turnin g the Oven th ermostat knob to th e desir ed temperatur e and choose the d esidered function by turning Selector knob. The acoustic signal will start to indicate elapsing of cooking time and that the oven has switched off.

• Set the oven by turning the Selector knob to silence the acoustic signal.

+ light up a few seconds after buttons release.

“0”

, then press button 4 to

digits

-0:00 are displayed.

AUTO

+ light up a few seconds after buttons

“0”

, then press button 4 to

Setting the Minute Minder with acoustic signal

Operates independently from oven functions. Press button 1 digits -0:00 are displayed. Press button 5 or 6 to display the desired cooking time. 12:00 and light up a few seconds after buttons release.

The acoustic signal will start upon elapsing of cooking time. Press button 1 to silence the acoustic signal.
