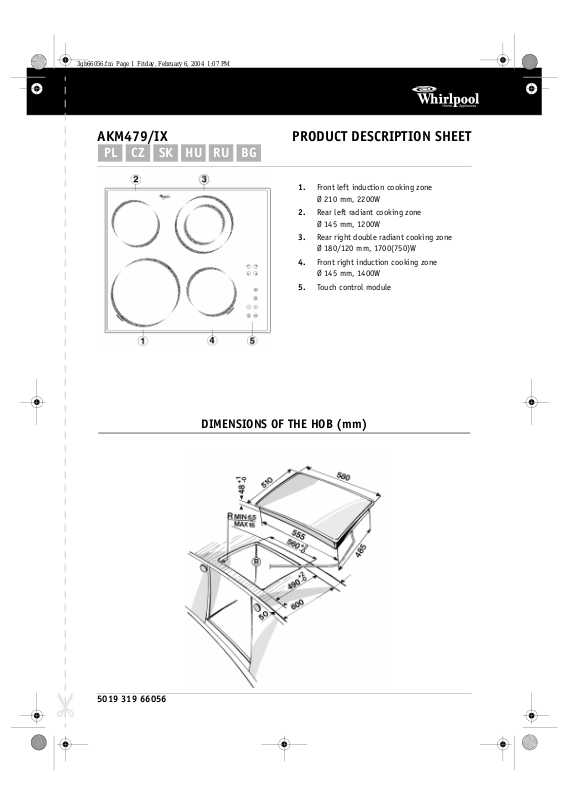

AKM479/IX PRODUCT DESCRIPTION SHEET

PL CZ SK HU RU BG

Front left induction cooking zone

Ø 210 mm, 2200W

Rear left radiant cooking zone

Ø 145 mm, 1200W

Rear right double radiant cooking zone

Ø 180/120 mm, 1700(750)W

Front right induction cooking zone

Ø 145 mm, 1400W

Touch control module

5019 319 66056

DIMENSIONS OF THE HOB (mm)

3gb66056.fm Page 2 Friday, February 6, 2004 1:07 PM

HOW TO USE YOUR HOB

A-

On/Off

B-

Cooking zone selection

C-

Power selection

D-

Childlock key

E-

Timer

F-

Booster

Press the button A to switch on the hob. Press one of the buttons of section B corresponding to the

cooking zone you intend to use. Select the cooking power required with +/- buttons of section C (number

on display corresponds to maximum temperature and 1 to the minimum). You can disable the heater by

pressing simultaneously the + and - symbols.

In order to activate second zone (external), of rear right cooking zone, press button F. A red led will

appear on the display.

In order to prevent children from use or to clean the glass ceramic surface, you can lock all the functions by

pressing the key symbol D.

Booster

: The front left heater is provided with a booster to reach quickly the maximum temperature

level. To activate this function press button F. A P will appear on the display.

Timer

: A timer can be used to any selected burner. You first need to select the heater on which you want

the timer to operate and then, by pressing the button E, you can activate the timer and with + and - set

the cooking time. When the cooking time is terminated, the timer turns off the heater and disactivates the

selection. A buzzer operates for 30 seconds to indicate the end of the timer operation.

Important:

To avoid permanently damaging the glass-ceramic top, do not use:

- Pots with bottoms that are not perfectly flat.

- Metal pots with enamelled bottom
