Whirlpool AKM 460/NB, AKM 460/WH, AKM 460/NB/01, AKM 460/WH/01 PROGRAM CHART
|
AKM 460 |

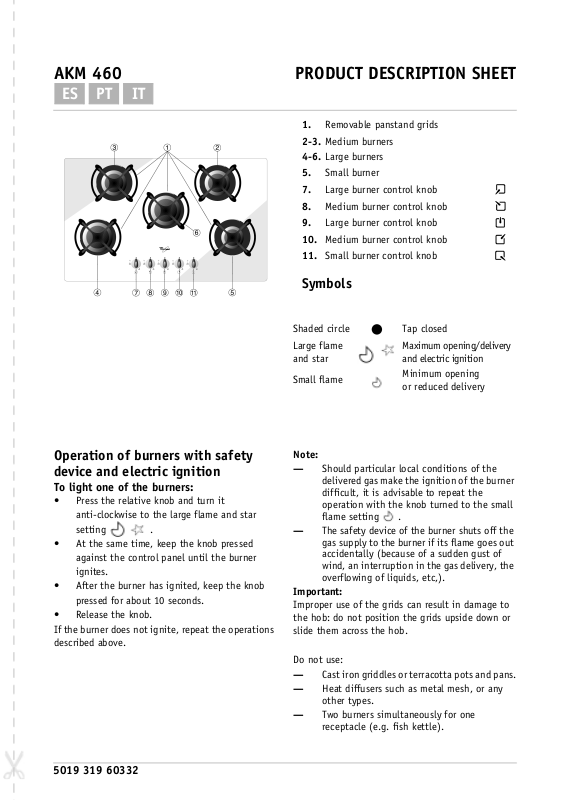

PRODUCT DESCRIPTION SHEET |
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
ES |
PT |
IT |
1. Removable panstand grids
2-3. Medium burners
4-6. Large burners
5. Small burner
7. Large burner control knob
8. Medium burner control knob
9. Large burner control knob
10. Medium burner control knob
11. Small burner control knob
Symbols
Shaded circle |
Tap closed |
|
Large flame |
Maximum opening/delivery |
|
and star |
and electric ignition |
|
Small flame |
Minimum opening |
|
or reduced delivery |
||
|
Operation of burners with safety device and electric ignition
To light one of the burners:
•Press the relative knob and turn it
anti-clockwise to the large flame and star setting
.
•At the same time, keep the knob pressed against the control panel until the burner ignites.
•After the burner has ignited, keep the knob pressed for about 10 seconds.
•Release the knob.
If the burner does not ignite, repeat the operations described above.
Note:
—Should particular local conditions of the delivered gas make the ignition of the burner difficult, it is advisable to repeat the
operation with the knob turned to the small flame setting
.
—The safety device of the burner shuts off the gas supply to the burner if its flame goes out accidentally (because of a sudden gust of wind, an interruption in the gas delivery, the overflowing of liquids, etc,).
Important:
Improper use of the grids can result in damage to the hob: do not position the grids upside down or slide them across the hob.
Do not use:
—Cast iron griddles or terracotta pots and pans.
—Heat diffusers such as metal mesh, or any other types.
—Two burners simultaneously for one receptacle (e.g. fish kettle).
5019 319 60332
DIMENSIONS OF COOKING HOB AND WORKTOP
NOTE: |
If the distance “A“ between the wall cabinets is between 600 mm and 680 mm, |
|||||||||||||||
|
the height “B” must be a minimum of 520 mm. |
|
|
|
|
|
|
|||||||||
|
If the distance “A” between the wall cabinets is greater than the width of the |
|||||||||||||||
|
cooktop, the height “B” must be a minimum of 400 mm. |
|
|
|
|
|
|
|||||||||
|
In case of installation of a hood above the cooktop, please refer to the hood |
|||||||||||||||
|
instructions for the correct distance. |
|
|
|
|
|
|
|
|
|
|
|||||
INJECTORS TABLE |
|
|
|
|
|
|
|
|
|
CATEGORY II2H3+ |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rated |
|
|
|
Reduced |
|
|
Gas pressure |
|
||
Type of gas used |
Type of |
Injector |
|
heat |
Rated |
|
heat |
|
|
|
|
|
|
|||
burner |
marking |
|
capacity |
consumption |
capacity |
min. |
|
rat. |
|
max. |
||||||
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
Pcs-kW |
|
|
|
Pcs-kW |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NATURAL GAS |
large |
128 |
|
3.00 |
286 l/h |
|
0.60 |
|
|
|
|
|
|
|||
medium |
94 |
|
1.65 |
157 l/h |
|
0.35 |
17 |
|
20 |
|
25 |
|||||
(Methane) G 20 |
|
|
|
|
||||||||||||
small |
76 |
|
1.00 |
95 l/h |
|
0.30 |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LIQUID |
|
|
large |
85 |
|
3.00 |
218 g/h |
|
0.60 |
|
|
|
|
|
|
|
PETROLEUM GAS |
medium |
65 |
|
1.65 |
120 g/h |
|
0.35 |
20 |
|
28-30 |
|
35 |
||||
(Cylinder) |
G 30 |
small |
50 |
|
1.00 |
73 g/h |
|
0.30 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LIQUID |
|
|
large |
85 |
|
3.00 |
214 g/h |
|
0.60 |
|
|
|
|
|
|
|
PETROLEUM GAS |
medium |
65 |
|
1.65 |
118 g/h |
|
0.35 |
25 |
|
37 |
|
45 |
||||
(Cylinder) |
G 31 |
small |
50 |
|
1.00 |
71 g/h |
|
0.30 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Appliance |
|
Total rated heat |
|
Total rated |
|
|
Air required |
|
|||||
Type of gas used |
|
|
|
|
|
for burning |
|
|||||||||
|
model |
|
capacity Pcs-kW |
|
consumption |
|
|
|
||||||||
|
|
|
|
|
|
|
m3/h |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
G 20 |
20 mbar |
|
5 gas |
|
10.30 |
|
|
999 l/h |
|
|
20.6 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
G 30 |
28-30 mbar |
|
5 gas |
|
10.30 |
|
|
749 g/h |
|
|
20.6 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
G 31 |
37 mbar |
|
5 gas |
|
10.30 |
|
|
735 g/h |
|
|
20.6 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
