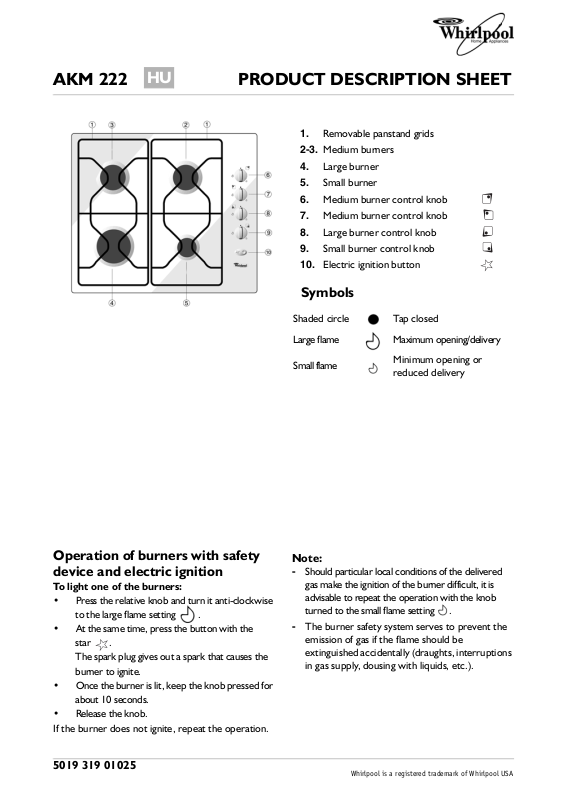

AKM 222 PRODUCT DESCRIPTION SHEET

1. Removable panstand grids

2-3. Medium burners

4. Large burner

5. Small burner

6. Medium burner control knob

7. Medium burner control knob

8. Large burner control knob

9. Small burner control knob

10. Electric ignition button

Symbols

Shaded circle Tap closed

Large flame Maximum opening/delivery

Small flame

Minimum opening or reduced delivery

Operation of burners with safety device and electric ignition

To light one of the burners:

• Press the relative knob and turn it anti-clockwise to the large flame setting .

• At the same time, press the button with the star . The spark plug gives out a spark that causes the burner to ignite.

• Once the burner is lit, keep the knob pressed for about 10 seconds.

• Release the knob.

If the burner does not ignite, repeat the operation.

5019 319 01025

Note:

- Should particular local conditions of the delivered

gas make the ignition of the burner difficult, it is advisable to repeat the operation with the knob turned to the small flame setting .

- The burner safety system serves to prevent the

emission of gas if the flame should be extinguished accidentally (draughts, interruptions in gas supply, dousing with liquids, etc.).

Whirlpool is a registered trademark of Whirlpool USA

DIMENSIONS OF COOKING HOB AND WORKTOP (mm)

NOTES: In case of installation of a hood above the cooktop, please refer to the hood

instructions for the correct distance.

INJECTORS TABLE CATEGORY II 2 H 3+

Ty pe of gas used

NATURAL GAS

(Methane) G20

LIQUIFIED PETROLEUM GAS

(Cylinder) G30

LIQUIFIED PETROLEUM GAS

(Cylinder) G31

NATURAL GAS

(Methane) G25.1

Ty p e of gas used

G20 25 mbar

G30 30 mbar

G31 37 mbar

G25.1 25 mbar

Ty pe of burner

large medium small

Appliance model

4 gas 7.30 695 l/h 14.6

4 gas 7.30 531 g/h 14.6

4 gas 7.30 521 g/h 14.6

4 gas 7.30 809 l/h 14.6

Injector marking

F3 117

F3 87

X 68

F2 125

F2 96

5 77

ELECTRIC SUPPLY: 230 V - 50 HZ

87 65 50

Rated heat capacity kW

3.00

1.65

1.00

3.00

1.65

1.00

3.00

1.65

1.00

3.00

1.65

1.00

Total rated heat capacity kW

Rated consumption

286 l/h 157 l/h

95 l/h

218 g/h 120 g/h

73 g/h

214 g/h 118 g/h

71 g/h

332 l/h 183 l/h 111 l/h

To t al r a t e d consumption

Reduced heat capacity kW

0.60

0.35

0.30

0.60

0.35

0.30

0.60

0.35

0.30

0.60

0.35

0.30

Gas pressure mbar

min. rat. max.

20 25 33

24 30 36.5

25 37 45

20 25 33

Air required for burning
