Whirlpool AKL 848 PROGRAM CHART

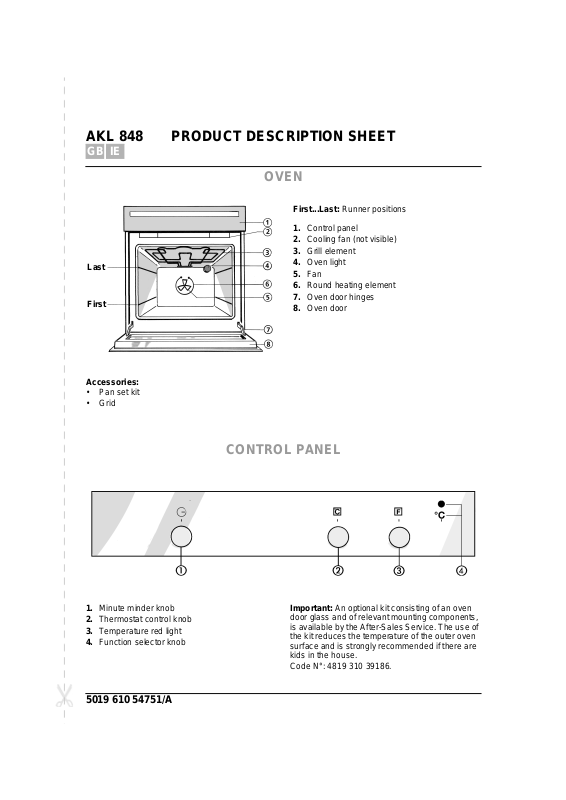

AKL 848 PRODUCT DESCRIPTION SHEET
GB IE
OVEN
Last
First
Accessories:
• Pan set kit
•Grid
First...Last:
Control panel
1.
Cooling fan (not visible)
2.
Grill element
3.
Oven light
4.
Fan
5.
Round heating element
6.
Oven door hinges
7.
Oven door
8.
CONTROL PANEL
Runner positions
Minute minder knob
1.
Thermostat control knob
2.
Temperature red light
3.
Function selector knob
4.
5019 610 54751/A
Important:
door glass and of relevant mounting components,
is available by the After-Sales Service. The use of
the kit reduces the temperature of the outer oven
surface and is strongly recommended if there are
kids in the house.
Code N°: 4819 310 39186.
An optional kit consisting of an oven
OVEN FUNCTIONS
Off
0
Oven light
FAN FUNCTION
Use this function when cooking food on more than
one level (e.g.: fish, vegetables, pasta).
Choose foods that require the same cooking
-
temperature.
Oven preheating is not necessary.
-
Remove the cooked dish and, if necessary,
-
continue cooking the other one for as long as
required.
GRILL FUNCTION
Use the grill function to cook small pieces of meat
(steaks, sausages) and for making toasts.
SWITCHING THE OVEN ON
Turn the selector knob to the required symbol.
The oven light switches on.
• Turn the thermostat knob clockwise to the
required temperature.
MINUTE MINDER
The oven door must be closed during the
-
cooking cycle.
Preheat the grill for about 5 minutes.
-
Arrange the meat on the grid with the drip tray
-
underneath. Pour water in the drip tray to
cover the bottom to reduce smoke and fat
spatters.
Turn over the meat about half-way through
-
cooking time.
DEFROST FUNCTION
Ideal for thawing frozen food to room temperature.
The food should be inserted in the oven in its
-
wrapping to prevent it from drying out.
The red thermostat indicator light switches on.
• When the required temperature is reached, the
red thermostat indicator light switches off.
End of cooking cycle:
• Return the knobs to the OFF position (0 - •).
The minute minder is a mechanical clock whose
range is from 1 to 60 minutes.
Turn the knob clockwise to the required
-
cooking time.
At the end of the cooking time, the alarm will
-
ring.
We suggest you turn the knob of one complete
turn and then you come back to the time required
to reset the warning signal.
5019 610 54751/A
GB
