Whirlpool AKL 827 AV, AKL 827 WH PROGRAM CHART

AKL 827 GB

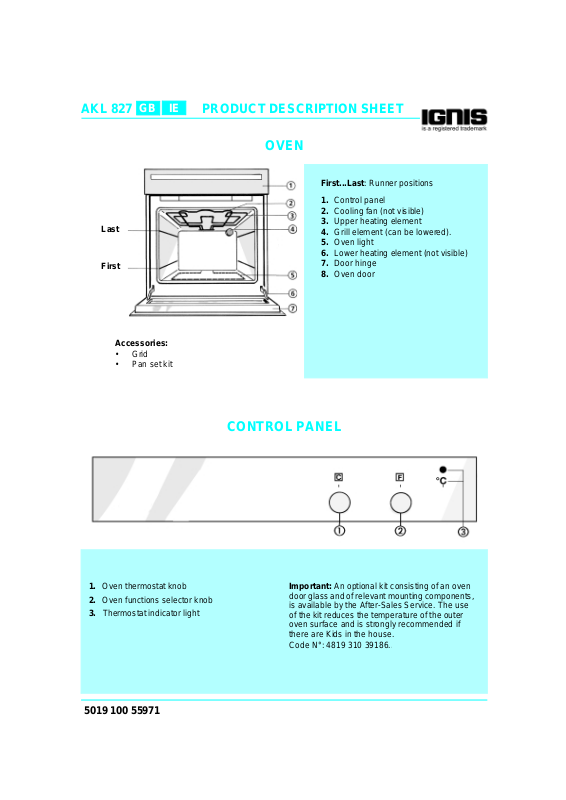

PRODUCT DESCRIPTION SHEET

OVEN

Last

First

First...Last: Runner positions

1.Control panel

2.Cooling fan (not visible)

3.Upper heating element

4.Grill element (can be lowered).

5.Oven light

6.Lower heating element (not visible)

7.Door hinge

8.Oven door

Accessories:

•Grid

•Pan set kit

CONTROL PANEL

1.Oven thermostat knob

2.Oven functions selector knob

3.Thermostat indicator light

Important: An optional kit consisting of an oven door glass and of relevant mounting components, is available by the After-Sales Service. The use of the kit reduces the temperature of the outer oven surface and is strongly recommended if there are Kids in the house.

Code N°: 4819 310 39186.i

5019 100 55971

OVEN FUNCTIONS

0 Off

Oven light

BOTTOM HEATING FUNCTION

Use:

-To finish baking fruitcakes or cheesecakes.

-To thicken sauces.

Use the lower heating function for the last 10 or 15 minutes of cooking time.

STATIC FUNCTION

Use when all the food is on the same runner level.

-Pre-heat the oven to the required cooking temperature and place the food inside as soon as the red thermostat indicator light switches off.

-Ideally, the shelf should be on the second runner level when using the static function.

GRILL FUNCTION

Use the grill function to cook small pieces of meat (steaks, sausages) and for making toasts.

-The oven door must be closed during the cooking cycle.

-Pre-heat the grill for about 5 minutes.

-Arrange the meat on the grid with the drip tray underneath. Pour water in the drip tray to cover the bottom to reduce smoke and fat spatters.

-Turn over the meat about half-way through cooking time.

SWITCHING THE OVEN ON

Turn the selector knob to the required symbol.

The oven light switches on.

•Turn the thermostat knob clockwise to the required temperature.

The red thermostat indicator light switches on.

•When the required temperature is reached, the red thermostat indicator light switches off.

End of cooking cycle:

•Return the knobs to the OFF position (0 - •).

5019 100 55971
