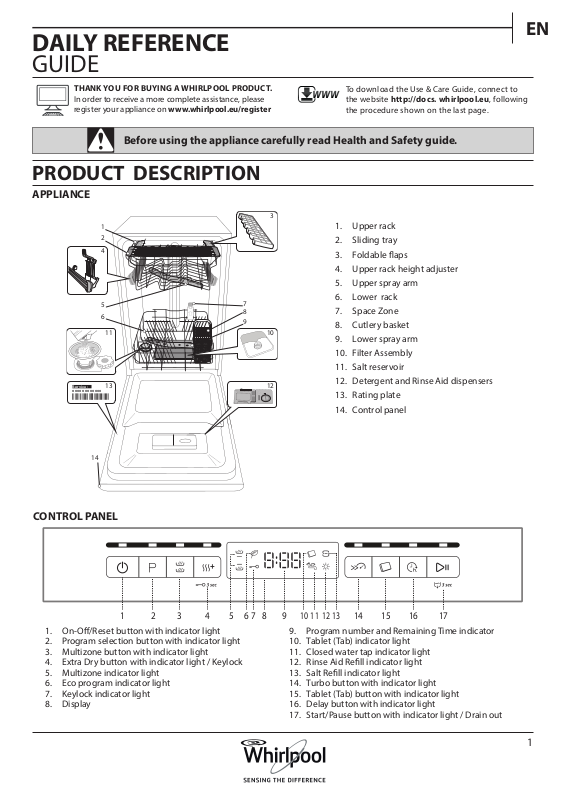

DAILY REFERENCE

GUIDE

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please register your appliance on www.whirlpool.eu/register

Before using the appliance carefully read Health and Safety guide.

PRODUCT DESCRIPTION

APPLIANCE

7 8

Service:

0000 000 00000

To download the Use & Care Guide, connect to the website http://docs. whirlpool.eu, following the procedure shown on the last page.

1. Upper rack

2. Sliding tray

3. Foldable aps

4. Upper rack height adjuster

5. Upper spray arm

6. Lower rack

7. Space Zone

1213

8. Cutlery basket

9. Lower spray arm

10. Filter Assembly

11. Salt reservoir

12. Detergent and Rinse Aid dispensers

13. Rating plate

14. Control panel

CONTROL PANEL

12 43567

1. On-O/Reset button with indicator light

2. Program selection button with indicator light

3. Multizone button with indicator light

4. Extra Dry button with indicator light / Keylock

5. Multizone indicator light

6. Eco program indicator light

7. Keylock indicator light

8. Display

10 11 12 13

9. Program number and Remaining Time indicator

10. Tablet (Tab) indicator light

11. Closed water tap indicator light

12. Rinse Aid Rell indicator light

13. Salt Rell indicator light

14. Turbo button with indicator light

15. Tablet (Tab) button with indicator light

16. Delay button with indicator light

17. Start/Pause button with indicator light / Drain out

14 15 16 17

Page 2

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine’s functional components.

• It is important that the salt reservoir be never empty (except when

the water hardness is set to - 1 “Soft”).

• It is important to set the water hardness. The salt reservoir is located in the lower part of the dishwasher (see

Product Description) and should be lled when the SALT REFILL indi- cator light

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, we recommend carrying out the procedure before the washing cycle is started.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier. The factory setting is for avarage (3) water hardness.

1. Switch on the appliance by pressing the ON/OFF button

2. Switch o the appliance by pressing the ON/OFF button

3. Hold down button START/PAUSE for 5 seconds, until you hear a

beep.

4. Switch on the appliance by pressing the ON/OFF button

5. The current selection level number and the salt indicator light both ash.

6. Press button P to select the desired hardness level (see Water Hardness Table).

1 Soft 0 - 6 0 - 10 NO 2 Medium 6 - 11 11 - 20 3 Average 12 - 17 21 - 30 4 Hard 17 - 34 31 - 60 5 Very hard 34 - 50 61 - 90

7. Switch o the appliance by pressing the ON/OFF button

Setting is complete! As soon as this procedure is complete, run a program without loading.

Only use salt that has been specically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches o.

If the salt container is not lled, the water softener and the heating element may be damaged as a result (except when

the water hardness is set to - 1 “Soft”).

in the control panel is lit .

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).

2. Position the funnel (see gure) and ll the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.

3. Remove the funnel and wipe any salt residue away from the opening.

Water Hardness Table

Level

German degrees

°dH

°fH

French degrees

Salt

needed

YES

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser “B” should be lled:

• When the RINSE AID REFILL indicator light

• When the dark optical indicator on the dispenser door “C” becomes

transparent.

1. Open the dispenser by turning the cap “A” in an anticlockwise direction.

2. Pour in the rinse aid, making sure it does not overow from the dispenser. If this happens, clean the spill immediately with a dry cloth.

3. Screw the cap back on.

NEVER pour the rinse aid directly into the dishwasher.

on the display is lit.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satised with the drying results, you can adjust the quantity of rinse aid used. Turn the adjuster “D”.

The factory setting is for a medium level.

• If you see bluish streaks on the dishes, set a low number (1-2).

• If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

DCGH

FILLING THE DETERGENT DISPENSER

Open the detergent dispenser and measure out the detergent according to Programs Table

A Rinse aid dispenser cap

(Unscrew the cap to ll the dispenser).

B Rinse aid dispenser C Rinse aid level indicator D Rinse aid dosage adjuster

(You can set up to a max. of 4 levels).

E Lid opening button

(Press to access the containers)

F Cover (Detergent containers)

Remove detergent residues from the edges of the containers before closing the cover until it clicks.

G Pre-wash detergent container

Detergent for pre-wash (pour in the powder or liquid detergent after consulting the Programs Table).

H Wash detergent container

Detergent for wash (pour in the powder, liquid or tablet detergent after consulting the Programs Table).

The detergent dispenser automatically opens up at the right time according to the program.

Only use detergent which has been specically designed for dishwashers. DO NOT USE washing up liquid.

Page 3

PROGRAMS TABLE

Program

Drying

phase

Available options

Detergent

container

H G

Duration of

wash cycle

(h:min)

**)

Water

consumption

(l/cycle)

Energy

consumption

(kWh/cycle)

1. Eco 50°

2. Sixth Sense

3. 1 Hour

4. Fragile

5. Rapid

6. Overnight

7. PreWash

8. Intensive

ECO program data is measured under laboratory conditions according to European Standard EN 50242.

*) Not all options can be used simultaneously.

**) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

Standby consumption: Left-on mode consumption: 5 W - O mode consumption: 0.5 W

03:00 9 0.74

01:10 - 02:30 7 - 14 0.95 - 1.25

01:00 13 0.95

01:40 9 0.85

00:25 8 0.45

03:30 13 0.85

00:10 4 0.01

02:50 17 1.45

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1. ECO 50°

Normally soiled crockery. Standard program, the most ecient in terms of its combined energy and water consumption.

2. SIXTH SENSE

For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.

3. 1 HOUR 50°

For lightly soiled dishes that require a general drying in quick time. (Ideal for 4 place settings).

4. FRAGILE 45°

Cycle for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

5. RAPID 50°

Cycle to be used for lightly-soiled dishes with no dried food residues. (Ideal for 2 place settings).

6. OVERNIGHT 50°

Optimum performance ensured. Suitable for night-time opera-

tion of the appliance.

7. PRE-WASH - Crockery to be washed later. No detergent.

8. INTENSIVE 65°

Recommended program for heavily soiled crockery, specially suitable for pans and saucepans (not to be used for delicate items).

Notes:

Optimum performance levels when using the “1 Hour” and “Rapid” programs can be achieved by observing the maximum amounts of specied place settings.

To reduce consumption even further, only run the dishwasher when it is full.

Note for test laboratories: for information on EN comparative test con-

ditions, apply to EN address: [email protected]

Page 4

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see Control Panel)

If an option is not compatible with the selected program (see the Programs Table), the corresponding LED ashes rapidly 3 times and beeps will sound. The option

will not be enabled.

MULTIZONE

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and then press the MULTIZONE button: the indicator corresponding to the chosen rack lights up and the wash cycle starts only in the upper or lower rack.

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly.

EXTRA DRY

To improve the drying of the dishes, after selecting the program, press the EXTRA DRY button and the indicator light comes on. A higher temperature during the nal rinse and an extended drying phase allow for improving drying. To deselect the option, press the same button again.

The EXTRA DRY option results in the lengthening of the wash cycle.

DELAY

The start of the program may be delayed for a period of time between 0:30 and 24 hours.

1. Select the program and any desired options. Press the DELAY button (repeatedly) to delay the start of the program. Adjustable from 0:30 to 24 hours. With each press of the button, the delay start increases by: 0:30 if selection below 4 hours, 1:00 if selection is below 12 hours, 4 hours if selection is above 12 hours. If 24 hours reached, and the button is pressed, the delayed start is deactivated.

2. Press the START/PAUSE button: the timer will begin counting down;

3. Once this time has elapsed, the indicator light switches o and the program begins automatically.

If at the time of the countdown the START/PAUSE button is pressed again the DELAY option is cancelled and the selected program starts automatically.

The DELAY function cannot be set once a program has been started.

KEYLOCK

A long press (for 3 seconds) of EXTRA DRY button, will activate the KEYLOCK function. The KEYLOCK function will block the control panel except the ON/OFF button. To deactivate the KEYLOCK, long press again.

TURBO

This option can be used to reduce the duration of the main programs while maintaining the same washing and drying performance levels. After selecting the program, press the Turbo button and the indicator light will switch on. To deselect the option, press the same button again.

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used. Press the TABLET button (the indicator light will light up / the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose). If you use powder or liquid detergent, this option should be o.

WATER TAP CLOSED – Alarm

Flashes when there is no inlet water or water tap is closed.

DRAIN OUT

To stop and cancel the active cycle, the Drain Out function can be used. A long press of START/PAUSE button, will activate the DRAIN OUT function. The active program will be stopped and the water in the dishwasher will be drained out.

Page 5

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the top is open.

2. SWITCH ON THE DISHWASHER

Press the ON/OFF button.

3. LOAD THE RACKS (see Loading the Racks).

4. FILLING THE DETERGENT DISPENSER

(see Programs Table).

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see Programs Description) by pressing the P button.

Select the desired options (see Options and Functions).

6. START

Start the wash cycle by pressing the START/PAUSE button. When the program starts you hear a beep.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and the display shows END. Open the door and switch o the appliance by pressing the ON/OFF button . Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch o automatically after extended periods of inactivity, in order to minimise electricity consumption.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: (be ware of HOT steam!), press and hold the ON/OFF button, the machine will switch o. Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; start the cycle by pressing the START/PAUSE button.

ADDING EXTRA CROCKERY

Without switching o the machine, open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Close the door and press the START/PAUSE button the cycle will begin from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Once the door has been closed or the electricity supply is restored, to start again the cycle from where it was interrupted, press the START/PAUSE button.

For more information about the functions, you can request or download from the WEB a Use & Care Guide by following the instruc-

tions on the last page.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse befo-

rehand under running water.

Arrange the crockery so that it is held in place rmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and ow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket. Very soiled dishes and pans should be placed in the lower basket

because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.

• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.

• Parts in synthetic material which do not withstand high temperatures.

• Copper and tin crockery.

• Crockery soiled with ash, wax, lubricating grease or ink.

The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.

• Use a delicate detergent suitable for crockery

• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

Page 6

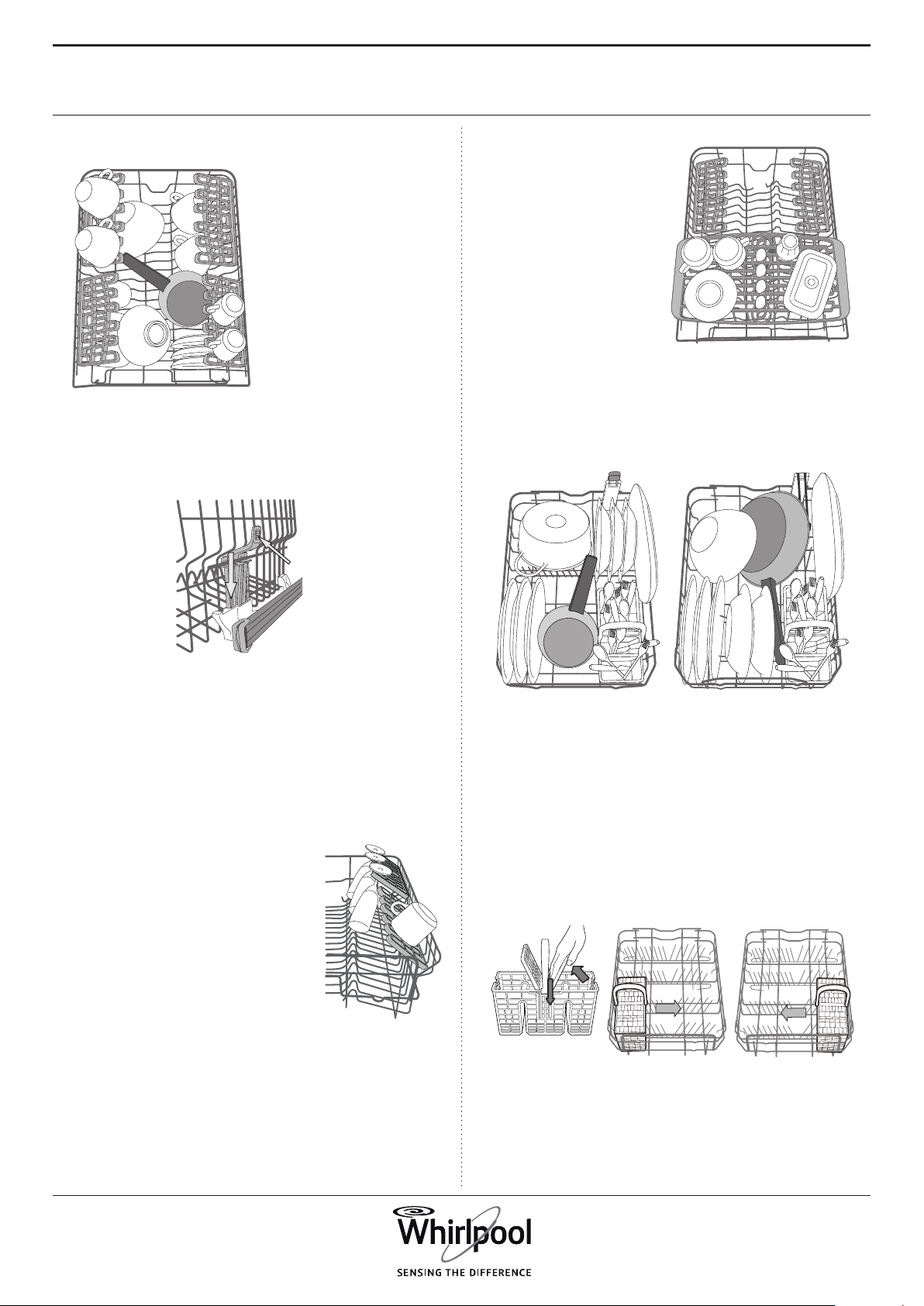

LOADING THE RACKS

UPPER RACK

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

(loading example for the upper rack)

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper basket can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up compartments by creating more space upwards.

SLIDING TRAY

The upper rack is tted with a sliding tray which can be used to hold small crockery and cutlery. For optimum washing performance, avoid positioning bulky crockery directly below the tray. The tray is removable.

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc.... Large plates and lids

should ideally be placed at the sides to avoid interferences with the spray arm.

The upper rack is equipped with a Upper Rack height adjuster (see gure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers (A) at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable aps can be positioned at three dierent heights to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the foldable aps by inserting the stem of each glass into the corresponding slots. For optimum drying results incline the foldable aps more. To change the inclination, pull up the foldable ap, slide it slightly and position it as you wish.

(loading example for the lower rack)

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space.

CUTLERY BASKET

It is tted with top grids for improved cutlery arrangement. It must only be positioned at the front of the lower rack.

Page 7

CARE AND MAINTENANCE

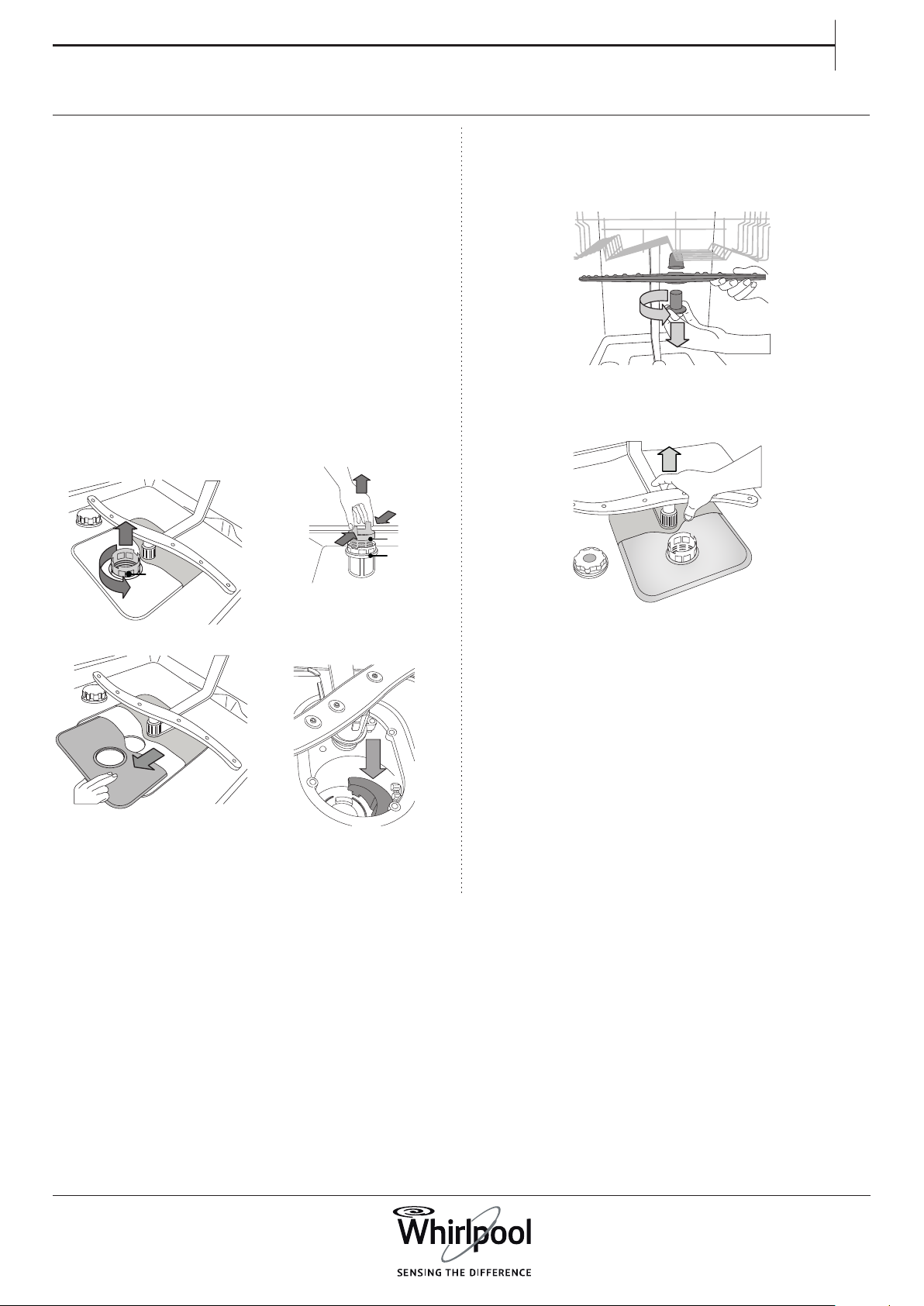

CLEANING THE FILTER ASSEMBLY

Regularly clean the lter assembly so that the lters do not clog and that the waste water ows away correctly. The lter assembly consists of three lters which remove food residues from the washing water and then recirculate the water: to obtain the best washing results, you need to keep them clean.

The dishwasher must not be used without lters or if the lter is loose.

After several washes, check the lter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical lter A in an anti-clockwise direction and pull

it out (Fig 1).

2. Remove the cup lter B by exerting a slight pressure on the side

aps(Fig 2).

3. Slide out the stainless-steel plate lter C(Fig 3).

4. Inspect the trap and remove any food residues. NEVER REMOVE

the wash-cycle pump protection (black detail) (Fig 4).

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

To remove the upper spray arm, turn the plastic locking ring in an anti-clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

After cleaning the lters, re-place the lter assembly and x it in position correctly; this is essential for maintaining the ecient operation of the dishwasher.

The lower spray arm may be removed by pulling it upwards.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

Page 8

001

Whirlpool® is a registered trademark of Whirlpool, USA.

TROUBLESHOOTING

Your dishwasher may not work properly. Before contacting the Service Centre check if the problem can be solved by going through the following list.

PROBLEMS POSSIBLE CAUSES SOLUTIONS

The dishwasher won’t start or does not respond to commands.

The dishwasher won’t drain.

The dishwasher makes excessive noise.

The dishes are not clean.

The appliance has not been plugged in properly.

Power outage. The dishwasher starts automatically when the power returns. The dishwasher door is not closed. Vigorously push the door until you hear the “click”.

It does not respond to commands.

The wash cycle has not nished yet. Wait until the wash cycle nishes.

The drain hose is bent. Check that the drain hose is not bent

The sink drain pipe is blocked. Clean the sink drain pipe. The lter is clogged up with food

residues. The dishes are rattling against each Position the crockery correctly

An excessive amount of foam has been produced.

The crockery has not been arranged properly.

The spray arms cannot rotate freely, being hindered by the dishes.

The wash cycle is too gentle. Select an appropriate wash cycle using the Program Table. An excessive amount of foam has

been produced. The cap on the rinse aid compart-

ment has not been shut correctly. The lter is soiled or clogged. Clean the lter assembly

Insert the plug into the socket.

Switch o the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program.

(see Installation).

Clean the lter (

The detergent has not been measured out correctly or it is not suitable for use in dishwashers

Do not pre-wash the dishes by hand.

Arrange the crockery correctly

The detergent has not been measured out correctly or it is not suitable for use in dishwashers

Make sure the cap of the Rinse Aid dispenser is closed.

see Cleaning the Filter Assembly).

(see Loading the Racks).

(see Filling the Detergent Dispenser).

(see Loading the Racks).

(see Filling the Detergent Dispenser).

(see Care and Maintenance).

There is no salt. Fill the salt reservoir (see Filling the Rinse Aid Dispenser).

MAINTENANCE AND TROUBLESHOOTING GUIDE

For more information, maintenance procedures and troubleshooting, see the Use and Care Guide The Use and Care Guide can be obtained by:

• After-Sales Service; phone number see in warranty booklet.

• download from Whirlpool website: http://docs.whirlpool.eu

• use QR code

TECHNICAL DATASHEET

The technical data containing the energy consumption data can be downloaded from the Whirlpool website http://docs.whirlpool.eu

CONTACTING AFTER-SALES SERVICE

When you contact the After-Sales Service, you must provide the codes shown on the rating plate attached to the left or right side inside the door of the dishwasher. The phone number is listed in the warranty booklet or on the

IEC 436

website: http://www.whirlpool.eu

195139916.02

05/2016 jk - Xerox Fabriano
