Whirlpool ADP 995 WHM (6909) PROGRAM CHART

ADP 995

6th SENSE: Optimum wash results coupled with maximum energy savings

The two sensor-controlled programmes are recommended for routine washes. They use double sensor technology designed to ensure optimum wash results with minimum water and energy consumption.

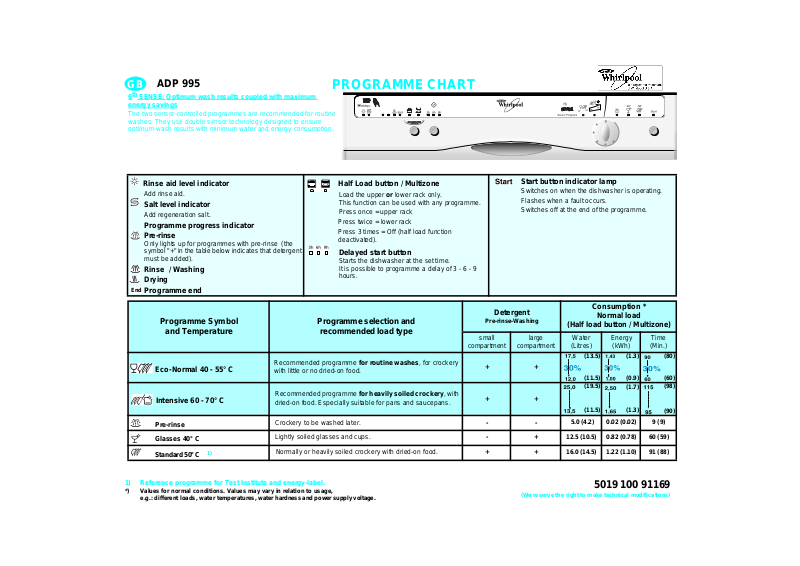

PROGRAMME CHART

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt.

Programme progress indicator Pre-rinse

Only lights up for programmes with pre-rinse (the symbol "+" in the table below indicates that detergent must be added).

Rinse / Washing Drying

End

Programme end

Programme Symbol

and Temperature

Eco-Normal 40 - 55° C

Intensive 60 - 70° C

Pre-rinse

Glasses 40° C

Standard 50° C

Half Load button / Multizone

Load the upper or lower rack only. This function can be used with any programme.

Press once = upper rack Press twice = lower rack Press 3 times = Off (half load function

deactivated).

Delayed start button

Starts the dishwasher at the set time. It is possible to programme a delay of 3 - 6 - 9 hours.

Programme selection and

recommended load type

Recommended programme with little or no dried-on food.

Recommended programme dried-on food. Especially suitable for pans and saucepans.

Crockery to be washed later.

Lightly soiled glasses and cups. Normally or heavily soiled crockery with dried-on food.

for routine washes

for heavily soiled crockery

, for crockery

, with

Detergent

Pre-rinse-Washing

small

compartment

+ +

- -

- + + +

Start button indicator lamp

Switches on when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Consumption *

Normal load

(Half load button / Multizone)

large

compartment

Water

(Litres)

5.0 (4.2) 0.02 (0.02) 9 (9)

12.5 (10.5) 0.82 (0.78) 60 (59)

16.0 (14.5) 1.22 (1.10) 91 (88)

(13.5)

(11.5) (19.5)

(11.5)

Energy

(kWh)

(1.3)

(0.9) (1.7)

(1.3)

Time

(Min.)

(80)

(60) (98)

(90)

1) Reference programme for Test Institute and energy-label.

*) Values for normal conditions. Values may vary in relation to usage,

e.g.: different loads, water temperatures,

water hardness and power supply voltage.

(We reserve the right to make technical modifications)

5019 100 91169

Quick Reference Guide

Daily check list

1. Arrange crockery so that items do not touch each other.

2. Load cups at an inclination to facilitate water circulation.

3. Generally speaking , place cutlery in the basket with the handles positioned downwards, but ensure that any sharp knives and forks that might cause injury are placed in the basket with the handles positioned upwards.

4. Make sure the water jet can reach all loaded items and that the spray arms rotate freely.

5. Turn on the water supply tap before starting the dishwasher.

Important:

• Switch off the dishwasher once the “Start” indicator lamp has switched

off. If the dishwasher is turned off during the washing programme, it will start again from the same point in the programme when it is turned back on.

• If a fault occurs or you wish to change the current programme, press the “START” button for about 5 seconds until the Start indicator lamp switches off! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.

• If a regeneration salt is to be added, IMMEDIATELY start a washing programme, in order to eliminate any residual salt.

• Sometimes even when the regeneration salt container is full, the corresponding indicator lamp may illuminate during the first wash scycle.

Upper rack

Crockery holders:

• Down: cups and long-stemmed glasses.

• Raised: plates.

Cutlery holder for long utensils:

• Raised: glass holder (gently lift up and release).

• Down: large cutlery (gently lift up).

• Place knives with blades facing downwards.

Glass holder:

• The glass holder can be moved sideways.

• Below: small glasses.

• Above: long-stemmed glasses.

Half Load button / Multizone:

If only the upper rack is to be filled, remove the cultery basket from the lower rack and place it in the upper one.

Height adjustment:

(The dishwasher is delivered with the upper rack in the top position).

The rack height can be adjusted even when the rack is fully loaded.

• To lower: pull out the two side handles and gently lower the rack.

• To raise: pull up the two side handles until the rack clicks into place.

• The rack must be level on both sides.

Lower rack

Half Load button / Multizone:

Loading the lower rack only: greater washing power, especially for plates and saucepans.

Cutlery basket:

The cutlery basket can be removed to increase available space.

Plate holders:

• The plate holders may be removed to increase available space.

• To remove: pull the handle up.

• To reposition: simply insert in the required position (normal or crosswise).
