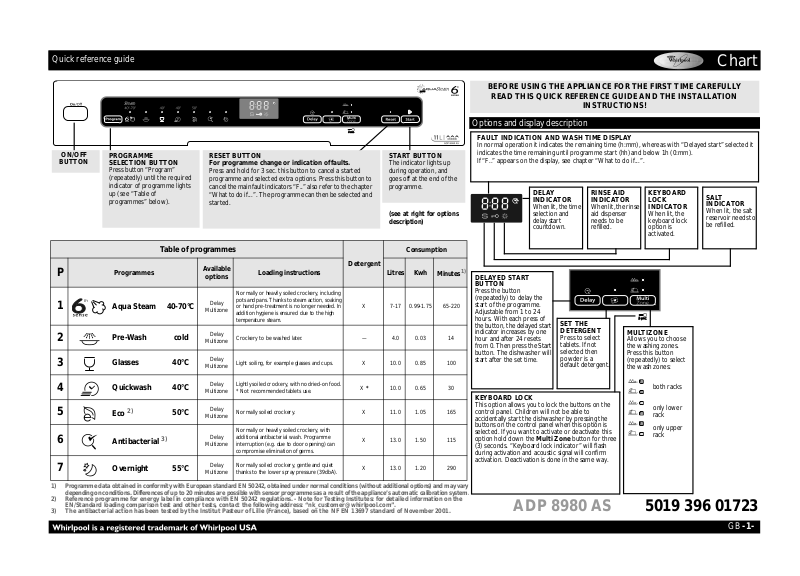

Whirlpool ADP 8980 AS WH, ADP 8980 AS IX PROGRAM CHART

.
Quick reference guide
ON/OFF
BUTTON
P
1
2 3 4 5
6
7
1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system
2) Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.
PROGRAMME SELECTION BUTTON
Press button “Program” (repeatedly) until the required indicator of programme lights up (see “Table of programmes” below).
Table of programmes
Programmes
Aqua Steam 40-70°C
Pre-Wash cold
Glasses 40°C
Quickwash 40°C
2)
Eco
Antibacterial
50°C
3)
Overnight 55°C
RESET BUTTON For programme change or indication of faults.
Press and hold for 3 sec. this button to cancel a started programme and selected extra options. Press this button to cancel the main fault indicators “F..” also refer to the chapter “What to do if...”. The programme can then be selected and started.
Available
options
Delay
Multizone
Delay
Multizone
Delay
Multizone
Delay
Multizone
Delay
Multizone
Delay
Multizone
Delay
Multizone
Loading instructions Litres Kwh
Normally or heavily soiled crockery, including pots and pans. Thanks to steam action, soaking or hand pre-treatment is no longer needed. In addition hygiene is ensured due to the high temperature steam.
Crockery to be washed later. 4.0 0.03 14
Light soiling, for example glasses and cups. X 10.0 0.85 100
Lightly soiled crockery, with no dried-on food. * Not recommended tablets use.
Normally soiled crockery. X 11.0 1.05 165
Normally or heavily soiled crockery, with additional antibacterial wash. Programme interruption (e.g. due to door opening) can compromise elimination of germs.
Normally soiled crockery, gentle and quiet thanks to the lower spray pressure (39dbA).
Detergent
X 7-17 0.99-1.75 65-220
*
X
X 13.0 1.50 115
X 13.0 1.20 290
START BUTTON
The indicator lights up during operation, and goes off at the end of the programme.
(see at right for options description)
Consumption
Minutes
10.0 0.65 30
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY
READ THIS QUICK REFERENCE GUIDE AND THE INSTALLATION
INSTRUCTIONS!
Options and display description
FAULT INDICATION AND WASH TIME DISPLAY
In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it indicates the time remaining until programme start (hh) and below 1h (0:mm). If “F..” appears on the display, see chapter “What to do if...”.
DELAY INDICATOR
When lit, the time selection and delay start countdown.
1)
DELAYED START BUTTON
Press the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 resets from 0. Then press the Start button. The dishwasher will start after the set time.
KEYBOARD LOCK
This option allows you to lock the buttons on the control panel. Children will not be able to accidentally start the dishwasher by pressing the buttons on the control panel when this option is selected. If you want to activate or deactivate this option hold down the (3) seconds. “Keyboard lock indicator” will flash during activation and acoustic signal will confirm activation. Deactivation is done in the same way.
Multi Zone
RINSE AID INDICATOR
When lit, the rinse aid dispenser needs to be refilled.
SET THE DETERGENT
Press to select tablets. If not selected then powder is a default detergent.
button for three
KEYBOARD LOCK INDICATOR
When lit, the keyboard lock option is activated.
MULTIZONE
Allows you to choose the washing zones. Press this button (repeatedly) to select the wash zones:
both racks
only lower rack
only upper rack
SALT INDICATOR
When lit, the salt reservoir needs to be refilled.
5019 396 01723ADP 8980 AS
Chart
GB
-1-
How to set water hardness in order to always assure the best cleaning results
*
before the first wash
only
Switch on the appliance
- Select the 2nd programme “P2” - consult the table in the Programme Chart.
- Press the START button fo r at least 5 seconds until the START indicator lamp flashes.
- The water hardness setting is shown on the display (if present) or the START button flashes.
- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.
- The appliance must be switched off to memorise the new setting.
water hardness has been changed
or if the
First time use
1- salt reservoir 2- rinse aid dispenser 3- detergent dispenser 4- racks system 5,6,7,8- available functions on the panel 9- filters 10- spray arms
1.
Ask your water supply company what the
German
degrees °dH
0 - 5 0 - 9 0 - 6.3 Soft 1
6 - 10 10 - 18 7 - 12.6 Medium 2 11 - 15 19 - 27 13.3 - 18.9 Average 3 16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 22 - 28 38 - 50 26.6 - 35 Hard 5 29 - 35 51 - 63 35.7 - 44.1 Very hard 6 36 - 60 64 - 107 44.8 - 74.9 Extremely hard 7
French
degrees °fH
Filling the salt reservoir -
1
The salt level indicator lamp may remain lit for the duration of several wash cycles. If the water hardness level falls within category (soft), no salt is required.
English
degrees °eH
water hardness
is...2....enter this value
Water
hardness
Dissolve limescale (not necessary if water hardness level is set to “soft”!)
Visual indicator (depending on model).
on your dishwasher
Insert value is shown
in the display
Fill the salt reservoir with water before the first wash only .
Salt indicator (depending on the model)
Suggestions for detergent use
Gel or Powder
(rinse aid and salt)
go to step 1
(see “Daily check”)
Add salt
(never add detergent!). min. 1.5 kg max. 2 kg
The indicator lamp on the control panel lights up when SALT NEEDS TO BE ADDED.
Tablets
if extra salt is needed go to
step 1
(see “Daily check”)
Water hardness level is factory set for medium hard water (a number “4” is shown on the display).
Even if you use tablets which include salt, you must still add salt since such detergents are not effective enough at softening hard water.
Daily check
Visual indicator (depending on model). Screw on the cap. Salt residues around cap need to be removed.
orange: OK.
clear: NEEDS TO BE ADDED
GB
-2-
Adding rinse aid
(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
Daily check
2
Rinse aid indicator (depending on model)
Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.
Adding detergent -
3
Visual indicator B
If required, open the cover (press lever).
The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE ADDED.
Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations.
Open the cover A (press lever).
Only fill the detergent dispenser prior to starting a wash programme.
Add rinse aid to max. line ~100 ml
Tablet / gel / powder
Use one tablet per one cycle, only placed in detergent dispenser.
All types of tablets can be used, but for 2 in 1 type adding of salt is mandatory.
The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the lever to open the cover. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.
dark: OK. clear: NEEDS TO BE ADDED
Daily use
GB
-3-
