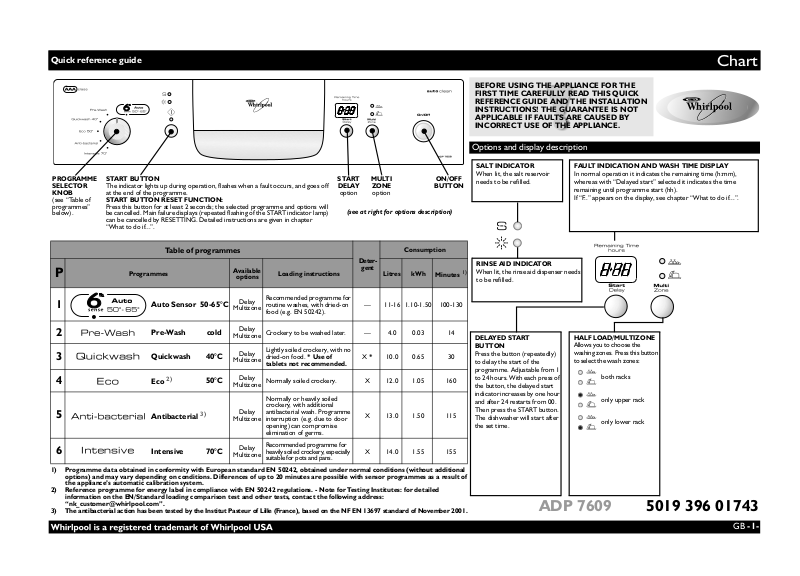

Whirlpool ADP 7609 S, ADP 7609 PROGRAM CHART

Quick reference guide

PROGRAMME SELECTOR KNOB

(see “Table of programmes” below).

START BUTTON

The indicator lights up during operation, flashes when a fault occurs, and goes off at the end of the programme.

START BUTTON RESET FUNCTION:

Press this button for at least 2 seconds; the selected programme and options will be cancelled. Main failure displays (repeated flashing of the START indicator lamp) can be cancelled by RESETTING. Detailed instructions are given in chapter “What to do if...”.

START

MULTI

DELAY

ZONE

option

(see at right for options description)

ON/OFF

BUTTON

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE INSTALLATION INSTRUCTIONS! THE GUARANTEE IS NOT APPLICABLE IF FAULTS ARE CAUSED BY INCORRECT USE OF THE APPLIANCE.

Options and display description

SALT INDICATOR

When lit, the salt reservoir needs to be refilled.

FAULT INDICATION AND WASH TIME DISPLA

In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it indicates the time remaining until programme start (hh). If “F..” appears on the display, see chapter “What to do if...”.

Chart

Table of programmes

Deter-

1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.

2) Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.

3) The antibacterial action has been tested by the Institut P

Programmes

Auto Sensor 50-65°C

Pre-Wash cold

Quickwash 40°C

Eco

Antibacterial

Intensive 70°C

Available

options

Delay

Multizone

Delay

Multizone

Delay

Multizone

Delay

50°C

Multizone

Delay

Multizone

Delay

Multizone

asteur of Lille (France), based on the NF EN 13697 standard of November 2001.

Loading instructions Litres kWh

Recommended programme for routine washes, with dried-on food (e.g. EN 50242).

Crockery to be washed later. — 4.0 0.03 14

Lightly soiled crockery, with no dried-on food.

tablets not recommended.

Normally soiled crockery. X 12.0 1.05 160

Normally or heavily soiled crockery, with additional antibacterial wash. Programme interruption (e.g. due to door opening) can compromise elimination of germs.

Recommended programme for heavily soiled crockery, especially suitable for pots and pans.

* Use of

gent

— 11-16 1.10-1.50 100-130

X*10.0 0.65 30

X 13.0 1.50 115

X 14.0 1.55 155

Consumption

Minutes

RINSE AID INDICATOR

When lit, the rinse aid dispenser needs to be refilled.

DELAYED START BUTTON

Press the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 00. Then press the START button. The dishwasher will start after the set time.

HALF LOAD/MULTIZONE

Allows you to choose the washing zones. Press this button to select the wash zones:

both racks

only upper rack

only lower rack

5019 396 01743ADP 7609

-1-

3h 6h 9h

How to set detergent type: powder/gel/tablet (if option is available)

First time use

In order to always ensure the best cleaning results, you NEED to set: DETERGENT type and WATER HARDNESS.

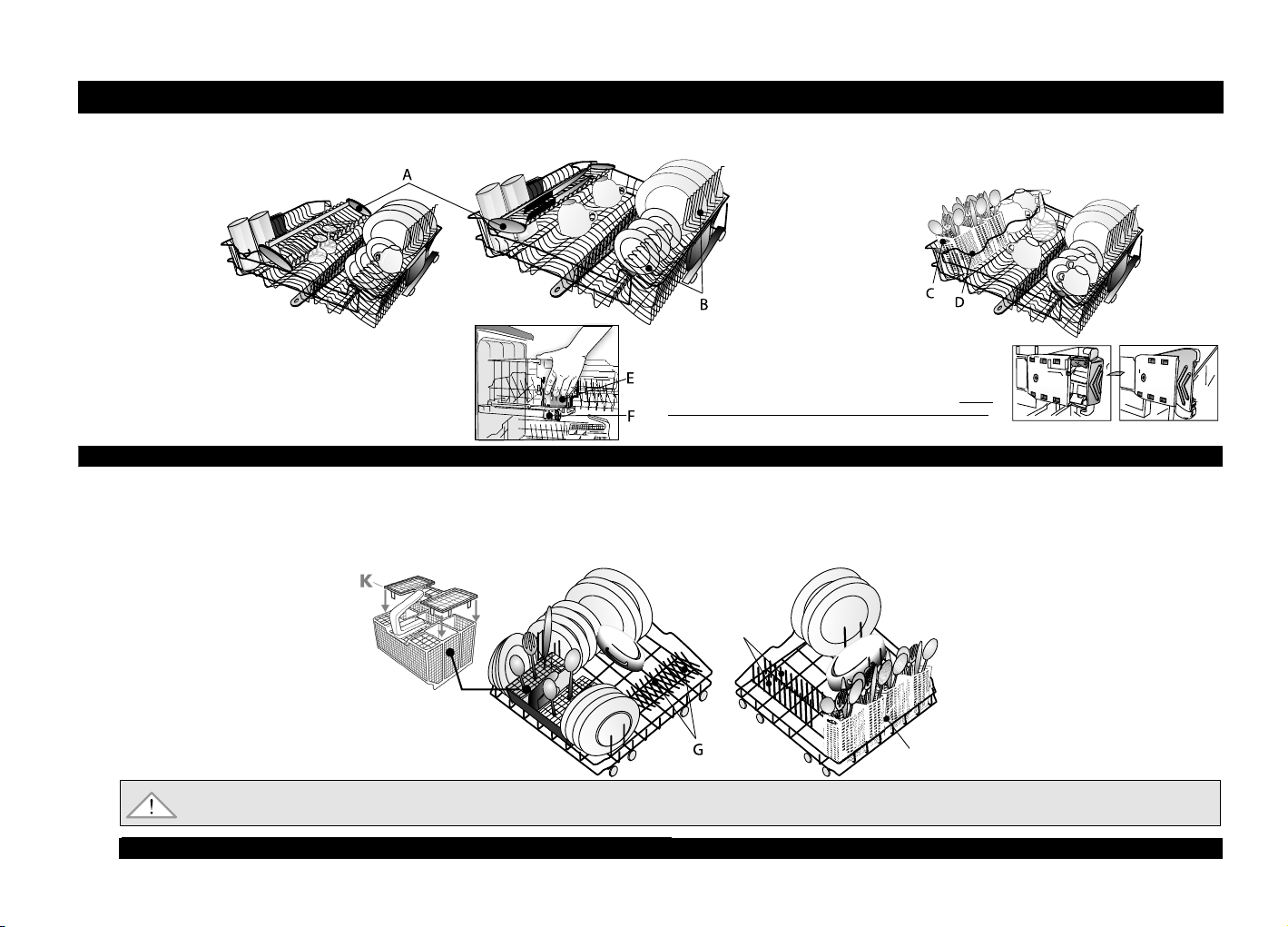

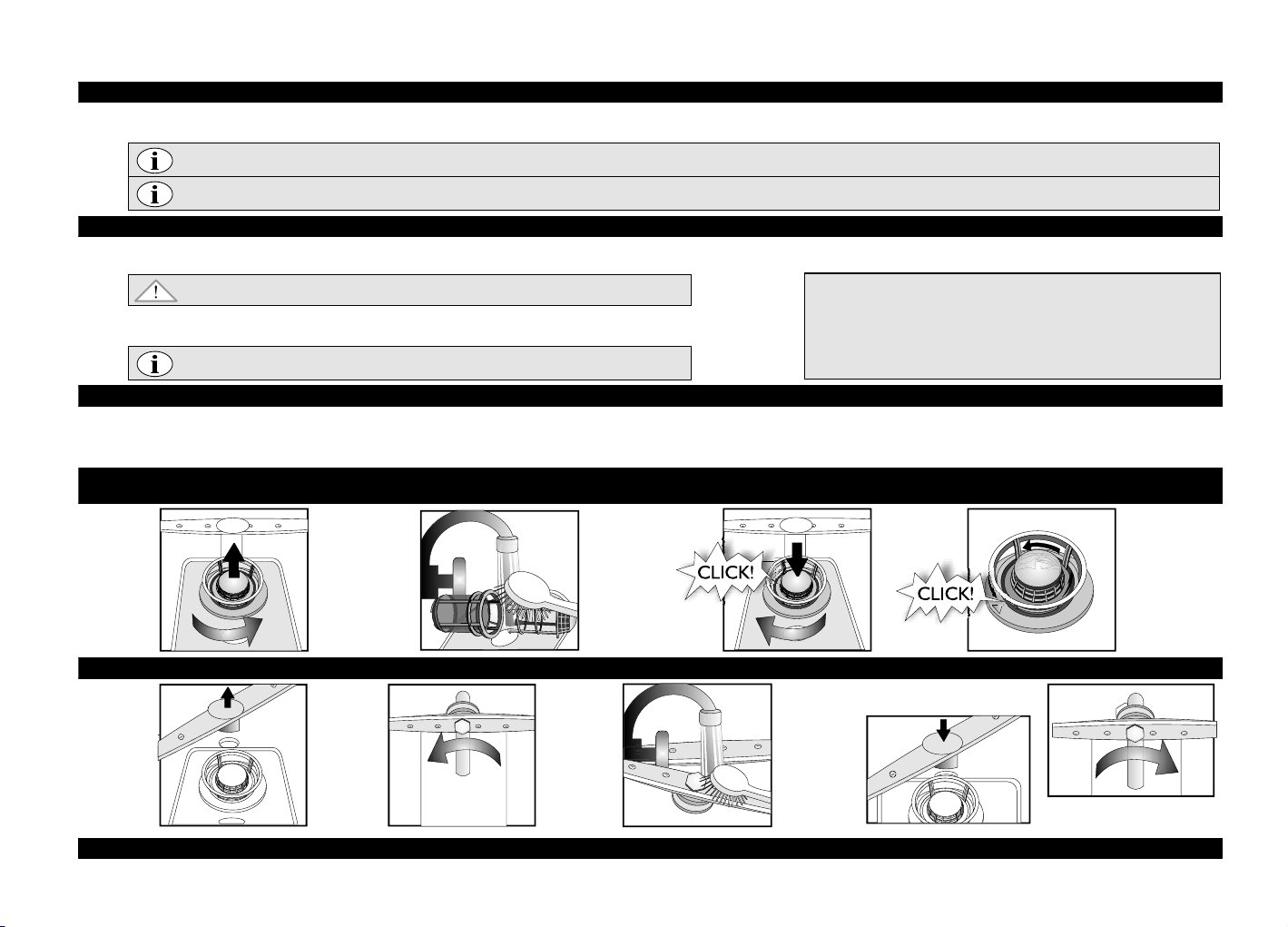

1- salt reservoir 2- rinse aid dispenser 3- detergent dispenser 4- racks system 5,6,7,8- available functions on the panel 9- filters 10- spray arms

Select 3rd programme (see Table of programmes

- page 1)

Press START button for 7 seconds

3a.

Check your detergent type...

Detergent

Powder or gel

(factory setting)

Ta b le t 2 in 1

Ta b le t 3 in 1

Tablet All in 1

For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.

How to set water hardness

Switch on the appliance

before the first wash

only

water hardness has been changed

Ask your water supply company what the

German

degrees °dH

0 - 5 0 - 9 0 - 6.3 Soft 1 1x

6 - 10 10 - 18 7 - 12.6 Medium 2 2x 11 - 15 19 - 27 13.3 - 18.9 Average 3 3x 16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 4x 22 - 28 38 - 50 26.6 - 35 Hard 5 5x 29 - 35 51 - 63 35.7 - 44.1 Very hard 6 6x

36 - 60 64 - 107 44.8 - 74.9

French

degrees °fH

or if the

degrees °eH

English

- Select the 2nd programme “P2” - consult the table of programmes.

- Press the START button for at least 5 seconds until the START indicator lamp flashes.

- The water hardness setting is shown on the display (if present) or the START button flashes.

- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.

- The appliance must be switched off to memorise the new setting.

water hardness

is...2....enter this value on your

Wate r

hardness

Extremely

hard

types

dishwasher

Dishwasher

with display:

insert value in

the display

7 7x

3b.

...and set it on your dishwasher

using the START button

(as per table below)

Dishwasher models

model without

display

Dishwasher

without

display: count

START button

led flashes

model with display

Suggestions for detergent use

Gel or Powder

(rinse aid and

salt)

go to step 1

(see “Daily

check”)

Remember to use salt and rinse aid when needed (as indicated below)

no symbol add salt add rinse aid

add salt

salt

Tab l e ts

rinse aid

Water hardness level is factory set for medium hard water (a number “4” is shown on the display or the START indicator lamp flashes 4 times).

if extra salt is needed go to

step 1

(see “Daily

check”)

Even if you use tablets which include salt, you must still add salt since such detergents are not effective enough at softening hard water.

Switch off and switch on again to save setting

-2-

Filling the salt reservoir -

Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

The salt level indicator lamp may remain lit for the duration of several wash cycles. If the water hardness level falls within category (soft), no salt is required.

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Rinse aid

indicator (depending on model)

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, deterge to form excess suds.

Adding detergent -

Visual indicator (depending on model). Unscrew cap.

Visual indicator B

If required, open the cover (press lever).

The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE ADDED.

Fill the salt reservoir with water before the first wash only.

Salt indicator

(depending on

the model)

Add rinse aid to max. line ~100 ml

The indicator lamp on the control panel

lights up when SALT NEEDS TO BE

ADDED.

nt residue may be a problem (if necessary, use powder

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Tablet / gel / powder

Add salt

(never add detergent!). min. 1.5 kg max. 2 kg

orange: OK. clear: NEEDS TO BE ADDED

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the lever to open the cover. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

dark: OK. clear: NEEDS TO BE ADDED

detergent). Detergents with rinse aid incorporated tend

Visual indicator (depending on model). Screw on the cap. Salt residues around cap need to be removed.

Daily use

Open the cover A (press lever).

Only fill the detergent dispenser prior to starting a wash programme.

Use only one tablet per cycle, placed in the detergent dispenser.

-3-
