Whirlpool ADP 734 Quick reference guide

ADP 734

Important:

• If a fault occurs or you wish to change the current programme, press the On/Off push button or push in the push/pull knob (depending on the model)! Refer to the “Troubleshooting guide” in the user instructions to remedy any problems.

• If you switch off the dishwasher during a wash cycle, when switched on again the dishwasher resumes the cycle from where it was interrupted.

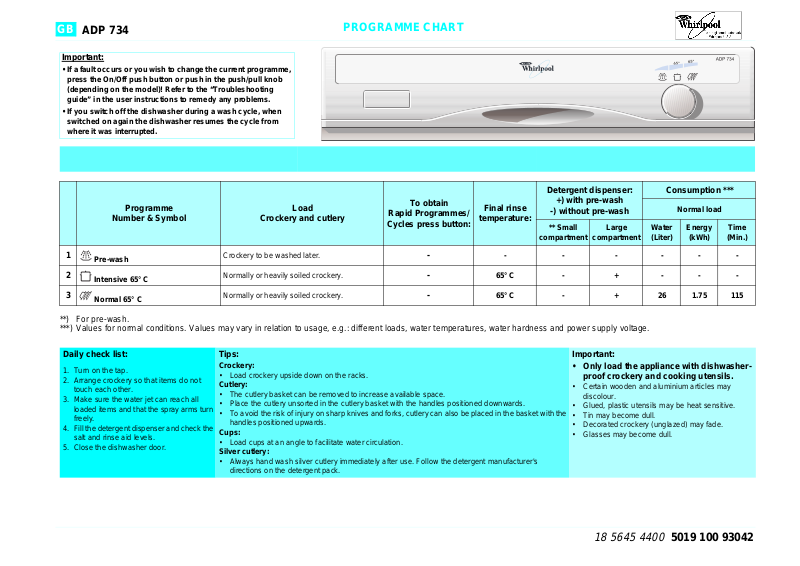

PROGRAMME CHART

Detergent dispenser:

+) with pre-wash

-) without pre-wash

** Small

compartment

Large

2 3

Programme

Number & Symbol

Pre-wash

Intensive 65° C

Normal 65° C

Load

Crockery and cutlery

Crockery to be washed later.

Normally or heavily soiled crockery.

To obtain

Rapid Programmes/

Cycles press button:

Final rinse

temperature:

- - - ---

65° C - + ---

65° C - + 26 1.75 115

**) For pre-wash. ***) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.

Daily check list:

1. Turn on the tap.

2. Arrange crockery so that items do not touch each other.

3. Make sure the water jet can reach all loaded items and that the spray arms turn freely.

4. Fill the detergent dispenser and check the salt and rinse aid levels.

5. Close the dishwasher door.

Tips:

Crockery:

• Load crockery upside down on the racks .

Cutlery:

• The cutlery basket can be removed to increase available space.

• Place the cutlery unsorted in the cutlery basket with the handles positioned downwards.

• To avoid the risk of injury on sharp knives and forks, cutlery can also be placed in the basket with the handles positioned upwards.

Cups:

• Load cups at an angle to facilitate water circulation.

Silver cutlery:

• Always hand wash silver cutlery immediately after use. Follow the detergent manufacturer's directions on the detergent pack.

Important:

• Only load the appliance with dishwasherproof crockery and cooking utensils.

• Certain wooden and aluminium articles may discolour.

• Glued, plastic utensils may be heat sensitive.

• Tin may become dull.

• Decorated crockery (ung la ze d) may fade.

• Glasses may become dull.

Consumption ***

Normal load

Water (Liter)

Energy

(kWh)

Time

(Min.)

18 5645 4400

5019 100 93042

Quick reference guide

Also refer to the “Dishwasher loading instructions” which contain detailed information and useful tips.

HOW TO USE THE DISHWASHER

Close the dishwasher door and turn on the water tap.

1. Select the programme required by turning the If required, select any additional functions.

programme selector knob.

Upper rack

Upper rack:

Crockery Holders:

• Down: two tiers of cups.

• Up: long-stemmed glasses.

2. Pull out the to start the programme.

3. To change the previously selected programme push in the

selector knob

Turn the clockwise to the required programme. Pull out the to start the programme. If required, select any additional functions.

Note:

during a wash programme, when switched on again the dishwasher resumes the wash cycle from where it was interrupted.

4. To switch the dishwasher off turn the

programme selector knob

to the

programme selector knob

programme

to stop the programme.

programme selector knob

If the dishwasher is switched off

clockwise

“Stop”

position and push it in.

Open the door and unload first the lower rack, then the upper one.

Lower rack

Plate Holder:

• The plate holder may be removed to increase available space.

• To remove the plate holder pull the handle up.

• To reposition the plate holder, insert it in its original position.

Cutlery Basket:

• Removable to gain space.
