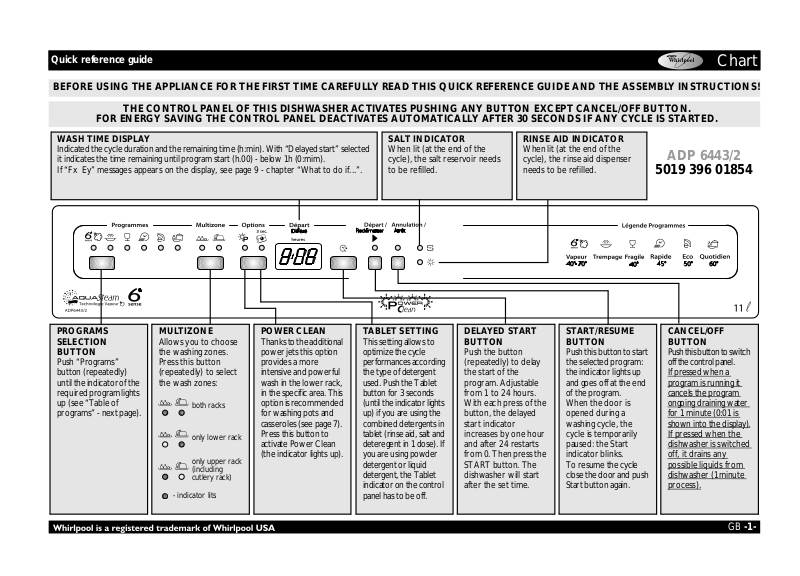

Whirlpool ADP 6443/2 IS, ADP 6443/2 PROGRAM CHART

Quick reference guide

Chart

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!

THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY BUTTON EXCEPT CANCEL/OFF BUTTON.

FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES AUTOMATICALLY AFTER 30 SECONDS IF ANY CYCLE IS STARTED.

WASH TIME DISPLAY

Indicated the cycle duration and the remaining time (h:min). With “Delayed start” selected it indicates the time remaining until program start (h.00) - below 1h (0:mim).

If “Fx Ey” messages appears on the display, see page 9 - chapter “What to do if...”.

SALT INDICATOR

When lit (at the end of the cycle), the salt reservoir needs to be refilled.

RINSE AID INDICATOR

When lit (at the end of the cycle), the rinse aid dispenser needs to be refilled.

ADP 6443/2 5019 396 01854

PROGRAMS			MULTIZONE			POWER CLEAN
SELECTION			Allows you to choose			Thanks to the additional
BUTTON			the washing zones.			power jets this option
Push “Programs”			Press this button			provides a more
button (repeatedly)			(repeatedly) to select			intensive and powerful
until the indicator of the			the wash zones:			wash in the lower rack,
required program lights						in the specific area. This
up (see “Table of			both racks			optionisrecommended
programs” - next page).						for washing pots and
						casseroles (see page 7).
			only lower rack			Press this button to
						activate Power Clean
			only upper rack			(the indicator lights up).
			(including
			cutlery rack)
			- indicator lits

TABLET SETTING

This setting allows to optimize the cycle performances according the type of detergent used. Push the Tablet button for 3 seconds (until the indicator lights up) if you are using the combined detergents in tablet (rinse aid, salt and deteregent in 1 dose). If you are using powder detergent or liquid detergent, the Tablet indicator on the control panel has to be off.

DELAYED START BUTTON

Push the button (repeatedly) to delay the start of the program. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 0. Then press the START button. The dishwasher will start after the set time.

START/RESUME BUTTON

Push this button to start the selected program: the indicator lights up and goes off at the end of the program.

When the door is opened during a washing cycle, the cycle is temporarily paused: the Start indicator blinks. To resume the cycle

close the door and push Start button again.

CANCEL/OFF BUTTON

Pushthisbuttontoswitch off the control panel.

If pressed when a program is running it cancels the program ongoing draining water for 1 minute (0:01 is shown into the display). If pressed when the dishwasher is switched off, it drains any possible liquids from dishwasher (1minute process).

GB -1-

Quick reference guide

Chart

Table of programs

Deter-

Consumption

Available

P

Programs

Loading instructions

gent

Litres

kWh

Minutes 1)

options

Soaking or hand pre-treatment is no longer

needed on any kind of items. Steam is used to

Delay

soften soil and its action is particularly effective

1

Aqua Steam

40-70°C

on coffee, tea and lipstick stain on glasses and

Multizone

X

7-14

1.00-1.80

70-185

cups. Furthermore, thanks to the combination

Power Clean

with 6th Sense, optimization of time, energy

and water is guaranteed because it adapts the

washing cycle to the level of soil.

2

Pre-Wash

cold

Delay

Crockery to be washed later.

—

4.0

0.03

14

Multizone

3

Glasses

40°C

Delay

Light soiling, for example glasses and cups.

X

10.0

0.85

100

Multizone

4

Quickwash

45°C

Delay

Lightly soiled crockery, with no dried-on

X

11.0

0.80

30

Multizone

food.

5

Eco 2)

50°C

Delay

Multizone

Normally soiled crockery.

X

11.0

1.05

150

Power Clean

6

Daily

60°C

Delay

Normally or heavily soiled crockery.

X

13.0

1.25

120

Multizone

1)Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.

2)Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “[e-mail]”.

GB -2-

How to set water hardness in order to always assure the best cleaning results

First time use

1- salt reservoir

2- rinse aid dispenser

3- detergent dispenser

4- racks system

5,6,7,8- available functions on the panel

9- filters

10spray arms

Water hardness should be set only before the first wash or if water hardness has been changed

Water hardness level is factory set for mediumhard water (level 4).

Even if you use tablets which include salt functionality, you must still add regeneration salt since such detergents are not effective enough at softening hard water.

-Press and hold together Programs and CANCEL/Off buttons for minimum 3 seconds.

-The current water hardness setting will be visible on the display.

-Press the Programs button to increase setting. Value range goes from 1 to 7 (when the level reaches 7, the next press of the start button will set the level back to 1).

-Wait 30 seconds (control panel switches off) or press Start/Resume button to save setting.

1. Ask your water supply company what the				2. ...enter this value on your	Suggestions for detergent use
water hardness is...				dishwasher
French			Water hardness	Insert level is shown	Gel or Powder	Tablets
degrees °fH			level	in the display	(rinse aid and salt)
0	- 9		Soft	1
10	- 18		Medium	2
19	- 27		Average	3	go to step 1
28	- 37		Medium-hard	4	(see “Daily	if water is
					check”)
38	- 50		Hard	5		HARD extra salt
						needs to be added
51	- 63		Very hard	6
						(go to step 1,
64 - 107			Extremely hard	7		“Daily check”)

At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).

Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

1	Visual indicator
	(depending
	on the model).
	Unscrew cap.

Fill the salt reservoir with water	Add salt (never add detergent!)
before the first wash only.	min. 1.5 kg/max. 2 kg

Screw on the cap. Salt residual around the cap need to be removed. Some salt reservoir have a level indicator integrated in the cap (see below how to check).

		(depending on the model)
	The salt level indicator lamp may remain lit Salt indicator on the control panel		Salt indicator on the salt reservoir cap
	at the end of several wash cycles. If the	The indicator lamp lights up when SALT	orange:	clear: NEEDS TO
	water hardness level falls within category
		NEEDS TO BE ADDED.	OK.	BE ADDED
	(soft), no salt is required.

GB -3-

Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Daily check

2	Visual
	indicator
	If required,
	open the
	cover B	Add rinse
	(press the	aid to the
	dedicated	max. line
	button).	~150 ml

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

Check the rinse aid indicator to check the level into the dispenser.

	(depending on the model)
	Rinse aid indicator on the control panel	Rinse aid indicator on the dispenser
	The indicator lamp lights up when	dark: OK.	clear: NEEDS TO BE ADDED
	RINSE AID NEEDS TO BE ADDED.

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations		Daily use
Open the cover A	Insert detergent: Tablet / powder / liquid	Shut the cover
(press the dedicated button).	into the big chamber.	by pressing dedicated ribs.
3	Only fill the	Use only one tablet per one cycle,
	detergent	only placed in detergent
	dispenser prior to	dispenser.
	starting a wash
	program.	All types of tablets can be used,
		but for 2 in 1 type adding of salt is
		mandatory.
