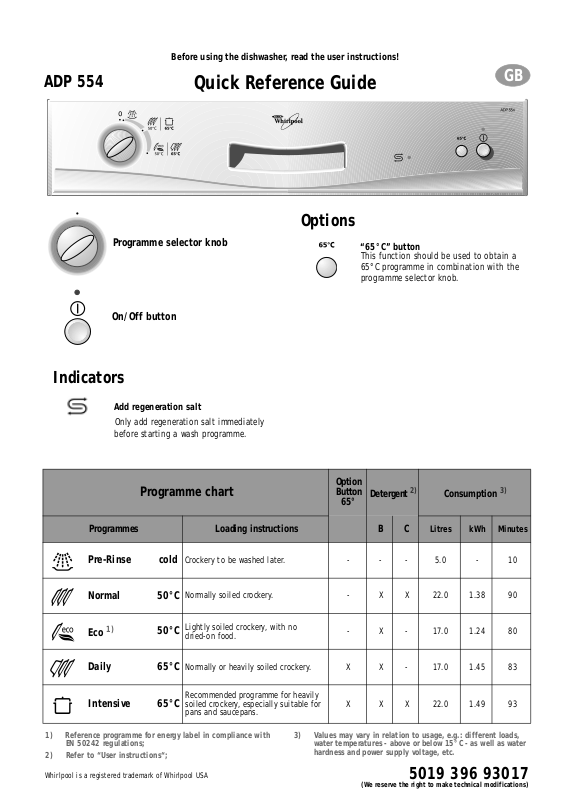

Whirlpool ADP 554 Quick Reference Guide
Before using the dishwasher, read the user instructions!
ADP 554
Indicators
Quick Reference Guide
Programme selector knob
On/Off button
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
GB
Options
“65°C” button
This function should be used to obtain a
65°C programme in combination with the
programme selector knob.
Programme chart
Programmes Loading instructions B C
Pre-Rinse cold
Normal 50°C
1)
Eco
Daily 65°C
Intensive 65°C
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
Whirlpool is a registered trademark of Whirlpool USA
Crockery to be washed later. - - - 5.0 - 10
Normally soiled crockery. - X X 22.0 1.38 90
Lightly soiled crockery, with no
50°C
dried-on food.
Normally or heavily soiled crockery. X X - 17.0 1.45 83
Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans .
Option
Button
Detergent
65°
- X - 17.0 1.24 80
X X X 22.0 1.49 93
3) Values may vary in relation to usage, e.g.: different loads,
water temperatures - abo v e or belo w 15°C - as w ell as w ate r
hardness and power supply voltage, etc.
(We reserve the right to make technical modifications)
2)
Consumption
Litres kWh Minutes
3)
5019 396 93017
How to use the appliance
E
Further indications are given in the single chapters and in the user instructions.
Open the door
How to fill the detergent
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
To open compartment press A.
Large compartment B:
With each wash cycle.
Small compartment
For programmes with pre-wash only.
Mechanical indicator D.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator E. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme by turning the selector knob clockwise.
C:
A
BC
D
Select options
Press the On/Off button
to start the programme
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided).
“Change programme”
Press the On/Off button, the On/Off
indicator lamp switches off;
Select another programme and
press the On/Off button again. The
On/Off indicator lamp switches on.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
Press the On/Off button.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
