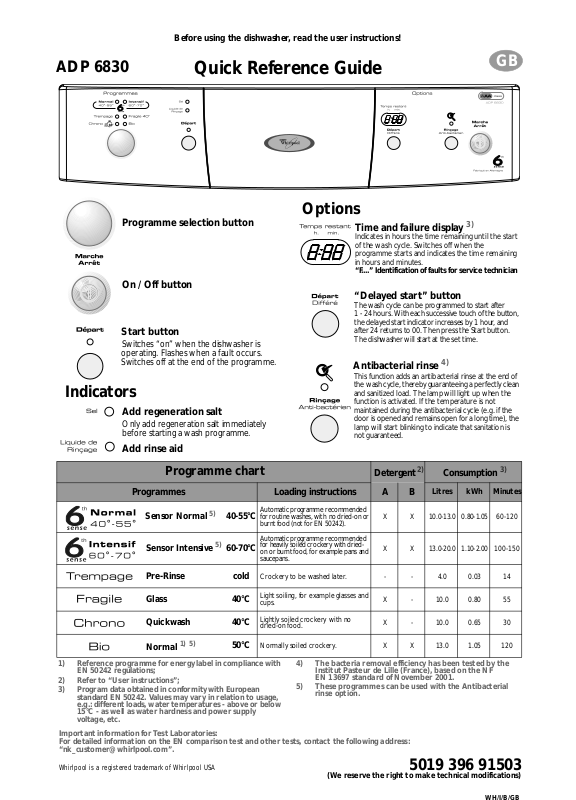

Before using the dishwasher, read the user instructions!
ADP 6830 |
Quick Reference Guide |
GB |
|
Programme selection button |
Options |
Time and failure display 3) |
|
|
Indicates in hours the time remaining until the start |
|
of the wash cycle. Switches off when the |
|
programme starts and indicates the time remaining |
|
in hours and minutes. |
|
“F....” Identification of faults for service technician |
On / Off button
Start button
Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.
Indicators
Add regeneration salt
Only add regeneration salt immediately before starting a wash programme.
Add rinse aid
“Delayed start” button
The wash cycle can be programmed to start after
1 - 24 hours. With each successive touch of the button, the delayed start indicator increases by 1 hour, and after 24 returns to 00. Then press the Start button. The dishwasher will start at the set time.
Antibacterial rinse 4)
This function adds an antibacterial rinse at the end of the wash cycle, thereby guaranteeing a perfectly clean and sanitized load. The lamp will light up when the
function is activated. If the temperature is not
maintained during the antibacterial cycle (e.g. if the door is opened and remains open for a long time), the lamp will start blinking to indicate that sanitation is not guaranteed.
|
|
|
|
Programme chart |
Detergent 2) |
Consumption 3) |
||||||
|
|
Programmes |
|
|
Loading instructions |
A |
B |
Litres |
kWh |
Minutes |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sensor Normal 5) |
40-55°C |
Automatic programme recommended |
X |
X |
10.0-13.0 |
0.80-1.05 |
60-120 |
|
|
|
|
|
for routine washes, with no dried-on or |
||||||||
|
|
|
|
|
|
|
burnt food (not for EN 50242). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5) |
|
Automatic programme recommended |
|
|
|
|
|
|
|
|
|
Sensor Intensive |
60-70°C |
for heavily soiled crockery with dried- |
X |
X |
13.0-20.0 |
1.10-2.00 |
100-150 |
|
|
|
|
|
|
on or burnt food, for example pans and |
|||||||
|
|
|
|
|
|
|
saucepans. |
|
|
|
|
|
|
|
|
|
Pre-Rinse |
|
cold |
Crockery to be washed later. |
- |
- |
4.0 |
0.03 |
14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Glass |
|
40°C |
Light soiling, for example glasses and |
X |
- |
10.0 |
0.80 |
55 |
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
cups. |
|
|
|
|
|
|
|
|
|
Quickwash |
|
40°C |
Lightly soiled crockery with no |
X |
- |
10.0 |
0.65 |
30 |
|
|
|
|
|
|
|
dried-on food. |
|
|
|
|
|
|
|
|
|
Normal 1) 5) |
|
50°C |
Normally soiled crockery. |
X |
X |
13.0 |
1.05 |
120 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Reference programme for energy label in compliance with EN 50242 regulations;
2)Refer to “User instructions”;
3)Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.
Important information for Test Laboratories:
4)The bacteria removal efficiency has been tested by the Institut Pasteur de Lille (France), based on the NF
EN 13697 standard of November 2001.
5)These programmes can be used with the Antibacterial rinse option.
For detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA |
5019 396 91503 |
|
(We reserve the right to make technical modifications) |
WH/I/B/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
Fill the detergent dispenser
Check the rinse aid level
Check the regeneration salt level
Load the racks
Close the dishwasher door, turn on the water tap
Select a programme
Select additional options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
Press the ON / OFF button.
Compartment A: |
|
|
|
|
|
|
With each wash cycle. |
|
|
A |
B C |
||
Compartment B: |
|
|
|
|
|
|
For programmes with pre-wash only. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Mechanical indicator lamp C. |
|
|
|
|
||
Electric indicator on control panel (if provided). |
|
|
|
|
||
On models with water softener |
|
|
|
|
|
|
|
|
|
|
|
||
system only. |
|
|
|
|
|
|
Mechanical indicator lamp D. Electric |
|
|
|
|
|
|
indicator on control panel (if provided). |
|
|
|
|
|
|
|
|
|
|
|
|
|
Refer to the dishwasher loading instructions. |
|
|
|
|
||
The last programme selected will light up.
Select the desired programme (using the specific button or knob). The corresponding indicator lamp lights up.
If necessary (and if provided).
The corresponding indicator lamp lights up.
The selected programme is then memorised (even in the event of power failure).
“Change programme in progress”
Press the START button for 2 sec. until the Start indicator lamp switches off.
Select another programme and press the START button again.
-Only open the dishwasher if necessary (Warning: beware of hot steam).
-If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
Only after the START button has switched off: Press the ON / OFF button. All the indicator lamps switch off.
Warning: When the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
WH/II/B/GB
