Page 1
GB
ADP 2968
6th SENSE: Optimum wash results coupled with maximum
energy savings
The two sensor-controlled programmes are recommended for routine
washes.
They use double sensor technology designed to ensure optimum
wash results with minimum water and energy consumption.
Further indications are given in the pages to follow and in the user instructions.
Programme selector
Start button
Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Half Load Button - Upper rack
Half Load Button - Lower rack
Load the upper or lower rack
with any programme.
The corresponding indicator lamp lights up.
Press the button again to deactivate the half-load function.
Programme Symbol
and Temperature
Normal 40 - 55° C
Intensive 60 - 70° C
Pre-wash
Options
. This function can be used
only
Programme selection and
recommended load type
Recommended programme
crockery with little or no dried-on food.
Recommended programme
with dried-on food. Especially suitable for pans and
saucepans.
Crockery to be washed later.
for routine washes
for heavily soiled crockery
Quick Reference Guide
Options
Delayed start button
The wash cycle can be
programmed to start after
1 - 9 hours
With each successive
touch of the button, the
delayed start indicator
increases by 1 hour, and
after 9 returns to 0.
Then press the Start
button.
The dishwasher will start at
the set time.
Place the detergent in the:
small compartment large compartment
, for
,
X X
X X
- - 5.0 (4.2) 0.02 (0.02) 9(9)
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add regeneration salt
immediately before starting a wash programme.
Programme progress indicator
Pre-rinse / Pre-wash
Washing
Drying
Programme end
(1,3)
(0,9)
(1,7)
(1,3)
1)
Time
(Min.)
(80)
(60)
(98)
(90)
Consumption
Normal Load /
(Half Load / Multizone)
Water
(Litres)
(13,5)
(11,5)
(19,5)
(11,5)
Energy
(kWh)
Rapid 40° C
Glasses 40° C
2)
Bio
1) Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15° C as well as water hardness and power supply voltage.
2) Reference programme for Test Institute and energy-label.
Lightly soiled crockery with no dried-on food.
Light soiling, especially glasses and cups.
Normally or heavily soiled crockery with dried-on food.
- X 13.0 (13.0) 0.85 (0.75) 30 (30)
- X 12.5 (10.5) 0.82 (0.78) 60 (59)
X X 16.0 (14.5) 1.05 (0.90) 120 (117)
5019 100 91256
(We reserve the right to make technical modifications)
Page 2
B
C
D
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. The dishwasher switches on
automatically as soon as the
programme selector knob is turned.
One of the programme indicator
lamps will switch on.
3. Turn the selector knob to select the
desired programme.
indicator lamp lights up.
select options (if supplied).
4. Press the Start button to start the
selected wash programme.
indicator lamp will light up.
set, the programmed data cannot be
altered by turning the programme
selector knob.
Once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start
button for about 5 seconds. The
Start indicator lamp will switch
off. Select a new programme and
press the Start button.
If the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
(for about 30 min.)
The corresponding
If required,
The Start
Once
.
6. Turn the programme selector knob to
the initial position to switch off the
dishwasher (only after the Start
indicator lamp has switched off).
the indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All
Upper rack
B
Half load / Multizone:
If the upper rack
the cutlery basket (B) in the upper rack.
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both
sides.
is to be loaded, place
only
two
side handles
two
side
Upper and lower rack
Crockery holders:
•Down:
cups and long-stemmed glasses.
•
Up: plates.
“Flex 3”: multi-purpose support
• To be used, for example, for longhandled utensils
with the blade facing downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
Glass holder:
(arrange knives
Lower rack
A
A
C
Half load / Multizone:
Loading the lower rack
greater washing power, especially for
plates and saucepans.
Plate holders:
•(A) may be lowered to increase
available space.
Cutlery basket:
The cutlery basket can be removed to
increase (
• It can be placed on the upper rack (B)
when the Half load/Multizone function
is selected.
• Some models are provided with a grid
(D) that can be fitted onto the cutlery
basket.
) available space.
B+C
only
gives
Please read the user instructions carefully.
Page 3
• Arrange crockery so that items do not
touch each other. Arrange large
crockery in the lower rack and smaller
crockery in the upper rack.
• Load cups at an angle to facilitate
water drainage.
• Generally speaking, place cutlery in
the basket with the handles positioned
downwards, but ensure that any sharp
knives and forks that might cause
injury are placed in the basket with the
handles positioned upwards.
• Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
Important
• Fill the detergent dispenser and check
the salt and rinse aid level.
• Do not use the appliance for items not
suitable for washing in a dishwasher,
for example: wooden items,
aluminium, plastic utensils, tin, handdecorated crockery (unglazed), silver
cutlery.
• Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
• If a fault occurs or you wish to change
the current programme, press the
“START” button for about 5 seconds
until the Start indicator lamp switches
off.
• If regeneration salt is to be added,
Tips and advice
immediately
in order to eliminate any residual salt
(rinsing alone is not sufficient).
• Sometimes even though the
regeneration salt container has been
filled, the corresponding indicator
lamp (if fitted) will light up during the
first wash cycle after filling with salt.
start a wash programme
• Before starting a wash programme,
make sure that the spray arms can turn
freely and are not impeded by crockery
or cutlery.
Switch off the dishwasher once the
•
“Start” indicator lamp has switched off.
If you switch off the dishwasher during a
wash cycle, when switched on again the
dishwasher resumes the cycle from
where it was interrupted without having
to start it again.
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
• Is the plug properly inserted in the wall
socket?
• Is there a power failure?
• Is the dishwasher switched on?
• Has the Start button been pressed?
• Has the delayed start timer been set
(if fitted)?
• Is the water supply tap on?
• Is the flow of water obstructed by
impurities? If so, close the water supply tap,
detach the water hose and clean the filter.
Then re-connect the water hose to the tap
and open the water tap once again.
• Are the filters clogged? (See “Care and
Maintenance” chapter in the user
instructions).
• Is the door closed properly?
• Is a fault indicated?
(The Start indicator lamp flashes).
Start the programme again from the
beginning: press the Start button for
about 5 seconds, until the Start indicator
lamp switches off.
Select a new programme and press the
Start button.
.
Troubleshooting Guide
Crockery still dirty after washing:
• Was the crockery loaded properly?
• Crockery must be loaded facing
downwards; this is important, especially
for large items of crockery.
• The water jets must spray the entire
surface of all items.
• Make sure that crockery and cutlery are
arranged properly.
• Have you selected the correct
programme?
• Did you use too much or t oo little
detergent? (The use of poor quality
detergents may result in less effective
washing).
• Are the filters clog ged or incorrectly
assembled? (See “Care and
Maintenance” chapter in the user
instructions).
• Are the spray arms blocked or the nozzles
clogged? (See “Care and Maintenance”
chapter in the user instructions).
• Is the lower spray arm correctly fitted?
• Is the salt container cap (water softening
system) screwed down?
Marked crockery:
• Is the water hardness level selector not
properly adjusted? See (“Filling the salt
container” in the user instructions).
• Is the salt container empty? (See “Filling
the salt container” in the user
instructions).
• Was insufficient detergent used?
(See “Filling the detergent dispenser ” in
the user instructions).
Marked glasses and cutlery:
• Was too much rinse aid used? (See
“Filling the rinse aid dispenser” in the user
instructions).
Note:
with some models, when the Start button
is pressed a pre-wash cycle precedes the
actual wash programme; this regenerates the
water softening system.
AFTER-SALES
SERVICE
If after carrying out the above checks the
malfunction persists or appears again,
turn the appliance off and turn off the
water supply tap, then call our After-Sales
Service (see guarantee). Please specify:
• The nature of the fault.
• The appliance type and model.
• The service code (the number after the
word Service on the adhesive rating plate)
inside the door on the right-hand side.
Your full address and telephone number.
•
Please read the user instructions carefully.
Page 4

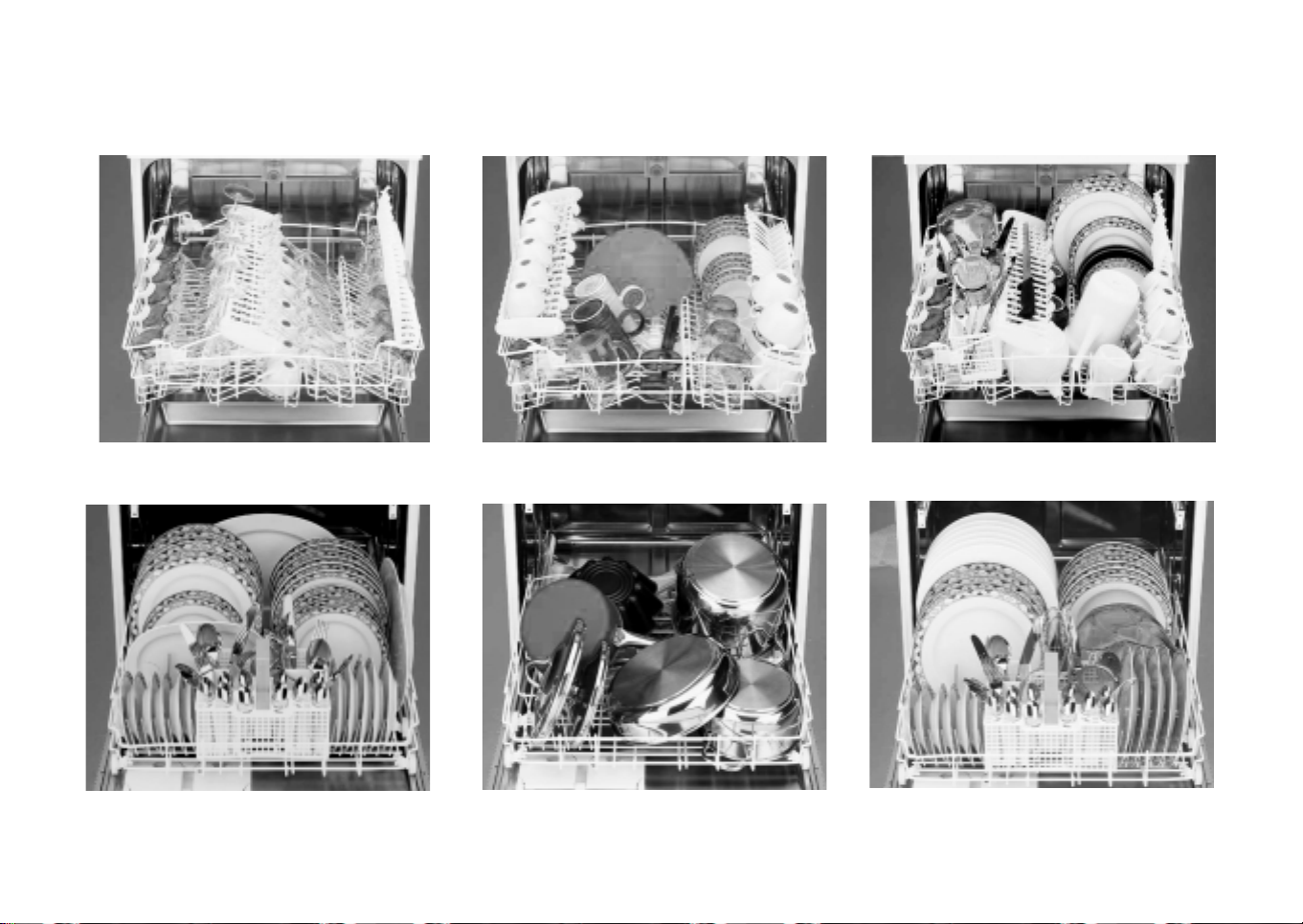

Dishwasher loading instructions
UPPER RACK
LOWER RACK
Depending on the model, rack features may vary (see “Upper and lower rack” description).
Half Load / Multizone
