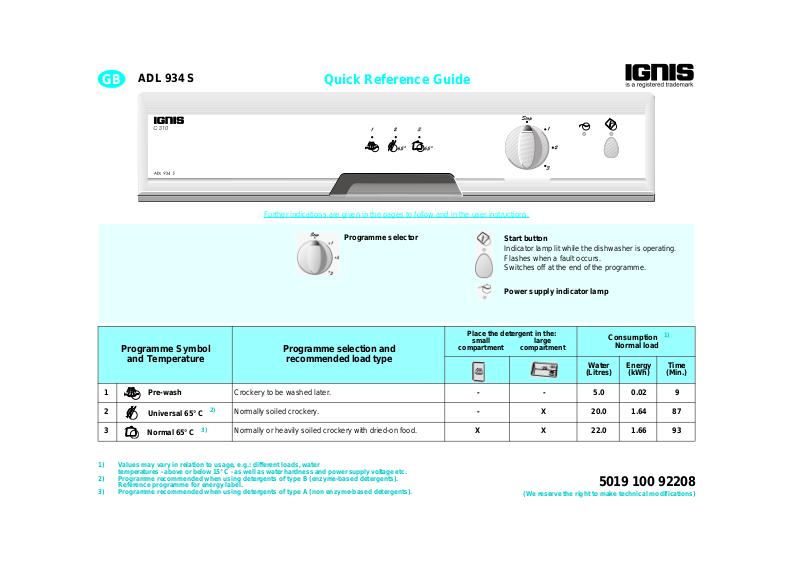

Whirlpool ADL 934 S WH, ADL 934 S NB, ADL 934 S IX PROGRAM CHART

ADL 934 S

Quick Reference Guide

Further indications are given in the pages to follow and in the user instructions.

Programme selector

Programme Symbol

and Temperature

1) Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.

2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3) Programme recommended when using detergents of type A (non enzyme-based detergents).

Pre-wash

Universal 65° C

Normal 65° C

Crockery to be washed later.

Normally soiled crockery.

Normally or heavily soiled crockery with dried-on food.

Programme selection and

recommended load type

Start button

Indicator lamp lit while the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Power supply indicator lamp

Place the detergent in the:

small large

compartment compartment

- - 5.0 0.02 9

- X 20.0 1.64 87

X X 22.0 1.66 93

Water

(Litres)

Consumption

Normal load

Energy

(kWh)

5019 100 92208

(We reserve the right to make technical modifications)

Time

(Min.)

How to use the dishwasher

1. After loading the dishwasher, cl ose the door properly and open the water supply tap.

2. The dishwasher switches on automatically as soon as the programme selector knob is turned.

supply indicator lamp switches on.

3. Turn the selector knob to select the desired programme. If required, select options (if supplied).

4. Press the Start button to start the selected programme. Once set, the programmed data cannot be altered by turning the programme selector knob.

once the Start button has been

Note:

pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the selected programme, press the Start button for about 5 seconds

, until the Start indicator

lamp switches off.

programme and press the Start button.

if the dishwasher is switched off

Note:

during a wash programme, when switched on again it will resume the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from steam.

5. To indicate the end of the programme, the Start indicator lamp switches off and

the End indicator lamp (if fitted)

lights up

(for about 30 min.)

The power

Select a new

6. Turn the programme selector knob to the initial position to switch off the dishwasher (only after the Start indicator lamp has switched off).

the indicator lamps switch off.

7. Open the door (warning: beware of hot steam). Unload the lower rack before the upper one. Close the water tap.

All

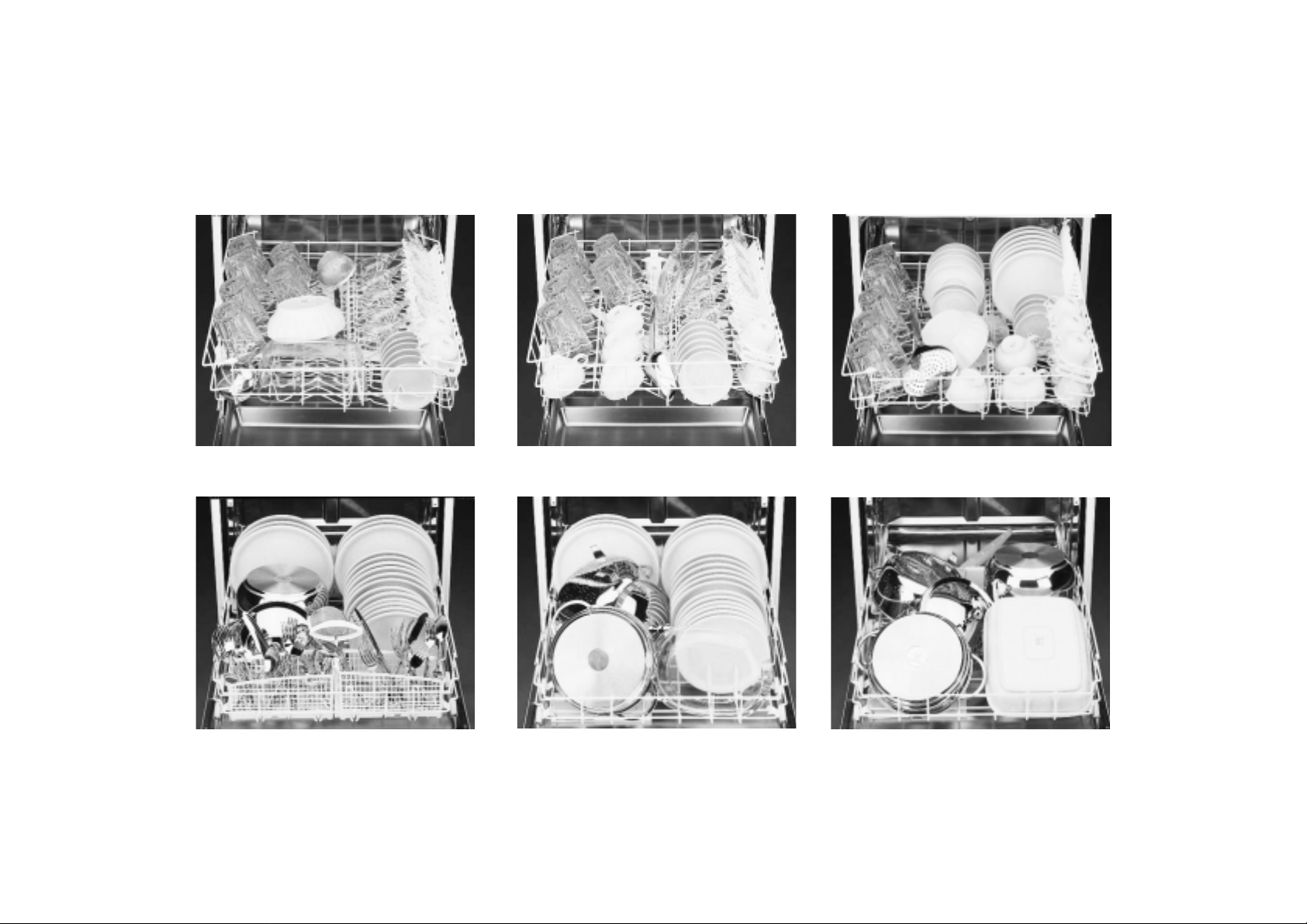

Crockery holders:

• Down: cups and long-stemmed

•

glasses. Up: plates.

Upper rack

Upper and lower rack

Lower rack

Cutlery basket:

• With or without handle (depending on model).

• The cutlery basket can be removed to increase available space.

Please read the user instructions carefully.
