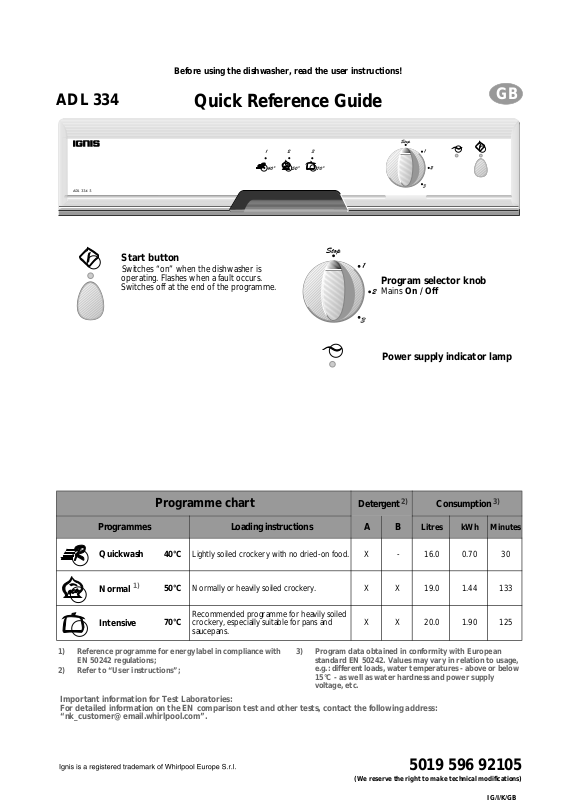

Before using the dishwasher, read the user instructions!
ADL 334
Quick Reference Guide
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
GB
Program selector knob
On / Off
Mains
Power supply indicator lamp
Programme chart
Detergent
Programmes Loading instructions A B
40°C
Quickwash
1)
Normal
Intensive
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions”;
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address:
“[email protected]”.
Lightly soiled crockery wit h no d ried-on food. X - 16.0 0.70 30
50°C
Normally or heavily soiled crockery. X X 19.0 1.44 133
Recommended programme for heavily soiled
70°C
crockery, especially suitable for pans and
saucepans.
3) Program data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage,
e.g.: different loads, water temperatures - above or be low
15°C - as well as water hardness and power supply
voltage, etc.
X X 20.0 1.90 125
2)
Litres kWh Minutes
5019 596 92105
(We reserve the right to make technical modifications)
Consumption
3)
IG/I/K/GB
Page 2
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the detergent
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash
only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
AB
C
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
IG/II/K/GB
Page 3
Dishwasher loading instructions and racks provided

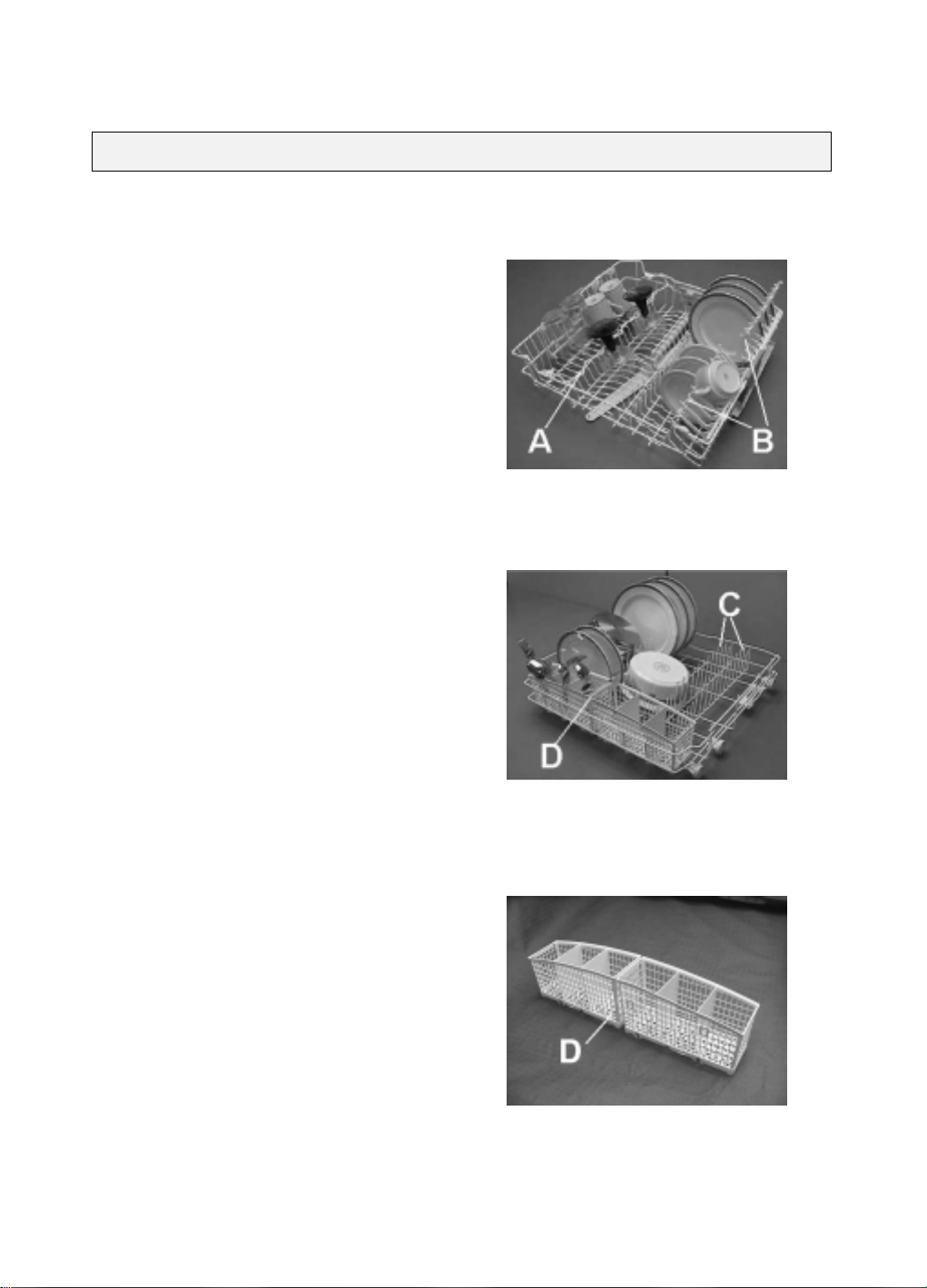

Upper rack:
Revolving glass support (A):
Depending on the position, for example small or longstemmed glasses.
Crockery holders (B):
Depending on the position, for example plates, cups
and long-stemmed glasses.
Lower rack:
Plate holder (C).
Cutlery basket (D):
The cutlery basket can be removed to increase
available space.
Sharp knives and forks that might cause injury must be
placed in the cutlery basket with the handles
positioned upwards.
Only use dishwasher-proof crockery and dis he s. Do not use the appliance for items not suitable for
washing in a dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated
crockery (unglazed), silver cutlery.
IG/III/GB
Page 4
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
• No water supply. •Open the tap.
working
If crockery is not
• The appliance does not load
sufficient water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. • Increase dosage *.
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Press the Start button.
•Close the door.
• Check the domestic circuit fuse.
perfectly dry
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean
Sandy or grainy residues
Colour of plastic parts
faded
• The water jet does not reach
the crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice,... • Depending on the material, if necessary use a
• Arrange crockery so that items do not touch each
other. Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
•removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
calcium deposits.
• Change water hardness setting, if necessary add
salt *.
Opaque glasses/
• Cannot be washed in the dishwasher. • Use suitable glasses.
glasses not sparkling
Rust on cutlery
Identifying appliance
faults
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water
supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicate d on the adhesive rating plate)
inside the door on the right-hand side.
• Not made of stainless steel. • Use suitable cutlery.
• The START indicator lamp flashes. • Ensure that the filter assembly is not clogged and
if necessary clean it *.
Start the programme again. Press the Start button
for 2 seconds, until the Start indicator lamp switches
off. Select a new programme and press the Start
button again.
• Indicator F... (if provided). • Call the After-Sales Service.
IG/IV/GB
