Whirlpool ADG 975/3 NBM, ADG 975/3 IXM PROGRAM CHART

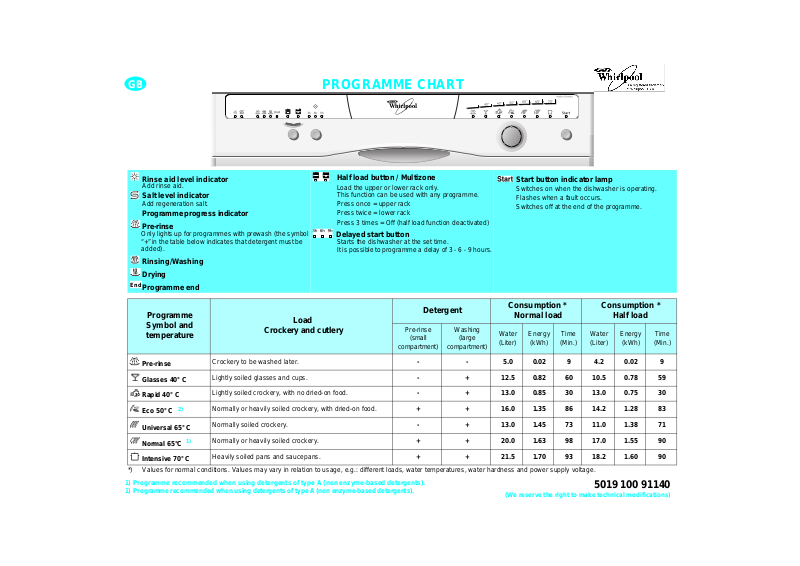

PROGRAMME CHART

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt.

Programme progress indicator Pre-rinse

Only lights up for programmes with prewash (the symbol “+” in the table below indicates that detergent must be added).

Half load button / Multizone

Load the upper or lower rack only. This function can be used with any programme. Press once = upper rack

Press twice = lower rack Press 3 times = Off (half load function deactivated)

Delayed start button

Starts the dishwasher at the set time. It is possible to programme a delay of 3 - 6 - 9 hours.

Start button indicator lamp

Switches on when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Rinsing/Washing Drying

End

Programme end

Programme Symbol and

temperature

Pre-rinse

Glasses 40° C Rapid 40° C

Eco 50° C

Universal 65° C

Normal 65°C Intensive 70° C

*) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.

1) Programme recommended when using detergents of type A (non enzyme-based detergents).

Crockery to be washed later. Lightly soiled glasses and cups. Lightly soiled crockery, with no dried-on food. Normally or heavily soiled crockery, with dried-on food. Normally soiled crockery. Normally or heavily soiled crockery.

Heavily soiled pans and saucepans.

Crockery and cutlery

Load

Detergent

Pre-rinse

(small

compartment)

- - 5.0 0.02 9 4.2 0.02 9

- + 12.5 0.82 60 10.5 0.78 59

- + 13.0 0.85 30 13.0 0.75 30

+ + 16.0 1.35 86 14.2 1.28 83

- + 13.0 1.45 73 11.0 1.38 71

+ + 20.0 1.63 98 17.0 1.55 90 + + 21.5 1.70 93 18.2 1.60 90

Washing

(large

compartment)

Consumption *

Normal load

Water (Liter)

Energy

(kWh)

(We reserve the right to make technical modifications)

Time

(Min.)

Consumption *

Half load

Water (Liter)

Energy

(kWh)

Time

(Min.)

5019 100 91140

Quick Reference Guide

Daily check list:

1. Arrange crockery so that items do not touch each other.

2. Load cups at an inclination to facilitate water circulation.

3. In general, place the cutlery in the basket with the handles positioned downwards, but ensure that sharp knives and forks that might cause injury are placed in the basket with the handles positioned upwards.

4. Make sure the water je t can reach all loaded items and that the spray arms rotate freely.

5. Turn on the water supply tap before starting the dishwasher.

Important:

• Switch off the dishwasher once the “Start” indicator lamp has

switched off. If you switch off the dishwasher during a wash cycle, when switched on again the dishwasher resumes the cycle from where it was interrupted.

• If a fault occurs or you wish to change the current programme, press the “START” button fo r about 5 seconds until the Start indicator lamp switches off ! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.

• If a fault occurs or you wish to change the current programme, press the “START” button for about 5 seconds until the Start indicator lamp switches off ! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.

• Sometimes even when the regeneration salt container is full, the corresponding indicator lamp may illuminate during the first wash cycle.

Upper rack

Crockery holders:

• Down: cups and long-stemmed glasses.

• Up: plates.

Cutlery holder for long utensils:

• Up: glass holder (gently lift up and release).

• Down: large cutlery (gently lift up).

• Place knives with blades facing

downwards.

Glass holder:

• The glass holder can be moved sideways.

• Below: small glasses.

• Above: long-stemmed glasses.

Half Load button / Multizone:

If only the upper rack is to be loaded remove the cutlery basket from the lower rack and place it in the upper one.

Height adjustment:

(The dishwasher is delivered with the upper rack in the top position).

• To lower: pull out the two side handles and gently lower the rack.

• To raise: pull up the two side handles until the rack clicks into place.

• The rack must be level on both sides.

Lower rack

Half Load button / Multizone:

Loading the lower rack only: greater washing power, particularly for plates and saucepans.

Cutlery basket:

The cutlery basket can be removed to increase available space.

Plate holders:

• May be removed to increase available space.

• To remove: pull the handle up.

• To reposition: simply insert in the

required position (normal or crosswise).
