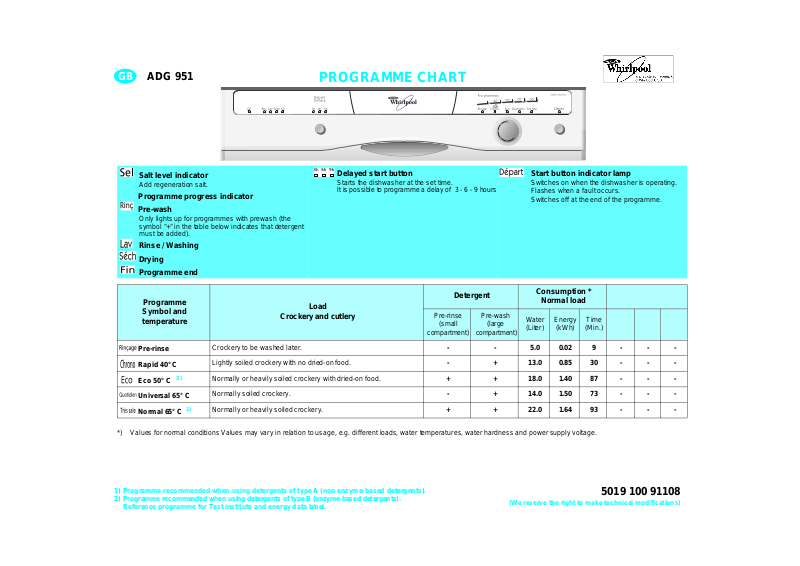

Whirlpool ADG 951 PROGRAM CHART
GB
ADG 951
PROGRAMME CHART
Salt level indicator
Add regeneration salt.
Programme progress indicator
Pre-wash
Only lights up for programmes with prewash (the symbol “+” in the table below indicates that detergent must be added).
Rinse / Washing
Drying
Programme end
|
Delayed start button |
|
Start button indicator lamp |
|
Starts the dishwasher at the set time. |
|
Switches on when the dishwasher is operating. |
|
It is possible to programme a delay of 3 - 6 - 9 hours |
|
Flashes when a fault occurs. |
|
|
|
Switches off at the end of the programme. |
|
|
|
Detergent |
Consumption * |
|
|
|
|||
|
Programme |
|
Normal load |
|
|
|
||||
|
Load |
|
|
|
|
|
||||
|
Symbol and |
Crockery and cutlery |
Pre-rinse |
Pre-wash |
Water |
Energy |
Time |
|
|
|
|
temperature |
|
|
|
||||||
|
|
(small |
(large |
|
|
|
||||
|
|
|
(Liter) |
(kWh) |
(Min.) |
|
|
|
||
|
|
|
compartment) |
compartment) |
|
|
|
|||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Pre-rinse |
Crockery to be washed later. |
- |
- |
5.0 |
0.02 |
9 |
- |
- |
- |
|
|
|
|
|
|
|
|
|
|
|
|
Rapid 40° C |
Lightly soiled crockery with no dried-on food. |
- |
+ |
13.0 |
0.85 |
30 |
- |
- |
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Eco 50° C 2) |
Normally or heavily soiled crockery with dried-on food. |
+ |
+ |
18.0 |
1.40 |
87 |
- |
- |
- |
|
Universal 65° C |
Normally soiled crockery. |
- |
+ |
14.0 |
1.50 |
73 |
- |
- |
- |
|
|
|
|
|
|
|
|
|
|
|
|
Normal 65° C 1) |
Normally or heavily soiled crockery. |
+ |
+ |
22.0 |
1.64 |
93 |
- |
- |
- |
|
||||||||||
|
||||||||||
*) Values for normal conditions Values may vary in relation to usage, e.g. different loads, water temperatures, water hardness and power supply voltage.
1) |
Programme recommended when using detergents of type A (non enzyme-based detergents). |
5019 100 91108 |
2) |
Programme recommended when using detergents of type B (enzyme-based detergents). |
(We reserve the right to make technical modifications) |
|
Reference programme for Test institute and energy data label. |
|
|
|
Daily check list
1. Arrange crockery so that items do not touch each other
2. Load cups at an angle to facilitate water circulation
3.In general, place the cutlery in the basket with the handles positioned
downwards but ensure that any sharp knives and forks that might
cause injury are placed in the basket with the handles positioned upwards.
4. Make sure the water jet can reach all loaded items and that the spray arms turn freely.
5. Turn on the water supply tap before starting the dishwasher
Important
•Switch off the dishwasher once
the “Start” indicator lamp has switched off. If you switch off the dishwasher during the wash cycle, the dishwasher resumes the cycle from where it was interrupted.
• If a fault occurs or you wish to change the current programme, press the “START” button for about 5 seconds until the Start indicator lamp switches off! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.
• If regeneration salt is to be added, IMMEDIATELY start a washing programme, to eliminate any residual salt.
•Sometimes even when the
regeneration salt container is full, the corresponding indicator lamp may illuminate during the first wash cycle.
Quick Reference Guide
Upper rack
Crockery holders:
•Down: cups and long-stemmed glasses.
• Up: plates.
Height adjustment:
(The dishwasher is delivered with the upper rack in the top position).
The rack height can also be changed when loaded.
• To lower: pull out the two side handles and gently lower the rack.
• To raise: pull up the two side handles until the rack clicks into place.
• The rack must be level on both sides.
GB
Lower rack
Cutlery basket:
The cutlery basket can be removed to increase available space.
Plate holders:
•May be removed to increase available space.
•To remove: pull the handle up
•To reposition: simply insert in the required position (normal or crosswise).
