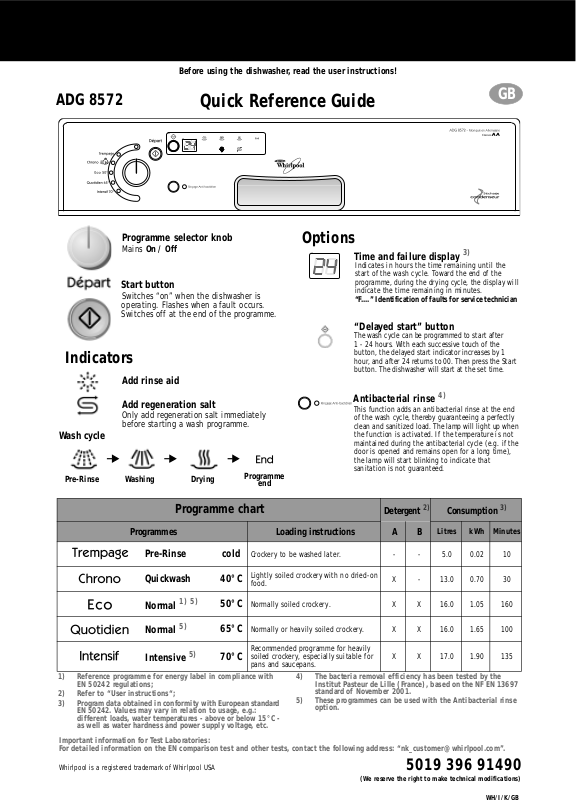

Before using the dishwasher, read the user instructions!
ADG 8572
Programme selector knob
On / Off
Mains
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Indicators
Add rinse aid
Add regeneration salt
Only ad d regenerat i on salt immediately
before starting a wash programme.
Wash cycle
Pre-Rinse Washing Drying
Quick Reference Guide
Options
Time and failure display
Indicates in hours the time remaini ng until the
start of the wash cycle. Toward the end of the
programme , during the dryin g cycle , th e display will
indicate the time remaining in minutes.
“F....” Identification of faults for service technician
“Delayed start” button
The wash cycle can be programm ed to start after
1 - 24 hours. With each successive touch of the
button, the delayed start indicator increases by 1
hour, an d after 24 returns to 00. Then pr ess the Start
button. The dishwasher will start at the set tim e.
Antibacterial rinse
This function adds an antibacteri al r in se at th e end
of the wash cycle , th ereby guaranteein g a perfectly
clean and sanitized load. The lamp will l ight up when
the function is activated. If the temperature is n ot
maintained during th e antibacter ial cycle (e.g. if the
door is opened and rem a in s open f o r a long time),
the lamp will start blinki n g to indicate that
Programme
end
sanitation is not guaranteed.
GB
3)
4)
Programme chart
Detergent
Programmes Loading instructions A B
Pre-Rinse cold
Quickwash 40°C
1) 5)
Normal
5)
Normal
Intensive
1) Reference programme f or energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
3) Program data obtained in conformity with European standard
EN 50242 . Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C as well as water hardness and power supply voltage, etc.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[email protected]”.
Whirlpool is a registered trademark of Whirlpool USA
5)
Crockery to be washed later. - - 5.0 0.02 10
Lightly soiled crockery with no dried-on
food.
Normally soiled crockery. X X 16.0 1.05 160
50°C
Normally or heavily soiled crockery. X X 16.0 1.65 100
65°C
Recommended programme for heavily
soiled crockery, especially suitable for
70°C
pans and saucepans.
4) The bacteria removal efficiency has been tested by the
Institut Pasteur de Li lle (France) , based on the NF EN 13697
standard of November 2001.
5) These programmes can be used with the Antibacterial rinse
option.
(We reserve the right to make technical modifications)
2)
Consumption
Litres kWh Minutes
X - 13.0 0.70 30
X X 17.0 1.90 135
5019 396 91490
WH/I/K/GB
3)
Page 2
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indi cator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
ABC
Select options
Press the Start button
Wa sh cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (e ven in the
event of power failure).
Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. un til
the Start indicator lamp switches o ff;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched o ff d urin g a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
WH/II/K/GB
Page 3
Dishwasher loading instructions and racks provided

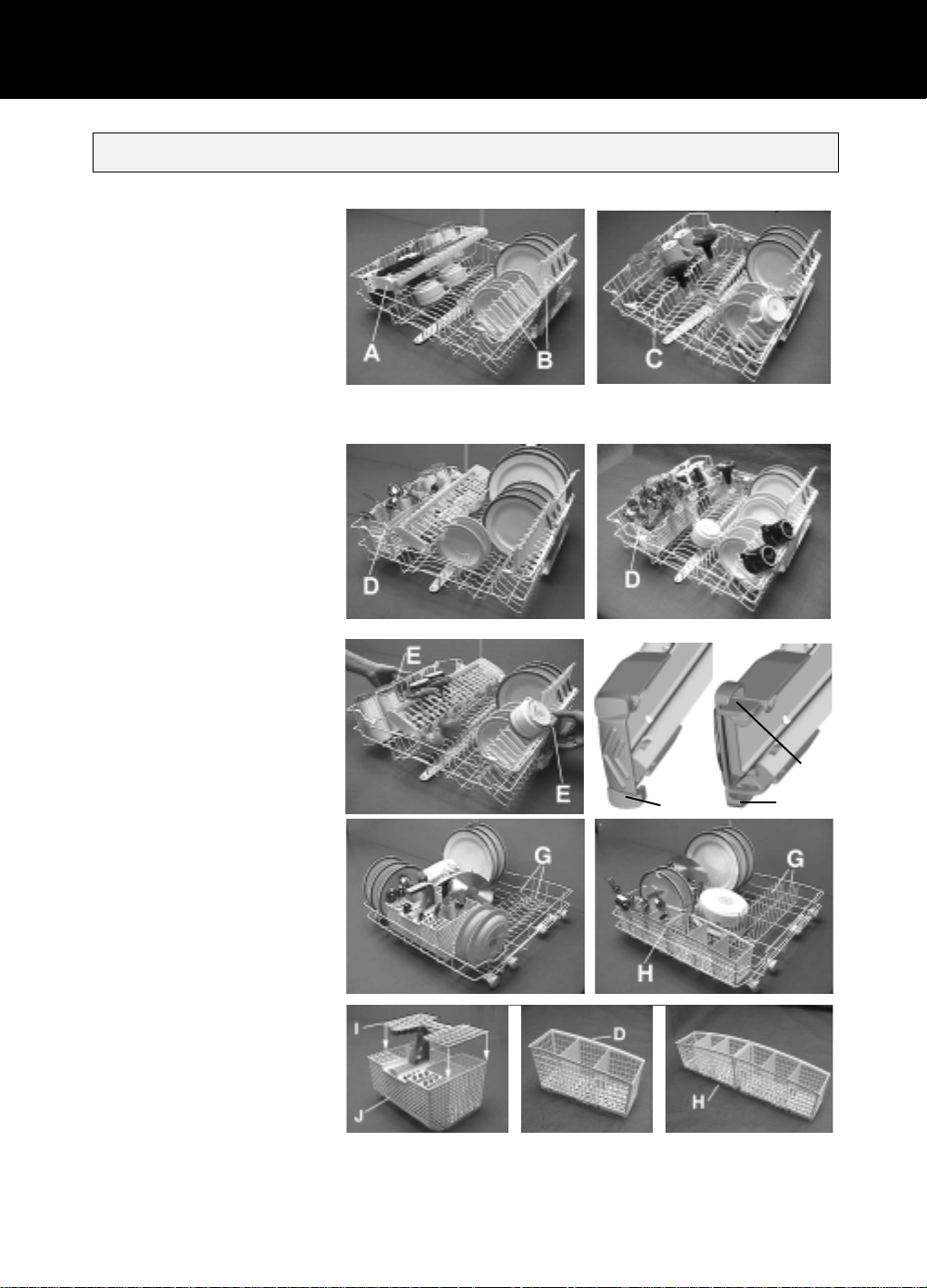

Upper rack:
Multi-purpose support (A):
Depending on the position, f or lon ghandles utensils, cups and glasses . M ay
be used in three different position s.
Crockery holders (B):
Depending on the positi on, for ex ample
plates, cups and long-stemm ed gl asses .
Revolving glass support (C):
Depending on the positi on, for ex ample
small or long-stemmed glasses .
Long-handled utensils (e.g. carving
forks, knives) must be arranged
with the sharp end facing in
towards the appliance
Half Load:
Load the upper rack
Place the cutlery basket (D) in the
upper rack.
only
Rack height adjustment
(also when loaded):
Lower adjustment:
•
two
rack handles outwards (E)
and lower the rack.
Upper adjustment:
•
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to provide
clearance for large items of
crockery in the bottom rack:
Open the rack guide r etainers (F) on the
right and left an d r em ove th e t op r ack.
When the upper rack is in place the
retainers must always be closed.
1)
2)
.
.
pull out the
two
pull the
depending on the model
Retainer
closed
F
Retainer
F
open
Lower rack:
Depending on the m odel with fix ed or
tilting plate holders (G).
Half Load:
Load the lower rack
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (J) or (H):
Some models are provid ed with a grid
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D), if provided, for
appliances with half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the sharp end
facing downwards.
Only use dishwasher-proof crockery and dishes . Do not use the appliance f or items not suitable for w ashing in a dishwasher ,
for example wooden items , aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery .
Spare parts which are sold separately:
1)
Multi-purpose support (A) - N. AMH 369 series.
2)
Revolving glass support (C) - N. WGH 1000 series.
only
.
Page 4
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
• No water supply. • Open the tap.
working
If crockery is not
• The appliance does not load
sufficient water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. • Increase dosage *.
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Press the Start button.
• Close the door.
• Check the domestic circuit fuse.
perfectly dry
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean
Sandy or grainy residues
Colour of plastic parts
faded
• The water jet does not reach
the crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice,... • Depending on the material, if necessary use a
• Arrange crockery so that items do not touch each
other.
Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
calcium deposits.
• Change water hardness setting, if necessary add
salt *.
Opaque glasses/
• Cannot be washed in the dishwasher. • Use suitable glasses.
glasses not sparkling
Rust on cutlery
Identifying appliance
faults
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating plate)
inside the door on t he right-hand side.
• Not made of stainless steel. • Use suitable cutlery.
• The START indicator lamp flashes.
• Indicator F... (if provided).
• Ensure the filter assembly is not clogged and that
there is no interruption to the water supply
(if necessary, clean the filters *). Start th e pr ogr amm e
again. Press the START button for 2 seconds, until the
START in dicator lamp switches off. Select a new
programme and press the Start button again.
WH/IV/GB
