ADG 8347
Whirlpool is a registered trademark of Whirlpool USA
5019 396 91571
GB
ADG 8347

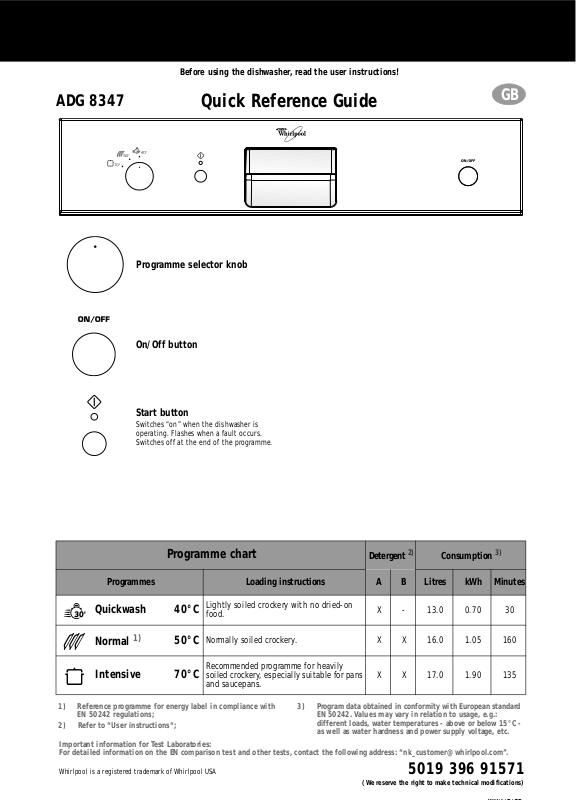

Quick Reference Guide
Before using the dishwasher, read the user instructions!
(We reserve the right to make technical modifications)
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C -
as well as water hardness and power supply voltage, etc.
Programme selector knob
On/Off button
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Programme chart
Detergent
2)
Consumption
3)
Programmes Loading instructions A B Litres kWh Minutes
Quickwash 40°C
Lightly soiled crockery with no dried-on
food.
X - 13.0 0.70 30
Normal
1)
50°C
Normally soiled crockery. X X 16.0 1.05 160
Intensive 70°C
Recommended progr amme for heavily
soiled crockery , especially suitable for pan s
and saucepans.
X X 17.0 1.90 135
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Press the
ON
/OFF button.
Large compartment
A:
With each wash cycle.
Small compartment
B:
For programmes with pre-wash only.
Mechanical indi cator
C
.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator
D
. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switch ed of f d uring a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
Only after the START button has switched off: Press the ON/
OFF
button.
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Switch on the appliance
How to fill the
detergent dispenser
ABC
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Select options
Press the Start button
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and press
the START button again.
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
