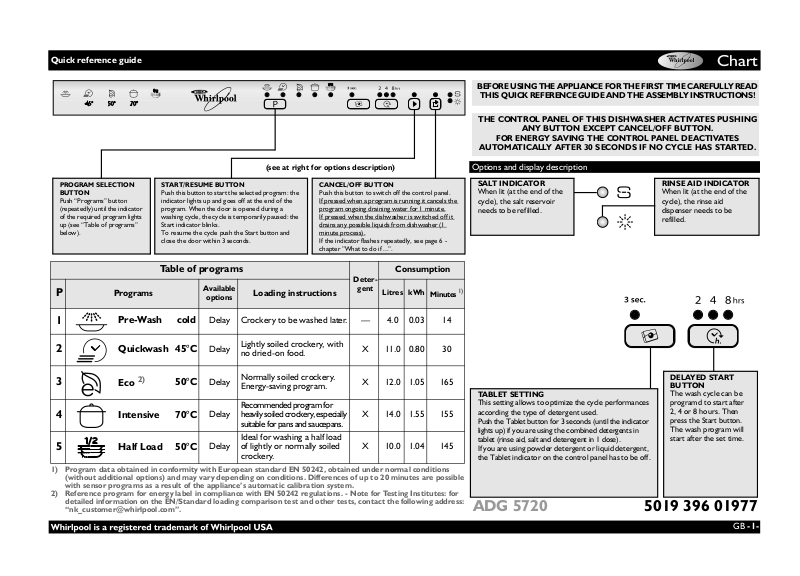

Whirlpool ADG 5720 Quick reference guide

Quick reference guide

Chart

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ

THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!

(see at right for options description)

PROGRAM SELECTION BUTTON

Push “Programs” button (repeatedly) until the indicator of the required program lights up (see “Table of programs” below).

Programs

Pre-Wash cold

Quickwash 45°C

Eco

START/RESUME BUTTON

Push this button to start the selected program: the indicator lights up and goes off at the end of the program. When the door is opened during a washing cycle, the cycle is temporarily paused: the Start indicator blinks. To resume the cycle push the Start button and close the door within 3 seconds.

Table of programs

Available

options

Delay Crockery to be washed later. — 4.0 0.03 14

Lightly soiled crockery, with

Delay

no dried-on food.

50°C

Normally soiled crockery.

Delay

Energy-saving program.

CANCEL/OFF BUTTON

Push this button to switch off the control panel. If pressed when a program is running it cancels the program ongoing draining water for 1 minute. If pressed when the dishwasher is switched off it drains any possible liquids from dishwasher (1 minute process). If the indicator flashes repeatedly, see page 6 chapter ”What to do if ...”.

Loading instructions

Deter-

gent

Litres kWh

X 11.0 0.80 30

X 12.0 1.05 165

Consumption

Minutes

Recommended program for

Delay

Intensive 70°C

heavily soiled crockery, especially suitable for pans and saucepans.

X 14.0 1.55 155

Ideal for washing a half load

Delay

1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.

2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.

Half Load 50°C

of lightly or normally soiled crockery.

X 10.0 1.04 145

THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING

ANY BUTTON EXCEPT CANCEL/OFF BUTTON.

FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES

AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.

Options and display description

SALT INDICATOR

When lit (at the end of the cycle), the salt reservoir needs to be refilled.

TABLET SETTING

This setting allows to optimize the cycle performances according the type of detergent used. Push the Tablet button for 3 seconds (until the indicator lights up) if you are using the combined detergents in tablet (rinse aid, salt and deteregent in 1 dose). If you are using powder detergent or liquid detergent, the Tablet indicator on the control panel has to be off.

RINSE AID INDICATOR

When lit (at the end of the cycle), the rinse aid dispenser needs to be refilled.

DELAYED START BUTTON

The wash cycle can be programd to start after 2, 4 or 8 hours. Then press the Start button. The wash program will start after the set time.

5019 396 01977ADG 5720

-1-

How to set water hardness in order to always assure the best cleaning results

First time use

1- salt reservoir 2- rinse aid dispenser 3- detergent dispenser 4- racks system 5,6,7,8- available functions on the panel 9- filters 10- spray arms

Water hardness should be set only

before the first wash or if water

hardness has been changed

Water hardness level is factory set for medium-hard water (level 4).

Even if you use tablets which include salt functionality, you must still add regeneration salt since such detergents are not effective enough at softening hard water.

At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).

Filling the salt reservoir -

The salt level indicator lamp may remain lit at the end of several wash cycles. If the water hardness level falls within category (soft), no salt is required.

-Press and hold together Programs and CANCEL/Off buttons for minimum 3 seconds.

- Programs LEDs will indicate the water hardness setting.

-Press the

- Wait 30 seconds (control panel switches off) or press

Programs

Ask your water supply company what the water hardness is...

French

degrees °fH

0 - 9 Soft 1 10 - 18 Medium 2 19 - 27 Average 3 28 - 37 Medium-hard 4 38 - 50 Hard 5 51 - 63 Very hard 6 64 - 90 Extremely hard 7

button to increase setting (when the level reaches 7, the next key press will set the level back to 1.

Water hardness

level

START/Resume

...enter this value on your dishwasher

3 first PROGRAM LEDs

lit on the panel

(see table of programs)

P1 P2 P3

Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Visual indicator (depending on the model). Unscrew cap.

Fill the salt reservoir with water

before the first wash only.

(depending on the model)

Salt indicator on the control panel Salt indicator on the salt reservoir cap

The indicator lamp lights up when SALT NEEDS TO BE ADDED.

Add salt (never add detergent!)

min. 0.8 kg / max. 1 kg

button to save setting.

Suggestions for detergent use

Gel or Powder

(rinse aid and salt)

go to step 1

(see “Daily

check”)

green: OK.

Ta bl e ts

if water is

HARD extra salt

needs to be added

(go to step 1,

“Daily check”)

Daily check

Screw on the cap. Salt residual around the cap need to be removed. Some salt reservoir have a level indicator integrated in the cap (see below how to check).

clear: NEEDS TO

BE ADDED

-2-

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Daily check

Visual

Check the rinse aid indicator to check the level into the dispenser.

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent -

(press the dedicated button).

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Open the cover A

indicator

If required, open the cover B (press the dedicated button).

Add rinse aid to the max. line ~150 ml

(depending on the model)

Rinse aid indicator on the control panel Rinse aid indicator on the dispenser

The indicator lamp lights up when RINSE AID NEEDS TO BE ADDED.

Insert detergent: Tablet / powder / liquid into the big chamber

Only fill the detergent dispenser prior to starting a wash program.

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

dark: OK. clear: NEEDS TO BE ADDED

Shut the cover

by pressing dedicated ribs.

Use only one tablet per one cycle, only placed in detergent dispenser.

All types of tablets can be used, but for 2 in 1 type adding of salt is mandatory.

Daily use

-3-
