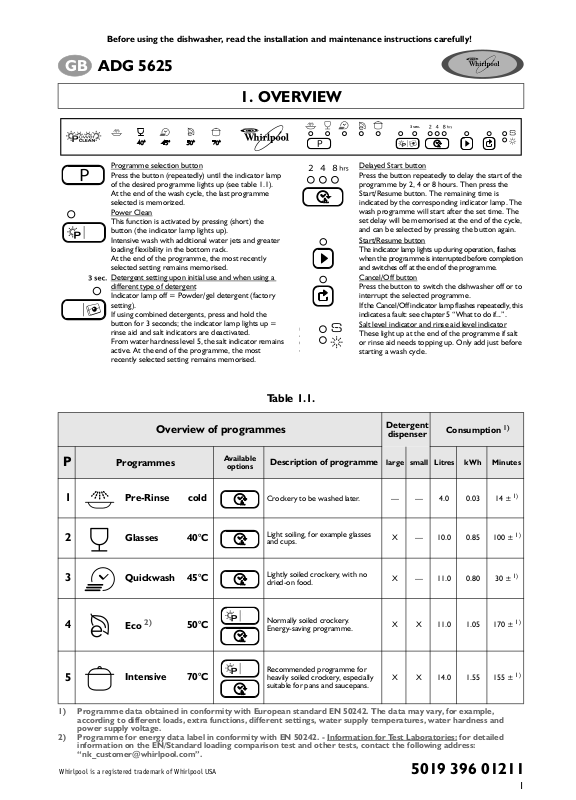

Before using the dishwasher, read the installation and maintenance instructions carefully!
GB ADG 5625
1. OVERVIEW
Programme selection button
Press the button (repeatedly) until the indicator lamp of the desired programme lights up (see table 1.1). At the end of the wash cycle, the last programme selected is memorized.
Power Clean
This function is activated by pressing (short) the button (the indicator lamp lights up).
Intensive wash with additional water jets and greater loading flexibility in the bottom rack.
At the end of the programme, the most recently selected setting remains memorised.
Detergent setting upon initial use and when using a different type of detergent
Indicator lamp off = Powder/gel detergent (factory setting).
If using combined detergents, press and hold the button for 3 seconds; the indicator lamp lights up = rinse aid and salt indicators are deactivated.
From water hardness level 5, the salt indicator remains active. At the end of the programme, the most recently selected setting remains memorised.
Delayed Start button
Press the button repeatedly to delay the start of the programme by 2, 4 or 8 hours. Then press the Start/Resume button. The remaining time is indicated by the corresponding indicator lamp. The wash programme will start after the set time. The set delay will be memorised at the end of the cycle, and can be selected by pressing the button again. Start/Resume button
The indicator lamp lights up during operation, flashes when the programme is interrupted before completion and switches off at the end of the programme. Cancel/Off button
Press the button to switch the dishwasher off or to interrupt the selected programme.
If the Cancel/Off indicator lamp flashes repeatedly, this indicates a fault: see chapter 5 “What to do if...”.
Salt level indicator and rinse aid level indicator These light up at the end of the programme if salt or rinse aid needs topping up. Only add just before starting a wash cycle.
Table 1.1.
|
Overview of programmes |
Detergent |
Consumption 1) |
|
||||||
|
dispenser |
|
||||||||
|
|
|
|
|
|
|
|
|
||
P |
Programmes |
|
Available |
Description of programme |
large |
small |
Litres |
kWh |
Minutes |
|
|
options |
|||||||||
1 |
Pre-Rinse |
cold |
|
Crockery to be washed later. |
— |
— |
4.0 |
0.03 |
14 ± 1) |
|
2 |
Glasses |
40°C |
|
Light soiling, for example glasses |
X |
— |
10.0 |
0.85 |
100 ± 1) |
|
|
|
|
|
and cups. |
|
|
|
|
|
|
3 |
Quickwash |
45°C |
|
Lightly soiled crockery, with no |
X |
— |
11.0 |
0.80 |
30 ± 1) |
|
|
|
|
|
dried-on food. |
|
|
|
|
|
|
4 |
Eco 2) |
50°C |
|
Normally soiled crockery. |
X |
X |
11.0 |
1.05 |
170 ± |
1) |
|
Energy-saving programme. |
|
||||||||
5 |
Intensive |
70°C |
|
Recommended programme for |
|
|
|
|
155 ± 1) |
|
|
heavily soiled crockery, especially |
X |
X |
14.0 |
1.55 |
|||||
|
|
|
|
suitable for pans and saucepans. |
|
|
|
|
|
|
1)Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads, extra functions, different settings, water supply temperatures, water hardness and power supply voltage.
2)Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA |
5019 396 01211 |
1
