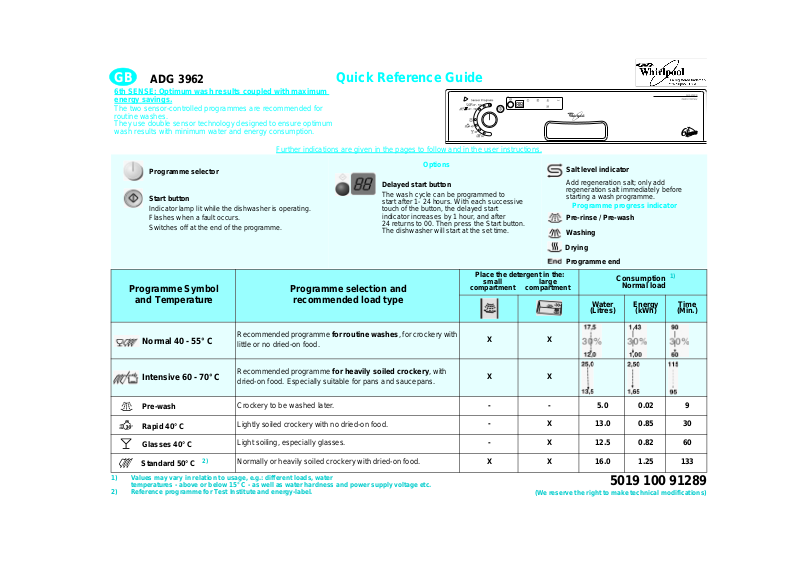

Page 1
GB
6th SENSE: Optimum wash results coupled with maximum
energy savings.
The two sensor-controlled programmes are recommended for
routine washes.
They use double sensor technology designed to ensure optimum
wash results with minimum water and energy consumption.
ADG 3962
Programme selector
Start button
Indicator lamp lit while the dishwasher is oper ating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Programme Symbol
and Temperature
Further indications are give n in the pages to follow and in the user instructions.
Programme selection and
recommended load type
Quick Reference Guide
Options
Delayed start button
The wash cycle can be programmed to
start after 1- 24 hours. With each successive
touch of the button, the delayed start
indicator increases by 1 hour, and after
24 returns to 00. Then press the Start button.
The dishwasher will start at the set time.
Place the detergent in the:
compartment compartment
small large
Salt level indicator
Add regeneration salt; only add
regeneration salt immediately before
starting a wash programme.
Programme progress indicator
Pre-rinse / Pre-wash
Washing
Drying
Programme end
1)
Water
(Litres)
Consumption
Normal load
Energy
(kWh)
Time
(Min.)
Normal 40 - 55° C
Intensive 60 - 70° C
Pre-wash
Rapid 40° C
Glasses 40° C
Standard 50° C
1) Values may vary in relation to usage, e.g.: differen t loads, water
temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.
2) Reference programme for Test Institute and energy-label.
2)
Recommended programme
little or no dried-on food.
Recommended programme
dried-on food. Especially suitab le for pans and saucepans.
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
Light soiling, especially glasses.
Normally or heavily soiled crockery with dried-on food.
for routine washes
for heavily soiled crockery
, for crockery with
, with
X X
X X
- - 5.0 0.02 9
- X 13.0 0.85 30
- X 12.5 0.82 60
X X 16.0 1.25 133
5019 100 91289
(We reserve the right to make technical modifications)
Page 2
A
A
C
How to use the dishwasher
1. After loading the dishwasher, cl ose the
door properly and open the water
supply tap.
2. The dishwasher switches on
automatically as soon as the programme
selector knob is turned.
programme indicator lamps will
switch on.
3. Turn the selector knob to select the
desired programme.
corresponding indicator lamp lights
If required, select options (if
up.
supplied).
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
the programmed data cannot be alte red
by turning the programme selector knob.
once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start button
for about 5 seconds.The Start
indicator lamp will switch off. Select
the new programme and press the
Start button again.
if the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
(for about 30 min.)
One of the
The
The Start
Once set,
.
6. Once the Start indicator lamp has
switched off, turn the programme
selector knob to the “0” position to switch
off the dishwasher.
lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the indicator
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.
• To lower: pull out the
handles and gently lower the rack.
two
side
Upper and lower rack
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both sides.
Crockery holders:
• Down: cups and long-stemmed glasses.
•
Up: plates.
Glass holder:
side handles
two
Lower rack
Plate holders:
•(A) may be lowered to increase
available space.
Cutlery basket:
• The cutlery basket can be removed
to increase (C) available space.
• Some models are provided with a
grid (D) that can be fitted onto the
cutlery basket.
D
C
Please read the user instructions carefully.
Page 3
Tips and advice
• Arrange crockery so that items do not
touch each other. Arrange large
crockery in the lower rack and smaller
crockery in the upper rack.
• Load cups at an angle to facilitate
water drainage.
• Generally speaking, place cutlery in the
basket with the handles positioned
downwards, but ensure that any sharp
knives and forks that might cause
injury are placed in the basket with the
handles positioned upwards.
• Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
Important
• Fill the detergent dispenser and check
the salt and rinse aid level.
• Do not use the appliance for items not
suitable for washing in a dishwasher,
for example: wooden items, aluminium,
plastic utensils, tin, hand-decorated
crockery (unglazed), silver cutlery.
• Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
• If a fault occurs or you wish to change the
current programme, press the “START”
button for about 5 seconds until the Start
indicator lamp switches off.
• If regeneration salt is to be added,
immediately
in order to eliminate any residual salt
(rinsing alone is not sufficient).
• Sometimes even though the
regeneration salt container has been
filled, the corresponding indicator lamp
(if fitted) will light up during the first
wash cycle after filling with salt.
start a wash programme
• Before starting a wash programme,
make sure that the spray arms can turn
freely and are not impeded by crockery
or cutlery.
• Only switch off the dishwasher once the
“Start” indicator lamp has switched off.
If the dishwasher is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted without having to start it
again.
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
• Is the plug properly inserted in the wall
socket?
• Is there a power failure?
• Is the dishwasher switched on?
• Has the Start button been pressed?
• Has the delayed start timer been set (if
fitted)?
• Is the water supply tap on?
• Is the flow of water obstructed by
impurities? If so, close the water supply
tap, detach the water hose and clean the
filter. Then re-connect the water hose t o
the tap and open the water tap once
again.
• Are the filters clogged? (See “Care and
Maintenance” chapter in the user
instructions).
• Is the door closed properly?
• Is a fault indicated?
(The Start indicator lamp flashes).
Start the programme again from the
beginning: press the Start button for
about 5 seconds, until the Start indicator
lamp switches off.
Select a new programme and press the
Start button.
Troubleshooting Guide
Crockery still dirty after washing:
• Was the crockery loaded properly?
• Crockery must be loaded facing
downwards; this is important, especially
for large items of crockery.
• The water jets must spray the entire
surface of all items.
• Make sure that crockery and cutlery are
arranged properly.
• Have you selected the correct programme?
• Did you use too much or too little detergent?
(The use of poor quality detergents may
result in less effective washing).
• Are the filters clogged or incorrectly
assembled? (See “Care and Mainte nance”
chapter in the user instructions).
• Are the spray arms blocked or the nozzles
clogged? (See “Care and Maintenan ce”
chapter in the user instructions).
• Is the lower spray arm correctly fitted?
• Is the salt container cap (water softening
system) screwed down?
Marked crockery:
• Is the water hardness level selector not
properly adjusted? See (“Filling the salt
container” in the user instructions).
• Is the salt container empty? (See “Filling the
salt container” in the user instructions).
• Was insufficient detergent used? (See
“Filling the detergent dispenser” in the
user instructions).
Marked glasses and cutlery:
• Was too much rinse aid used? (See
“Filling the rinse aid dispenser” in the user
instructions).
Note:
with some models, when the Start button
is pressed a pre-wash cycle precedes the
actual wash programme; this regenerates the
water softening system.
AFTER-SALES
SERVICE
If after carrying out the above checks
the malfunction persists or appears
again, turn the appliance off and turn
off the water supply tap, then call
our After-Sales Service (see guarantee).
Please specify:
• The nature of the fault.
• The appliance type and model.
• The service code (the number after
the word Service on the adhesive
rating plate) inside the door on
the right-hand side.
Your full address and telephone
•
number.
Please read the user instructions carefully.
Page 4

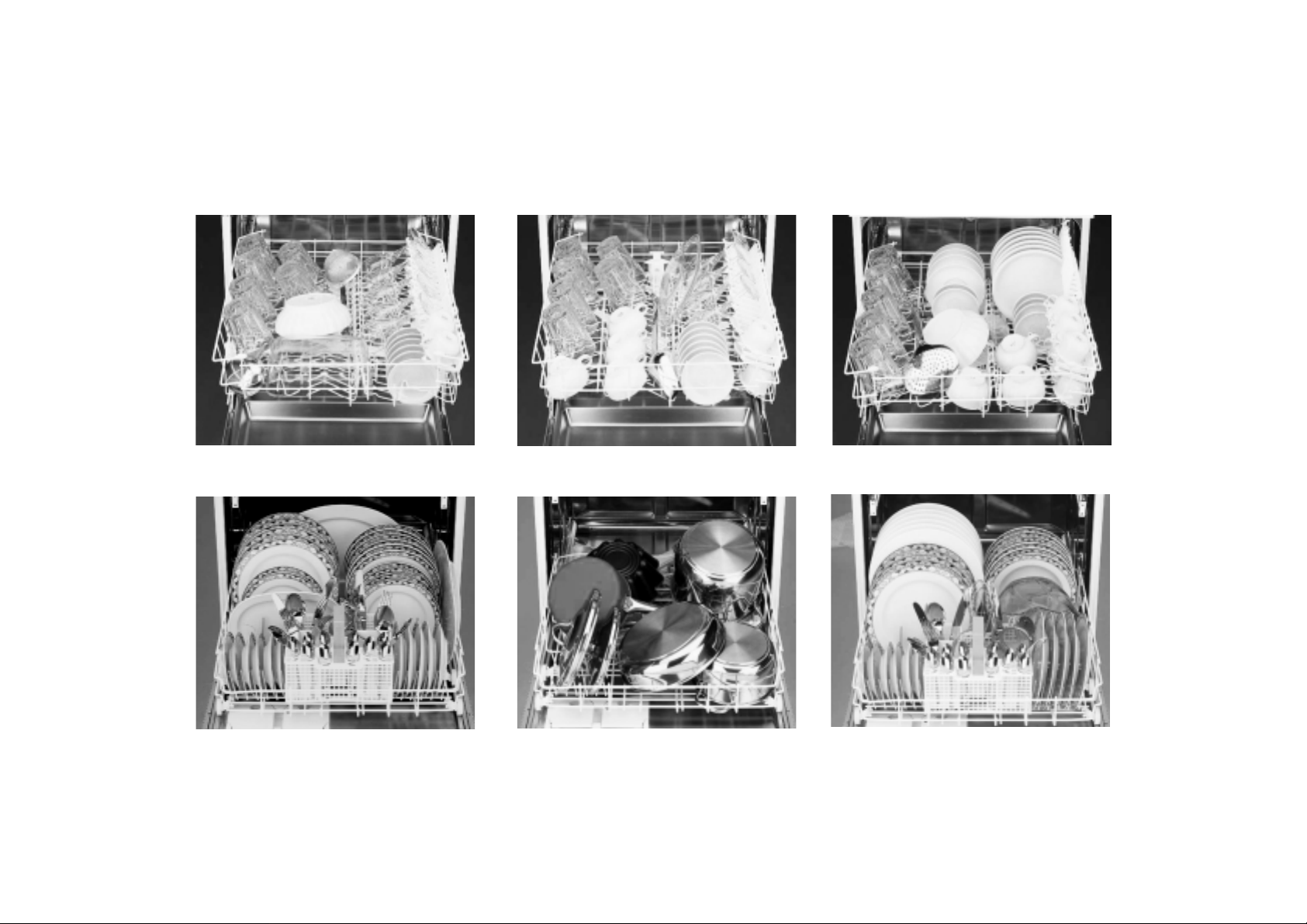

Dishwasher loading instructions
UPPER RACK
LOWER RACK
Depending on the model, rack features may vary (see “Upper and lower rack” description).
