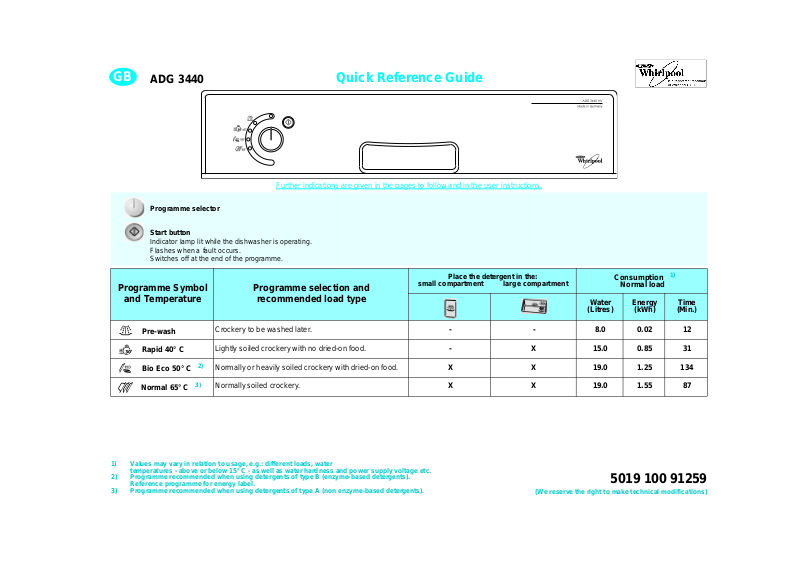

Whirlpool ADG 3440 Quick Reference Guide

ADG 3440

Programme selector

Start button

Indicator lamp lit while the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Programme Symbol

and Temperature

Quick Reference Guide

Further indications are give n in the pages to follow and in the user instructions.

Place the detergent in the:

Programme selection and

recommended load type

small compartment large compartment

Water

(Litres)

Consumption

Normal load

Energy

(kWh)

Time

(Min.)

Pre-wash

Rapid 40° C

Bio Eco 50° C

Normal 65° C

1) Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.

2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3) Programme recommended when using detergents of type A (non enzyme-based detergents).

Crockery to be washed later.

Lightly soiled crockery with no dried-on food.

Normally or heavily soiled crockery with dried-on food.

Normally soiled crockery.

- - 8.0 0.02 12

- X 15.0 0.85 31

X X 19.0 1.25 134

X X 19.0 1.55 87

5019 100 91259

(We reserve the right to make technical modifications)

How to use the dishwasher

1. After loading the dishwasher, cl ose the door properly and open the water supply tap.

2. The dishwasher switches on automatically as soon as the programme selector knob is turned.

programme indicator lamps will switch on.

3. Turn the selector knob to select the desired programme.

indicator lamp lights up.

select options (if supplied).

4. Press the Start button to start the selected programme.

indicator lamp will light up.

the programmed data cannot be altered by turning the programme selector knob.

Note:

Once the Start button has been pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the programme selected, press the Start button for about 5 seconds. The Start indicator lamp will switch off. Select a new programme and press the Start button.

If the dishwasher is switched off

Note:

during a wash programme, when switched on again it will resume the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from steam.

5. To indicate the end of the programme, the Start indicator lamp switches off and

the End indicator lamp (if fitted)

lights up

(for about 30 min.)

One of the

The corresponding

If required,

The Start

Once set,

6. Turn the programme selector knob to the initial position to switch off the dishwasher (only after the Start indicator lamp has switched off).

the indicator lamps switch off.

7. Open the door (warning: beware of hot steam). Unload the lower rack before the upper one. Close the water tap.

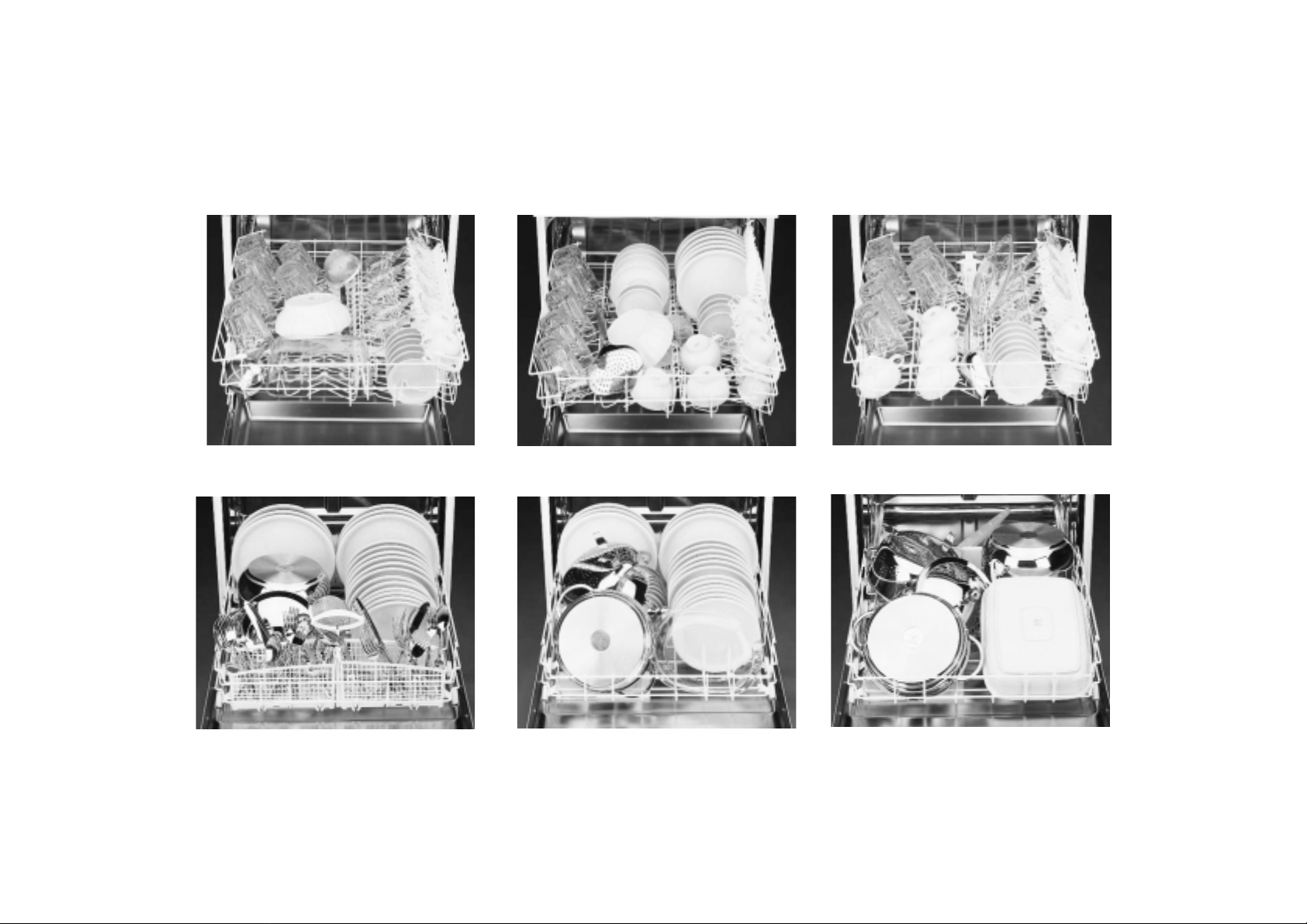

Upper rack

Crockery holders:

• Down: cups and long-stemmed

All

•

Upper and lower rack

Lower rack

glasses. Up: plates.

Cutlery basket (C):

• With or without handle (depending on model).

• The cutlery basket can be removed to increase available space.

Please read the user instructions carefully.
