Whirlpool Ad0152xv1, Ad0152xm1 Installation Template

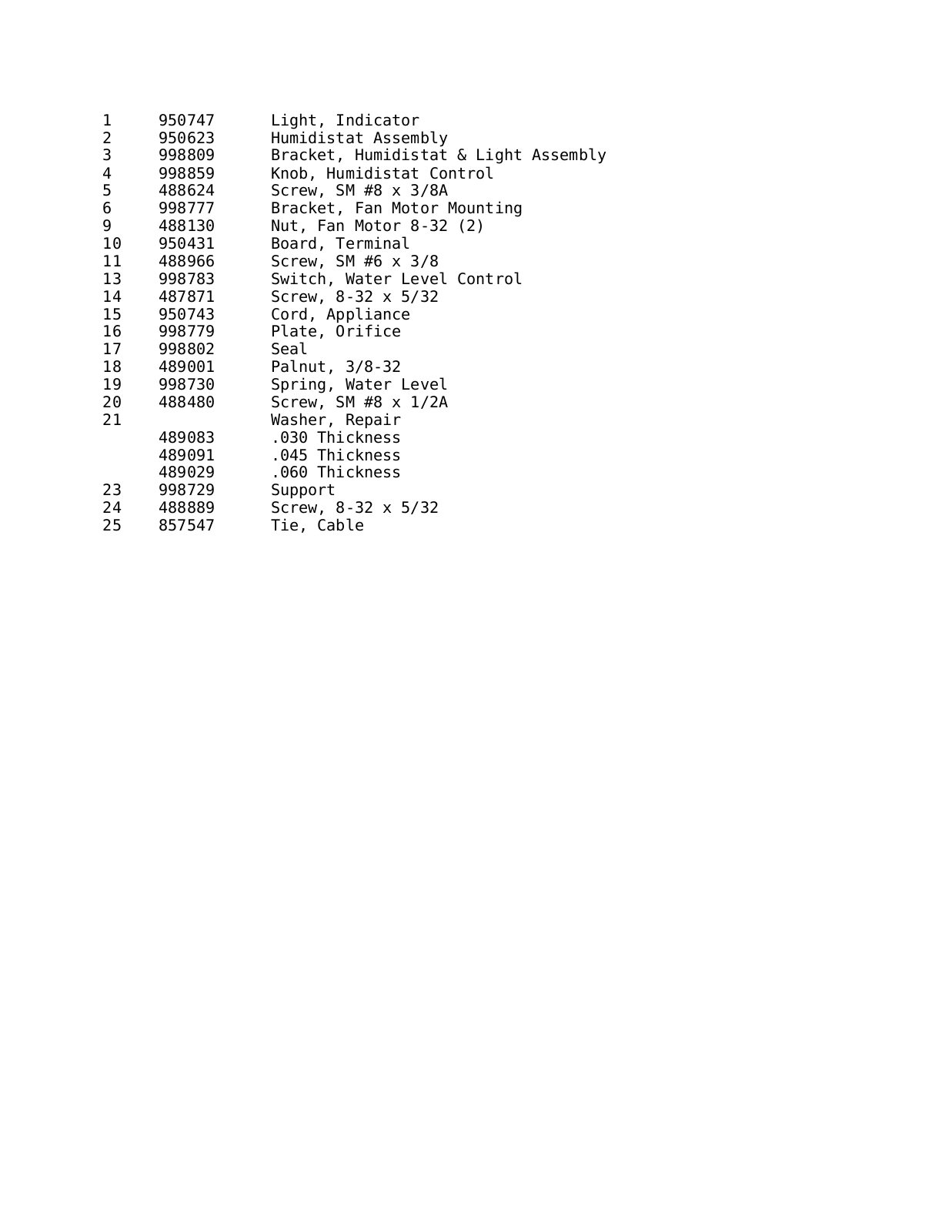

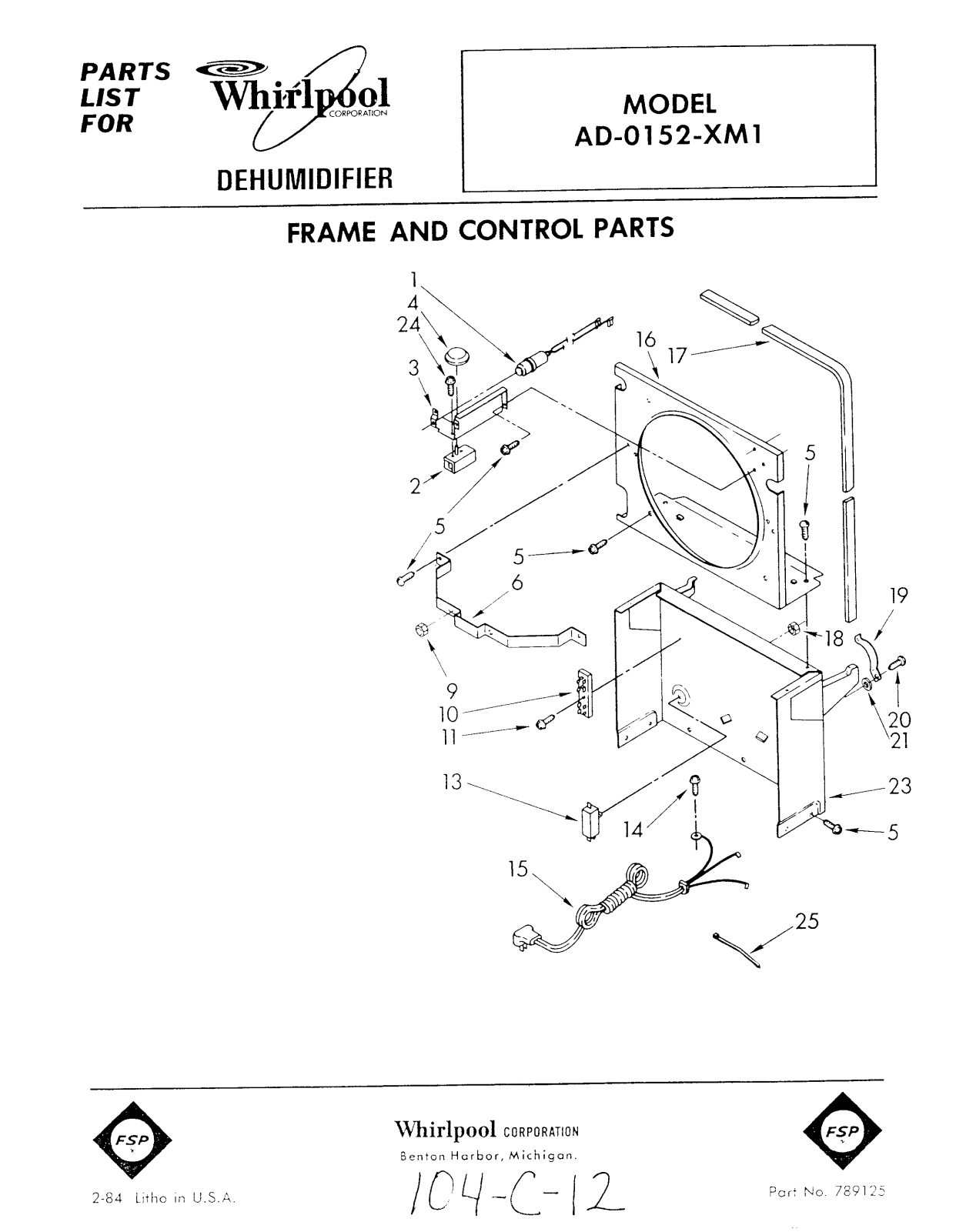

1 950747 Light, Indicator
2 950623 Humidistat Assembly
3 998809 Bracket, Humidistat & Light Assembly
4 998859 Knob, Humidistat Control
5 488624 Screw, SM #8 x 3/8A
6 998777 Bracket, Fan Motor Mounting
9 488130 Nut, Fan Motor 8-32 (2)
10 950431 Board, Terminal
11 488966 Screw, SM #6 x 3/8
13 998783 Switch, Water Level Control
14 487871 Screw, 8-32 x 5/32
15 950743 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 998730 Spring, Water Level
20 488480 Screw, SM #8 x 1/2A
21 Washer, Repair

489083 .030 Thickness
489091 .045 Thickness

489029 .060 Thickness
23 998729 Support
24 488889 Screw, 8-32 x 5/32
25 857547 Tie, Cable
