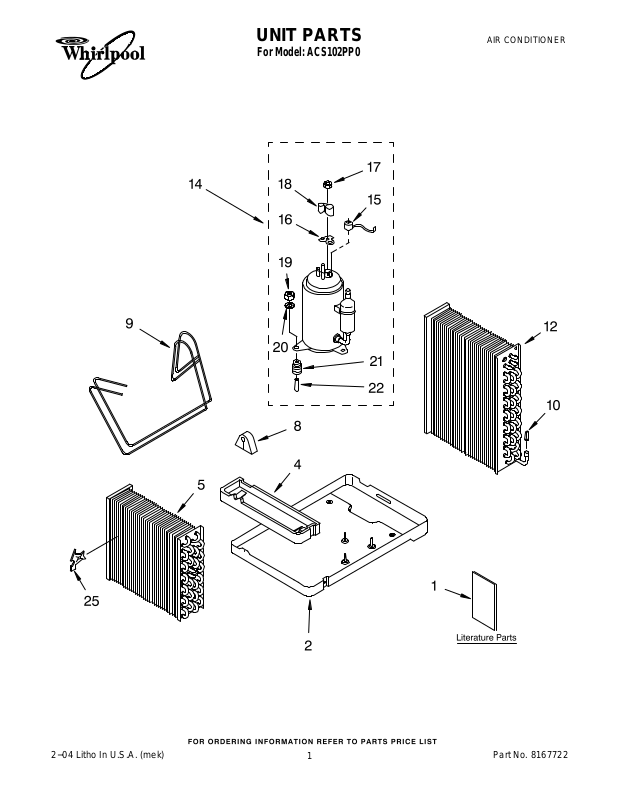

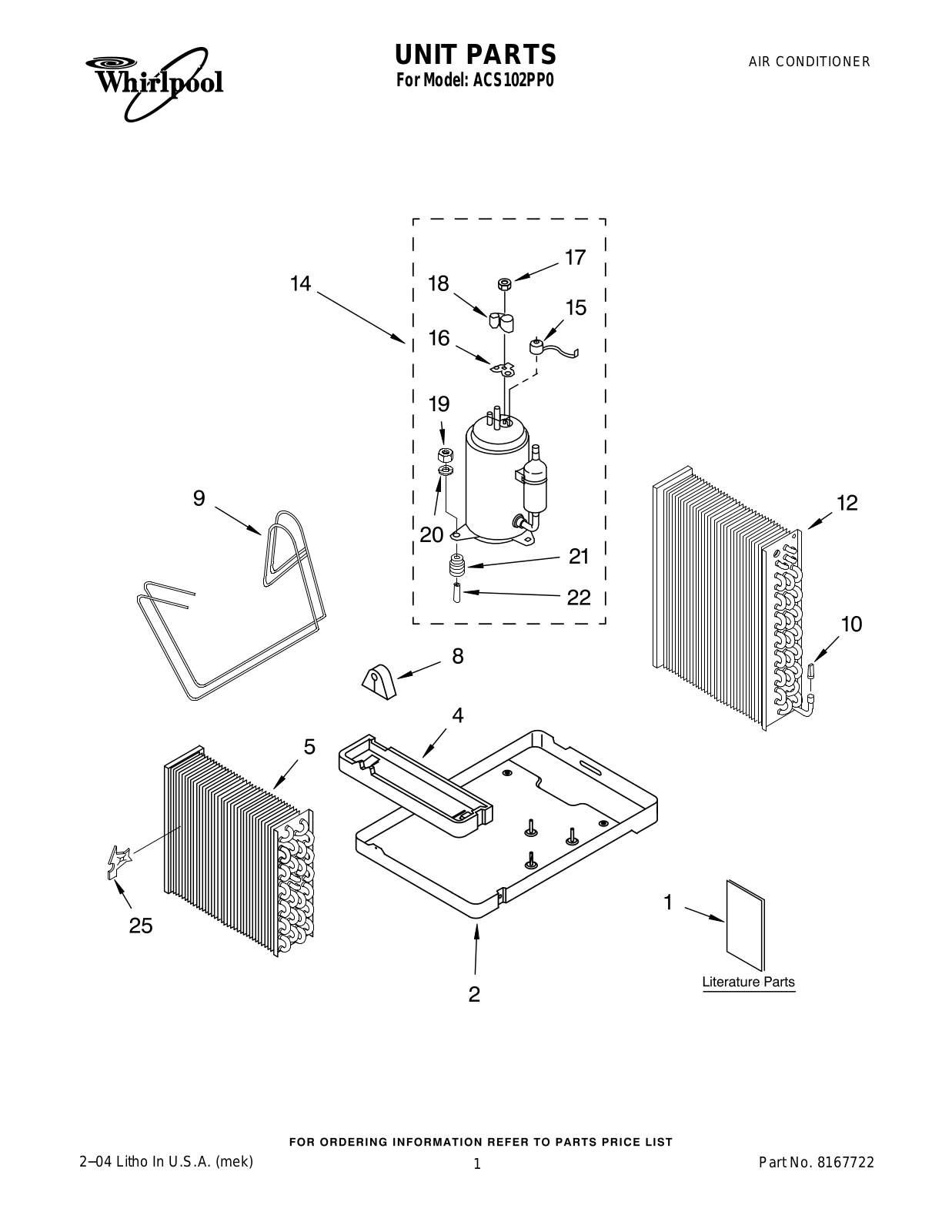

UNIT PARTS

For Model: ACS102PP0

AIR CONDITIONER

2−04 Litho In U.S.A. (mek)

1

Part No. 8167722

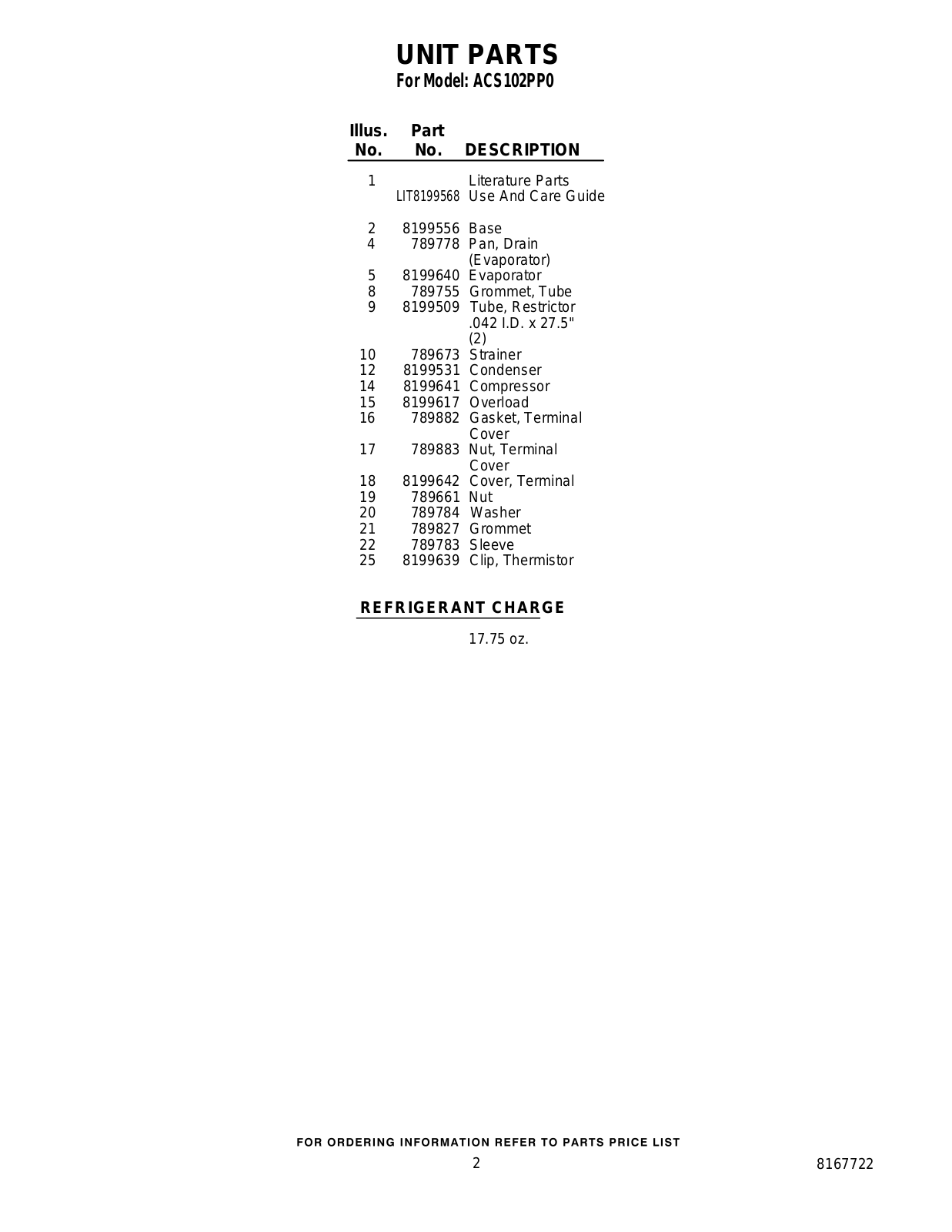

UNIT PARTS

For Model: ACS102PP0

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8199568

2 8199556 Base
4 789778 Pan, Drain

5 8199640 Evaporator
8 789755 Grommet, Tube
9 8199509 Tube, Restrictor

10 789673 Strainer
12 8199531 Condenser
14 8199641 Compressor
15 8199617 Overload
16 789882 Gasket, Terminal

17 789883 Nut, Terminal
18 8199642 Cover, Terminal

19 789661 Nut
20 789784 Washer
21 789827 Grommet
22 789783 Sleeve
25 8199639 Clip, Thermistor

Use And Care Guide

(Evaporator)

.042 I.D. x 27.5"
(2)

Cover
Cover

REFRIGERANT CHARGE

17.75 oz.

2

8167722

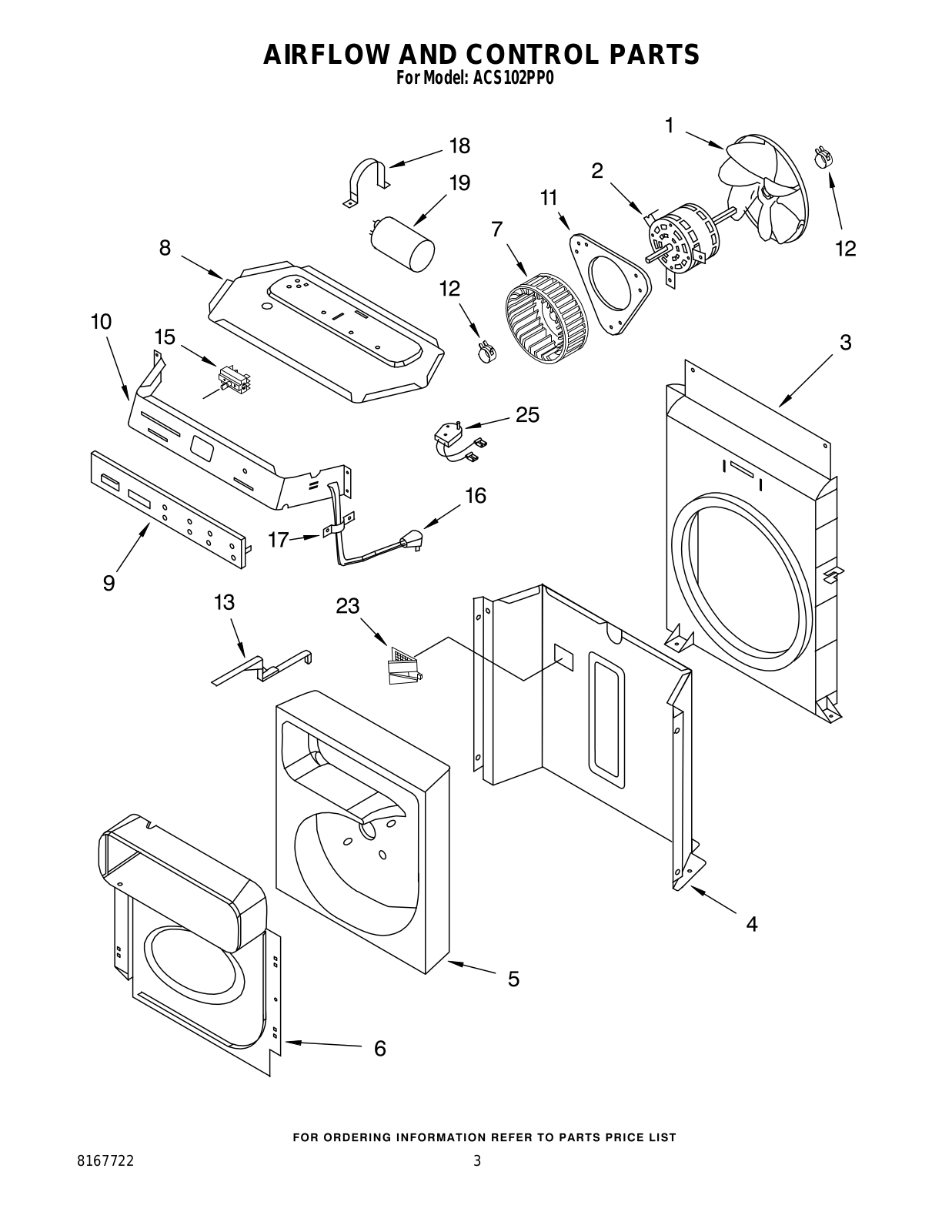

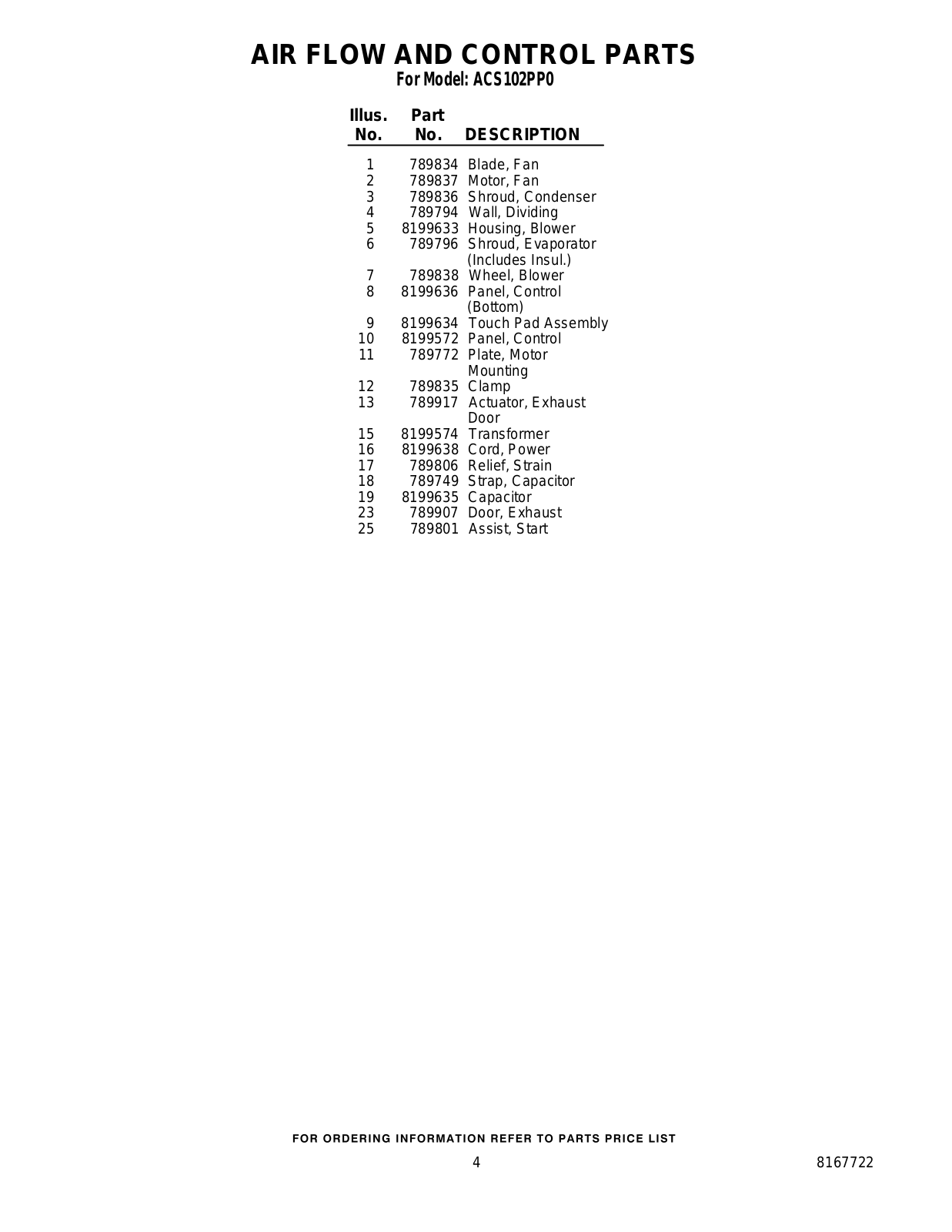

AIRFLOW AND CONTROL PARTS

For Model: ACS102PP0

8167722

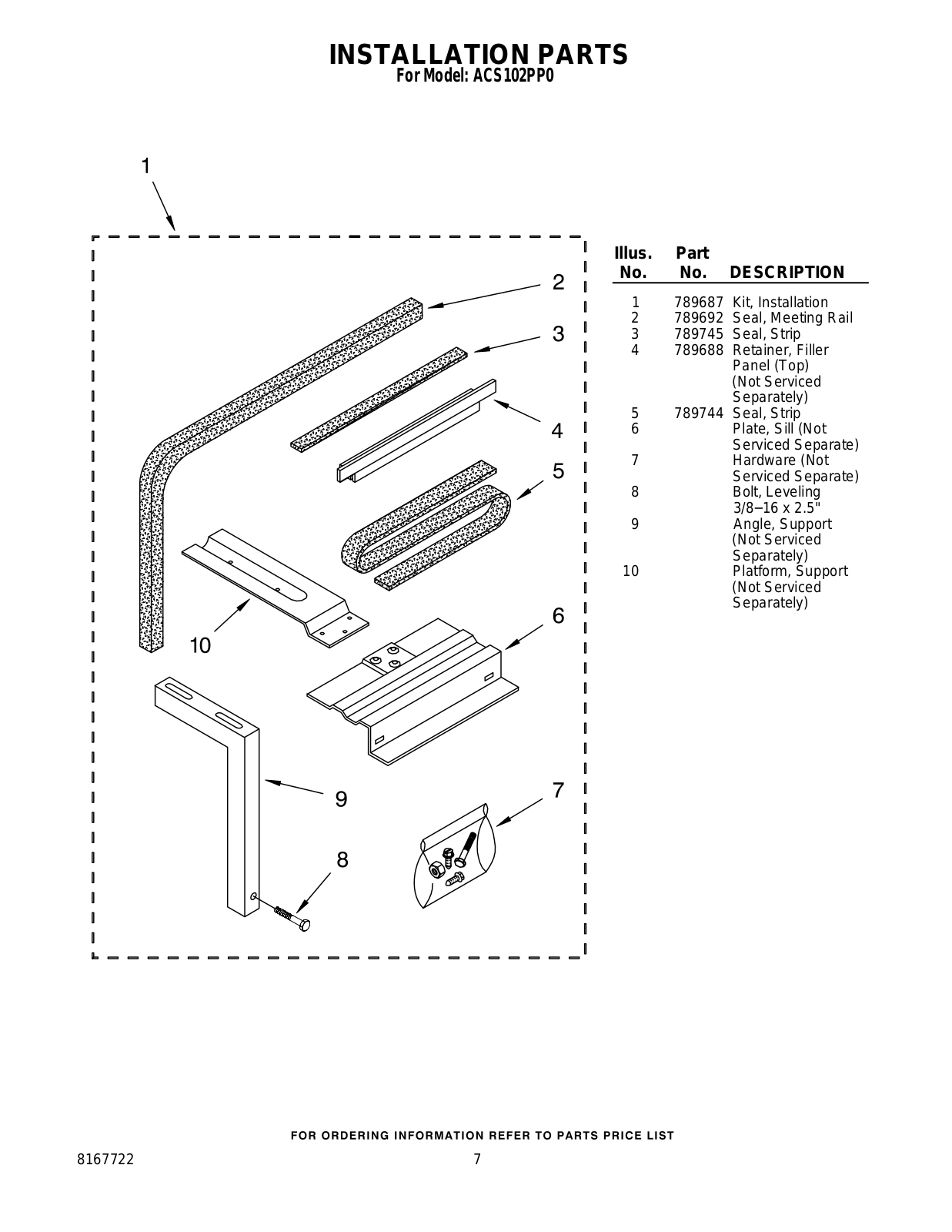

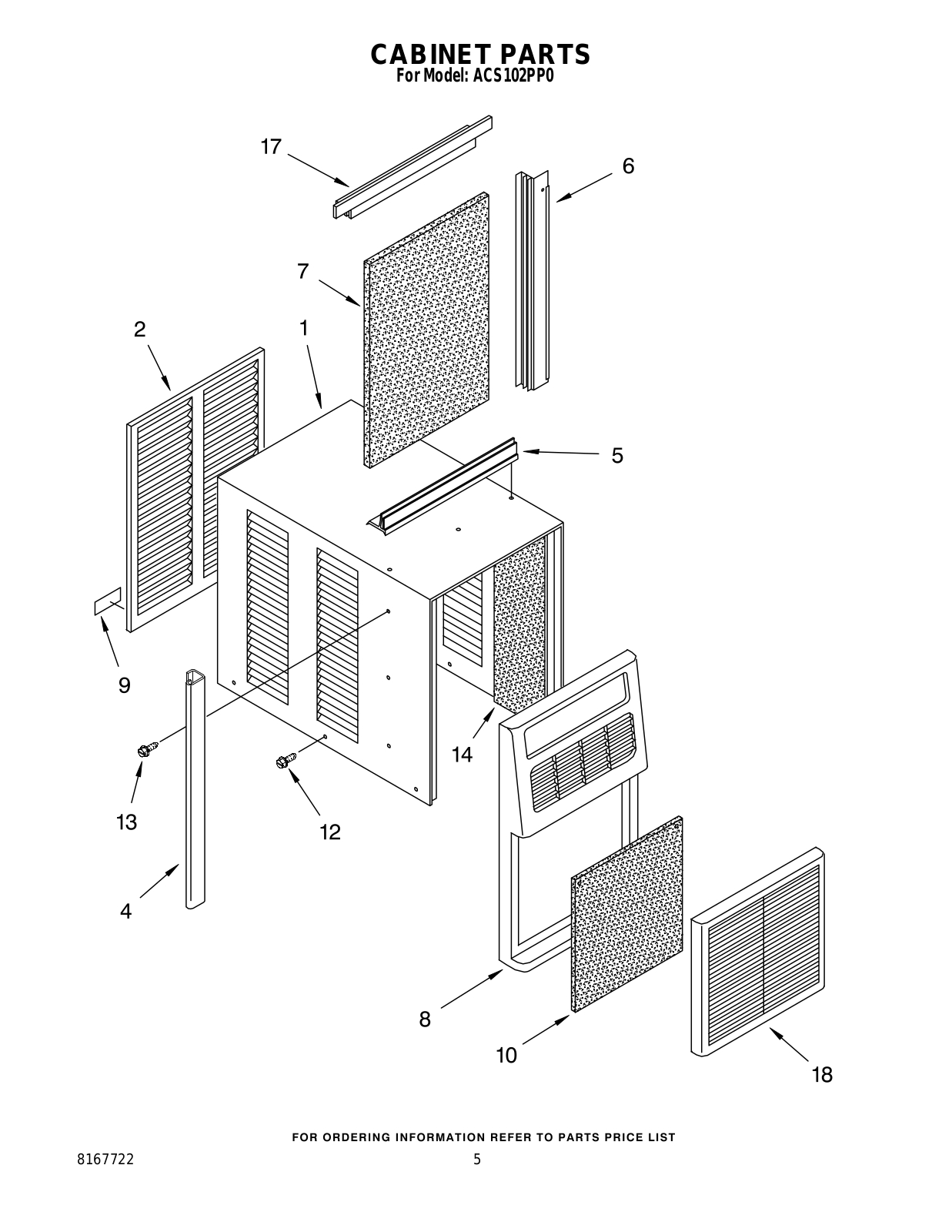

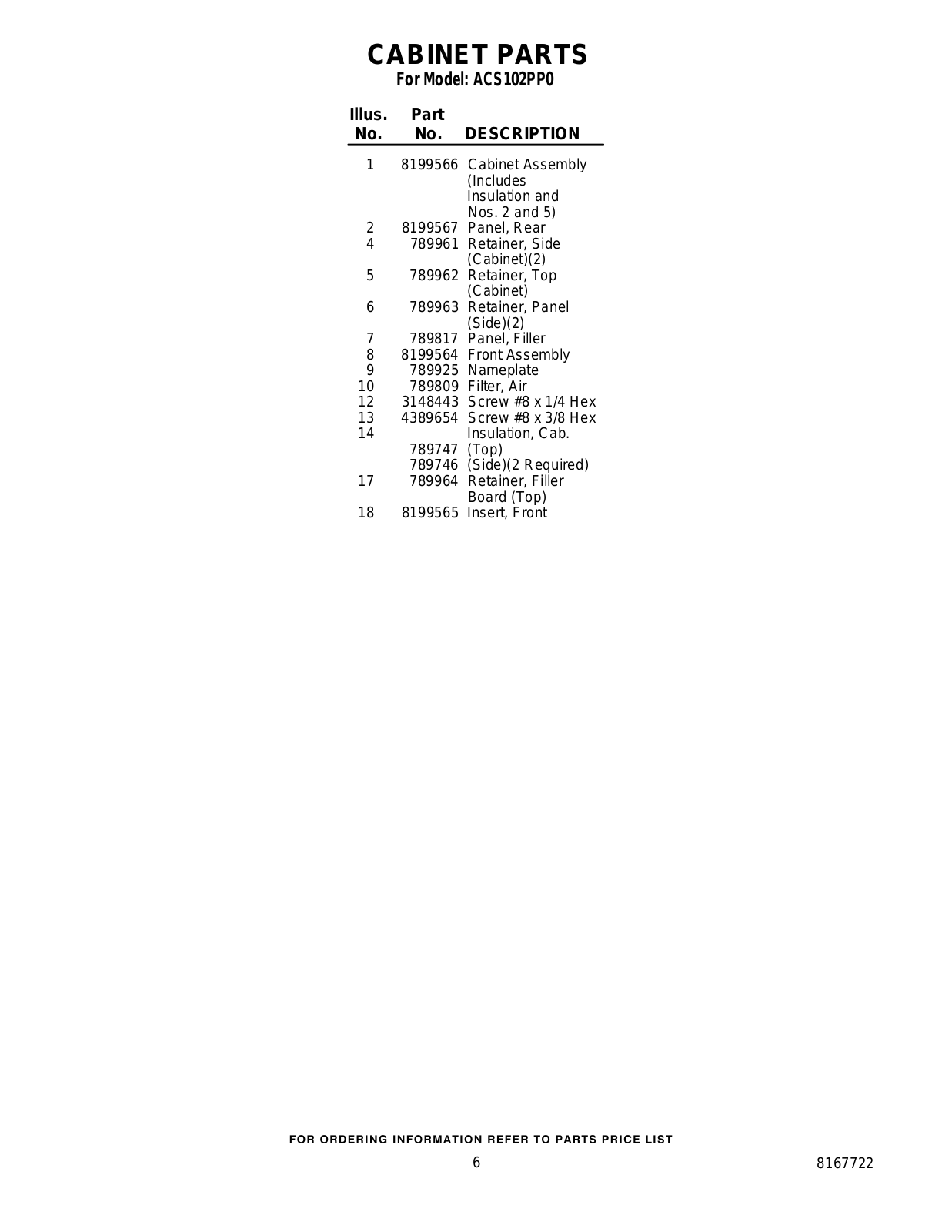

3
