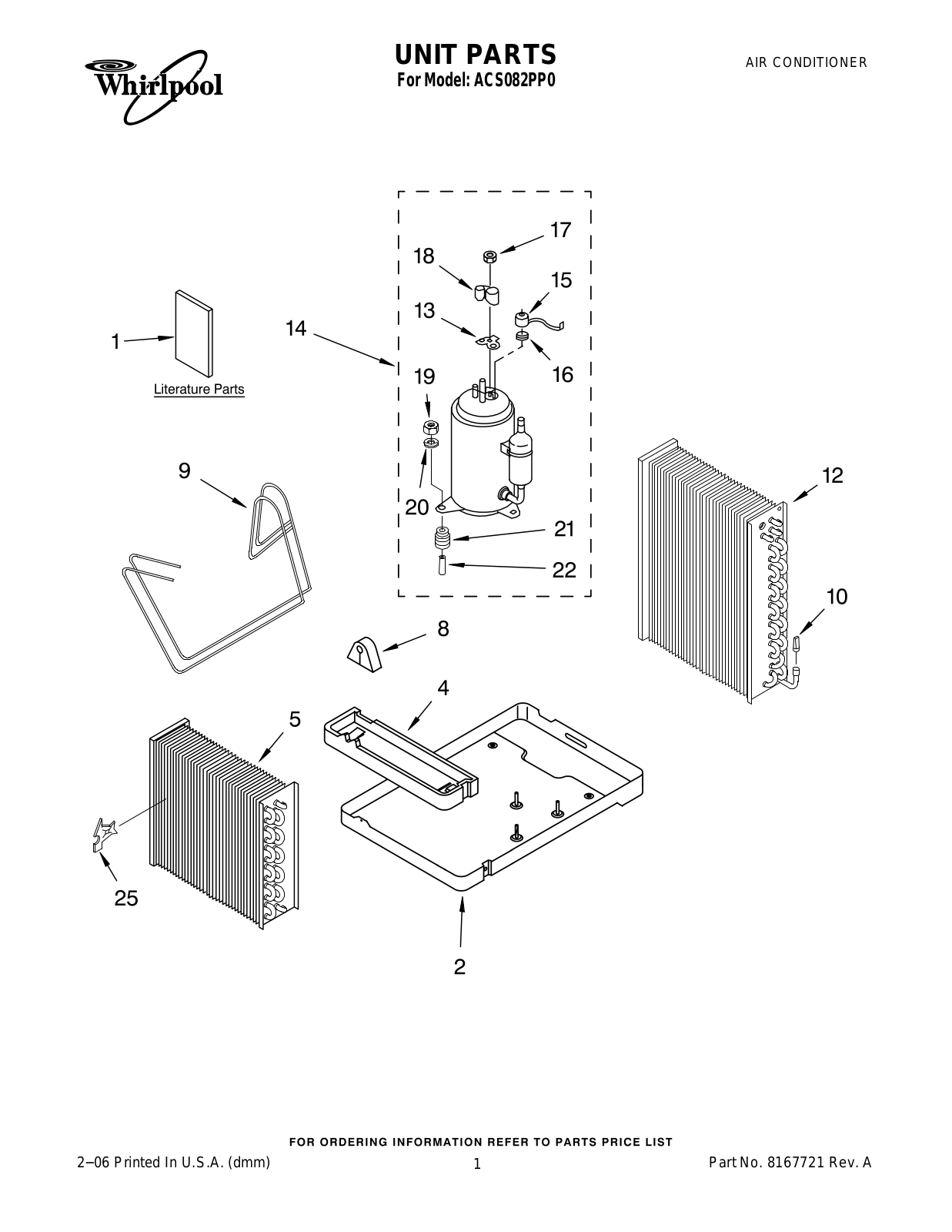

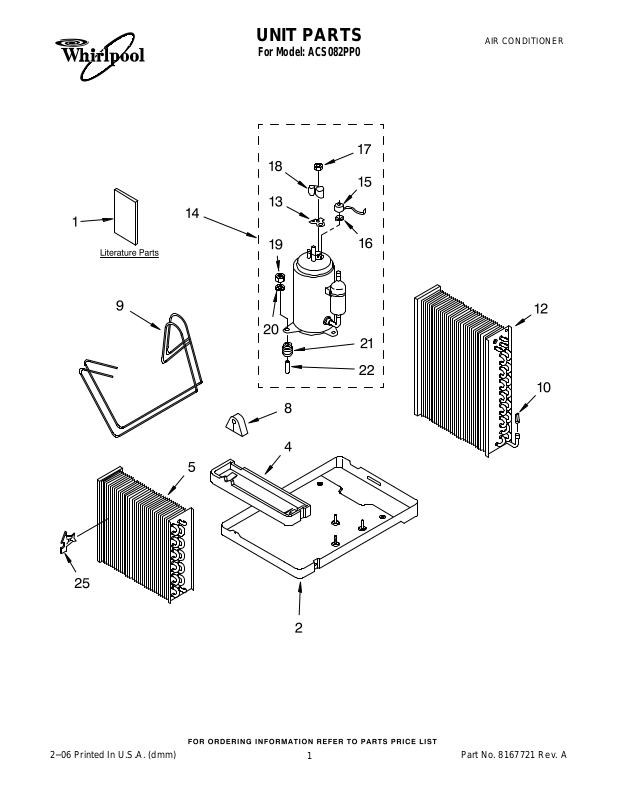

UNIT PARTS
For Model: ACS082PP0
AIR CONDITIONER
2−06 Printed In U.S.A. (dmm)
1
Part No. 8167721 Rev. A

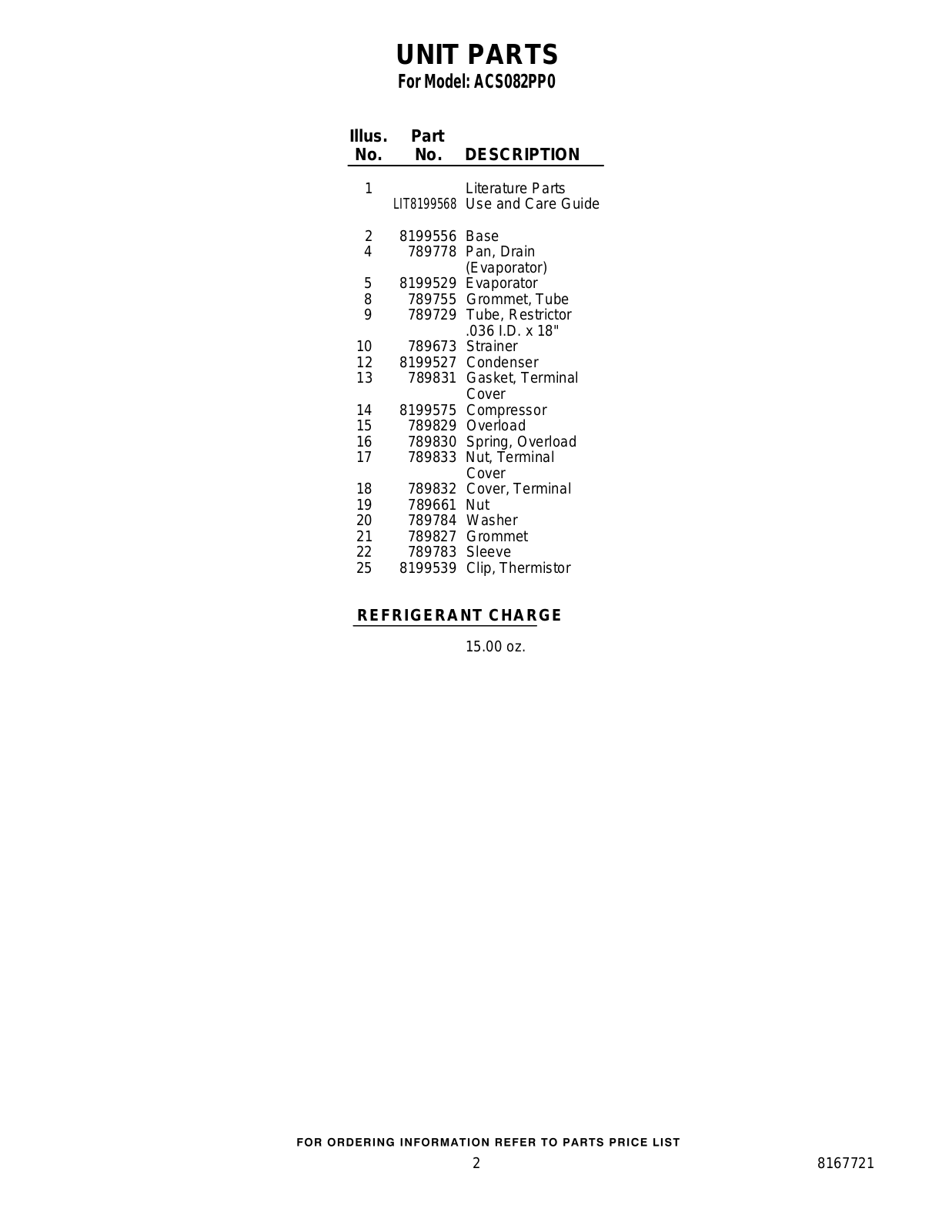

UNIT PARTS
For Model: ACS082PP0
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8199568
2 8199556 Base
4 789778 Pan, Drain
5 8199529 Evaporator
8 789755 Grommet, Tube
9 789729 Tube, Restrictor
10 789673 Strainer
12 8199527 Condenser
13 789831 Gasket, Terminal
14 8199575 Compressor
15 789829 Overload
16 789830 Spring, Overload
17 789833 Nut, Terminal
18 789832 Cover, Terminal
19 789661 Nut
20 789784 Washer
21 789827 Grommet
22 789783 Sleeve
25 8199539 Clip, Thermistor
Use and Care Guide
(Evaporator)
.036 I.D. x 18"
Cover
Cover
REFRIGERANT CHARGE
15.00 oz.
2
8167721

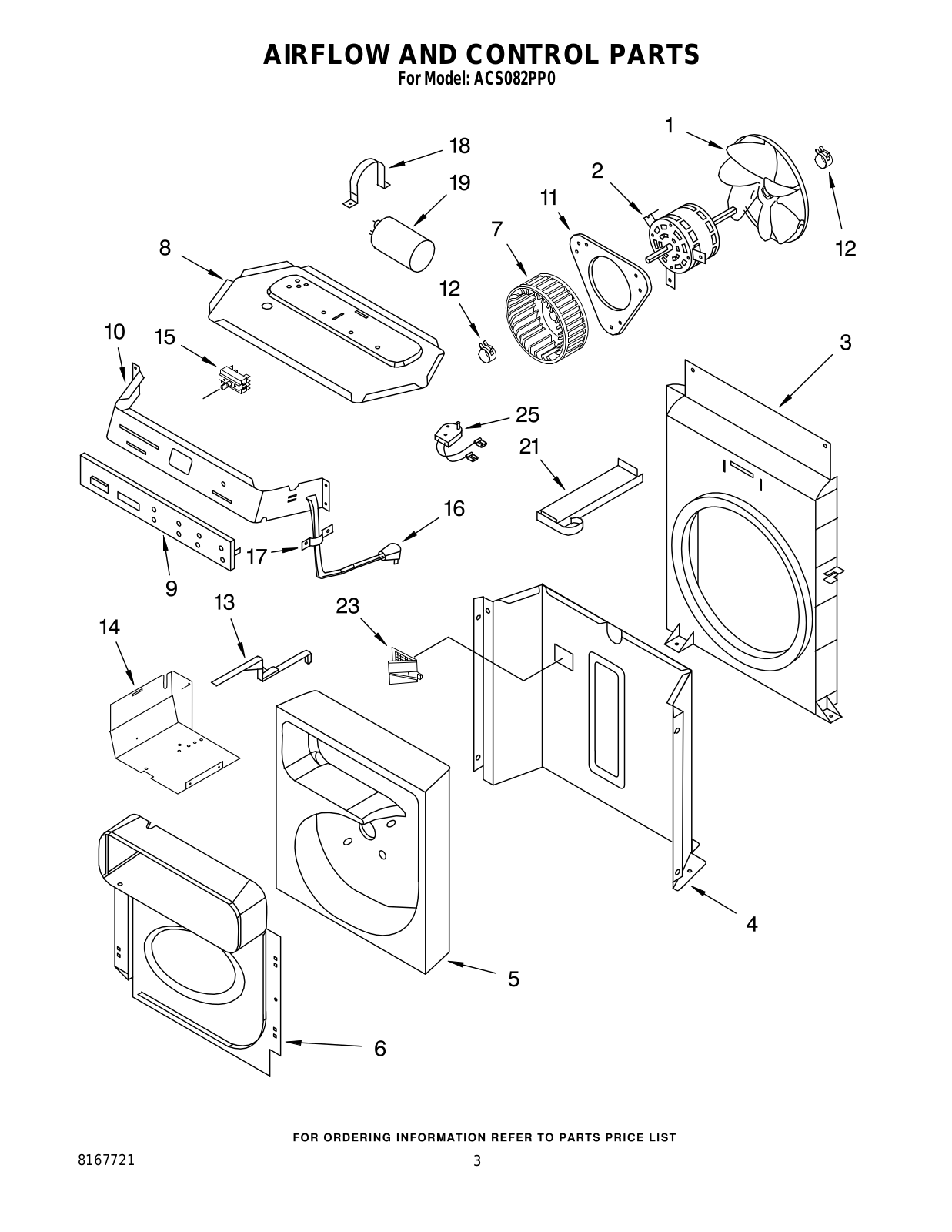

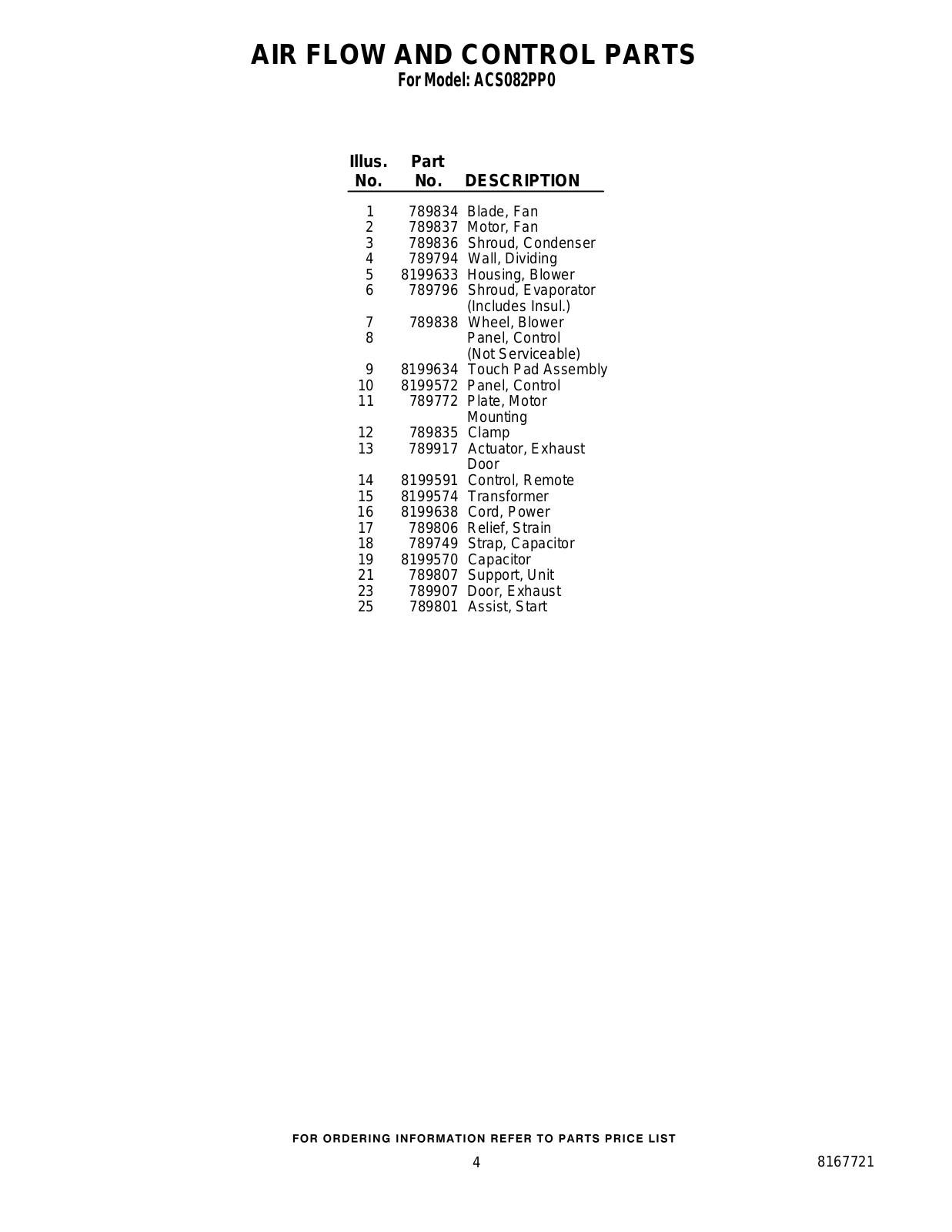

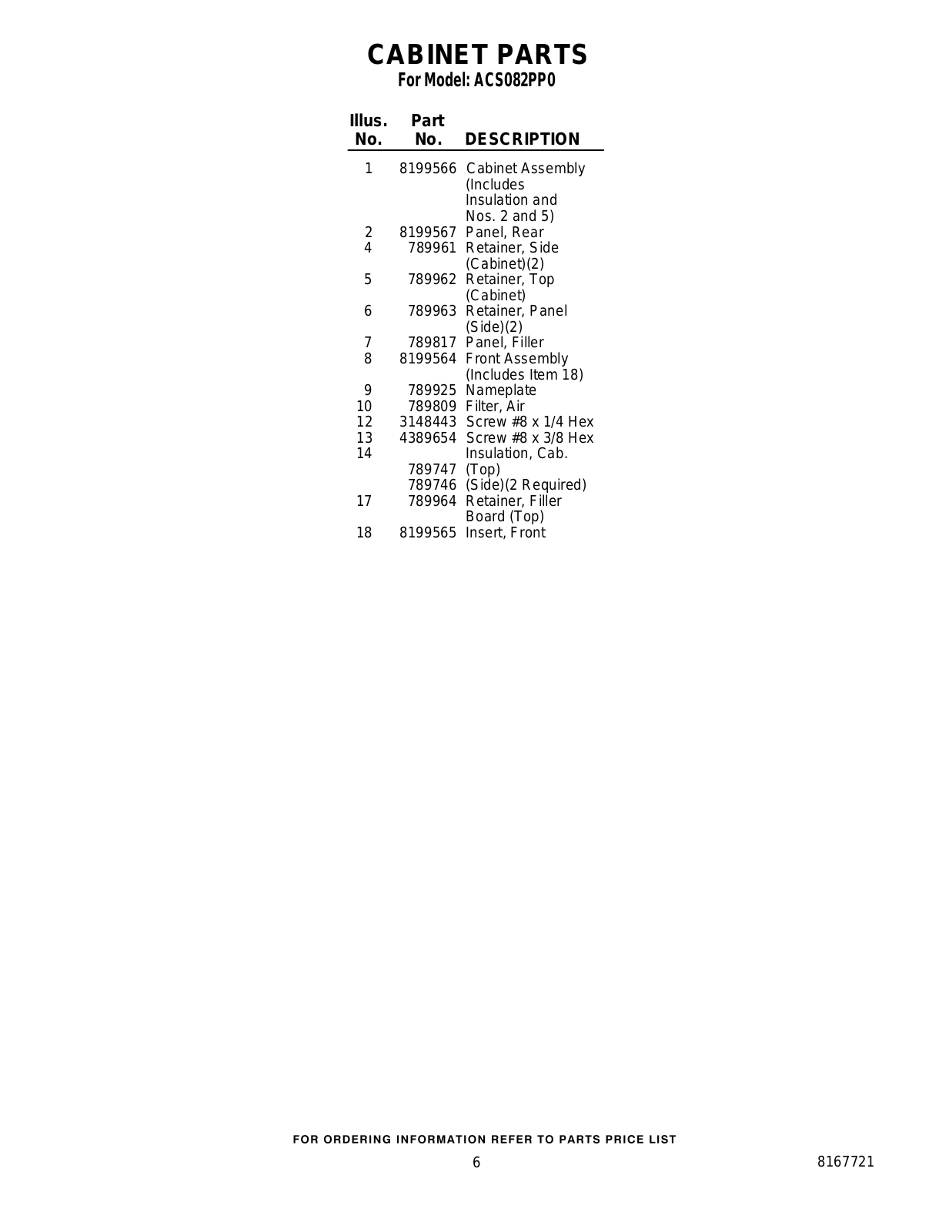

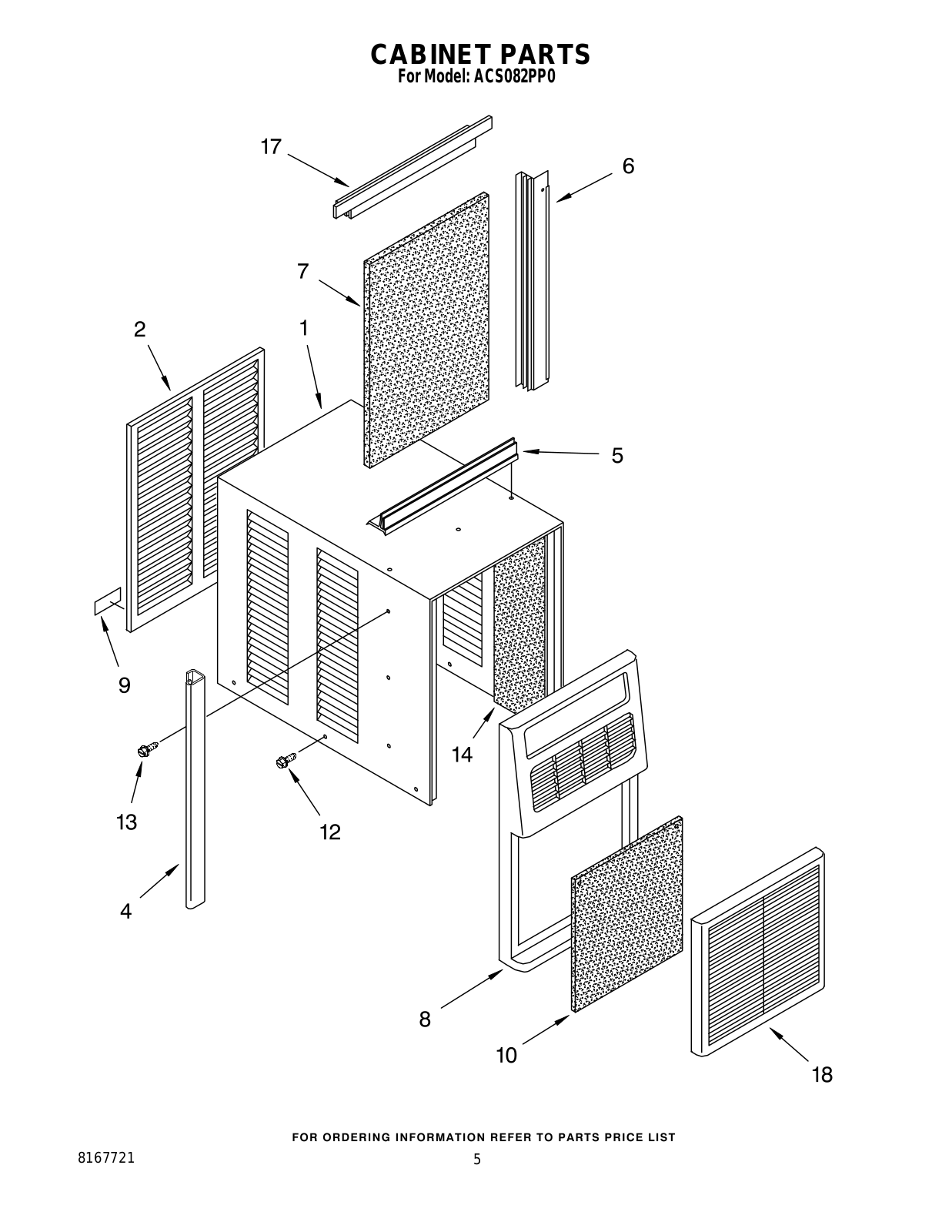

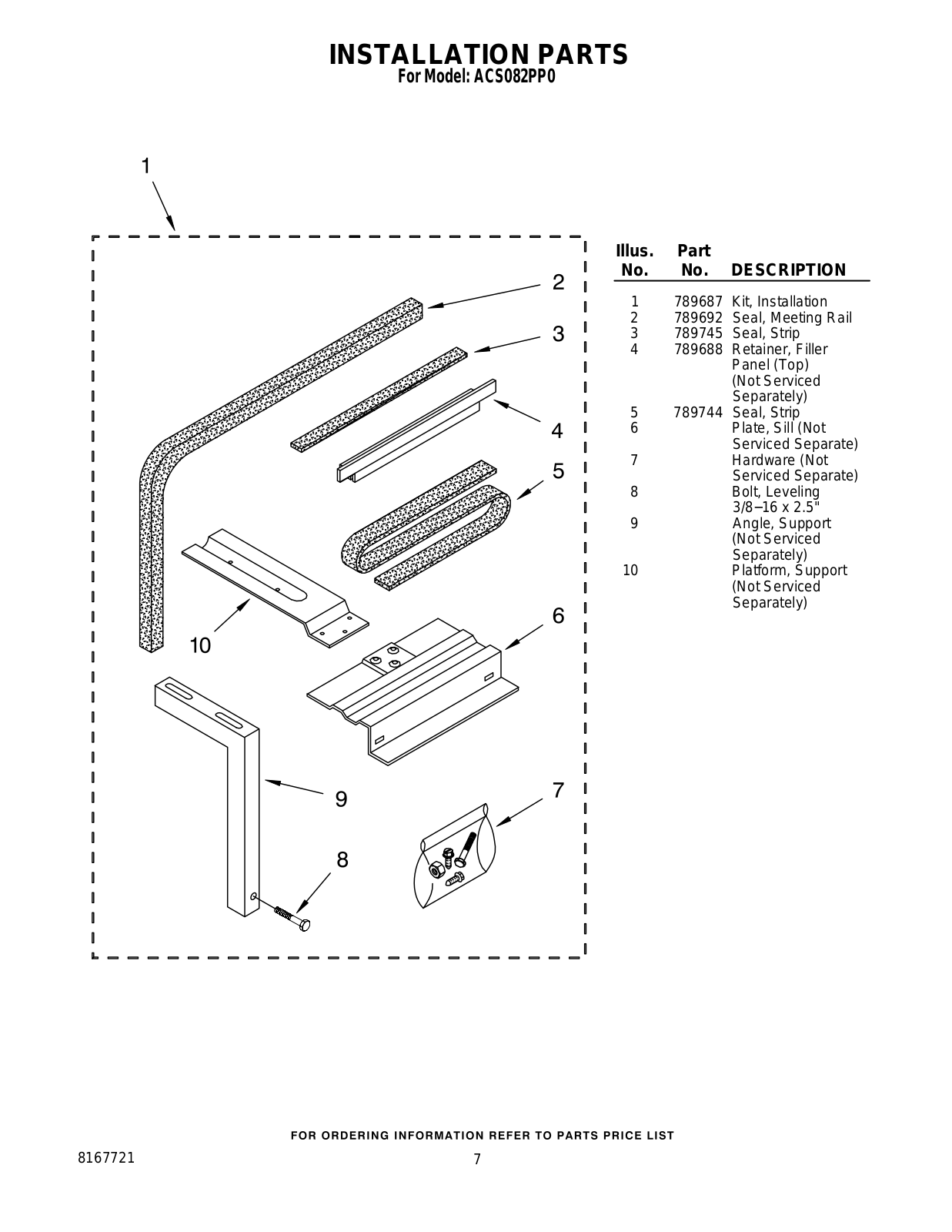

AIRFLOW AND CONTROL PARTS
