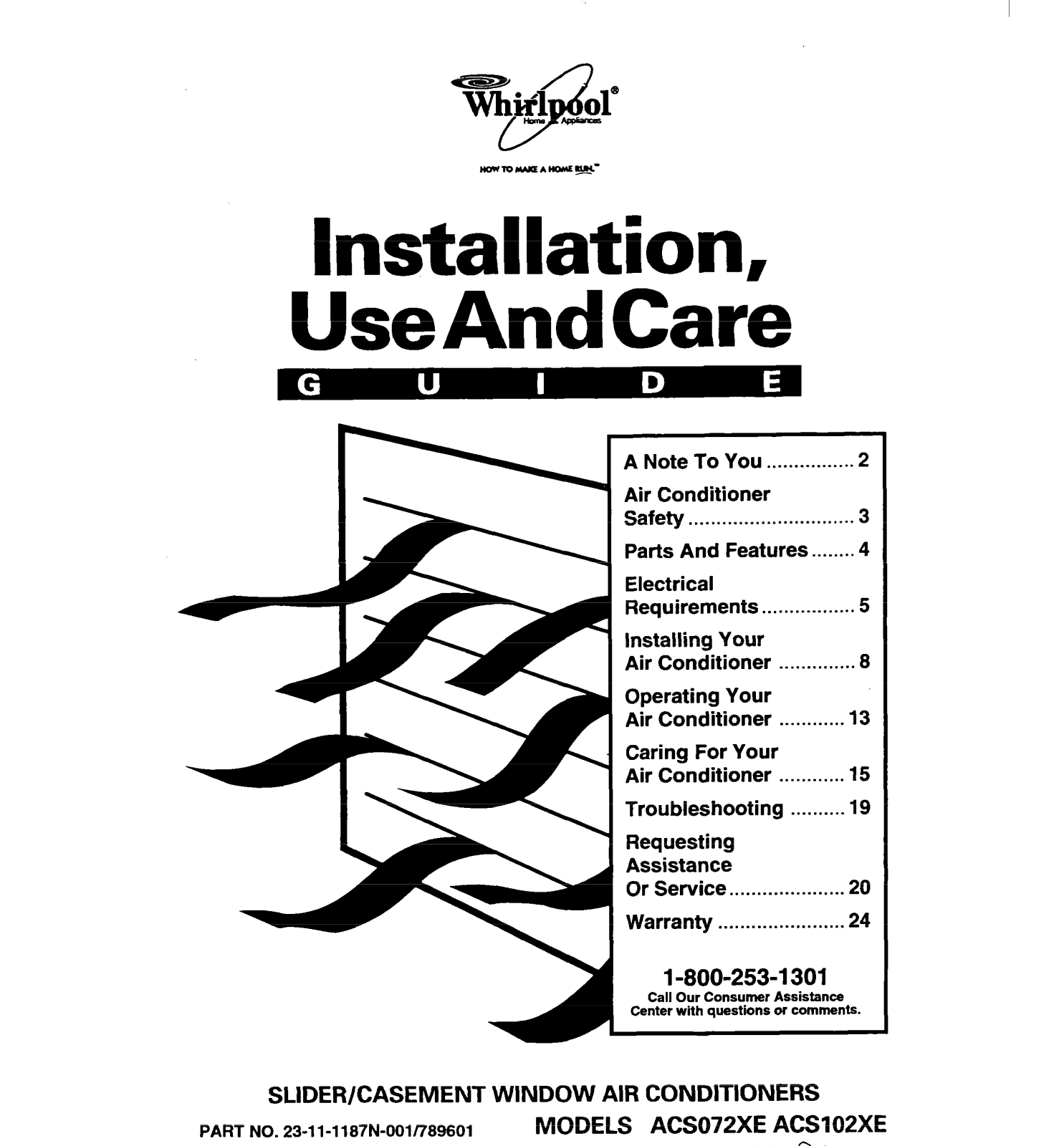

Whirlpool ACS072XE, ACSl02XE User Manual

Installation,

UseAndCare

A Note To You . . . . . . . . . . . . . . . . 2

Air Conditioner

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts And Features . . . . . . . . 4

Requirements . . . . . . . . . . . . . . . . .

Air Conditioner

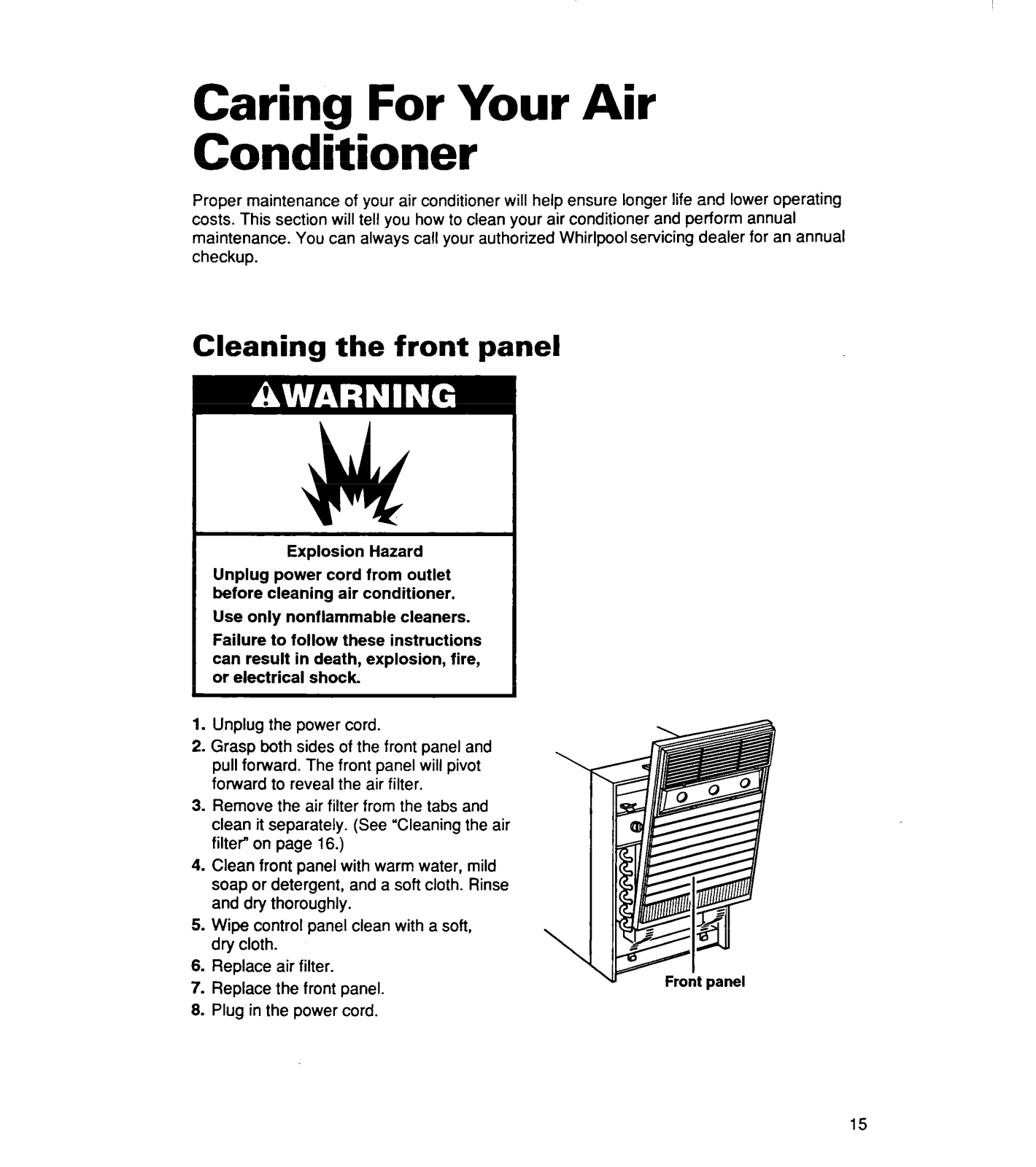

. Caring For Your

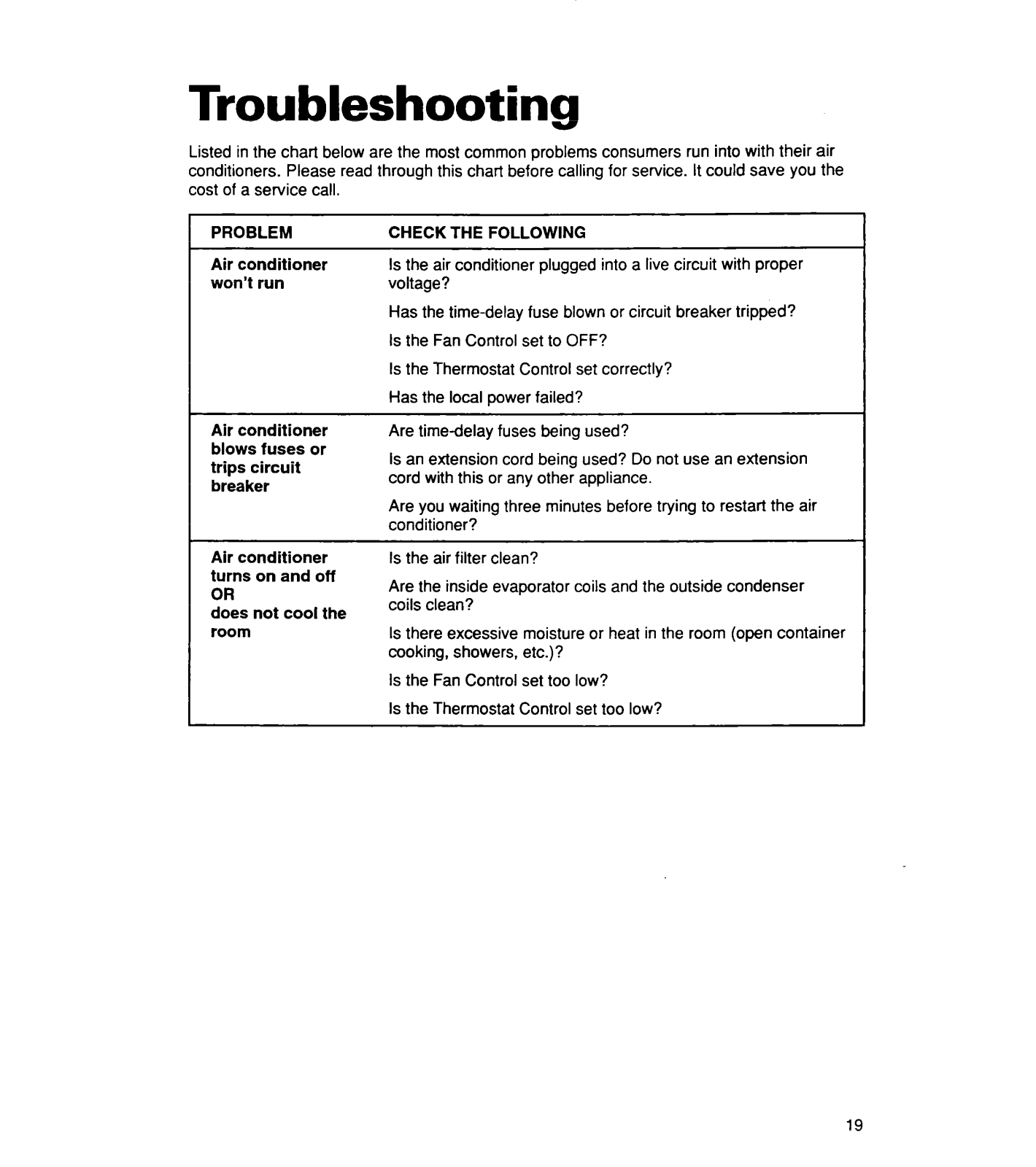

Air Conditioner Troubleshooting

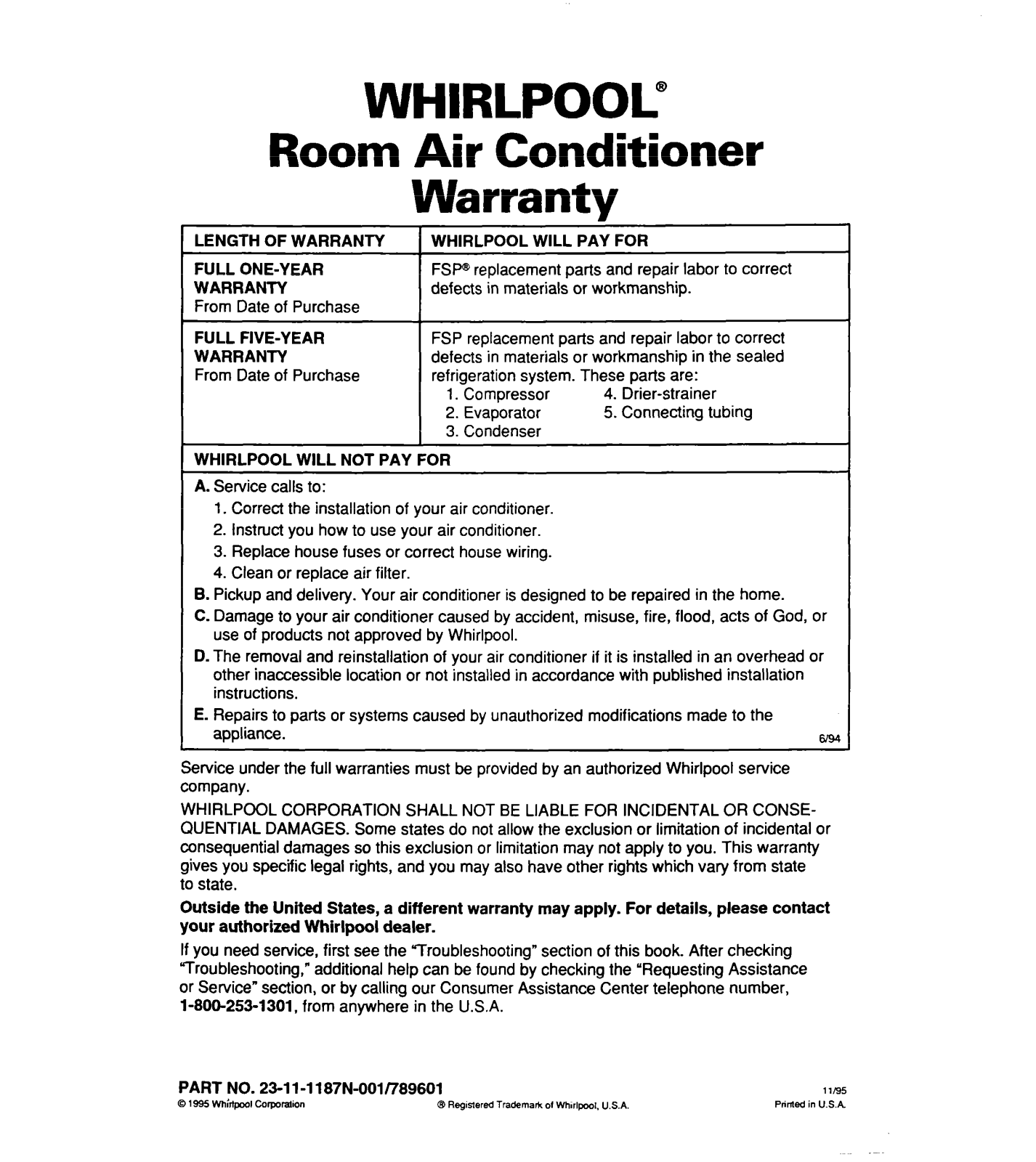

Warranty

I-800-253-1 301

Call Our Consumer Assistance

Center with questions or comments.

SLIDER/CASEMENT WINDOW AIR CONDITIONERS

. . . . . . . . . . . . . . . . . . . . . . . 24

. . . . . . . . . . . . 13

. . . . . . . . . . . . 15

. . . . . . . . . . 19

PART NO. 23-1 l-l 187N-001/789601

MODELS ACS072XE ACSl02XE

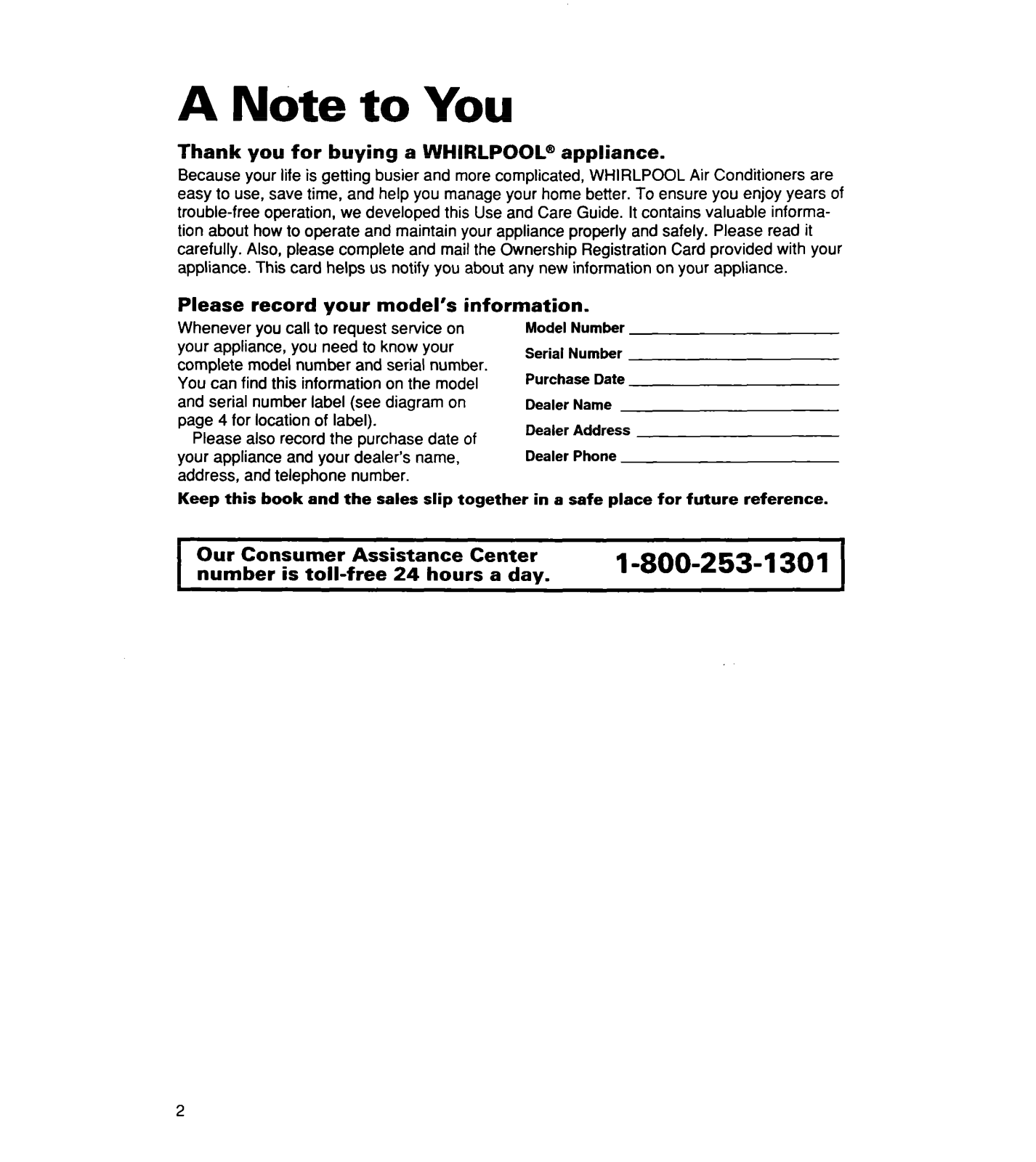

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL Air Conditioners are easy to use, save time, and help you manage your home better. To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide. It contains valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on your appliance, you need to know your complete model number and serial number. You can find this information on the model and serial number label (see diagram on page 4 for location of label).

Please also record the purchase date of your appliance and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Model Number Serial Number Purchase Date Dealer Name Dealer Address Dealer Phone

Our Consumer Assistance Center number is toll-free 24 hours a dav.

I-800-253-1 301 1

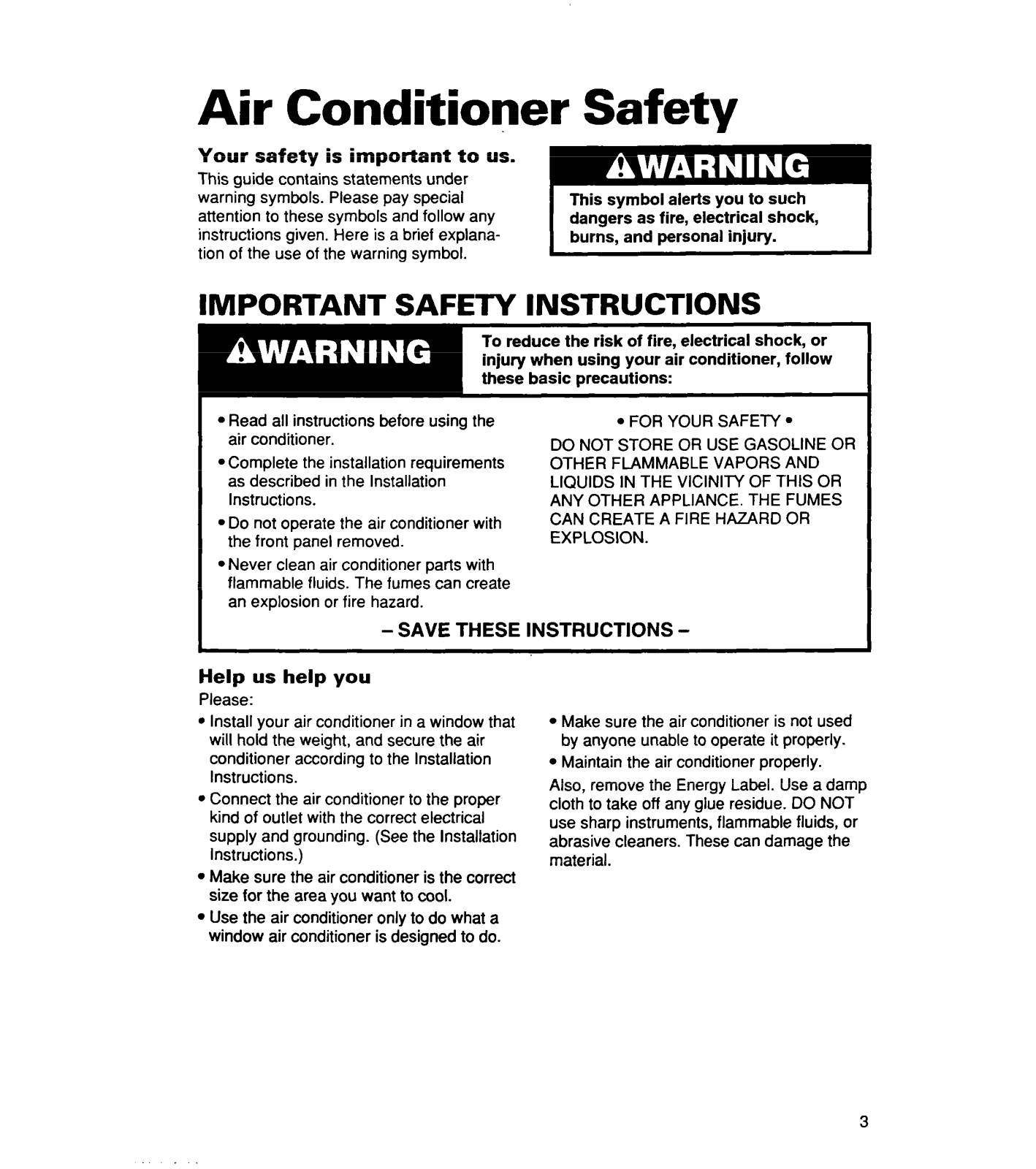

Air Conditioner Safety

warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of the warning symbol.

IMPORTANT SAFETY

l Read all instructions before using the

air conditioner.

.Complete the installation requirements

as described in the Installation Instructions.

l Do not operate the air conditioner with

the front panel removed.

*Never clean air conditioner parts with

flammable fluids. The fumes can create an explosion or fire hazard.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install your air conditioner in a window that

will hold the weight, and secure the air conditioner according to the Installation

Instructions.

l Connect the air conditioner to the proper

kind of outlet with the correct electrical supply and grounding. (See the Installation

Instructions.)

l Make sure the air conditioner is the correct

size for the area you want to cool.

l Use the air conditioner only to do what a

window air conditioner is designed to do.

INSTRUCTIONS

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR EXPLOSION.

l Make sure the air conditioner is not used

by anyone unable to operate it properly.

l Maintain the air conditioner properly.

Also, remove the Energy Label. Use a damp cloth to take off any glue residue. DO NOT use sharp instruments, flammable fluids, or abrasive cleaners. These can damage the material.

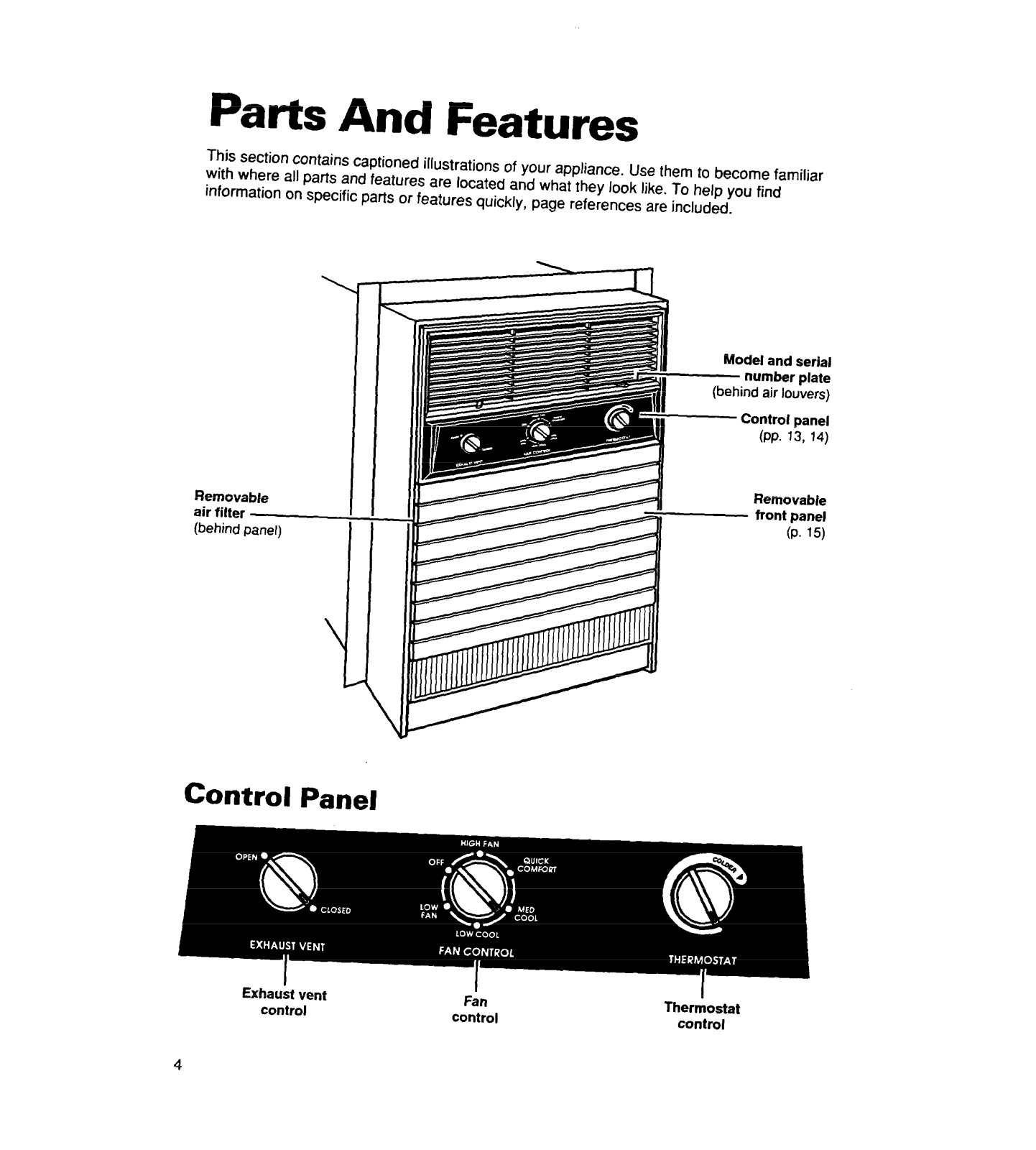

Parts And

This section contains captioned illustrations of your appliance Use them to become familiar with where all Parts and features are located and what they lobk like. To help you find information on

SPeCifiC

parts

or features quickly, page references are included.

Features

Removable air filter -

(behind Panel)

Control Panel

Model and serial

number plate

(behind air louvers)

Control panel

(PP. 73, 14)

&ha& vent

control

Fan

control

Thermostat

control

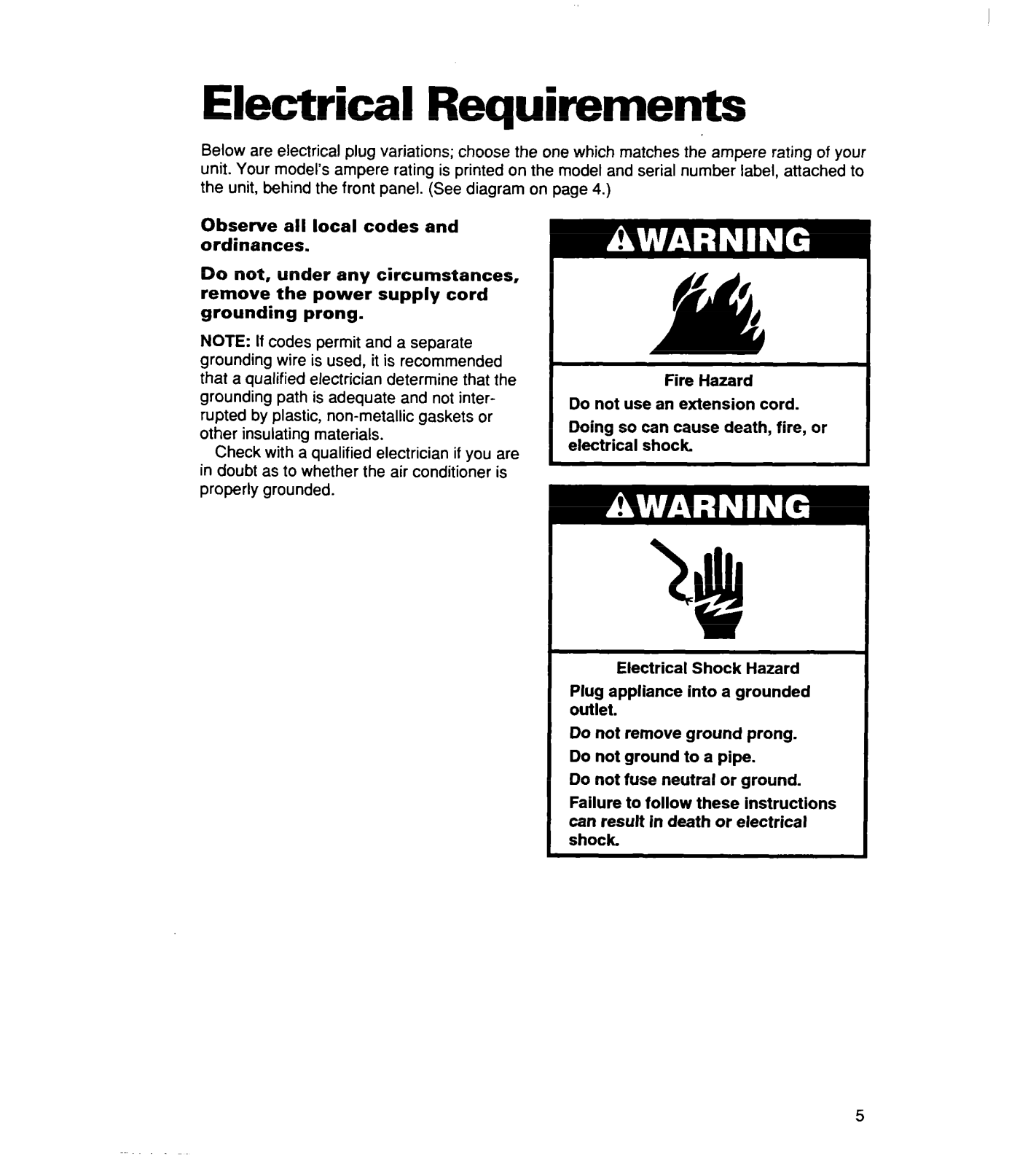

Electrical Requirements

Below are electrical plug variations; choose the one which matches the ampere rating of your unit. Your model’s ampere rating is printed on the model and serial number label, attached to

the unit, behind the front panel. (See diagram on page 4.)

Observe all local codes and ordinances.

Do not, under any circumstances, remove the power supply cord grounding prong.

NOTE: If codes permit and a separate grounding wire is used, it is recommended that a qualified electrician determine that the grounding path is adequate and not interrupted by plastic, non-metallic gaskets or other insulating materials.

Check with a qualified electrician if you are in doubt as to whether the air conditioner is properly grounded.

Do not use an extension cord. Doing so can cause death, fire, or

electrical shock

Fire Hazard

Electrical Shock Hazard

Plug appliance into a grounded outlet.

Do not remove ground prong. Do not ground to a pipe. Do not fuse neutral or ground.

Failure to follow these instructions can result in death or electrical shock.

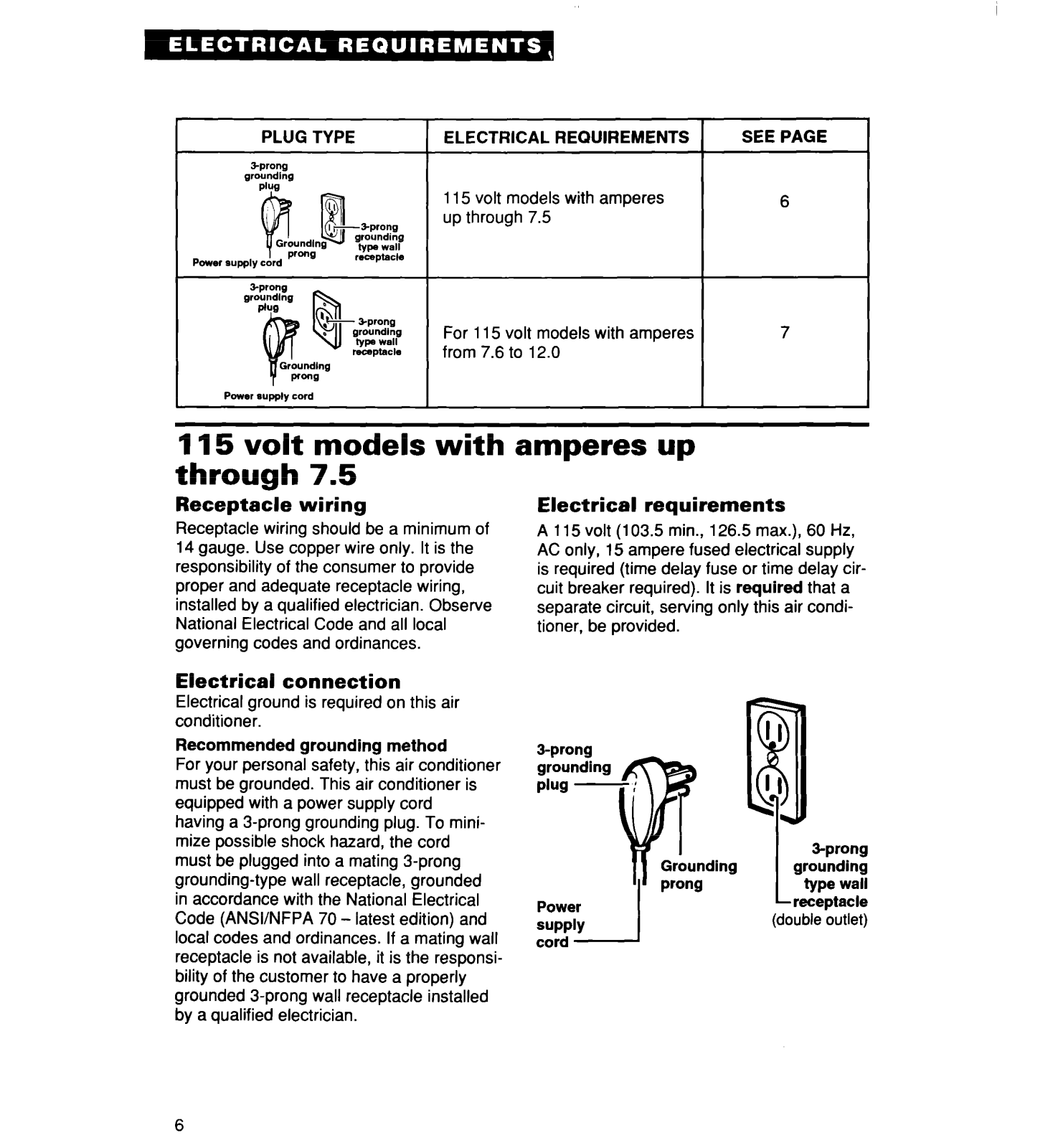

PLUG TYPE

ELECTRICAL REQUIREMENTS

115 volt models with amperes up through 7.5

Power supply cord

- Ctprong grounding

lypa wall

NtfTPtaCl~

For 115 volt models with amperes

from 7.6 to 12.0

115 volt models with amperes up

through 7.5

Receptacle wiring

Receptacle wiring should be a minimum of

14 gauge. Use copper wire only. It is the responsibility of the consumer to provide proper and adequate receptacle wiring, installed by a qualified electrician. Observe National Electrical Code and all local governing codes and ordinances.

Electrical requirements

A 115 volt (103.5 min., 126.5 max.), 60 Hz, AC only, 15 ampere fused electrical supply is required (time delay fuse or time delay circuit breaker required). It is required that a separate circuit, serving only this air conditioner, be provided.

Electrical connection

Electrical ground is required on this air conditioner.

Recommended grounding method

For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong grounding-type wall receptacle, grounded in accordance with the National Electrical Code (ANSVNFPA 70 - latest edition) and local codes and ordinances. If a mating wall receptacle is not available, it is the responsibility of the customer to have a properly grounded 3-prong wall receptacle installed by a qualified electrician.

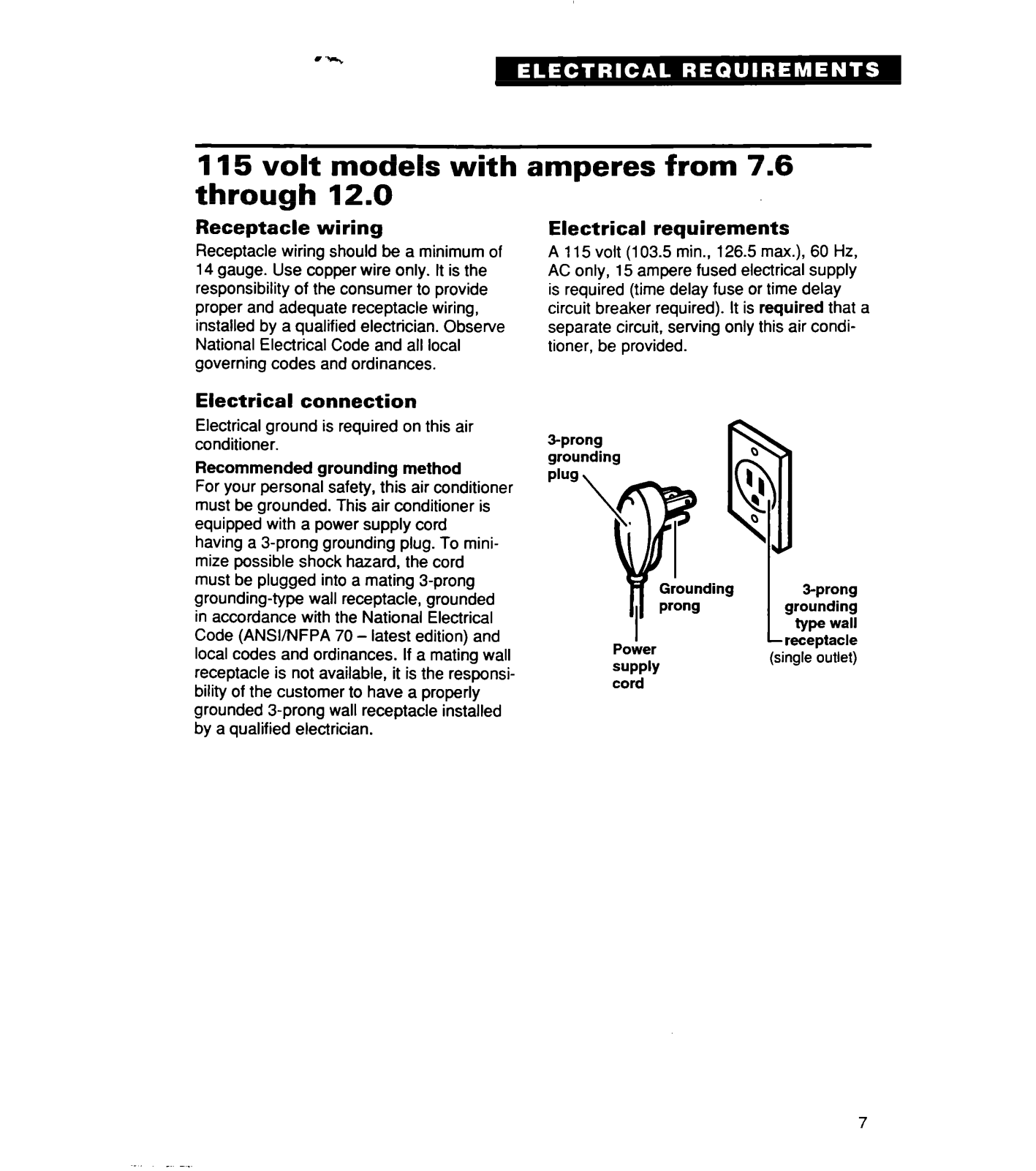

115 volt models with amperes from 7.6

through 12.0

Receptacle wiring

Receptacle wiring should be a minimum of 14 gauge. Use copper wire only. It is the responsibility of the consumer to provide proper and adequate receptacle wiring, installed by a qualified electrician. Observe National Electrical Code and all local governing codes and ordinances.

Electrical connection

Electrical ground is required on this air conditioner.

Recommended grounding method For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord

must be plugged into a mating 3-prong grounding-type wall receptacle, grounded in accordance with the National Electrical Code (ANSVNFPA 70 - latest edition) and local codes and ordinances. If a mating wall receptacle is not available, it is the responsibility of the customer to have a properly grounded 3-prong wall receptacle installed by a qualified electrician.

Electrical requirements

3-prong grounding

Plug

3-prong

grounding

type wall

Poker SUPPlY

cord

L receptacle

(single outlet)
