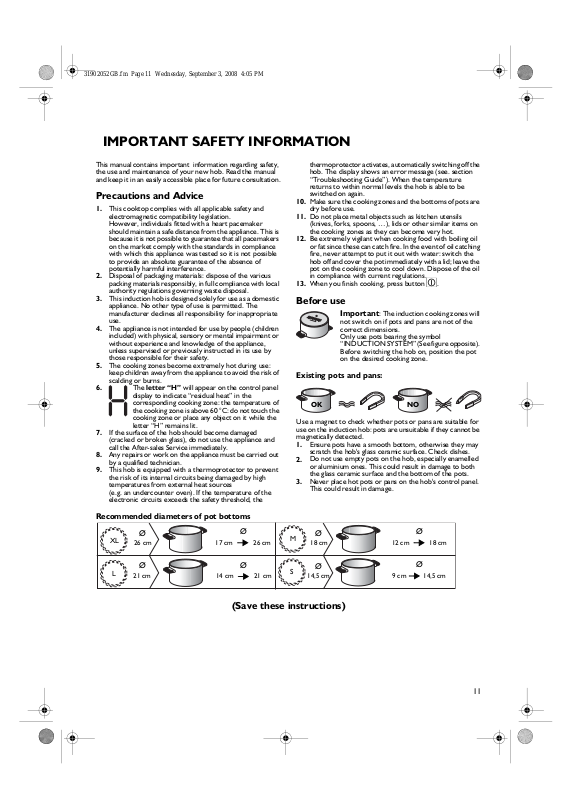

IMPORTANT SAFETY INFORMATION

31902052GB.fm Page 11 Wednesday, September 3, 2008 4:05 PM

This manual contains important information regarding safety, the use and maintenance of your new hob. Read the manual and keep it in an easily accessible place for future consultation.

Precautions and Advice

This cooktop complies with all applicable safety and

electromagnetic compatibility legislation. However, individuals fitted with a heart pacemaker should maintain a safe distance from the appliance. This is because it is not possible to guarantee that all pacemakers on the market comply with the standards in compliance with which this appliance was tested so it is not possible to provide an absolute guarantee of the absence of potentially harmful interference. Disposal of packaging materials: dispose of the various

packing materials responsibly, in full compliance with local authority regulations governing waste disposal. This induction hob is designed solely for use as a domestic

appliance. No other type of use is permitted. The manufacturer declines all responsibility for inappropriate use. The appliance is not intended for use by people (children

included) with physical, sensory or mental impairment or without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety. The cooking zones become extremely hot during use:

keep children away from the appliance to avoid the risk of scalding or burns.

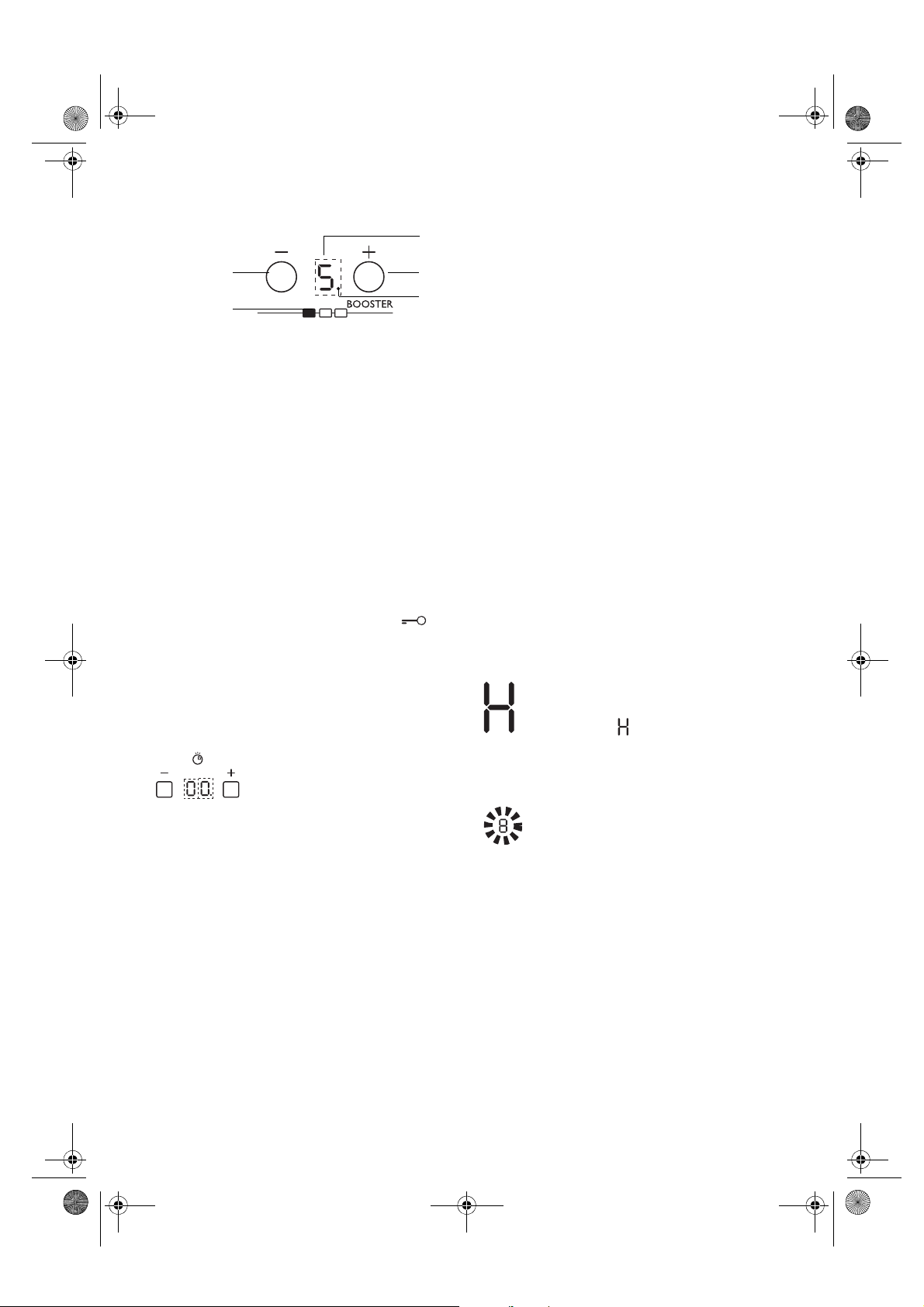

The

letter “H”

display to indicate “residual heat” in the corresponding cooking zone: the temperature of the cooking zone is above 60 °C: do not touch the cooking zone or place any object on it while the

letter “H” remains lit. If the surface of the hob should become damaged (cracked or broken glass), do not use the appliance and call the After-sales Service immediately. Any repairs or work on the appliance must be carried out by a qualified technician. This hob is equipped with a thermoprotector to prevent the risk of its internal circuits being damaged by high temperatures from external heat sources (e.g. an undercounter oven). If the temperature of the electronic circuits exceeds the safety threshold, the

will appear on the control panel

thermoprotector activates, automatically switching off the hob. The display shows an error message (see. section “Troubleshooting Guide”). When the temperature returns to within normal levels the hob is able to be switched on again. Make sure the cooking zones and the bottoms of pots are

10.

dry before use. Do not place metal objects such as kitchen utensils

11.

(knives, forks, spoons, …), lids or other similar items on the cooking zones as they can become very hot. Be extremely vigilant when cooking food with boiling oil

12.

or fat since these can catch fire. In the event of oil catching fire, never attempt to put it out with water: switch the hob off and cover the pot immediately with a lid; leave the pot on the cooking zone to cool down. Dispose of the oil in compliance with current regulations. When you finish cooking, press button .

13.

Before use

Important

not switch on if pots and pans are not of the correct dimensions. Only use pots bearing the symbol “INDUCTION SYSTEM” (See figure opposite). Before switching the hob on, position the pot on the desired cooking zone.

Existing pots and pans:

OK NO

Use a magnet to check whether pots or pans are suitable for use on the induction hob: pots are unsuitable if they cannot be magnetically detected.

Ensure pots have a smooth bottom, otherwise they may

scratch the hob's glass ceramic surface. Check dishes. Do not use empty pots on the hob, especially enamelled

or aluminium ones. This could result in damage to both the glass ceramic surface and the bottom of the pots. Never place hot pots or pans on the hob's control panel.

This could result in damage.

: The induction cooking zones will

Recommended diameters of pot bottoms

26 cm

21 cm

17 cm 26 cm

14 cm 21 cm

(Save these instructions)

18 cm

14,5 cm

12 cm 18 cm

9 cm 14,5 cm

INSTALLATION and ELECTRICAL CONNECTION

31902052GB.fm Page 12 Wednesday, September 3, 2008 4:05 PM

WARNING! Installation must be carried out by a qualified electrician who is fully aware of current safety and installation regulations. The manufacturer declines all liability for injury to

resulting from failure to observe the regulations provided in this chapter.

persons or animals and for damage to property

Electrical connections

Hob electrical connection must be made before connecting

•

the appliance to the electricity supply. Electrical connection must be carried out in compliance

•

with the regulations of the local electric utility company. Make sure that the voltage indicated on the rating plate on

•

the underside of the appliance corresponds to the domestic power supply voltage. Regulations require that the appliance is earthed: use

•

conductors (including the earth conductor) of the appropriate size only.

For electrical connection, use an H05 RR-F type cable as

•

specified in the table “Power supply voltage”.

Connecting to the terminal board

Connect the yellow/green earth wire to the terminal with the

symbol . This wire must be longer than the other wires.

Remove the terminal block cover (A), undoing the screw

and inserting the cover in the terminal block hinge (B). Strip approx. 70 mm of sheath from the power supply

cable. Strip approx. 10 mm of sheath from the wires. Insert the

power supply cable into the cable clamp and connect the wires to the terminal board as indicated in the diagram next to the terminal board itself. Secure the power cable with the cable clamp.

Close the cover (C) and screw it on the terminal block

with the removed screw - point (1).

WARNING! The power supply cable must be long enough to allow the hob to be removed from the worktop and must be positioned so as to avoid damage or overheating caused by

use extension leads.

contact with the base of the hob itself. Do not

Power supply voltage

Wires Amount x size

230V ~ +

230-240V ~ +

230V 3 ~ +

400V 3N ~ +

400V 2N ~ +

If the hob already has a power cable, follow the instructions given on the label attached to the cable. Connect the appliance to the electricity supply by means of an all-pole disconnect switch with minimum

contact gap of 3 mm.

3 X 4 mm

3 X 4 mm (3X2.5 mm

4 X 1.5 mm

5 X 1.5 mm

4 x 1.5 mm

(3X2.5 mm2 Domino)

(Australia only)

Domino)

Each time the cooktop is connected to the mains it carries out an automatic check which lasts several seconds.

DOMINO

77X35

400V 3N ~ 230V ~

230V

400V 2N ~

230V

230V 3~

ONLY FOR BELGIUM

230V

230-240V~FOR AU ONLY

230V~FOR UK ONLY

230V

400V 2N~

FOR NL ONLY

230V

Installation and fixing

31902052GB.fm Page 13 Wednesday, September 3, 2008 4:05 PM

WARNING! The installer is responsible for any damage or injury resulting from incorrect installation.

be installed on a perfectly flat surface. For cut-out dimensions, see the figure below.

To guarantee correct operation, the appliance must

Domino 300

288

510

484

267

275

Domino 380

R min. 6.5

max. 8

490

min. 50

The worktop must be -20 50mm thick. If necessary, cut the kitchen unit and worktop to fit before installing the hob. Clean the cutout of any chips that could compromise appliance operation.

77x35

770

325

min. 50

380

330

750

743

350

R min. 6.5

max. 8

510

484

342

min. 50

R min. 6.5

max. 8

490

To guarantee correct operation, the appliance must be installed on a perfectly flat surface. The worktop must be 20-50 mm thick. If necessary, cut the kitchen unit and worktop to fit before installing the hob. Clean the cutout of any remaining dust that could compromise appliance operation. For the distance between the underside of the induction hob and the kitchen unit (or separating panel), observe the dimensions given in the figure at the side. If a column unit is installed adjacent to the hob, leave a distance of at least 100 mm from the edge of the hob.

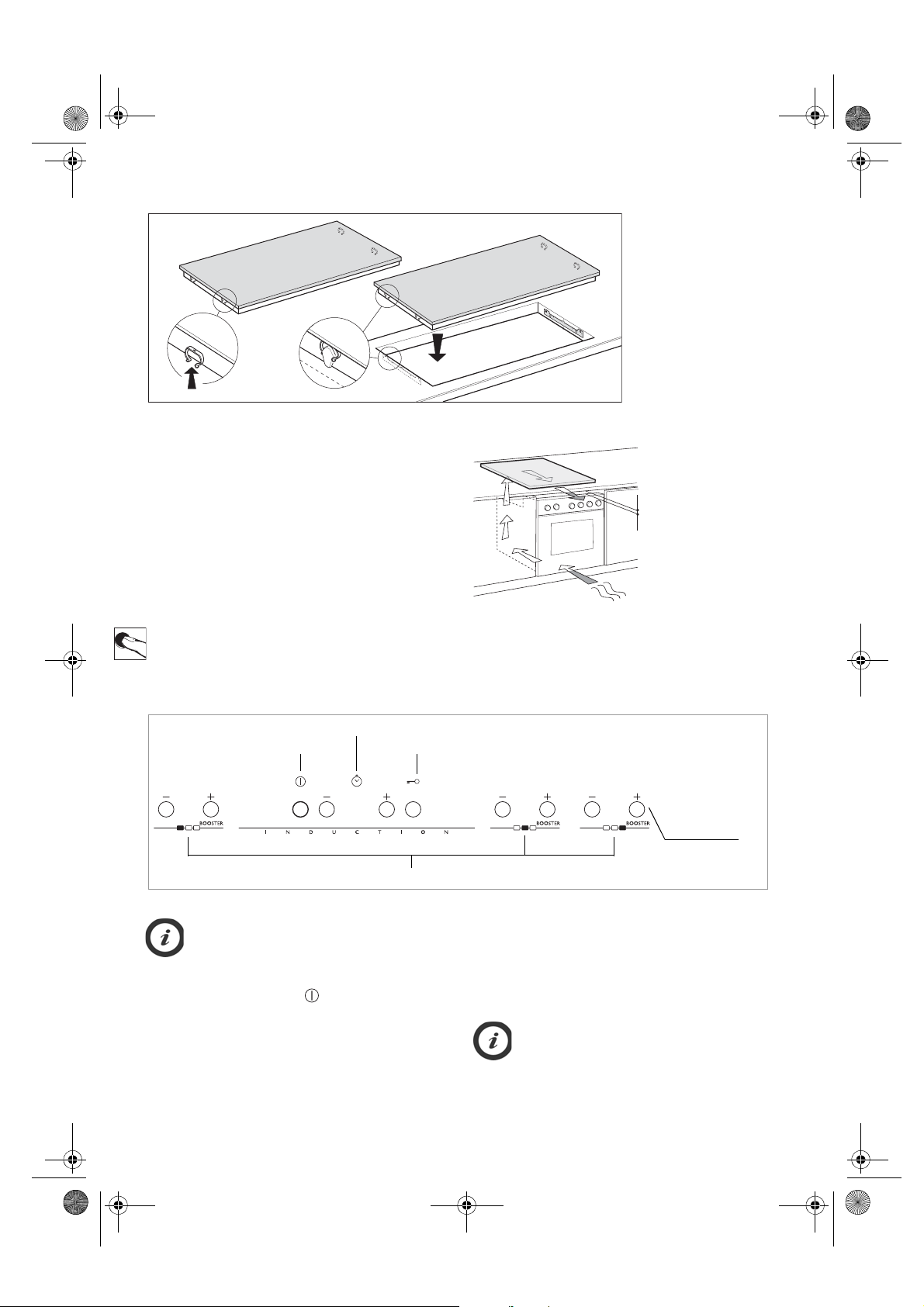

Assembly

Position the clips (A) in the spaces provided on the hob

trim (fig. 3) if not already positioned. Measure the centre point of the vertical sides of the cut-

out (fig. 1) Fit the brackets (C) in the centre of the vertical sides,

aligning the upper edge of the brackets so that they are flush with the worktop surface (fig. 2).

350

min.

min. 20

min. 5

Fix the brackets with the 4 screws supplied (B) using the

holes provided. Insert the hob in the cutout, making sure the clips (A) are

secured in the spaces provided (fig. 4).

Dimensions in mm

fig. 2fig. 1
