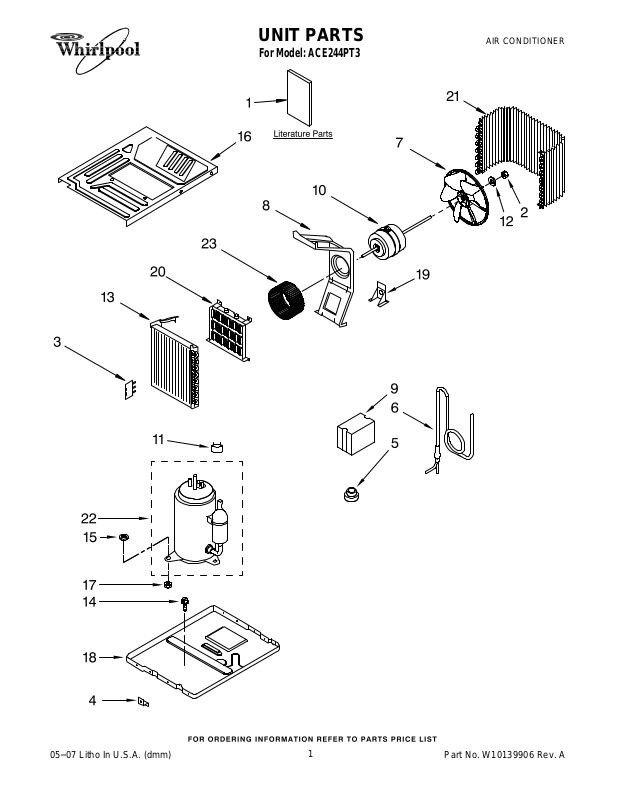

UNIT PARTS

For Model: ACE244PT3

AIR CONDITIONER

05−07 Litho In U.S.A. (dmm)

1

Part No. W10139906 Rev. A

UNIT PARTS

For Model: ACE244PT3

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10121866

8215279 Use & Care Guide

W10122493
2 8215290 Nut w/washer
3 8209771 Support, Tube

4 8215148 Clip
5 8215344 Drain Plug
6 8215353 Tube, Restrictor
7 8215104 Blade, Fan
8 8215107 Bracket, Fan Motor
9 8215130 Relay

10 8215150 Motor, Fan
11 8215123 Overload
12 8215291 Washer
13 8215316 Evaporator
14 8209688 Screw (5)
15 8215154 Gasket
16 8215307 Cover, Evaporator
17 8215297 Nut w/washer
18 8215343 Base
19 8215327 Support
20 8215331 Heater
21 8215069 Condenser
22 8215332 Compressor Assy.
23 8215329 Wheel, Blower

Wiring Diagram

Energy Guide

Sensor

2

W10139906

AIR FLOW AND CONTROL PARTS

For Model: ACE244PT3

W10139906

3
