Whirlpool ACE184XM0 User Manual

Page 1

AIR

CONDITIONER

! Ovens, Compactors, Room Air Conditioners, Dehumidifiers, Automatic Washers, Clothes Dryers, Freezers, Refrigerator-Freezers, Ice Makers,Dishw;

Page 2

Copy your Model and Serial Numbers here.. .

When you need service or call with a question, have this information ready:

Complete Model and Serial Numbers. To find Model and Serial Numbers remove the front panel (see page 12). The numbers are located on a label attached to the evaporator coil cover near the top of the unit.

SERIAL LABEL

BEFORE YOU USE YOUR AIR CONDITIONER It is your responsibility to make

sure that your air conditioner:

l Has been properly installed. l Is the right size for the area you want

to cool.

l Is properly connected to electricity. l Is properly electrically grounded. l Is properly used only for the job it was

intended to do.

l Is not used by children or anyone not

able to operate it properly.

l Is properly maintained.

l Also, remove energy label and buy guide.

Use damp cloth to take off any glue residue. Do not use a sharp instrument or any harsh or abrasive cleaners.

Energy Saving Tips

. Purchase date from sales slip.

Copy this information in the spaces below. Keep this book, your warranty and sales slip together in a handy place.

Model Number Serial Number

Purchase Date

Before You Use Your Air Conditioner Energy Tips Electrical Requirements

Installation Instructions How to Start and Use Your Air Conditioner

.-. .

........................

...............

............

l Improve home insulation (seal doors,

l Close blinds or drapes on sunny side of

l Keep air filter clean. Don’t block air flow

l Ventilate attic (high temperature levels

l Try not to use heat producing appliances

l Keep heat registers and cool air returns

l Use a vent fan in areas where cooking,

Contents

page

.... 2

2 3 7

Cleaning and Caring for Your Air Conditioner Cooling Load Guide Self-Service Checklist Service Information

0 1987 Whirlpool Corporation

windows, and close fireplace flue).

house; add window awnings.

with drapes or furniture.

add to normal cooling load).

during the hottest part of the day. Turn lights, radios, appliances off when not needed.

closed or blocked off so cooled air won’t escape.

laundry, or bathing is done to pull out

extra heat and moisture near its source.

televisions, and

other

....................

.................

................

.................

12 14 15 15

Page 3

Electrical Requirements

For Your Air Conditioner

BELOW ARE ELECTRICAL PLUG VARIATIONS, CHOOSE THE ONE WHICH MATCHES THE AMPERE RATING OF YOUR UNIT. THE NUMBER OF AMPERES IS PRINTED ON THE SERIAL LABEL, ATTACHED TO THE FRONT OF THE UNIT, BEHIND THE FRONT PANEL (SEE PAGE 2).

Chart-A

PLUG TYPE

SEE ELECTRICAL

REQUIREMENTS

ELECTRICAL

REQUIREMENTS

For 115 volt models with serial plate amperes up

through 12.0

OBSERVE ALL LOCAL GOVERNING CODES AND ORDINANCES

3-PRONG

GROUNDING PLUG

POWER SUPPLV

S’PRONG

GROUNDING

TYPE WALL

RECEPTACLE

For 115 volt models with serial plate amperes up through 12.0

For 230 volt and 2301208

volt models with serial plate amperes up through

12.0

Do not, under any circumstances, remove the power supply cord ground prong.

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as large as 14 gauge. Use copper wire only. It is the personal responsibility and obligation of the customer to provide proper and adequate receptacle wiring installed by a qualified electrician. OBSERVE NATIONAL ELECTRICAL CODE AND ALL LOCAL GOVERNING CODES AND ORDINANCES.

Electrical Requirements

115

volt (103.5 min., 126.5 max.) 60 hertz AC

only,

ampere fused electrical supply is required (time delay fuse or time delay circuit breaker required). It is required that a separate circuit, serving only this appliance, be provided. Do not use an extension cord.

For 230 volt and 2301208 volt models with serial plate amperes up through

16.0

For 230 volt and 2301208 volt models with serial plate amperes up through

24.0

Electrical Connection

Electrical Ground is Required on this Appliance

RECOMMENDED GROUNDING METHOD

For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong grounding type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the peisonal responsibility and obligation of the customer to have a properly grounded 3-prong wall receptacle installed by a qualified electrician. See Figure 1

on page 4.

Page 4

Figure 1

ELECTRICAL

3-PRONG

GROUNDING PLUG

TYPE WALL RECEPTACLE

POWER SUPPLY CORD

ALTERNATE GROUNDING METHOD If changing and properly grounding the wall

receptacle is impossible and where local codes permit (consult your electrical inspector), a

temporary adapter may be plugged into the existing 2-prong wall receptacle to mate with the 3-prong power supply cord. See Figure 2. THIS,

HOWEVER, IS NOT RECOMMENDED.

If this is done, you must connect the grounded eyelet on the adapter to the wall receptacle cover plate screw and from this same screw, you must connect a separate copper ground wire

(#14 minimum) to a grounded cold water pipe.* See Figure 2. Do not ground to a gas supply pipe. Do not connect to electrical supply until appliance is permanently grounded.

REQUIREMENTS

For 230 volt and 230/208 volt models with serial

plate amperes up through 12.0

Refer to Chart B for specific wiring and receptacle

information to be used. OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

Do not, under any circumstances, remove the power supply cord ground plug.

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE.

A three-wire, single-phase 60 hertz AC only electrical supply is required.

A separate electrical supply is required on a separately fused circuit. Do not fuse ground-

neutral.

See Chart B for receptacle voltage require-

ments, proper fuse size, wire and wiring connections which must conform with rating of the appliance. Do not use an extension cord.

Chart-B

Figure 2

ELECTRICALLY

COLD WATER PIPE

-..--._-

GROUND PRONG

POWER SUPPLY CORD

*Cold water pipe must have metal continuity to electrical ground and not be interrupted by plastic, rubber or other electrically insulating

connectors (including water meter or pump)

without adding a jumper wire at these connections.

GROUND ASSEMBLY

(ArrAw To GROUNDED

METAL COLD WATER PIPE)

EYELE

ADiPTER

RECEPTACLE

Page 5

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as

large as size shown on electrical Chart B. Use copper wire only. It is the personal responsibility and obligation of the customer to provide proper and adequate receptacle wiring installed by a qualified electrician. OBSERVE NATIONAL

ELECTRICAL CODE AND ALL LOCAL

GOVERNING CODES AND ORDINANCES.

A separate electrical supply is required on a separately fused circuit. Do not fuse groundneutral.

See Chart C for receptacle voltage requirements, proper fuse size, wire and wiring connections which must conform with rating of the appliance. Do not use an extension cord.

RECOMMENDED GROUNDING METHOD

For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong grounding type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have a properly grounded 3-prong wall receptacle installed by a qualified electrician.

ELECTRICAL

REQUIREMENTS

PLUG AND

RECEPTACLE

DATA

USE TIME-DELAY

FUSE

OR TIME

DELAY CIRCUIT

BREAKER

RATING IN

AMPS

Chart-C

RECEPTACLE

VOLTAGE

(60 HERTZ

AC IN ALL

MINIMUM

RECEPTACLE

WIRE SIZE

SERIAL PLATE

AMPERES

TYPE

OF BRANCH

CIRCUIT

For 230 volt and 230/208 volt models with serial

plate amperes up through 16.0 Refer to Chart C for specific wiring and recep-

tacle information to be used. OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

Do not, under any circumstances, remove the

power supply cord ground plug.

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE. A three-wire, single-phase 60 hertz AC only

electrical supply is required.

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as

large as size shown on electrical Chart C. Use copper wire only. It is the personal responsibility and obligation of the customer to provide proper and adequate receptacle wiring installed by a qualified electrician. OBSERVE NATIONAL

ELECTRICAL CODE AND ALL LOCAL GOVERNING CODES AND ORDINANCES.

Page 6

RECOMMENDED GROUNDING METHOD

Chart-D

For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong grounding type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have a properly grounded 3-prong wall receptacle installed by a qualified electrician.

ELECTRICAL

REQUIREMENTS

PLUG AND

RECEPTACLE

SERIAL PLATE

OF BRANCH

For 230 volt and 230/208 volt models with

serial plate amperes up through 24.0

Refer to Chart D for specific wiring and recep-

tacle information to be used.

OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

Do not, under any circumstances, remove the

power supply cord ground plug.

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE.

A three-wire, single-phase 60 hertz AC only

electrical supply is required.

A separate electrical supply is required on a

separately fused circuit. Do not fuse ground-

neutral.

See Chart D for receptacle voltage require-

men ts, connections which must conform with rating of

the appliance. Do not use an extension cord.

proper fuse size, wire and wiring

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as

large as size shown on electrical Chart D. Use copper wire only. It is the personal responsibility and obligation of the customer to provide proper and adequate receptacle wiring installed by a qualified electrician. OBSERVE NATIONAL

ELECTRICAL CODE AND ALL LOCAL

GOVERNING CODES AND ORDINANCES.

RECOMMENDED GROUNDING METHOD

For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong grounding type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have a properly grounded 3-prong wall receptacle installed by a qualified electrician.

Page 7

INSTALLATION INSTRUCTIONS

for Your Air Conditioner

Through-the-wall Installation Instructions

for installing the unit in a pre-installed cabinet.

Unpact accessory parts (see Figure 3) before installing your air conditioner.

Figure 3

PLASTIC

DRAIN

SPOUT

CAUTION:

Be sure air conditioner does not fall

during installation.

Handle the air conditioner with care. Watch out for the sharp metal fins on the front and rear coils.

Do not use the water condensate for drinking purposes. It is not sanitary.

USED ON o\

MODELS WITH DRAIN CUP AND

HOLE IN REAR CABINET

RAIL

Pick the right wall. First, decide what room(s) you want to cool. Then choose a wall that will allow the air-conditioned air to flow freely and directly into the room(s) you want cooled. Remember, it’s difficult to move air around corners. Choose a location that’s also near an electrical outlet. (Refer to

ELECTRICAL REQUIREMENTS for re-

ceptacle and wiring needed.) Do not use an

extension cord. (CAUTION: DO NOT LOCATE AIR CONDITIONER WHERE PLASTIC CABINET FRONT WILL BE EXPOSED TO A HEAT SOURCE THAT RAISES THE

SURFACE TEMPERATURE IN EXCESS

OF 120” F.)

WEATHER

SEAL USED

ON 18 3/4”-

HIGH

CABINETS

ONLY

SEAL STRIP

(,” x 1/‘t

( Some Models)

Page 8

Choose the type of decorative molding you

want to use around the room side of the cabinet. Your choice affects the finish frame alignment with the inside wall. When using a wood, metal or plastic molding, the finish frame should almost line up with the inside wall. If the wall is plastered to the cabinet and no molding is used, the finish frame must be set into the wall by l/2” (see Figure 4 for frame construction or Figure 5 for brick veneer construction). Cut through two studs for support.

FIANGE ON BolToM OF

CABINET.)

Construct finish frame.

something equal surface

Apply creosote or

to the outside exposed

Figu

ENTRYON LEFT SI

. Provide an opening through the wall

finish frame. Observe all local governing codes and ordinances. For wall opening dimensions, use those shown in Figure 6 and add wood frame thickness (use 1” lumber or heavier). When determining finish frame thickness, be sure you do not cover side cabinet louvers. A 4” minimurn clearance between sidecabinet louvers and adjoining wall allows for proper airflow into air conditioner,

CONSTRUCTION

for a

. Install the finish frame

Square and level frame and nail it securely to the studs.

Remove front panel

out. This protects the panel from damage and makes the air condtioner easier to handle

during installation (see Figure 7).

Slide unit out of cabinet.

green ground wire at the left-front corner of base unit by removing retaining screw (save screw for reuse later). Now slide unit out of cabinet by pulling on handle at bottom (see

Figure 7).

. Insert exterior cabinet through wall opening.

Leave l-3/16” minimum projection into the room at service cord exit hole in cabinet, after allowing for trim. For proper outward water drainage, shim or reposition cabinet to pro-

vide the proper downward tilt to the outside

(1 !‘2” bubble or 114” and side-to-side leveling.

in the wall opening.

by pushing top down and

First, disconnect the

Fill all spaces

frame with insulation.

between cabinet and finish

Page 9

Figure 8

Drill holes

to finish frame. Use ten ~10 x 1” wood screws (four screws for each side and two screws for the top; not included). Do not overtighten screws or cabinet will distort and provide a poor air seal between cabinet and unit.

Insert plastic drain-cup spout

(on certain models) into hole at rear of cabinet, as shown in Figure 8. Spout shou!d be facing

downward through hole. OPTIONAL: During

high humidity, condensate may drip from the outside of your air conditioner onto the ground below. If your air conditioner is

installed where this is undesirable, you can direct the water to a more suitable spot by simply attaching a 51’8” inside-diameter, thin walled hose to the drain spout at rear of cabinet (see Figure 9). On models without

plastic drain cup spout, use flashing as needed to guide water.

Note the type of drain parts you have. Insert

drain cup according to instructions in Figure 8.

in the cabinet and attach it securely

and metal holder

Insert air conditioner into cabinet. Do not

push against sharp fins and plastic parts.

Attach green ground wire to the left-front corner of unit base by using retainer screw

(see Figure 11).

-PLACE DRAIN CUP INTO METAL BRACKET AND INSERT INTO

CABINET RAIL

SLOTS

TYPE 1

Figure 9

PLACE PLASTIC

DRAIN INTO HOLE

IN REAR OF CABINET WITH SPOUT DOWN

I I

1 TYPE 2

Figure 11

SCREW

Figure 12

. For installation of bottom weather seal

with 18 3/4”-high cabinet, see Figure 12.

. Attach front,

and pushing top down, then in and up.

by placing bottom edge on clips

GROUND WIRE

BOTTOM WEATHER SEAL -PRESS UPWARD (Adhesive side on

bottom of base )

on unit

. If you received one adhesive-backed seal strip

(l/4”

seal and install on air conditioner as shown in

Figure 10.

x l/2”), remove paper backing from

. Caulk all

. If needed,

outside wall openings around cabinet.

install molding around room side

of cabinet.

Page 10

HOW TO START AND USE

YOUR AIR CONDITIONER

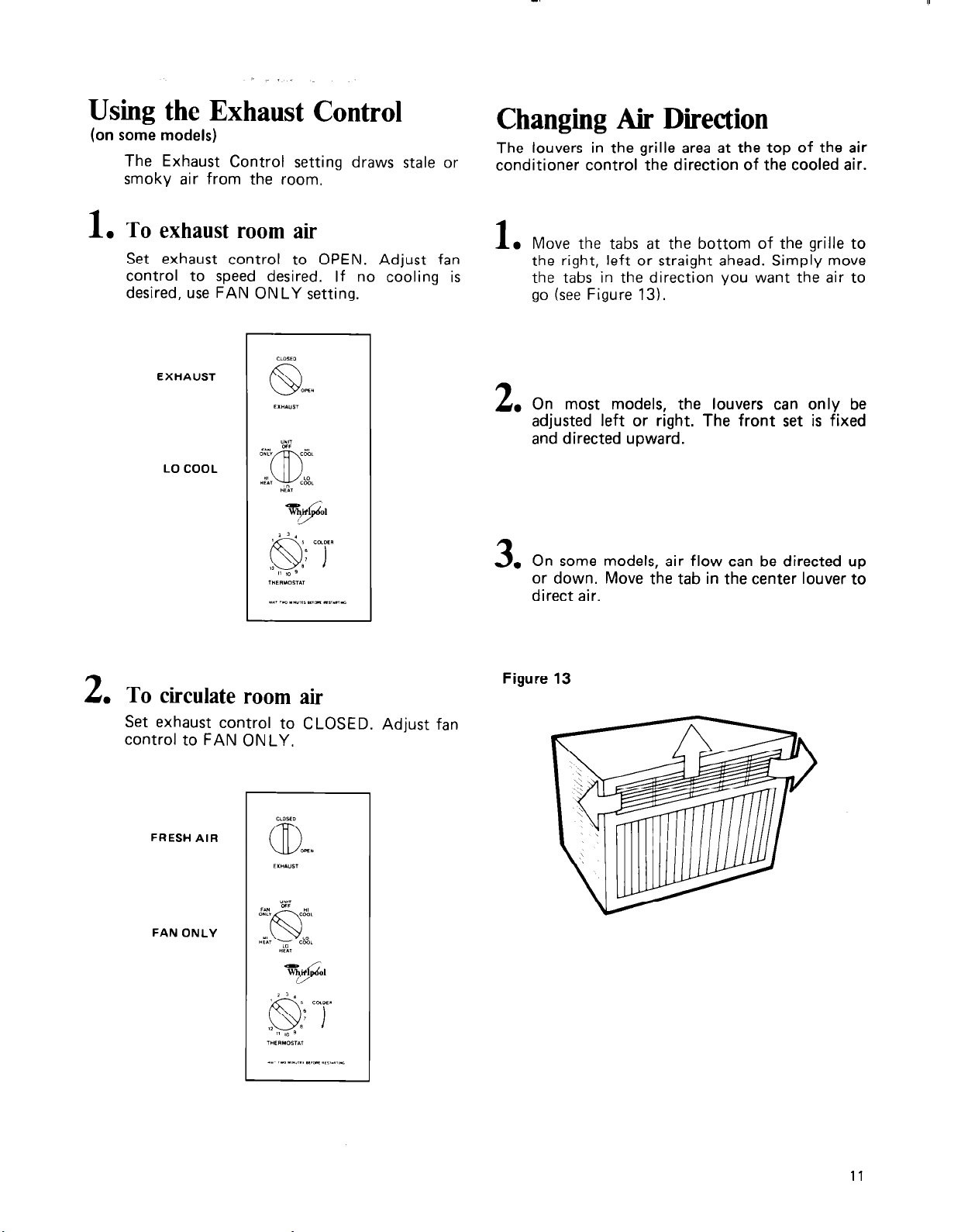

EXHAUST CONTROL

FAN SPEED/ HEAT CONTROL

THERMOSTAT CONTROL

CLOSED

CID

Be sure air conditioner is OFF before plugging it in.

To Start Your Air Conditioner

Set exhaust control (if your unit is so equipped) to OFF for maximum cooling or heating results.

Choose a fan speed setting for cooling or heating.

LO COOL. . . . . . . for sleeoina comfort.

HI COOL . . . . for maximum cooling.

LO HEATfor reduced air movement with heat. HI HEATfor maximum air movement with heat.

Turn thermostat control to Number 6 (mid-setting). You can adjust the air conditioner’s performance

by resetting the thermostat control to a higher

number for maximum cooling. Lower the number setting for maximum heating. You will need to experiment to find the settings which suit you best.

When lowering the thermostat control setting, the compressor (motor) may shut off. When the compressor is turned off with either the fan speed control or the thermostat control, wait 2-3 minutes

before restarting the air conditioner or, turning the compressor back on.

Page 11

Using the Exhaust Control

(on some models)

The Exhaust Control setting draws stale or smoky air from the room.

. To exhaust room air

Set exhaust control to OPEN. Adjust fan control to speed desired. If no cooling is desired, use FAN ONLY setting.

Changing Air Direction

The louvers in the grille area at the top of the air conditioner control the direction of the cooled air.

Move the tabs at the bottom of the grille to

the right, left or straight ahead. Simply move the tabs in the direction you want the air to go (see Figure 13).

. On most models, the louvers can only be

adjusted left or right. The front set is fixed and directed upward.

. On some models, air flow can be directed up

or down. Move the tab in the center louver to direct air.

. To circulate room air

Set exhaust control to CLOSED. Adjust fan control to FAN ONLY.

FRESH AIR

FAN ONLY

Figure 13

Page 12

Cleaning and Caring For Your

Air Conditioner

Clean front panel with warm water and mild

4 0

soap or detergent. Use a soft cloth. Rinse and dry. Replace front panel.

Proper use and care of your air conditioner will help insure longer life and lower operating costs. Follow these instructions carefully. Call your

dealer for an annual checkup.

Cleaning of Front Panel

Remove the front panel from unit when

cleaning. Press down at top edge of the

front as shown in Figure 14.

When the front moves away from top of

cabinet, pull top of front toward you.

5 0

Wipe control panel clean with a soft dry cloth.

Cleaning Air Conditioner Filter

The filter is cleanable. A clean filter helps

remove dust, lint and other particles from the

air. Check every two weeks to see if filter

needs cleaning.

Remove filter from plastic front frame, by

removing elastic band which holds it in place

(see Figure 15).

Clean filter, using a vacuum cleaner.

2 a

- or -

If very dirty, wash filter with warm water and

mild detergent. Air dry thoroughly before

replacing.

Lift up and away from the bottom spring

clips.

Figure 14

Figure 15

Page 13

Annual Maintenance for Your

Air Conditioner

Your air conditioner needs annual maintenance to help insure steady, top performance throughout the year.

Call the service company recommended by your dealer to:

Inspect and clean the coils and condensate

water passages.

Check fan and oil the fan motor.

The compressor is sealed and needs no oiling.

Expense of annual inspection is customer’s

responsibility.

- or -

If you are familiar with electrical appliances,

you can do the cleaning and maintenance yourself. If you decide to go ahead, follow these steps:

Remove plastic film from motor and electrical

parts.

Replace unit in cabinet.

NOTE: It’s a good idea to wait 24 hours before starting the unit again. This allows

time for all areas to dry out. The water from

rainfall or from normal operation does not harm these components.

Oiling of the Fan Motor

Oil the fan motor per instructions on the

motor. To add oil, pull out the oil hole plug at each end of the motor (See Figure 16).

REMOVE UNIT FROM CABINET. Wrap the

motor, electrical control box and electrical terminals box in plastic film and make sure no

water or other liquid gets inside any of these

parts. It could damage the insulation and

cause serious trouble.

Carefully clean and hose out the base, coils

and condensate pans. Clean at least once a

year or more often, if the condenser coils and

pans collect dirt, sand, leaves, insects or algae. Also, clean if you detect an odor from the

air conditioner. While the cabinet is open,

this is a good time to oil the fan motor.

Figure 16

OIL PLUGS

An easy to use oneOunce capsule of especially

recommended oil (Part No. 10943) can be ordered from your dealer, or use SAE #20 nondetergent oil.

Replace the plug to keep dirt from motor

bearings.

Reinstall unit in cabinet after performing

maintenance.

Page 14

COOLING LOAD GUIDE-SQUARE FEET METHOD

ROOM AIR CONDITIONERS

To make sure you

METHOD.”

for eItremR III exposure. shadmg. rnsulat~on and bulldmg conslruchon.

choose

the right size unit, use thts “COOLING LOAD GUIDE -

SQUARE FEET

It is a qurck, easy means of computing capacity.

AHAM Coolrng Load Eslrmale Form RAG1 musl be used

COOLING CAPACITY REQUIRED--BTU/HR

INSTRUCTIONS:

Determine Ihe area to be cooled In square feel and locate that

pomt on the lefl side of chart

2. Move horizonlally across to the center line 01 Band A, E or C according lo the condition of the ceiling in Ihe area to be cooled. &ml A-Occupied Space Above Ceiling band B-Insulated Ceiling Under Attic Band C-Non-Insulated Ceiling Under Attic

3. From center of band move within the band to leh for more

northerly exposure or right for more westerly exposure.

4. From this point, read down to bottom of charl to determlne required Btulhr oulpul. Write the Btulhr figure in the space indicated below.

5.-

lo.-

capacity rafmg close ?o that estimated above should be selected. more to comfort than a larger capacity unit operatmg Intermit-

tently.

Btu/hr (from number 4 above).

6.- Locate your geographic area on Inset map and mulhply faclor shown by hqure m number 5.

7..---If room air conditioner IS Intended prrmarlly for nlghltime coohna. subtract 30% lfrom fiaure In number 6)

6.__- Subtract 3d Btuihr from figure ln<number 7 (or 6) for each hear foot of wall separatmg the area lo be cooled from another cooled room If more lhan Iwo people occupy area, add 600 t3tuihr per

6.__ person (to II i ure VI number 8); if only one person. subtracl 600 tu/hr. Add 4000 Btulhr (to figure m number 9) If area lo be cooled Includes kitchen.

For best results. a room conditionmg unll or units wllh a cooling A smaller capacity unit operating continuously ~111 contrrbute

Page 15

If you need service or assistance, we suggest

you follow these five steps:

Before calling for assistance

Performance problems often result from little things you can find and fix yourself without tools of any kind.

Air conditioner won’t run

1. Is unit plugged into a live circuit with proper voltage?

2. Is switch turned on?

3. Is thermostat set correctly?

4. Have you checked your home’s main fuses or circuit breaker box?

5. Has the time-delay fuse blown?

6. Has the local power failed?

Unit blows fuses:

1. Are time-delay fuses being used?

2. Is an extension cord being used? (Do not use an extension cord to run your air conditioner.)

3. Are you waiting two minutes after turning cooling circuit off before trying to restart unit?

Unit turns on and off. or does not cool room:

Is filter clean?

Are coils clean (both evaporator [inside] and

condenser [outside])?

Is there excessive moisture or heat (open vessel

cooking, showers, etc.)?

Try setting fan to higher speed.

Try setting thermostat to a cooler setting.

Operating sounds:

1. When your room air conditioner is operating normally, you will hear sounds such as:

l Droplets of water hitting the condenser, causing

a “pinging” or “clicking” sound. Water droplets

help to cool the condenser.

l Air movement from the fan, especially on high fan

speed setting.

l Clicks from the thermostat cycle.

2. Sounds also may be caused by house construction

- such as vibration of the unit due to wall construction or unsteady window mounting area.

’

2. If you need assistance*. . .

Call Whirlpool COOL-LINE@ service assistance telephone number. Dial free from anywhere in the U.S.:

and talk with one of our trained Consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

l-800-253-1301

If you need

locate TECH-CARE service in your area. Call our COOL-LINE service assistance tetephone number (see z;d\F) or look In your telephone directory Yellow Pages

APPLIANCES . HOUSEHOLD -

MAJOR - SERVICE L REPAIR

WHIRLPOOL APPLIANCES

FRANCHISED TECHCARE SERVICE

SERVICE COMPANIES

XYZ SERVICE CO.

123 Maple

If you

Call our COOL-LINE service assistance telephone number (see Step 2) and talk with one of our Consultants, or if you prefer, write to:

Mr. Robert Stanley Division Vice President Whirloool Corooration 2000’M 63 ’

Benton Harbor, Ml 49022

have a problem*...

service*. . .

Whirlpool has a nationwide network of franchised TECH-CARE@ Companies. TECH-CARE service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States. To

ELECTRICAL APPLIANCES -

MAJOR - REPAIRING 8 PARTS

OR WHIRLPOOL APPLIANCES

FRANCHISED TECH-CARE SERVICE

XYZ SERVICE CO.

9999999

WASHING MACHINES, DRYERS

& IRONERS - SERVICING

WHIRLPOOL APPLIANCES

FRANCHISED TECHCARE SERVICE

SERVICE COMPANIES

XYZ SERVICE CO

123 Made 993-9999

in Maple .999-9999

service

SERVICE COMPANIES

FSP

5. If you need FSP@ replacement parts*. . .

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement par-t for your Whirlpool appliance. FSP replacement parts will fit right and work

right, because they are made to the same exacting specifications used to build every new Whirlpool

appliance.

To locate FSP replacement parts in your area, refer

to Step 3 above or call the Whirlpool COOL-LINE service

assistance number in Step 2.

If you must call or write, please provide: model number,

serial number, date of purchase, and a complete

description of the problem.

in order to better respond to your request for assistance.

This information is needed

Page 16

WHIRLPOOL ROOM AIR CONDITIONER

WARRANTY

LENGTH OF WARRANTY FULL ONE-YEAR

WARRANTY From Date of Purchase

FULL FIVE-YEAR WARRANTY

From Date of Purchase

WHIRLPOOL WILL NOT PAY FOR A. Service calls to:

1. Correct the lnstaiiation of the air conditioner.

Mtruct you how to use the air conditioner.

3. Replace house fuses or correct house wiring.

4. Clean or replace air fitter.

B. Pi up and delivery. This product is designed to be repaired in the home.

C. Damage to the air conditiiner caused by accident,

use of products not approved by Whirlpool.

D. The removal and reinstaktiof! of the air conditioner if it is installed in an overhead or

other inaccessible location or not installed in accordance with publi install&km instructions.

Service under the full warranties must be provided by a franchised TECH-CARE@ service company. WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages so this limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WHIRLPOOL WILL PAY FOR

FSP@ replacement parts and repair labor to correct defects in materials or workmanshii.

FSP repIaoement parts and repair labor to correct defects in materials or workmanship in the sealed refrigeratiin system. These parts

1. Compressor

Evaporator

3. Condenser

D&3+matfw

5 Connecting tubing

misuse, fire, flood, wts of God or

are:

Outside the United States, a different warranty may apply. For details, please contact your franchised Whirlpool distributor or military exchange.

APPLIANCES

Making your world a little easier.

Part No. 950357 Rev. D

0 1987 Whirlpool Corporation

Printed in U.S.A.
