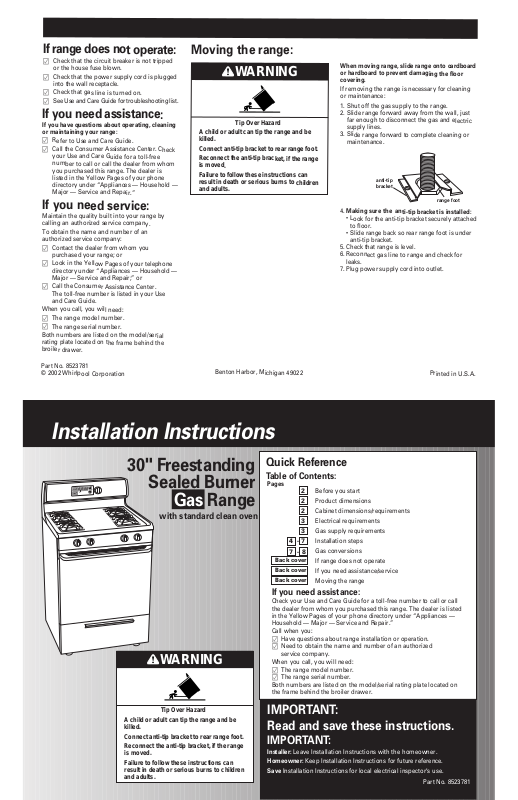

Page 1
Quick Reference
Table of Contents:
If range does not operate:
Check that the circuit breaker is not tripped
or the house fuse blown.
Check that the power supply cord is plugged
into the wall receptacle.
Check that gas line is turned on.
See Use and Care Guide for troubleshooting list.
If you need assistance:
If you have questions about operating, cleaning
or maintaining your range:
Refer to Use and Care Guide.
Call the Consumer Assistance Center. Check
your Use and Care Guide for a toll-free
number to call or call the dealer from whom
you purchased this range. The dealer is
listed in the Yellow Pages of your phone
directory under “Appliances — Household —
Major — Service and Repair.”
If you need service:
Maintain the quality built into your range by
calling an authorized service company.
To obtain the name and number of an
authorized service company:
Contact the dealer from whom you
purchased your range; or
Look in the Yellow Pages of your telephone
directory under “Appliances — Household —
Major — Service and Repair;” or
Call the Consumer Assistance Center.
The toll-free number is listed in your Use
and Care Guide.
When you call, you will need:
The range model number.
The range serial number.
Both numbers are listed on the model/serial
rating plate located on the frame behind the
broiler drawer.
Part No. 8523781
© 2002 Whirlpool Corporation
Printed in U.S.A.
Pages
2
2
2
3
3
4 - 7
7 - 8
Installation Instructions
IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future reference.
Save Installation Instructions for local electrical inspector's use.
Part No. 8523781
Moving the range:
C
LO
C
K
8.8:88
TIM
ER
TIMER
When moving range, slide range onto cardboard
or hardboard to prevent damaging the floor
covering.
If removing the range is necessary for cleaning
or maintenance:
1. Shut off the gas supply to the range.
2. Slide range forward away from the wall, just
far enough to disconnect the gas and electric
supply lines.
3. Slide range forward to complete cleaning or
maintenance.
Benton Harbor, Michigan 49022
IMPORTANT:
Read and save these instructions.
If you need assistance:
Check your Use and Care Guide for a toll-free number to call or call
the dealer from whom you purchased this range. The dealer is listed
in the Yellow Pages of your phone directory under “Appliances —
Household — Major — Service and Repair.”
Call when you:
Have questions about range installation or operation.
Need to obtain the name and number of an authorized
service company.
When you call, you will need:
The range model number.
The range serial number.
Both numbers are listed on the model/serial rating plate located on
the frame behind the broiler drawer.
Before you start
Product dimensions
Cabinet dimensions/requirements
Electrical requirements
Gas supply requirements
Installation steps
Gas conversions
If range does not operate
If you need assistance/service
Moving the range
Back cover
Back cover
Back cover
30" Freestanding
Sealed Burner
Gas Range
with standard clean oven
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range
is moved.
Failure to follow these instructions can
result in death or serious burns to children
and adults.
WARNING
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range
is moved.
Failure to follow these instructions can
result in death or serious burns to children
and adults.
WARNING
anti-tip
bracket
range foot
4. Making sure the anti-tip bracket is installed:
• Look for the anti-tip bracket securely attached
to floor.
• Slide range back so rear range foot is under
anti-tip bracket.
5. Check that range is level.
6. Reconnect gas line to range and check for
leaks.
7. Plug power supply cord into outlet.
Page 2
Page 2

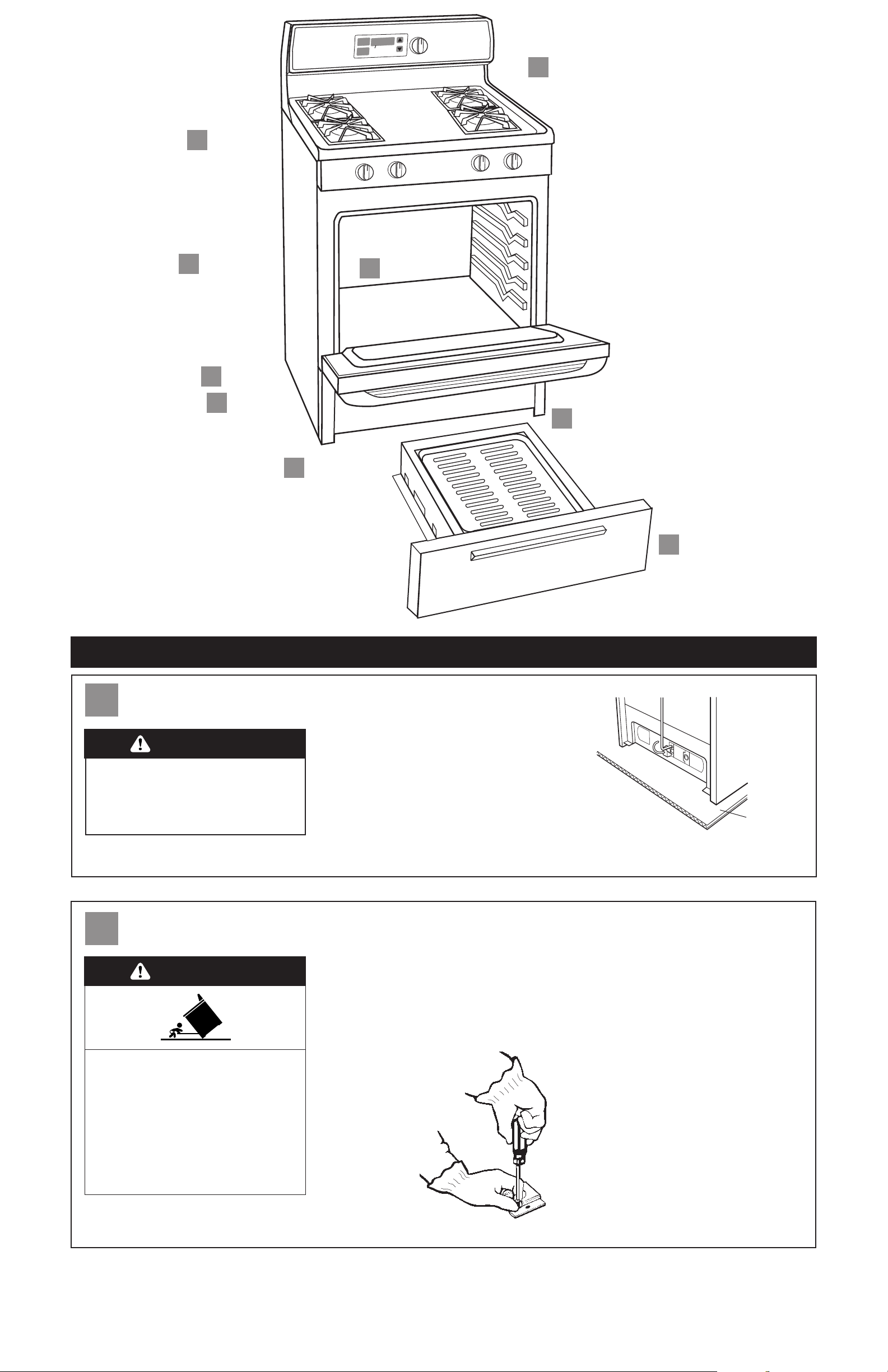

Product dimensions
Before you start...
Cabinet dimensions/requirements
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that can kill
or hurt you and others. All safety messages will be
preceded by the safety alert symbol and the word
“DANGER” or “WARNING”. These words mean:
All safety messages will identify the hazard, tell you
how to reduce the chance of injury, and tell you
what can happen if the instructions are not
followed.
You will
be killed or seriously injured if you don’t
follow instructions.
You can
be killed or seriously injured if you don’t
follow instructions.
WARNING
DANGER
WARNING: If the information in
this manual is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
— Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any
appliance.
• Do not touch any electrical
switch.
• Do not use any phone in your
building.
• Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
• If you cannot reach your
gas supplier, call the fire
department.
— Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
Important: Observe all governing codes
and ordinances.
Do not obstruct flow of combustion and
ventilation air.
This installation must conform with all local
codes and ordinances. In the absence of local
codes, installation must conform with American
National Standard, National Fuel Gas Code ANSI
Z223.1 — latest edition*.
It is the customer’s responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation is
adequate and in conformance with National
Electrical Code, ANSI/NFPA 70 — latest
edition**, and all codes and ordinances.
Cabinet opening dimensions shown must be
used. Given dimensions are minimum
clearances.
When installing a cooktop under existing
cabinets and the installation does not meet the
minimum cabinet clearances, install a range
hood above the cooktop to avoid burn hazards.
Proper installation is your responsibility. A
qualified technician must install this range. Make
sure you have everything necessary for correct
installation. It is the installer’s responsibility to
comply with installation clearances specified on
the gas information label. The gas information
label and model/serial rating plate are located on
the frame behind the broiler drawer.
CLO
CK
8.8:88
TIMER
T
IMER
29-7/8" width
46-7/8"
overall
height
25"
36"
cooktop
height
27-1/8" depth
with handle
Grounded electrical
outlet is required. See
“Electrical
requirements,” Page 3.
Proper gas supply
connection must be
available. See “Gas
supply requirements,”
Page 3.
*** Note: 30" min. when bottom of wood
or metal cabinet is protected by not
less than 1/4" flame retardant millboard covered with not less than
No. 28 MSG sheet steel, 0.015"
stainless steel, 0.024" aluminum or
0.020" copper.
36" min. clearance between the top of
the cooking platform and the bottom
of an unprotected wood or metal
cabinet.
Contact a qualified
floor covering
installer to check
that the floor
covering can
withstand at least
200°F.
Use an insulated pad
or 1/4" plywood
under range if
installing range over
carpeting.
For minimum
clearance to top of
cooktop, see Note.***
Do Not pinch the power
supply cord between the
range and the wall.
Do Not seal the range to
the side cabinets.
2" min.
countertop
space to side
wall or other
combustible
material
This shaded area recommended
for installation of rigid gas pipe.
Flexible gas pipe and electrical
outlet are recommended in either
18" min.
clearance upper
cabinet to
countertop
13" max. upper
cabinet depth
If cabinet depth is greater
than 24", oven frame must
extend beyond cabinet
fronts by 1/2" min.
30-1/8" opening
width
30" min. cabinet
opening width
8"
4-1/2"
4-1/2"
2"
2"
17"
17"
8"
Check location where range will be installed. The range
should be located for convenient use in the kitchen.
Recessed installations must provide complete enclosure of
the sides and rear of range.
ALL OPENINGS IN THE WALL OR FLOOR WHERE RANGE IS
TO BE INSTALLED MUST BE SEALED.
IMPORTANT: Some cabinet and building materials are not
designed to withstand the heat produced by the oven for
baking and self-cleaning. Check with your builder or cabinet
supplier to make sure that the materials used will not
discolor, delaminate or sustain other damage.
Mobile home installation
The installation of this range must conform with
the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 [formerly the
Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD (Part 280)] or, when such
standard is not applicable, the Standard for
Manufactured Home Installations, ANSI/NCSBCS
A225.1 and Manufactured Home Installations,
Sites, and Communities ANSI/NFPA 501A, or with
local codes.
When this range is installed in a mobile home, it
must be secured to the floor during transit. Any
method of securing the range is adequate as long
as it conforms to the standards listed above.
Anti-tip bracket
The floor-mounted anti-tip bracket MUST be installed. To
install the anti-tip bracket supplied, see Pages 4-5 and the
anti-tip bracket template/instruction sheet.
Bracket must be securely mounted to sub-floor.
Thickness of flooring may require longer screws
to anchor bracket to sub-floor. Longer screws are
available from your local hardware store.
2 plastic
anchors
floor-mounted
anti-tip bracket
Not shown:
• literature pack
• orifice spuds
Parts supplied
2 screws
(#10 x 1-1/2")
Copies of the standards listed may be obtained from:
* American Gas Association
1515 Wilson Boulevard
Arlington, Virginia 22209
** National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
Page 3
Page 3
Electrical requirements
Gas supply requirements
Observe all governing codes and ordinances.
This installation must conform with all local
codes and ordinances. In the absence of local
codes, installation must conform with American
National Standard, National Fuel Gas Code ANSI
Z223.1 — latest edition**.
Input ratings shown on the model/serial rating
plate are for elevations up to 2,000 feet. For
assistance when installing the range at higher
elevations, contact your local service company.
Type of gas: This range is design-certified by the
American Gas Association (A.G.A.) for use with
Natural gas or, after proper conversion, for use
with L. P. gas. This range is factory set for use

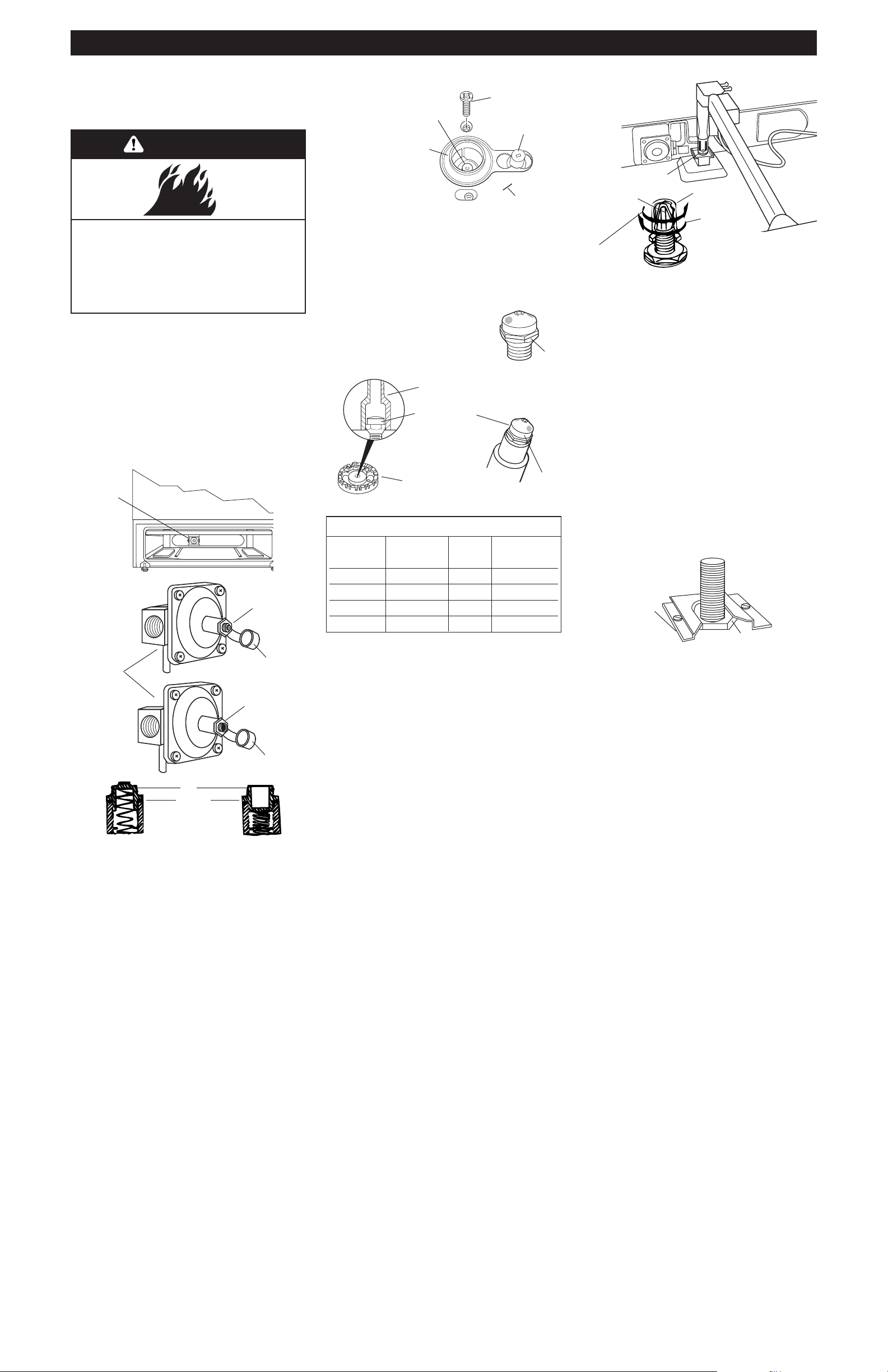

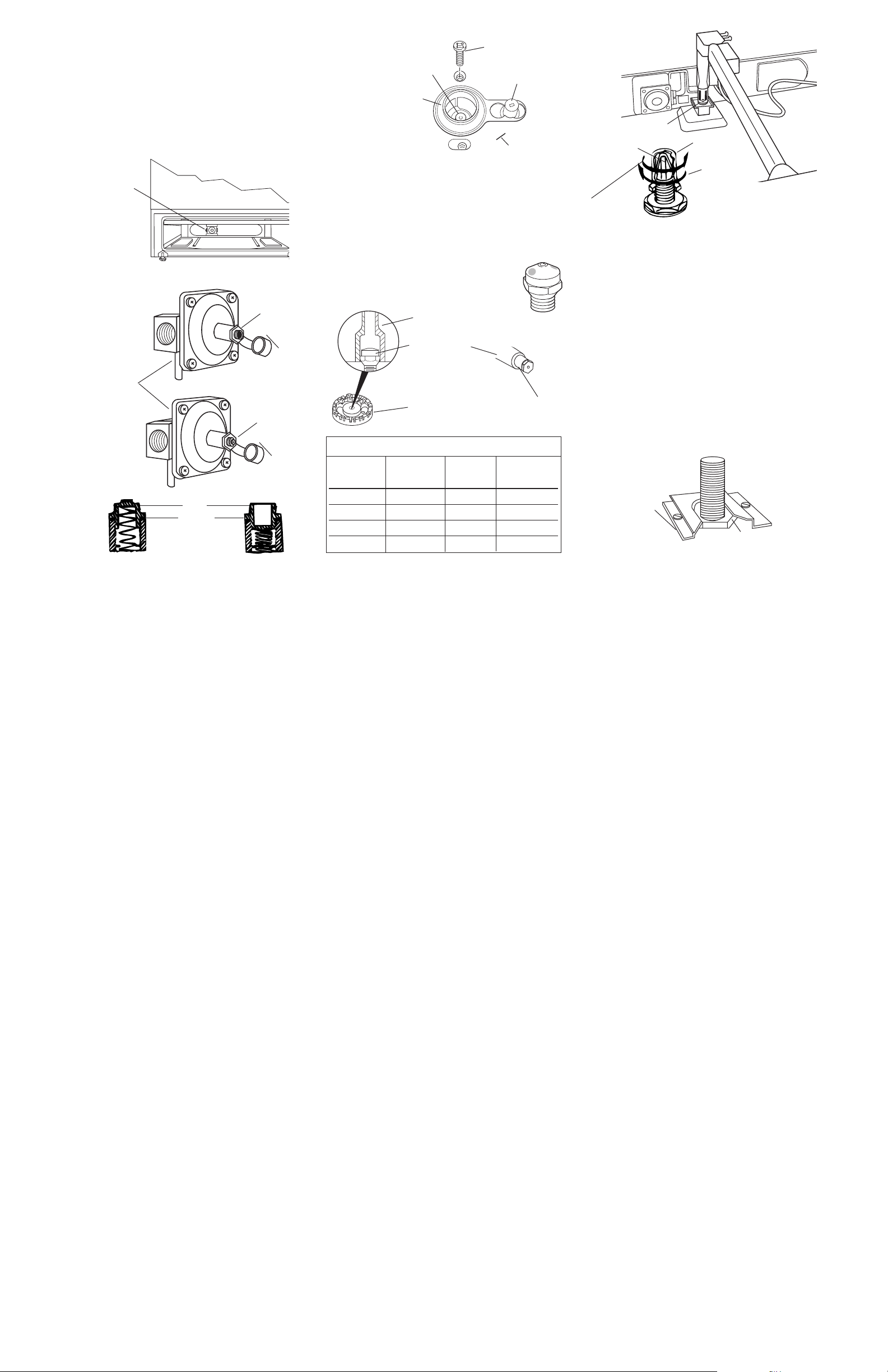

with Natural gas. Gas conversion instructions
are provided on pages 7-8. The model/serial
rating plate located on the frame behind the
storage drawer or broiler drawer has information
on the type of gas that can be used. If the type
of gas listed does not agree with the type of gas
available, check with the local gas supplier.
Conversion must be done by a qualified service
technician.
Gas supply line: Provide a gas supply line of 3/4"
rigid pipe to the range location. With L.P. gas,
piping or tubing size can be 1/2" minimum. A
smaller size pipe on longer runs may result in
insufficient gas supply. Usually, L.P. gas
suppliers determine the size and materials used
in the system.
Pipe-joint compounds made for use with L.P. gas
must be used on pipe threads only.
Flexible metal appliance connector: If local codes
permit, a new A.G.A. design-certified,
1/2" or 3/4" I.D., flexible metal appliance
connector is recommended for connecting range
to the gas supply line. A 1/2" male pipe thread
nipple is needed for connection to pressure
regulator female pipe threads. Do Not kink or
damage the flexible metal tubing when moving
the range.
Shutoff valve: The supply line must be equipped
with a manual shutoff valve. This valve should
be located in the same room as the range and
should be in a location that allows ease of
opening and closing. The valve is for turning on
or shutting off gas to the range. Do Not block
access to shutoff valve.
Pressure regulator: The gas pressure regulator
supplied with this range must be used. The inlet
pressure to the regulator should be as follows
for proper operation:
NATURAL GAS:
Minimum pressure: 5 inches WCP
Maximum pressure: 14 inches WCP
L.P. GAS:
Minimum pressure: 11 inches WCP
Maximum pressure: 14 inches WCP
Contact your local gas supplier if you are not
sure about the inlet pressure.
Line pressure testing above 1/2 psi gauge
(14" WCP) — The range and its individual
manual shutoff valve must be disconnected
from the gas supply piping system during any
pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa).
Line pressure testing at 1/2 psi gauge
(14" WCP) or lower — The range must be
isolated from the gas supply piping system by
closing its individual manual shutoff valve
during any pressure testing of that system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Copies of the standards listed may be obtained from:
** American Gas Association
1515 Wilson Boulevard
Arlington, Virginia 22209
manual shutoff valve
“open” position
gas supply
to range
Rigid pipe connection: Requires a
combination of pipe fittings to obtain
an in-line connection to the range. All
strains must be removed from the
supply and fuel lines so range will
be level and in line.
level
hand or
electric drill
wood floor:
1/8" drill bit
concrete/ceramic floors:
3/16" carbide-tipped masonry
drill bit (Hammer may be
needed for anchors.)
Materials required:
• gas line shutoff valve
• 1/2" male pipe thread nipple for connection to pressure
regulator
• L.P. gas-resistant pipe-joint compound
• A.G.A. design-certified flexible metal appliance connector
(4-5 feet) or rigid gas supply line as needed
• Insulated pad or 1/4" plywood if range is installed
over carpeting
Tools needed:
15/16" and 1/2"
combination
wrenches
pipe
wrench
safety glasses
gloves
3/8" drive
ratchet
Phillips
screwdriver
tape measure
or ruler
channel lock
pliers
putty knife
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING
If codes permit and a separate ground wire is
used, it is recommended that a qualified
electrician determine that the ground path is
adequate.
Do Not ground to a gas pipe.
Check with a qualified electrician if you are not
sure range is properly grounded.
A 120-volt, 60-Hz, AC-only, 10-ampere, fused
electrical supply is required. A time-delay fuse or
circuit breaker is recommended. It is
recommended that a separate circuit serving
only this appliance be provided.
Electronic ignition systems operate within wide
voltage limits, but proper grounding and polarity
are necessary. In addition to checking that the
outlet is correctly grounded, the outlet must be
checked by a qualified electrician to see if it is
wired with correct polarity.
A wiring diagram is included on the back of
the range.
See “Cabinet dimensions/requirements,” Page 2,
for recommended location of electrical outlet.
Recommended
ground method
For your personal safety, this range must be
grounded. This range is manufactured with a
power supply cord having a 3-prong ground
plug. To minimize possible shock hazard, the
cord must be plugged into a mating, 3-prong,
ground-type outlet, grounded in accordance with
National Electrical Code, ANSI/NFPA 70 — latest
edition* and all local codes and ordinances.
If a mating outlet is not available, it is the
responsibility and obligation of the customer to
have a properly grounded, 3-prong outlet
installed by a qualified electrician.
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
3-prong groundtype outlet
3-prong ground
plug
ground
prong
power supply
cord
Explosion Hazard
Use a new AGA or CGA approved gas
supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person
make sure gas pressure does not exceed
14" water column. Examples of a qualified
person include licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death,
explosion, or fire.
WARNING
Page 4
Page 4
Installation steps
1. Put on safety glasses and gloves. Do Not
use oven door handle to lift or move the range.
Preparation
A
2. Remove oven racks and parts package
from inside oven. Remove shipping materials,
tape and protective film from range.
Anti-tip bracket installation
B
Contact a qualified floor covering installer for
the best procedure for drilling mounting
holes through your type floor covering.
4.Use the anti-tip bracket
template/instruction sheet to install the
anti-tip bracket.
Anti-tip bracket must be
anchored securely to the sub
floor.
Depending on the
thickness of your
flooring, longer
screws may be
needed to anchor
the bracket
to the sub floor.
Longer screws are
available from your
local hardware store.
CLOCK
8.8:88
TIMER
TIMER
B
E
Check cooktop
burners for
proper flame
D
Replace or close
broiler drawer.
(Roll-out broiler drawer
shown is available on
some models.)
C
Secure range
with anti-tip
bracket
Remove oven
racks and parts
package.
A
Remove shipping
material.
C
Level range
D
Make proper
gas
connection
D
Plug power
supply cord
into grounded
outlet
E
Check burner
operation
Install antitip bracket
3. Keep cardboard shipping base under
range to prevent damage to floor covering.
cardboard
shipping base
Excessive Weight Hazard
Use two or more people to move and
install range.
Failure to follow this instruction can
result in back or other injury.
WARNING
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range
foot.
Reconnect the anti-tip bracket, if the
range is moved.
Failure to follow these instructions can
result in death or serious burns to
children and adults.
WARNING
Page 5
Operating position
C
5.Remove cardboard shipping base from
under range. Open broiler drawer. Use a 3/8"
drive ratchet to lower rear leveling legs onehalf turn. Use channel lock pliers to lower front
leveling legs one-half turn.
7. If installing the range in a mobile
home, you MUST secure the range to the floor.
Any method of securing the range is adequate as
long as it conforms to “Manufactured Home
Construction and Safety Standard,” Page 2.
8 .Place rack in oven. Place level on
rack, first side to side; then front to back.
If range is not level, pull range forward until
rear leveling leg is free of the anti-tip bracket.
Use 3/8" drive ratchet and channel lock pliers
to adjust leveling legs up or down until range
is level. Push range back into position. Check
that rear leveling leg is engaged in anti-tip
bracket.
Note: Oven must be level for satisfactory
baking conditions.
Page 5
Before moving range across floor, check that
range is still on cardboard shipping base to
protect floor covering.

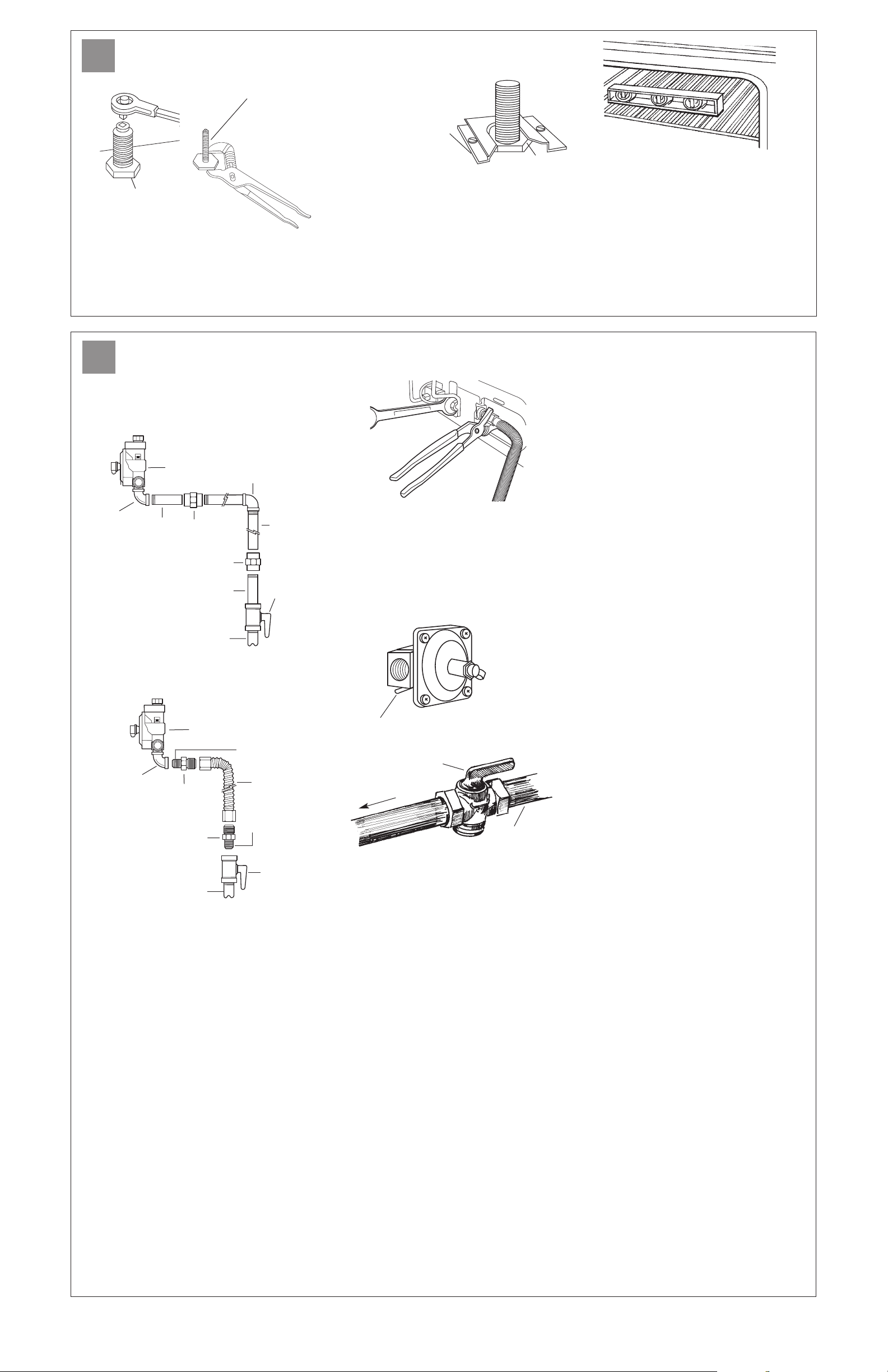

Gas and electrical connections
D
11. Check that range regulator shutoff
valve is in the “on” position. Open the manual
shutoff valve in the gas supply line.
13.Center the burner cap on burner
base. Burner cap should be level when
properly positioned. Place burner grates
over burner.
14.Plug power supply cord into
grounded electrical outlet.
12.Use a brush and liquid detergent
to test all gas connections. Bubbles around
connections will indicate a leak. If a leak
appears, shut off gas valve controls and
tighten connections. Then check connections
again. Clean all detergent from range.
Replace broiler drawer.
10.Use 15/16" combination wrench and
channel lock pliers to attach the flexible
connector to the adapters. Check that connector
is not kinked.
rear leveling leg
front leveling leg
manual shutoff valve
“open” position
regulator shutoff valve in
“on” position
gas supply
to range
9.Apply pipe-joint compound made for
use with L.P. gas to the smaller thread ends of
the flexible connector adapters. Attach one
adapter to the pressure regulator elbow and
the other adapter to the gas shutoff valve.
Tighten both adapters.
All connections must be wrench-tightened.
90˚elbow
1/2" to 3/4"
gas pipe
nipple
manual
gas
shutoff
valve
black iron
pipe
union
union
pressure
regulator
90˚elbow
nipple
Typical rigid pipe connection
adapter
adapter
manual
gas
shutoff
valve
A 1/2" male pipe thread is needed for connection to
pressure regulator female pipe threads.
90˚elbow
1/2" to 3/4"
gas pipe
pressure
regulator
Typical flexible connection
flexible
connector
use pipe-joint
compound
use pipe-joint
compound
6.Making sure the
anti-tip bracket is
installed:
• Look for the
anti-tip bracket
securely attached to
floor.
• Slide range back so rear range foot is under
anti-tip bracket.
anti-tip
bracket
range foot
Page 6

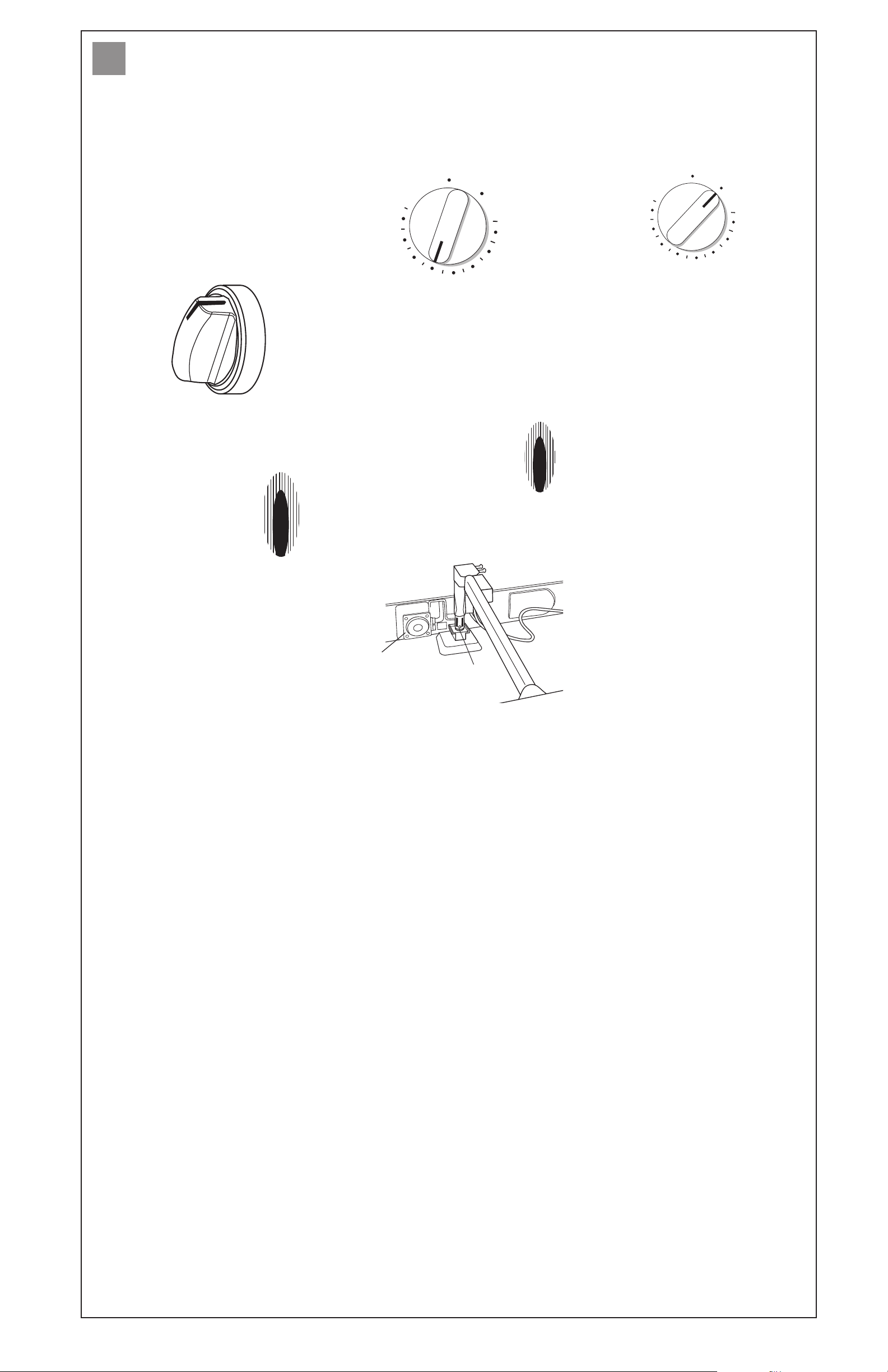

15.Push in and turn each surface unit
control knob to “LIGHT” position. The flame
should light within 4 seconds. Turn control
knob to “HIGH” position after burner lights.
Check each cooktop burner for proper flame.
The small inner cone should have
a very distinct blue flame 1/4" to
1/2" long. The outer cone is not as
distinct as the inner cone.
Electronic ignition system
Cooktop and oven burners use electronic
ignitors in place of standing pilots. When a
cooktop control knob is turned to the
“LIGHT” position, the system creates a
spark to light the burner. This sparking
continues until the control knob is turned to
the desired setting.
When the oven control is turned to the
desired setting, a hot surface ignitor heats to
a bright orange and ignites the gas. No
sparking occurs and the glow bar remains
on while the burner operates.
Check operation of cooktop
Page 6
Check operation
E
O
F
F
L
I
G
H
T
H
G
I
H
200
300
400
450
OFF
PUSH TO
TURN
BROIL
250
350
500
550
200
300
400
450
OFF
PUSH TO
TURN
BROIL
250
350
500
550
Push in and turn the oven selector control
knob to “350˚F.” The oven burner should light
in 50-60 seconds; this delay is normal. The
oven valve requires a certain time before it will
open and allow gas to flow.
Push in and turn the oven selector control knob
to “BROIL.” The broil burner should light in 50-
60 seconds; this delay is normal. The oven
valve requires a certain time before it will open
and allow gas to flow.
To avoid damaging the hot surface ignitor,
do Not insert any object into the openings of
the protective shield that surrounds the
ignitor or clean that area.
17.Check the oven burner for
proper flame. The flame should be
1/2" long, with inner cone of bluishgreen, and outer mantle of dark blue,
and should be clean and soft in character. No
yellow tips, blowing or lifting of flame should
occur. If burner does not light, check that the
regulator shutoff valve is in the “on” position
(see Step 11).
If oven flame needs adjusting:
Locate the air shutter next to the pressure
regulator. Loosen screw and adjust the air
shutter until the proper flame appears. Tighten
screw.
18.Turn the control knob to “OFF”.
16.Open broiler drawer to observe
oven burner operation.
air shutter
and screw
regulator
shutoff valve
Check operation of oven burner
20.
Check that the broil burner is
operating.
You have just finished installing
your new range. To get the most
efficient use from your range, read your
Use & Care Guide. Keep Installation
Instructions and Guide close to range
for easy reference. The instructions will
make installing the range in another
home as easy
as the first installation.
21.
Close the broiler drawer. Turn the
oven control knob to “OFF”.
Check operation of broil burner
19.Broil burner and oven burner are the
same burner.
Page 7
Gas conversions (from Natural gas to L.P. gas; or
from L.P. gas to Natural gas) must be done by a
qualified installer.
L.P. gas conversion
1. Complete installation sections A-C (Pages
4-5) before converting cooktop to L.P. gas. Check
that main gas supply line has been shut off and
the power supply cord is disconnected.
4.Oven burner: Use 1/2" combination
wrench to turn the orifice hood down snug onto
pin (approximately 2 to 2-1/2 turns). DO NOT
OVERTIGHTEN. The burner flame cannot be
properly adjusted if this conversion is not made.
DO NOT REMOVE THE PRESSURE REGULATOR.
2.Open broiler drawer to locate pressure
regulator.
Pressure regulator: Remove plastic cover. Turn
cap marked “N” on front of pressure regulator
counterclockwise with a wrench to remove. Do
Not disturb or remove the spring beneath the
cap. Turn the cap over and reinstall cap on
regulator so that the letters “L.P.” are visible.
Replace plastic cover over cap.
Nat. gas
Page 7
L.P.
plastic
cover
pressure
regulator
pressure
regulator
Natural
hood
orifice hood
pin
L.P. gas
decrease gas
decrease
flame size
Natural gas
increase gas
increase flame
size pre-set at factory
for Natural gas
Fire Hazard
Shut off gas supply line valve.
Make all conversions before turning gas
supply valve back on.
Failure to follow these instructions could
result in explosion, fire or other injury.
WARNING
L.P. gas
plastic
cover
cap
washer
6.Making sure the anti-tip bracket is
installed:
• Look for the anti-tip bracket securely
attached to floor.
• Slide range back so rear range foot is under
anti-tip bracket.
anti-tip
bracket
range foot
A brass orifice spud is located in the center of
each burner throat about 2" below the cooktop.
Apply masking tape to the end of a 5/16" nut
driver to fit snugly over the orifice spud. Press
driver down onto the spud of the left front burner
and remove by turning spud counter-clockwise
and lifting it out. Replace the Natural gas spud
with the appropriate L.P. gas spud shown in the
table.
Continue to replace the remaining orifice spuds,
one at a time. Place the Natural gas spuds on the
spud card on the back of the range for future use.
Replace burners, screws and caps.
Surface Propane Orifice Color
burner Rate (BTU/hr) Number Marking
Left rear 8,000 L80 Green/Lt.Blue
Left front 8,000 L80 Green/Lt.Blue
Right front 8,000 L80 Green/Lt.Blue
Right rear 5,000 L65 Green/Brown
L.P. Gas
5.Complete installation sections D through
E, Pages 5-7. Checking for proper cooktop burner
and oven flame is very important.
The small inner cone should have a very distinct
blue flame 1/4" to 1/2" long. The outer cone is not
as distinct as the inner cone. L.P. gas flames may
have a slightly yellow tip.
3.Surface
Burners:
Remove burner
caps. Use a
Phillips or
Quadrex
screwdriver to
remove the two
screws holding
the burner head down. Lift the
burner head off the cooktop to uncover the
orifice spud holder. The orifice spud is recessed
in the holder.
Note: Reinstall one of the screws through the
range cooktop to hold orifice spud holder in place
while removing and replacing orifice spuds.
orifice
number
5/16"
nut driver
orifice spud.
Replace orifice
spud with the
number listed
in chart.
burner
assembly
Locate the L.P. gas orifice spuds
on spud card on back of range.
Orifice spuds are stamped with
a number and marked with two
color dots and a groove.
L.P. gas
orifice spud
reinstall
one of the
screws
orifice
spud
orifice
spud
holder
spark electrode
range cooktop
groove
Page 8
Natural gas conversion
1. Check that main gas supply line has been
shut off and the power supply cord is
disconnected.
DO NOT REMOVE THE PRESSURE REGULATOR.
2.Open broiler drawer to locate pressure
regulator.
Pressure regulator: Remove plastic cover. Turn
cap marked “L.P.” on front of pressure regulator
counterclockwise with a wrench to remove. Do
Not disturb or remove the spring beneath the
cap. Turn the cap over and reinstall cap on
regulator so that the letter “N” is visible. Replace
plastic cover over cap.
4.Oven burner: Use 1/2" combination
wrench to loosen the orifice hood away from pin
(approximately 2 to 2-1/2 turns). The burner
flame cannot be properly adjusted if this
conversion is not made.
5.Check operation of range in section E,
Page 6. Checking for proper cooktop burner and
oven flame is very important.
Natural gas flames do not have yellow tips.
Page 8
cap
washer
Nat. gas
L.P. gas
pressure
regulator
L.P.
pressure
regulator
Natural
hood
orifice hood
pin
L.P. gas
decrease gas
decrease
flame size
Natural gas
increase gas
increase flame size
pre-set at factory
for Natural gas
6.Making sure the anti-tip bracket is
installed:
• Look for the anti-tip bracket securely
attached to floor.
• Slide range back so rear range foot is under
anti-tip bracket.
anti-tip
bracket
range foot
plastic
cover
plastic
cover
A brass orifice spud is located in the center of
each burner throat about 2" below the cooktop.
Apply masking tape to the end of a 5/16" nut
driver to fit snugly over the orifice spud. Press
driver down onto the spud of the left front burner
and remove by turning spud counter-clockwise
and lifting it out. Replace the L.P. gas spud with
the appropriate Natural gas spud shown in the
table.
Continue to replace the remaining orifice spuds,
one at a time. Place the L.P. gas spuds on the
spud card on the back of the range for future use.
Replace burners, screws and caps.
Surface Rate Orifice Color
burner (BTU/hr) Number Marking
Left rear 8,000 N139 Blue/Black
Left front 9,500 N150 Blue/Brass
Right front 9,500 N150 Blue/Brass
Right rear 5,000 N110 Blue/White
Natural Gas
Natural gas
orifice spud
Locate the Natural gas orifice spuds on
the spud card on the back of the range.
Orifice spuds are stamped with a
number and marked with two color dots.
orifice
number
5/16"
nut driver
orifice spud.
Replace orifice
spud with the
number listed
in chart.
burner
assembly
3.Surface
Burners:
Remove burner
caps. Use a
Phillips or
Quadrex
screwdriver to
remove the two
screws holding
the burner head down. Lift the
burner head off the cooktop to uncover the
orifice spud holder. The orifice spud is recessed
in the holder.
Note: Reinstall one of the screws through the
range cooktop to hold orifice spud holder in place
while removing and replacing orifice spuds.
reinstall
one of the
screws
orifice
spud
orifice
spud
holder
spark electrode
range cooktop
Loading...
