Page 1
SERVICE
Model 700 655 21
Version 8579 555 01000 Page
Whirlpool Europe
Customer Services
700 655 21

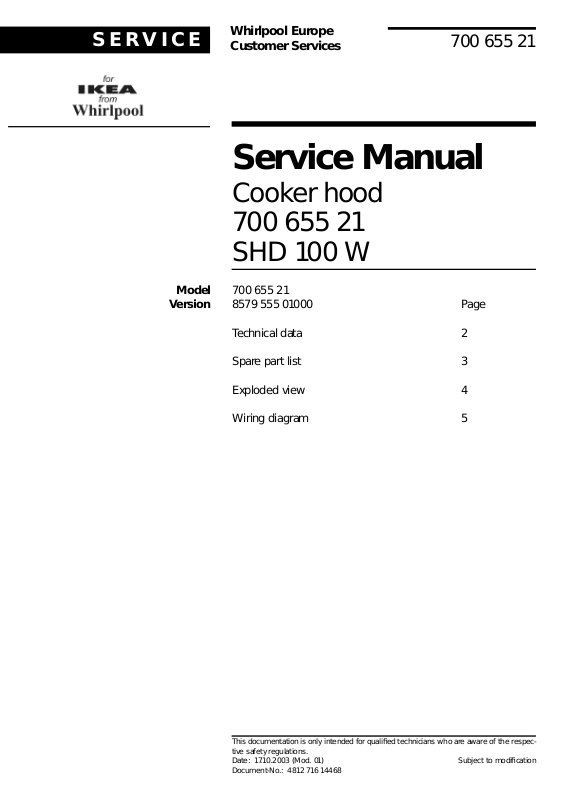

Service Manual
Cooker hood
700 655 21
SHD 100 W
Technical data 2
Spare part list 3
Exploded view 4
Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 17.10.2003 (Mod. 01) Subject to modification
Document-No.: 4812 716 14468
Page 2
14.03.2003 / Page 2 700 655 21 Whirlpool Europe
Doc. No: 4812 716 14468 8579 555 01000 Customer Service
Technical data
SERVICE
Electricity
Voltage 220-240 V
Frequency 50 Hz
Power
Total 160 W
Fan motor 120 W
Illumination 40 W
Nominal air flow
Speed 1
External exhaustion 151 m3 /h
Recirculation 56 m3 /h
Speed 2
External exhaustion 176 m3 /h
Recirculation 58 m3 /h
Noise level
Speed 1
External exhaustion 50 dB (A)
Recirculation 58 dB (A)
Speed 2
External exhaustion 54 dB (A)
Recirculation 60 dB (A)
Speed 3
External exhaustion 61 dB (A)
Recirculation 63 dB (A)
Distance from cooking area
Electric 650 mm
Gas 750 mm
Speed 3
External exhaustion 225 m3 /h
Recirculation 64 m3 /h
Air exhaust
Flange ø 120 mm
Page 3
Whirlpool Europe 700 655 21 17.10.2003 (Mod. 01) / Page 3
SERVICE
Customer Service 8579 555 01000 Doc. No: 4812 716 14468
Spare part list
Model 700 655 21
Service No. 857955501000
Version 857955501000
Pos. No. 12NC Code Description
251 0 4812 466 78422 Cover f. lamp
251 3 4819 492 68622 Clip, fix
301 0 4812 310 48201 Panel, control cpl.
400 0 4812 361 18407 Motor cpl.
622 0 4819 276 18053 Switch motor
651 0 4812 134 18021 Lamp, T25L 40W
652 0 4812 255 28008 Holder, lamp
655 0 4819 276 18054 Switch light
741 0 4812 442 69308 Conveyor
741 1 4812 441 38006 Deflector
741 4 4812 227 08011 Knob deflector
762 0 4812 480 48136 Filter, grease
762 1 4812 491 48025 Frame filter
763 0 4812 480 58316 Grid
765 0 4812 480 48134 Carbon filter AMC 859
781 1 4812 530 29274 Flange d 125
962 2 4812 462 28525 Cover
962 3 4812 462 28526 Elect.parts box
Page 4
17.10.2003 (Mod. 01) / Page 4 700 655 21 Whirlpool Europe
Doc. No: 4812 716 14468 8579 555 01000 Customer Service

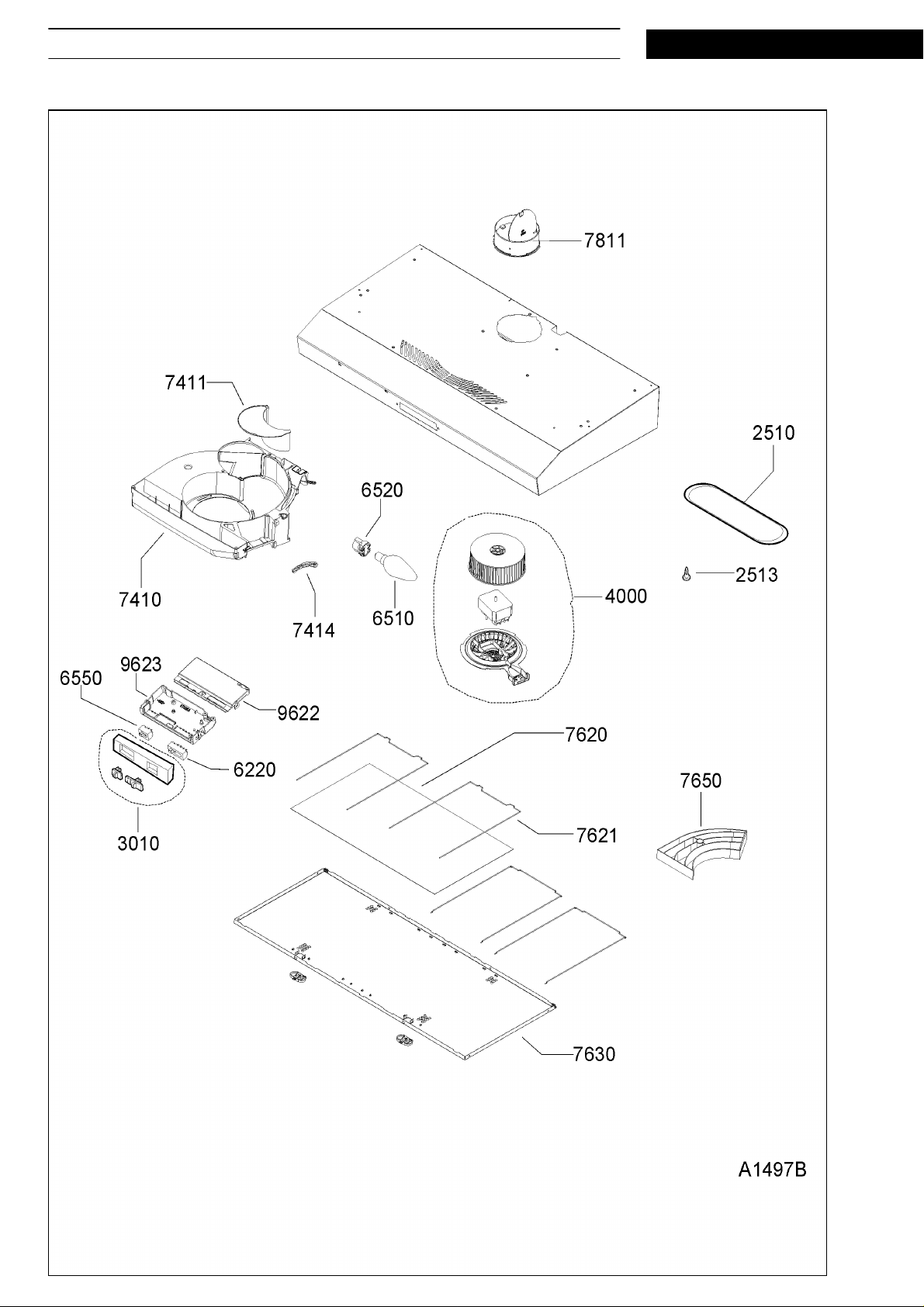

Exploded view
SERVICE
Page 5
SERVICE

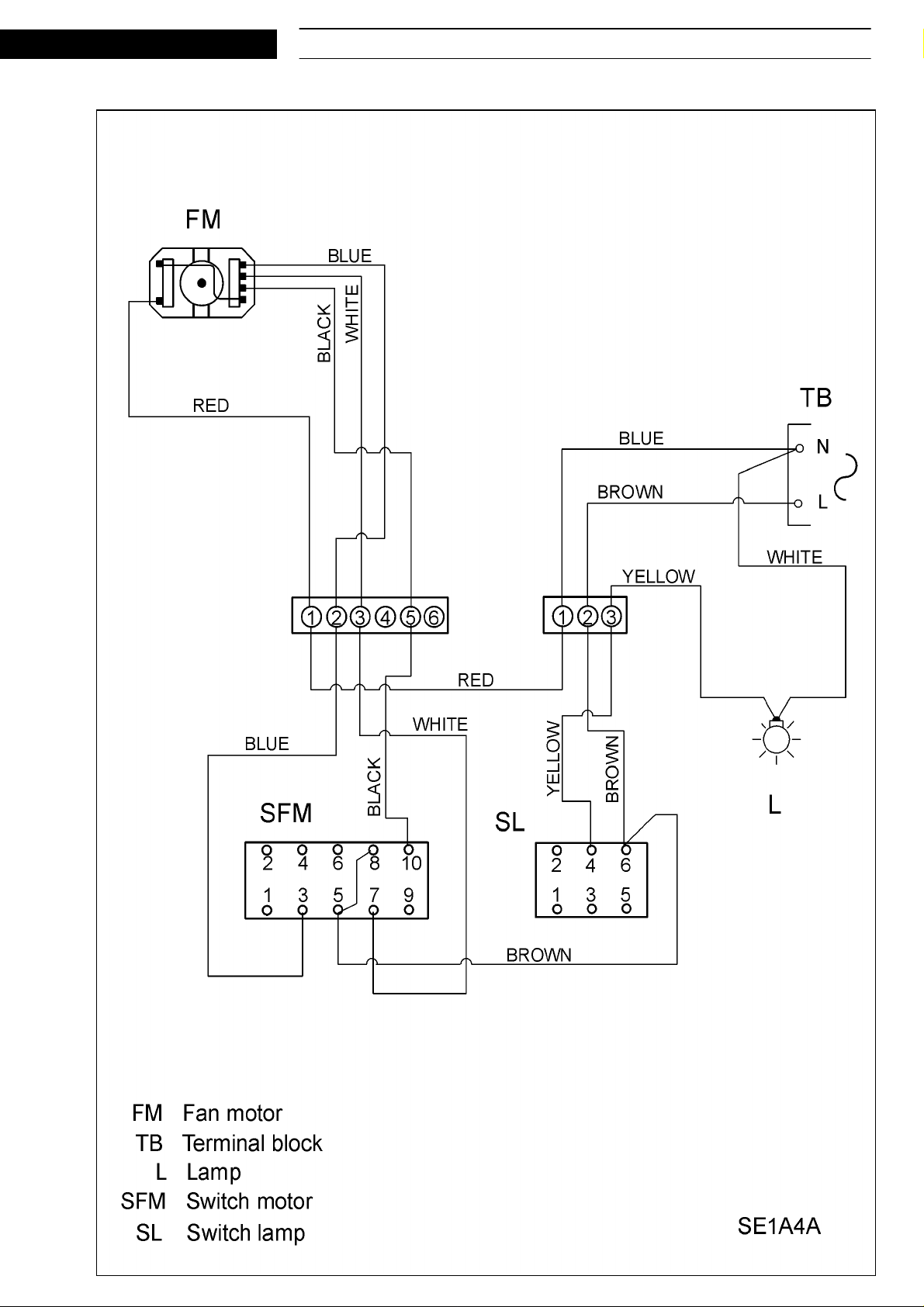

Wiring diagram
Whirlpool Europe 700 655 21 14.03.2003 / Page 5
Customer Service 8579 555 01000 Doc. No: 4812 716 14468
