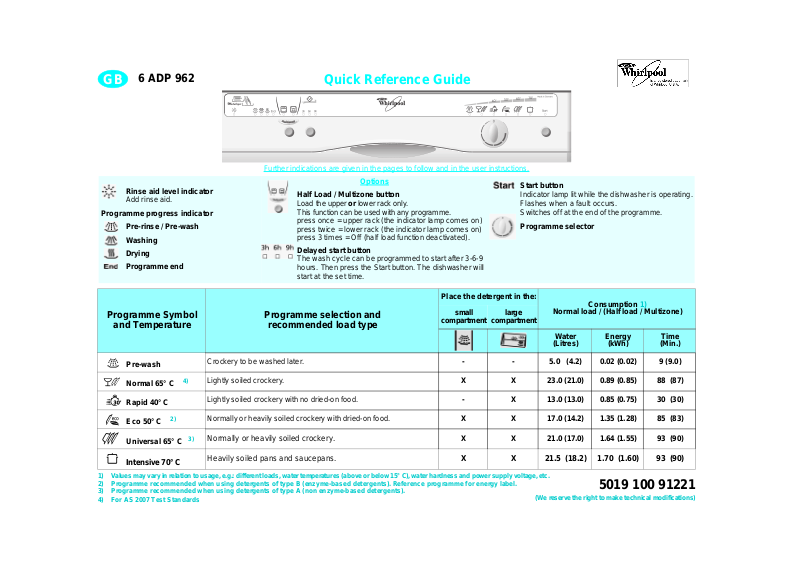

Whirlpool 6 ADP 962 Quick Reference Guide

Programme progress indicator

6 ADP 962

Rinse aid level indicator

Add rinse aid.

Pre-rinse / Pre-wash Washing Drying Programme end

Quick Reference Guide

Further indications are given in the pages to follow and in the user instructions.

Options

Half Load / Multizone button

Load the upper This function can be used with any programme. press once = upper rack (the indicator lamp comes on) press twice = lower rack (the indicator lamp comes on) press 3 times = Off (half load function deactivated).

Delayed start button

The wash cycle can be programmed to start after 3-6-9 hours. Then press the Start button. The dishwasher will start at the set time.

lower rack only.

Start button

Indicator lamp lit while the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Programme selector

Place the detergent in the:

Programme Symbol

and Temperature

Pre-wash

Normal 65° C

Rapid 40° C

Eco 50° C

Universal 65° C

Intensive 70° C

1) Values may vary in relation to usage, e.g.: different loads, water temperatures (above or below 15° C), water hardness and power supply voltage, etc.

2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3) Programme recommended when using detergents of type A (non enzyme-based detergents).

4) For AS 2007 Test Standards

Crockery to be washed later.

Lightly soiled crockery.

Lightly soiled crockery with no dried-on food.

Normally or heavily soiled crockery with dried-on food.

Normally or heavily soiled crockery.

Heavily soiled pans and saucepans.

Programme selection and

recommended load type

small

compartment

- - 5.0 (4.2) 0.02 (0.02) 9 (9.0)

X X 23.0 (21.0) 0.89 (0.85) 88 (87)

- X 13.0 (13.0) 0.85 (0.75) 30 (30)

X X 17.0 (14.2) 1.35 (1.28) 85 (83)

X X 21.0 (17.0) 1.64 (1.55) 93 (90)

X X 21.5 (18.2) 1.70 (1.60) 93 (90)

large

compartment

(We reserve the right to make technical modifications)

Normal load / (Half load / Multizone)

Water

(Litres)

Consumption 1)

Energy

(kWh)

Time

(Min.)

5019 100 91221

How to use the dishwasher

1. After loading the dishwasher, close th e door properly and open the water supply tap.

2. The dishwasher switches on automatically as soon as the programme selector knob is turned.

One of the programme indicator lamps will switch on.

3. Turn the selector knob to select the desired programme.

indicator lamp lights up.

select options (if supplied).

4. Press the Start button to start the selected wash programme.

corresponding indicator lamp switches on.

programmed data cannot be altered by turning the programme selector knob.

Once the Start button has been

Note:

pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the selected programme, press the Start button for about 5 seconds,

indicator lamp switches off.

Select a new programme using the programme selector knob and press the Start button.

If the dishwasher is switched off

Note:

during a wash programme, when switched on again the dishwasher resumes the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from

5. To indicate the end of the programme,

steam.

the Start indicator lamp switches off and

the End indicator lamp (if fitted)

lights up

(for about 30 min.)

The corresponding

If required,

The

Once set, the

until the Start

6. Turn the programme selector knob to the “0” position to switch off the dishwasher (only after the Start indicator lamp has switched off).

the indicator lamps switch off.

7. Open the door (warning: beware of hot steam). Unload the lower rack before the upper one. Close the water tap.

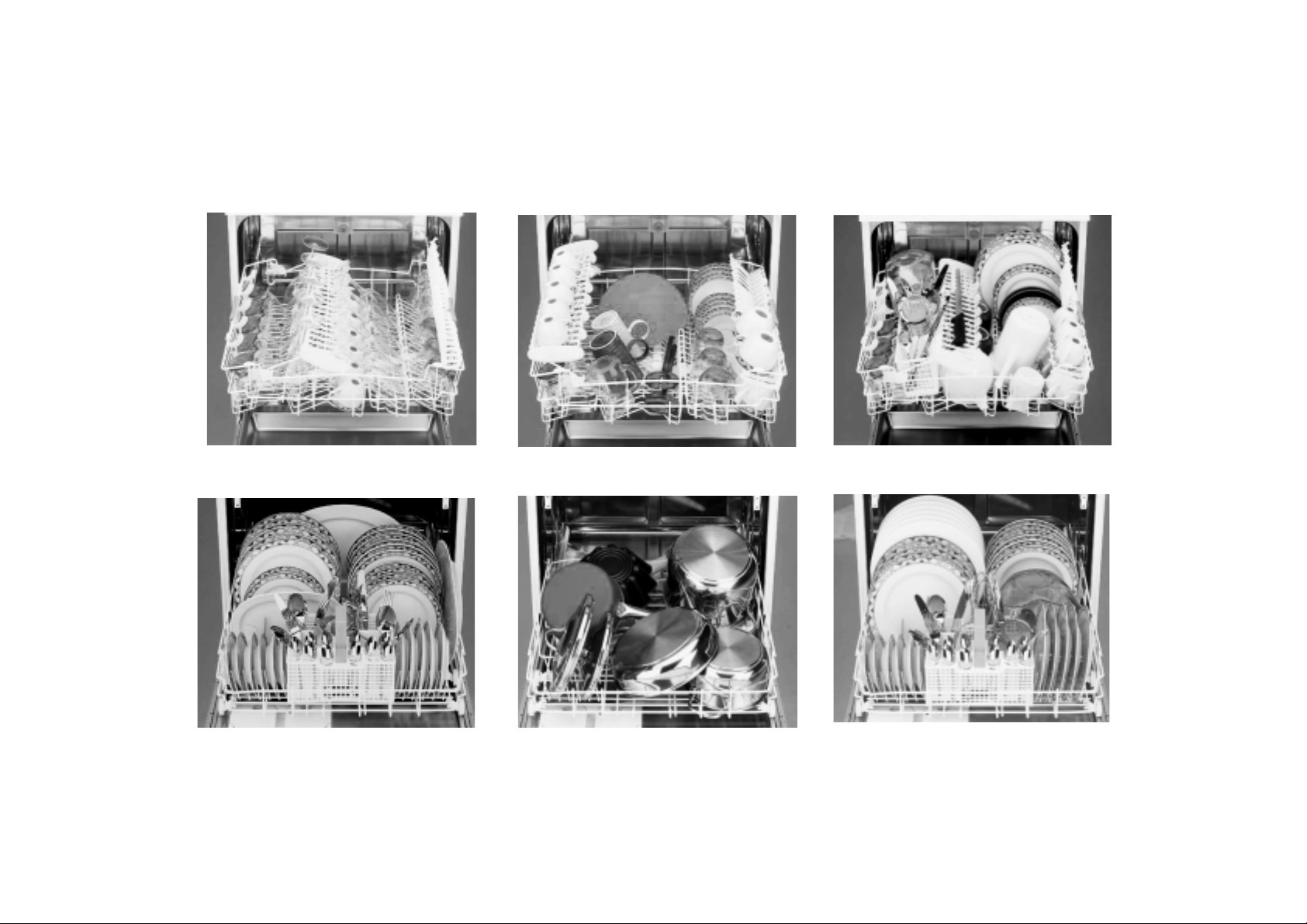

Upper rack

Half load / Multizone:

If the upper rack the cutlery basket (B) on the upper rack.

Rack height adjustment:

(The dishwasher is delivered with the upper rack in the top position).

The rack height can also be changed when loaded.

• To lower: pull out the handles and gently lower the rack.

is to be loaded, place

only

side

two

Please read the user instructions carefully.

• To raise: pull up the until the rack clicks into place.

All

• The rack must be level on both sides.

Crockery Holders:

• Down: cups and long-stemmed glasses.

•

Up: plates.

“Flex 3”: multi-purpose support

• To be used, for example, for longhandled utensils (

with the blade facing downwards),

cups and glasses.

• May be used in three different positions (see also “Dishwasher loading instructions” on Page 4).

1. Upon the left-hand side of the rack.

2. Upside-down, towards the centre of the rack.

3. Upside-down, towards the left side.

Glass holder:

Upper and lower rack

side handles

two

Half load / Multizone:

Loading the lower rack greater washing power, especially for

arrange knives

plates and saucepans.

Plate holders:

•(A) may be lowered to increase

Cutlery basket:

The cutlery basket can be removed to increase (

• It can be placed on the upper rack (B)

Lower rack

gives

only

available space.

) available space.

B+C

when the Half load / Multizone function is selected.
