6 ADG 952
Further indications are given in the pages to follow and in the user instructions.
On button
Off button
Rinse aid level indicator
Add rinse aid.
Programme selection button
Start button
Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Option
Half Load / Multizone button
This function can be used with any programme.
The indicator lamp switches on: the wash cycle is
activated for the upper
or
lower rack
only
.
Programme Symbol
and Temperature
Programme selection and
recommended load type
Place the detergent in the:
small large
compartment compartment
Consumption
1)
Normal load / (Half load / Multizone)
Water
(Litres)
Energy
(kWh)
Time
(Min.)
Pre-wash
Crockery to be washed later.
- - 5.0 (4.2) 0.02 (0.02) 9(9)
Normal 65° C
4)
Lightly soiled crockery.
X X 23.0 (21.0) 0.89 (0.85) 88 (87)
Eco 50° C
3)
Normally or heavily soiled crockery with dried-on food.
X X 16.0 (14.5) 1.35 (1.30) 86 (85)
Universal 65° C
2)
Normally or heavily soiled crockery.
X X 20.0 (18.0) 1.63 (1.55) 98 (90)
Intensive 70° C
Heavily soiled pans and saucepans.
X X 22.5 (19.0) 1.75 (1.64) 93 (90)

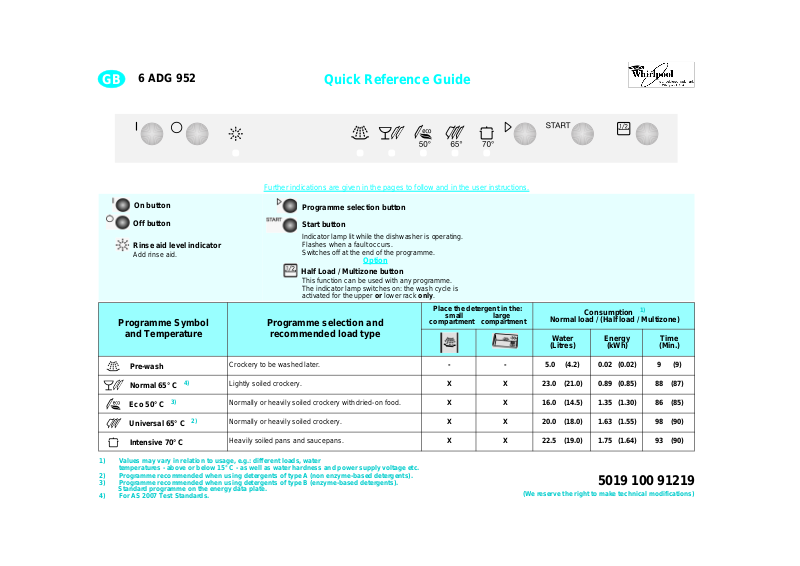

Quick Reference Guide
GB
5019 100 91219
(We reserve the right to make technical modifications)
1) Values may vary in relation to usage, e.g.: different loads, water
temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.
2) Programme recommended when using detergents of type A (non enzyme-based detergents).
3) Programme recommended when using detergents of type B (enzyme-based detergents).
Standard programme on the energy data plate.
4) For AS 2007 Test Standards.
6 ADG 952
1. After loading the dishwasher, turn on
the water supply tap and open the
dishwasher door.
2. Press the On button to switch the
dishwasher on.
One of the programme
indicator lamps will light up.
3. Press the programme selecto r button
until the corresponding indicator lamp
switches on. If required, select options
(if supplied).
4. Press the Start button to start the
selected wash programme.
The Start
indicator lamp will light up.
Once set,
the programmed data cannot be
altered by pressing the programme
selector buttons.
Note:
once the Start button has been
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected programme,
open the door
(caution: danger of
scalding from steam!)
and press
the Start button for about 5 seconds.
The Start indicator lamp will switch
off.
Select a new programme and
press the Start button again.
Note:
if the dishwasher is switched off
during a wash programme, when
switched on again it will resume the
wash cycle from where it was
interrupted.
Only open the dishwasher door if
strictly necessary during a wash cycle
and exercise maximum caution.
Danger of scalding from steam.
5. To indicate the end of a programme, an
acoustic signal is activated 4 times, the
Start indicator lamp switches off and
the End indicator lamp (if fitted)
lights up
(for about 30 min.)
.
6. Only open the door once the wash cycle
has terminated (caution: danger of
scalding from steam) and press the OFF
button to switch the dishwasher off.
All
the indicator lamps switch off.
7. Unload the lower rack before the uppe r
one. Close the water tap.
Upper rack
Half load / Multizone:
If the upper rack
only
is to be loaded, place
the cutlery basket (
B
) in the upper rack.
Rack height adjustment:
(The dishwasher is delivered with the
upper rack in the top position).
The rack height can also be changed
when loaded.
• To lower: pull out the
two
side
handles and gently lower the rack.
• To raise: pull up the
two
side handles
until the rack clicks into place.
• The rack must be level on both sides.
Crockery holders:
• Down: cups and long-stemmed glasses.
•
Up: plates.
“Flex
3
”: multi-purpose support
• To be used, for example, for
long-handled utensils
(arrange
knives with the blade facing
downwards),
cups and glasses.
• May be used in three different
positions (see also “Dishwasher
loading instructions” on Page 4).
1. Upon the left-hand side of the rack.
2. Upside-down, towards the centre of
the rack.
3. Upside-down, towards the left side.
Glass holder:
Lower rack
Half load / Multizone:
Loading the lower rack
only
gives
greater washing power, especially for
plates and saucepans.
Plate holders:
•(
A
) may be lowered to increase
available space.
Cutlery basket:
The cutlery basket can be removed to
increase (
B+C
) available space.
• It can be placed on the upper rack (
B
)
when the Half load/Multizone function
is selected.
• Some models are provided with a grid
that can be fitted onto the cutlery
basket(
D
).
B
A
A
C
C
B
D
How to use the dishwasher
Please read the user instructions carefully.

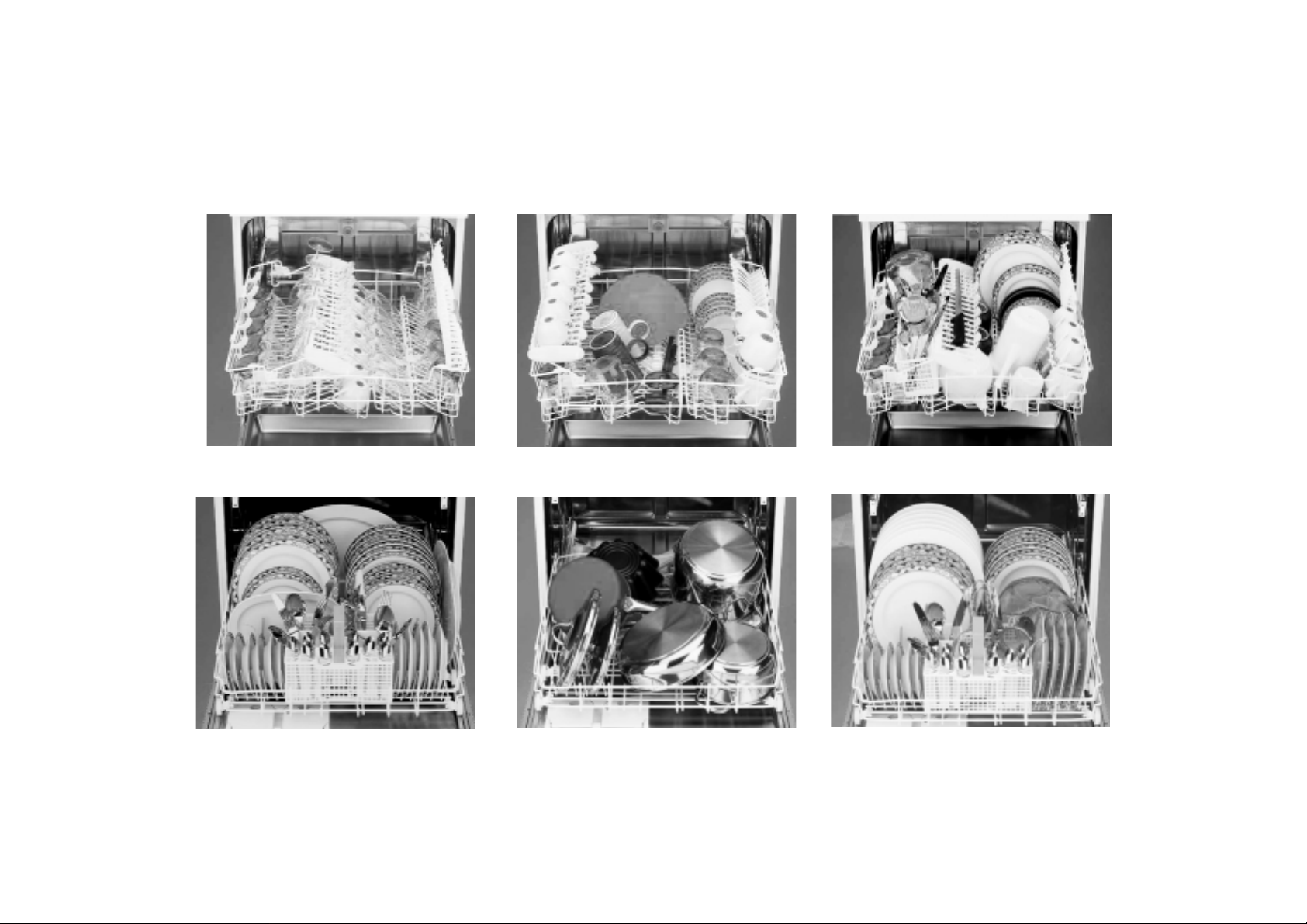

Upper and lower rack
