REFRIGERATOR USE & CARE GUIDE

MANUAL DE USO Y CUIDADO DEL REFRIGERADOR

GUIDE D’UTILISATION ET D’ENTRETIEN DU RÉFRIGÉRATEUR

Table of Contents / Índice / Table des matières

ASSISTANCE OR SERVICE ............................ 1

REFRIGERATOR SAFETY............................... 2

INSTALLATION INSTRUCTIONS ................... 3

REFRIGERATOR USE ..................................... 9

REFRIGERATOR CARE................................. 12

TROUBLESHOOTING.................................... 12

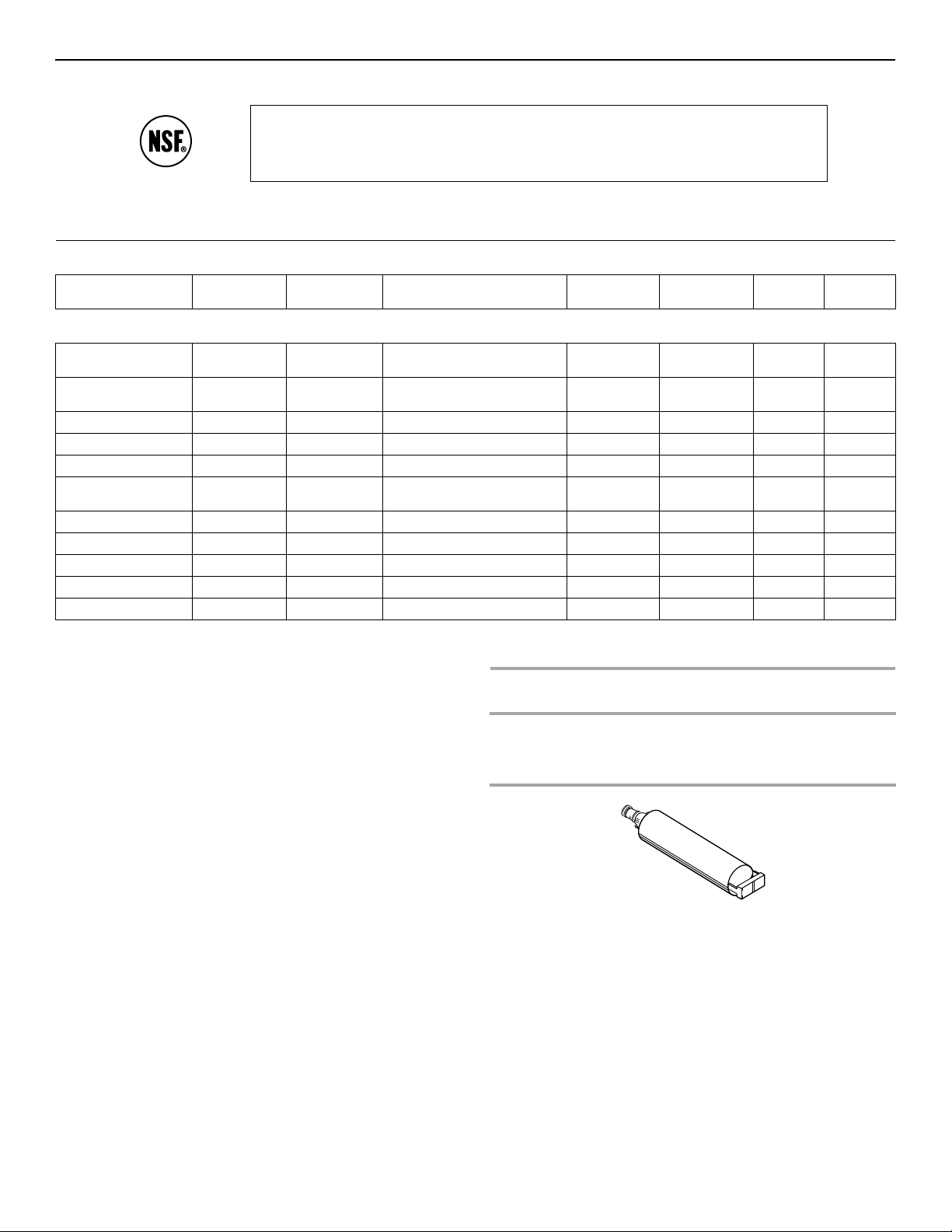

WATER FILTER CERTIFICATIONS .............. 14

PRODUCT DATA SHEETS ............................ 15

WARRANTY.................................................... 17

AYUDA O SERVICIO TÉCNICO.................... 18

SEGURIDAD DEL REFRIGERADOR ............ 18

INSTRUCCIONES DE INSTALACIÓN .......... 19

USO DE SU REFRIGERADOR ...................... 26

CUIDADO DE SU REFRIGERADOR............. 29

SOLUCIÓN DE PROBLEMAS....................... 30

HOJA DE DATOS DEL PRODUCTO ............ 33

GARANTÍA...................................................... 35

ASSISTANCE OU SERVICE .......................... 36

SÉCURITÉ DU RÉFRIGÉRATEUR................ 36

INSTRUCTIONS D'INSTALLATION.............. 37

UTILISATION DU RÉFRIGÉRATEUR ........... 44

ENTRETIEN DU RÉFRIGÉRATEUR ............. 47

DÉPANNAGE.................................................. 48

FEUILLES DE DONNÉES

SUR LE PRODUIT.......................................... 50

GARANTIE...................................................... 52

Assistance or Service

If you need assistance or service, first see the “Troubleshooting” section. Additional help is available. Call us at 1-800-253-1301 from anywhere in the U.S.A., or write:

Whirlpool Corporation

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Information may also be obtained by visiting our website at www.whirlpool.com.

In Canada, for assistance, installation or service, call us at

1-800-807-6777, or write:

Whirlpool Canada LP

Customer Interaction Centre

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

In Canada, visit www.whirlpool.ca. Please include a daytime phone number in your correspondence.

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your appliance to help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label, located on the inside wall of the refrigerator compartment.

Dealer name____________________________________________________ Serial number __________________________________________________ Address ________________________________________________________ Phone number __________________________________________________ Model number __________________________________________________ Purchase date __________________________________________________

Accessories

To order stainless steel cleaner or replacement filters, call 1-800-442-9991 and ask for the part number listed below or contact your authorized Whirlpool dealer. In Canada, call

1-800-461-5681. Stainless Steel Cleaner & Polish:

Order Part #4396095 In Canada, Order Part #31462B Replacement Filter:

Order Part #4396701 (L200V / NL120V / NLC120V)

2314473B

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, or injury to persons when using the refrigerator, follow basic precautions,

WARNING:

including the following:

■

Plug into a grounded 3 prong outlet.

■

Do not remove ground prong.

■

Do not use an adapter.

■

Do not use an extension cord.

■

Disconnect power before servicing.

■

Replace all parts and panels before operating.

■

Remove doors from your old refrigerator.

SAVE THESE INSTRUCTIONS

follow instructions.

can be killed or seriously injured if you don't

You instructions.

■

Use nonflammable cleaner.

■

Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

■

Use two or more people to move and install refrigerator.

■

Disconnect power before installing ice maker (on ice maker

kit ready models only).

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Remove the Packaging

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”

IMPORTANT: Do not remove the white foam air return insert from behind the control panel on the ceiling of the refrigerator. If the insert is removed, ice may migrate down from the freezer and cause icicles to form.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for a ½" (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on the hinge side (some models require more) to allow for the door to swing open. If your refrigerator has an ice maker, allow extra space at the back for the water line connections.

NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install the refrigerator in a location where the temperature will fall below 55°F(13°C).

Clean Before Using

After you remove all of the package materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. For your protection, tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use special care when removing them to avoid impact from dropping.

2" (1.25 cm)

2" (5.08 cm)

Electrical Requirements

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting.

Water Supply Requirements

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED:

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" open-end or two

adjustable wrenches

■ ¹⁄₄" nut driver

NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄" (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve which reduces water flow and clogs more easily.

IMPORTANT:

■ All installations must meet local plumbing code requirements.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain above freezing.

■ ¹⁄₄" Drill bit

■ Hand drill or electric drill

(properly grounded)

Water Pressure

A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.”

If you have questions about your water pressure, call a licensed, qualified plumber.

Connect the Water Supply

Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a ½" to 1¹⁄₄" (1.25 cm to 3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the lower left rear of refrigerator to the water pipe. Add 7 ft. (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a grounded drill, drill a ¹⁄₄" hole in the cold water pipe

you have selected.

A. Cold water pipe

B. Pipe clamp C. Copper tubing D. Compression nut

DEF

E. Compression sleeve F. Sh u to ff v alv e

G. Packing nut

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" (6.35 mm) drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut onto the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

8. Place the free end of the tubing in a container or sink, and turn

ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing.

Connect to Refrigerator

Style 1

1. Unplug refrigerator or disconnect power.

2. Attach the copper tube to the valve inlet using a compression

nut and sleeve as shown. Tighten the compression nut. Do not overtighten.

3. Use the tube clamp on the back of the refrigerator to secure

the tubing to the refrigerator as shown. This will help avoid damage to the tubing when the refrigerator is pushed back against the wall.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Style 3

1. Unplug refrigerator or disconnect power.

2. Remove and discard the black nylon plug from the gray water

tube on the rear of the refrigerator.

3. Thread the provided nut onto the water valve as shown. NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

A. Bulb B. Nut (provided)

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Complete the Installation

A. Tube clamp B. Copper tubing

C. Compression nut D. Valve inlet

6. The ice maker is equipped with a built-in water strainer. If your

water conditions require a second water strainer, install it in the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer.

Style 2

1. Unplug refrigerator or disconnect power.

2. Remove and discard the black nylon plug from the gray water

tube on the rear of the refrigerator.

3. If the gray water tube supplied with the refrigerator is not long

enough, a ¹⁄₄" x ¹⁄₄" (6.35 mm x 6.35 mm) coupling is needed in order to connect the water tubing to an existing household water line. Thread the provided nut onto the coupling on the end of the copper tubing.

NOTE: Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten.

A B C D E F G

A. Refrigerator water tubing B. Nut (provided) C.Bulb

D.Coupling (provided)

E. Ferrule (purchased)

F. Nut (purchased)

G.Household water line

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Flush the water system. See “Water Dispenser.” NOTE: Allow 24 hours to produce the first batch of ice. Discard

the first three batches of ice produced. Allow 3 days to completely fill ice container.

Refrigerator Doors

TOOLS NEEDED: ⁵⁄₁₆" hex-head socket wrench, #2 Phillips screwdriver, flat-blade screwdriver, ⁵⁄₁₆" open-end wrench, flat 2" putty knife.

IMPORTANT:

■ Unplug refrigerator or disconnect power.

■ Turn off the water supply to the refrigerator. If there is water in

the dispenser’s water line, some spilling may occur during door swing reversal.

■ Remove food and any adjustable door or utility bins from

doors.

■ If you only want to remove and replace the doors, see

“Remove Doors and Hinges” and “Replace Doors and Hinges.”

■ All graphics referenced in the following instructions are

included later in this section after “Final Steps.”

Remove Doors and Hinges

8. Remove the parts for the top hinge. See Graphic 4. Lift the

freezer door free from the cabinet.

9. Remove the ⁵⁄₁₆" hex-head screw from the center rail. Loosen

the two screws on the side just enough to remove the center hinge. Remove the center hinge. Replace the center rail screw. See Graphic 5.

10. Lift the refrigerator door free from the cabinet.

11. Remove the parts for the bottom hinge. See Graphic 6.

Reverse Doors (optional)

IMPORTANT:

■ If you want to reverse your doors so that they open in the

opposite direction, follow these steps. If you are not reversing the doors, see “Replace Doors and Hinges.”

■ The the graphics shown are for a right-hand swing refrigerator

(hinges factory installed on the right).

⁵⁄₁₆

" Hex-head hinge screw

1. Unplug refrigerator or disconnect power.

2. Turn off the water supply to the refrigerator.

3. Open the refrigerator door and remove the base grille from the

bottom front of the refrigerator. See Graphic 1.

4. Close the refrigerator door and keep both doors closed until

you are ready to lift them free from the cabinet. NOTE: Provide additional support for the doors while the

hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

5. Pull the water dispenser wire/tube assembly out of the

channel on the bottom of the refrigerator door. See Graphic 2.

6. Disconnect the wiring plug. See Graphic 3.

7. Disconnect the water dispenser tubing. Press the red outer

ring against the face of the fitting and pull the dispenser tubing free. See Graphic 10.

NOTE: There may be water in the dispenser tubing if the dispenser has been used.

Round-Head

Handle Screw

Door Handle

Screw Hole Plug

Right-Hand Swing to Left-Hand Swing

If the door hinges were factory installed on the right-hand side of the refrigerator, follow these steps.

1. Remove cabinet hinge hole plugs from the cabinet top and

move them to opposite side hinge holes. See Graphic 7.

2. Remove door stop from both the freezer and refrigerator

doors and place them on the opposite side. See Graphic 8.

3. On the bottom of the refrigerator door, move the wire/tube

assembly so the connector points toward the opposite (bottom-hinge) side. See Graphic 2.

4. Locate the water dispenser wire/tube assembly behind the

left-hand side of the bottom rail. Break the tape and pull the loose end out from the bottom rail. See Graphic 9.

5. Unscrew the hose clip from the right-hand side of the bottom

rail and remove it. Replace the hose clip (with the tab pointing down) on the left-hand side wire/tube assembly. See Graphic 11.

IMPORTANT: Do not completely tighten the hose clip to the bottom rail at this time.

6. Connect the right-hand side dispenser wire/tube assembly to

the connectors located near the right-hand side of the water filter. Push the connectors and wire/tube assembly behind the bottom rail. See Graphic 9.

7. Go to “Replace Doors and Hinges.”

Left-Hand Swing to Right-Hand Swing

If the refrigerator doors have already been reversed to left-hand swing and you wish to change back to a right-hand swing, follow these steps.

1. Remove cabinet hinge hole plugs from the cabinet top and

move them to opposite side hinge holes. See Graphic 7.

2. Remove door stop from both the freezer and refrigerator

doors and place them on the opposite side. See Graphic 8.

3. On the bottom of the refrigerator door, move the wire/tube

assembly so the connector points toward the opposite (bottom-hinge) side. See Graphic 2.

4. Push the left-hand side dispenser wire/tube assembly behind

the bottom rail. It will not be reconnected. See Graphic 9.

5. Unscrew the hose clip from the left-hand side of the bottom

rail and remove it. Replace the hose clip (with the tab pointing down) on the right-hand side wire/tube assembly. See Graphic 11.

IMPORTANT: Do not completely tighten the hose clip to the bottom rail at this time.

6. Disconnect the dispenser tubing and wiring plug from the

connectors located near the right-hand side of the water filter. Push the wiring plug and connector tube behind the bottom rail. They will not be reconnected. The wire/tube assembly will reconnect later with the door. See Graphic 10.

7. Go to “Replace Doors and Hinges.”

Replace Doors and Hinges

6. Carefully push the wire/tube assembly into the clips on the

bottom of the refrigerator door. See Graphic 2.

7. Replace the freezer door.

8. Assemble the parts for the top hinge as shown. Do not tighten

completely. See Graphic 4.

9. Line up the doors so that the bottom of the freezer door aligns

evenly with the top of the refrigerator door. Tighten all screws.

10. Open the refrigerator door a full 120°. Locate the black

electrical tape on the wire/tube assembly. Make sure the hose clip is covering the tape and tighten the hose clip completely. See Graphic 11.

Final Steps

1. Check all holes to make sure that hole plugs and screws are in

place. Reinstall top hinge cover. See Graphic 4.

2. If the door swing is reversed, remove the bottom hinge cover

from the left-hand side of the base grille and replace it on the opposite side. Replace the base grille. See Graphic 1.

WARNING

NOTE: Graphics and steps may be reversed if the door swing is reversed.

1. Assemble the parts for the bottom hinge as shown. Tighten all

screws. See Graphic 6.

2. Replace the refrigerator door. NOTE: Provide additional support for the doors while the

hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

3. Remove the ⁵⁄₁₆" hex-head screw from the center rail. Loosen the two screws on the side just enough to replace the center hinge. Replace the center hinge and center rail screw. Tighten all screws. See Graphic 5.

4. Reconnect the wiring plug. See Graphic 3.

5. Reconnect the water dispenser tubing by pushing the tubing

into the fitting until it stops and the black mark touches the face of the red outer ring. See Graphic 10.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

3. Plug into a grounded 3 prong outlet.

4. Turn on the water supply to the refrigerator. NOTE: Make sure the water dispenser tube connections, at

the bottom of the refrigerator door, are fully tightened.

5. Flush the water system. See “Water Filtration System.”

6. If the dispenser light is not working, recheck the wiring plug

connection.

7. Return all removable door parts to doors and food to refrigerator.

Door Removal &

Replacement

Base Grille

Door Swing Reversal (optional)

A. Bottom Hinge Cover

A. Wiring Plug

Top Hinge

A. Cabinet Hinge Hole Plugs

Front View

A. Top Hinge Cover

/16" Hex-Head Hinge Screws

C. Top Hinge

Center Hinge

/16" Hex-Head Hinge Screws

A. B. Center Hinge

Bottom Hinge

A. Bottom Hinge

/16" Hex-Head Hinge Screws

Side View

A. Door Stop B. Door Stop Screw

A B

9 10 11

A. Right Wire/Tube B. Left Wire/Tube

A. Red Outer Ring

A. Hose Clip

Adjust the Doors

Door Closing

Your refrigerator has two front adjustable rollers – one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the instructions below.

1. Remove the base grille. See the Base Grille graphic in

“Refrigerator Doors.” The two leveling screws are part of the front roller assemblies which are at the base of the refrigerator on either side.

2. Use a screwdriver to adjust the leveling screws. Turn the

leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side. It may take several turns of the leveling screws to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws and rollers. This makes it easier to adjust the screws.

REFRIGERATOR USE

Using the Controls

For your convenience, your refrigerator controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still preset to the mid-settings as shown.

NOTE: To turn your refrigerator off, turn the refrigerator control to the word OFF or until the word OFF appears. Your product will not cool when the refrigerator control is set to OFF.

Mid-setting “3”

3. Open both doors again and check to make sure that they

close as easily as you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws to the right. It may take several more turns, and you should turn both leveling screws the same amount.

4. Replace the base grille.

Align Doors

If the space between your doors looks uneven, you can adjust it using the instructions below:

1. Pry off the top hinge cover.

2. Loosen the top hinge screws using a ⁵⁄₁₆" socket or wrench.

3. Have someone hold the door in place or put a spacer between

the doors while you tighten the top hinge screws.

4. Replace the top hinge cover.

IMPORTANT:

■ Give your refrigerator time to cool down completely before

adding food. It is best to wait 24 hours before you put food into the refrigerator.

■ If you add food before the refrigerator has cooled completely,

your food may spoil. Adjusting the Refrigerator and Freezer Controls to a higher (colder) than recommended setting will not cool the compartments any faster.

Adjusting Controls

The mid-settings indicated in the previous section should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked.

If you need to adjust temperatures, use the settings listed in the chart below as a guide. On models with two controls, adjust the refrigerator temperature first. Wait at least 24 hours between adjustments and then recheck the temperatures.

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR too warm REFRIGERATOR or

FREEZER too warm/too little ice

REFRIGERATOR too cold REFRIGERATOR or

FREEZER too cold FREEZER or TEMPERATURE

TEMPERATURE Control one setting higher

FREEZER or TEMPERATURE Control one setting higher

MAX ice production switch

TEMPERATURE Control one setting lower

Control one setting lower

Crisper Humidity Control

(on some models)

You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) for best storage of fruits and vegetables with skins. HIGH (closed) for best storage of fresh, leafy vegetables.

Ice Maker

Turning the Ice Maker On/Off

To turn the ice maker ON, simply lower the wire shutoff arm. To manually turn the ice maker OFF, lift the wire shutoff arm to the

OFF (arm up) position and listen for the click. NOTE: Your ice maker has an automatic shutoff. As ice is made,

the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down.

Water Dispenser

IMPORTANT:

■ After connecting the refrigerator to a water source, flush the

water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) for an additional 2 minutes. This will flush air from the filter and water dispensing system. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.

NOTE: After 4 minutes of continuous dispensing, the dispenser will stop dispensing to avoid flooding. To continue dispensing, remove the glass and press the dispensing paddle again.

■ When the refrigerator compartment door is open, the

dispenser will not dispense water and the dispenser control panel will not display or receive input. The previous settings will be retained.

Dispense Water

1. Press a sturdy glass against the paddle to start dispensing.

2. Release pressure on the paddle and be sure the water has

stopped dispensing before removing the glass.

NOTE: Water may have an off-flavor if you do not use the dispenser periodically. Dispense enough water every week to maintain a fresh supply.

Ice Production Rate

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

■ The ice maker should produce approximately 8 to 12 batches

of ice in a 24-hour period.

■ To increase ice production, lower the freezer and refrigerator

temperature. See “Using the Controls.” Wait 24 hours between adjustments.

■ For maximum ice production (on some models), push the

switch to ICE PLUS. The ice maker should produce 16 to 20 batches of ice in a 24-hour period in the Ice Plus mode.

Remember

■ The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

■ Do not use anything sharp to break up the ice in the bin. This

can cause damage to the ice container and the dispenser mechanism.

■ Do not store anything on top of or in the ice maker or ice bin.

Remove and Replace Dispenser Paddle

The removable paddle is designed to catch small spills and allow for easy cleaning. There is no drain in the paddle. The paddle can be removed from the dispenser to be emptied or cleaned.

IMPORTANT: Press and hold LOCK OUT for 2 seconds to activate the dispenser lock feature before removing the dispenser paddle. See “The Dispenser Lock.”

1. Press up on the dispenser paddle, as shown, to release.

2. Pull down on the dispenser paddle to remove.

3. Replace the dispenser paddle by firmly snapping it into the

dispenser cover as shown.

The Dispenser Lock

The water dispenser can be locked for easy cleaning or to avoid unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the product, to the ice maker, or to the dispenser light. It simply deactivates the dispenser paddle.

To Lock the Dispenser: Press and hold the LOCK OUT button for 2 seconds until the red

indicator appears. The water dispenser and the dispenser control panel will not work.

To Unlock the Dispenser:

Press and hold the lock button for 2 seconds until the indicator disappears. Then continue to dispense water as usual.

The Dispenser Light

The dispenser light turns on automatically when you press the paddle to dispense water. If you want the light to be on continuously, press the light bulb button, located on the left-hand side of the dispenser control panel, for either ON or NIGHT LIGHT.

NOTE: The dispenser lights are LEDs which do not need to be changed.

ON: Press the light bulb button once to turn on the dispenser light. The green indicator will appear below ON.

NIGHT LIGHT: Press the light bulb button a second time to select the night light mode. The green indicator will appear below NIGHT LIGHT. The dispenser light will automatically adjust to become brighter as the room brightens, dimmer as the room darkens.

OFF: Press the light bulb button a third time to turn the dispenser light off.

Water Filtration System

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Water Filter Status Light (on some models)

The water filter status light will help you know when to change your water filter. The light will change from green to yellow. This tells you that it is almost time to change the filter. It is recommended that you replace the water filter when the status light changes to red OR water flow to your water dispenser or ice maker decreases noticeably.

After changing the water filter, reset the water filter status light. The status light will change from red to green when the system is reset.

Non-indicator Water Filter (on some models)

If your refrigerator does not have the status light, you should change the water filter every 6 months depending upon your usage. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter more often.

Using the Dispenser Without the Water Filter

You can run the dispenser without a water filter. Your water will not be filtered.

1. Remove the water filter.

2. Slide the cap off the end of the filter and replace the cap in the

base grille. IMPORTANT: Do not discard the cap. It is part of your

refrigerator. Keep the cap to use with the replacement filter.

REFRIGERATOR CARE

WARMER

COOLER

RECOMMENDED SETTING

REFRIGERATOR

WARMER

COOLER

RECOMMENDED SETTING

FREEZER

ALLOW 24 HOURS BETWEEN ADJUSTMENTS

Cleaning

WARNING

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

3. Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water.

4. There is no need for routine condenser cleaning in normal

home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.

If you need to clean the condenser:

■ Remove the base grille.

■ Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area of the condenser.

■ Replace the base grille when finished.

5. Plug in refrigerator or reconnect power.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Refrigerator Operation

The refrigerator will not operate

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Changing the Light Bulbs

NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the bulb with an appliance bulb of the same size, shape, and wattage.

1. Unplug refrigerator or disconnect power.

2. Remove the bulb from behind the control panel in the

refrigerator or from behind the light shield in the freezer (on some models). Replace it with a bulb of the same wattage.

3. Plug in refrigerator or reconnect power.

WARMER

1 2

F E R

C E R

O O C

■ Is outlet working? Plug in a lamp to see if the outlet is

working.

■ Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker.

■ Are controls on? Make sure the refrigerator controls are on.

See “Using the Controls.”

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.

FREEZER

N I T T

S D E

N E M

M O

E R

T A R

G IN T

T E

S D E

D N

E M M

E L O

O C

S T

N E M

T S U

J D

A N E E

T E B

R U O

H 4 2

W O L

L A

R E

■ Power cord unplugged? Plug into a grounded 3 prong outlet.

The refrigerator seems noisy

There is interior moisture buildup

Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations.

■ Buzzing - heard when the water valve opens to fill the ice

maker

■ Pulsating - fans/compressor adjusting to optimize

performance

■ Hissing/Rattling - flow of refrigerant, movement of water

lines, or from items placed on top of the refrigerator

■ Sizzling/Gurgling - water dripping on the heater during

defrost cycle

■ Popping - contraction/expansion of inside walls, especially

during initial cool-down

■ Water running - may be heard when water melts during the

defrost cycle and runs into the drain pan

■ Creaking/Cracking - occurs as ice is being ejected from the

ice maker mold.

The doors will not close completely

■ Door blocked open? Move food packages away from door.

■ Bin or shelf in the way? Push bin or shelf back in the correct

position.

The doors are difficult to open

WARNING

NOTE: Some moisture build-up is normal.

■ Humid room? Contributes to moisture build-up.

■ Door(s) opened often or left open? Allows humid air to enter

refrigerator. Minimize door openings and keep doors fully closed.

Ice and Water

The ice maker is not producing ice or not enough ice

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Ice maker turned on? Make sure wire shutoff arm or switch

(depending on model) is in the ON position.

■ New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice production.

■ Freezer door closed completely? Firmly close the freezer

compartment door. If the freezer compartment door will not close all the way, see “The doors will not close completely.”

■ Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice.

■ Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

■ Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice volume improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

■ Gaskets dirty or sticky? Clean gaskets and contact surfaces

with mild soap and warm water. Rinse and dry with soft cloth.

Temperature and Moisture

Temperature is too warm

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

■ Door(s) opened often or left open? Allows warm air to enter

refrigerator. Minimize door openings and keep doors fully closed.

■ Large load of food added? Allow several hours for

refrigerator to return to normal temperature.

■ Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Controls.”

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

■ Water shutoff valve not fully open? Turn the water shutoff

valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice quality improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

■ Questions remain regarding water pressure? Call a

licensed, qualified plumber.

Off-taste, odor or gray color in the ice

■ New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

■ Ice stored too long? Discard ice. Wash ice bin. Allow

24 hours for ice maker to make new ice.

■ Odor transfer from food? Use airtight, moisture proof

packaging to store food.

■ Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

■ Water filter installed on the refrigerator? Gray or dark

discoloration in ice indicates that the water filtration system needs additional flushing. Flush the water system before using a new water filter. Replace water filter when indicated. See “Water Filtration System.”

The water dispenser will not operate properly

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

■ Kink in the water source line? Straighten the water source

line.

■ New installation? Flush and fill the water system. See “Water

Dispenser.”

■ Is the water pressure at least 30 psi? The water pressure to

the home determines the flow from the dispenser. See “Water Supply Requirements.”

■ Water filter installed on the refrigerator? Remove filter and

operate dispenser. If water flow increases, the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Refrigerator door closed completely? Close the door firmly.

If it does not close completely, see “The doors will not close completely.”

■ Recently removed or reversed the doors? Make sure the

water dispenser wire/tube assembly has been properly reconnected at the bottom of the refrigerator door. See “Refrigerator Doors.”

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

WATER FILTER CERTIFICATIONS

Water is leaking from the dispenser system

NOTE: One or two drops of water after dispensing is normal.

■ Glass not being held under the dispenser long enough?

Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever.

■ New installation? Flush the water system. See “Water

Dispenser.”

■ Recently changed water filter? Flush the water system. See

“Water Dispenser.”

■ Water on the floor near the base grille? Make sure the water

dispenser tube connections, at the bottom of the refrigerator door, are fully tightened. See “Refrigerator Doors.”

Water from the dispenser is warm

NOTE: Water from the dispenser is only chilled to 50°F (10°C).

■ New installation? Allow 24 hours after installation for the

water supply to cool completely.

■ Recently dispensed large amount of water? Allow 24 hours

for water supply to cool completely.

■ Water not been recently dispensed? The first glass of water

may not be cool. Discard the first glass of water.

■ Refrigerator connected to a cold water pipe? Make sure

the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.”

PRODUCT DATA SHEETS

Base Grille Water Filtration System

Model WF-L200V Capacity 200 Gallons (757 Liters)

Model WF-NL120V Capacity 120 Gallons (454 Liters)

System tested and certified by NSF International against NSF/ANSIStandard 53 for the reduction of Lead, Mercury, Benzene, p-dichlorobenzene, O-Dichlorobenzene, Toxaphene, Ethyl Benzene, 1,2,4-trichlorobenzene and against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor and Particulate Class III.

This system has been tested according to ANSI/NSF 42/53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in ANSI/NSF 42/53.

Substance Reduction Aesthetic Effects

Chlorine Taste/Odor Particulate Class lll

Contaminant Reduction

Lead:@ pH 6.5 Lead: @ pH 8.5

Mercury: @ pH 6.5 Mercury: @ pH 8.5

Benzene 0.005 mg/L 0.0157 mg/L 0.015 mg/L ± 10% 0.002 mg/L 0.00083 mg/L 87.26% 94.71% p-dichlorobenzene 0.075 mg/L 0.210 mg/L 0.225 mg/L ± 10% 0.0005 mg/L 0.0005 mg/L 99.76% 99.76% O-Dichlorobenzene 0.60 1.84 1.8 ± 10% 0.20 0.0418 89.13 97.73 Toxaphene 0.003 0.0143 0.015 ± 10% 0.0012 0.0010 91.60 93.00 Ethyl Benzene 0.70 2.00 2.1 ± 10% 0.40 0.085 80.00 95.75 1,2,4- trichlorobenzene 0.07 0.232 0.21 ± 10% 0.0041 0.0016 98.23 99.31

NSF Reduction Requirements

≥50%

≥85%

NSF Reduction Requirements

0.01mg/L

0.01mg /L

0.002 mg/L

Average Influent

1.9 mg/L 49333/mL

Average Influent

0.14 mg/L

†

0.15 mg/L

0.0059 mg/L

0.0054 mg/L

Influent Challenge Concentration

2.0 mg/L ± 10% At least 10,000 particles/mL

Influent Challenge Concentration

0.15 mg/L ± 10%

†

0.15 mg /L ± 10%

0.006 mg/L ± 10%

0.006 mg /L ± 10%

Maximum Effluent

0.07 mg/L 640/mL**

Maximum Effluent

0.0014 mg/L

0.0069 mg/L

0.0009 mg/L

0.0007mg /L

Average Effluent

0.06 mg/L 312/mL

Average Effluent

0.0011 mg/L

0.0042 mg/L

0.0004 mg/L

0.00043 mg/L

Minimum% Reduction

>75%

98.7%

Minimum% Reduction

99.00%

95.40%%

84.74%

87.03%

Average% Reduction

>75%

99.0%

Average% Reduction

99.21%

97.20%

93.22%

92.03%

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 63°F (17.2°C).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to perform as advertised.

■ Model WF-L200V: The filter monitor system measures the

■ Refer to the front cover or “Accessories” section for the

Manufacturer’s name, address and telephone number.

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty. amount of water that passes through the filter and alerts you to replace the filter. When 90% of the filter’s rated life is used, the filter indicator light changes from green to yellow. When 100% of the filter’s rated life is used, the filter indicator light changes from yellow to red, and it is recommended that you replace the filter. Use replacement filter L200V / NL120V, part #4396701. 2007 suggested retail price of $34.99 U.S.A./ $45.99 Canada. Prices are subject to change without notice.

Application Guidelines/Water Supply Parameters

Water Supply Water Pressure Water Temperature Service Flow Rate

City or Well 30 - 120 psi (207 - 827 kPa) 33° - 100°F (0.6° - 37.8°C)

0.5 GPM (1.9 L/min.) @ 60 psi.

Model WF-NL120V: Change the water filter every 6 months. Use replacement filter L200V / NL120V, part #4396701. 2007 suggested retail price of $34.99 U.S.A./ $45.99 Canada. Prices are subject to change without notice.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the system.

Class Ill particle size: > 5 to < 15 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

†

These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

® NSF is a registered trademark of NSF International.

Base Grille Water Filtration System

Model WF-NLC120V Capacity 120 Gallons (454 Liters)

System tested and certified by NSF International against NSF/ANSIStandard 53 for the reduction of Lead, Mercury, Benzene, p-dichlorobenzene, Cysts, Turbidity, Asbestos, Endrin, O-Dichlorobenzene, Toxaphene, Ethyl Benzene, 1,2,4-trichlorobenzene and against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor and Particulate Class I.

Substance Reduction Aesthetic Effects

Chlorine Taste/Odor Particulate Class l

Contaminant Reduction

Lead: @ pH 6.5 Lead: @ pH 8.5

Mercury: @ pH 6.5 Mercury: @ pH 8.5

Benzene 0.005 mg/L 0.0153 mg/L 0.015 mg/L ± 10% 0.0036 mg/L 0.0014 mg/L 76.47% 90.84% p-dichlorobenzene 0.075 mg/L 0.215 mg/L 0.225 mg/L ± 10% 0.0037 mg/L 0.0010 mg/L 98.27% 99.52% Asbestos 99.0%** 842 x 10

‡

Cysts Turb id it y

Endrin 0.002 0.0056 0.006 ± 10% 0.0007 0.0004 87.50 92.85 O-Dichlorobenzene 0.60 1.84 1.8 ± 10% 0.33 0.071 82.06 96.14 Toxaphene 0.003 0.0143 0.015 ± 10% 0.001 0.001 93.00 93.00 Ethyl Benzene 0.70 2.00 2.1 ± 10% 0.60 0.169 70.00 91.55 1,2,4- trichlorobenzene 0.07 0.232 0.21 ± 10% 0.0025 0.0007 98.92 99.69

NSF Reduction Requirements

≥50%

≥85%

NSF Reduction Requirements

0.01mg/L

0.01mg /L

0.002 mg/L

99.95%

0.5 NTU

Average Influent

1.9 mg/L 5,300,000/mL

Average Influent

0.14 mg/L

0.15 mg /L

0.0058 mg/L

0.0055 mg/L

165,500/mL

11.75 NTU

†

Influent Challenge Concentration

2.0 mg/L ± 10% At least 10,000 particles/mL

Influent Challenge Concentration

0.15 mg/L ± 10%

0.15 mg /L ± 10%

0.006 mg/L ± 10%

0.006 mg /L ± 10%

107 to 108 fibers/L 50,000/L min.

11 ± 1 NTU

††

Maximum Effluent

0.12 mg/L 50,000/mL**

Maximum Effluent

0.001 mg/L

0.0005 mg/L

0.0013 mg /L

1.6 x 107 mg/L 1.6 x 107 mg/L 99.81 99.81% 1 mg/L

0.38 NTU

Average Effluent

0.08 mg/L 15,725/mL

Average Effluent

0.001 mg/L

0.0003 mg/L

0.0005 mg/L

1 mg/L

0.22 NTU

Minimum% Reduction

>75%

99.0%

Minimum% Reduction

99.29%

99.32%

91.37%

76.36%

99.99%

96.76%

Average% Reduction

>75%

99.7%

Average% Reduction

99.29%

99.32%

94.82%

90.90%

99.99%

98.12%

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 63°F (17.2°C).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to perform as advertised.

■ Model WF-NLC120V: Change the water filter every 6 months.

Use replacement cartridge NLC120V, part #4396701. 2007 suggested retail price of $34.99 U.S.A./$45.99 Canada. Prices are subject to change without notice.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

Application Guidelines/Water Supply Parameters

Water Supply Water Pressure Water Temperature Service Flow Rate

City or Well 30 - 120 psi (207 - 827 kPa) 33° - 100°F (0.6° - 37.8°C)

0.5 GPM (1.89 L/min.) @ 60 psi.

unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

■ Refer to the front cover or “Accessories” section for the

Manufacturer’s name, address and telephone number.

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty.

Class I particle size: >0.5 to <1 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

†

These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

††

Fibers greater than 10 um in length

‡

Based on the use of Cryptosporidium parvum oocysts

® NSF is a registered trademark of NSF International.

+ 36 hidden pages
