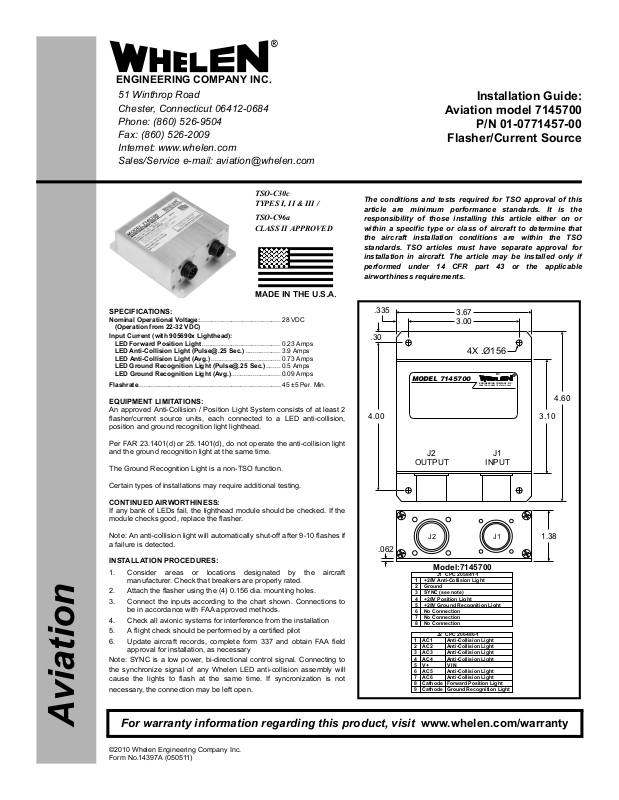

Installation Guide:

Aviation model 7145700

P/N 01-0771457-00

Flasher/Current Source

TSO-C30c TYPES I, II & III /

TSO-C96a CLASS II APPROVED

MADE IN THE U.S.A.

SPECIFICATIONS:

Nominal Operational Voltage:............................................ 28 VDC

(Operation from 22-32 VDC) Input Current (with 905690x Lighthead):

LED Forward Position Light ........................................... 0.23 Amps

LED Anti-Collision Light (Pulse@.25 Sec.) ................... 3.9 Amps

LED Anti-Collision Light (Avg.) ...................................... 0.73 Amps

LED Ground Recognition Light (Pulse@.25 Sec.) ........ 0.5 Amps

LED Ground Recognition Light (Avg.)........................... 0.09 Amps

Flashrate.............................................................................. 45 ±5 Per. Min.

EQUIPMENT LIMITATIONS:

An approved Anti-Collision / Position Light System consists of at least 2 flasher/current source units, each connected to a LED anti-collision, position and ground recognition light lighthead.

Per FAR 23.1401(d) or 25.1401(d), do not operate the anti-collision light and the ground recognition light at the same time.

The Ground Recognition Light is a non-TSO function.

Certain types of installations may require additional testing.

CONTINUED AIRWORTHINESS:

If any bank of LEDs fail, the lighthead module should be checked. If the module checks good, replace the flasher.

Note: An anti-collision light will automatically shut-off after 9-10 flashes if a failure is detected.

INSTALLATION PROCEDURES:

1. Consider areas or locations designated by the aircraft manufacturer. Check that breakers are properly rated.

2. Attach the flasher using the (4) 0.156 dia. mounting holes.

3. Connect the inputs according to the chart shown. Connections to be in accordance with FAA approved methods.

4. Check all avionic systems for interference from the installation

5. A flight check should be performed by a certified pilot

6. Update aircraft records, complete form 337 and obtain FAA field approval for installation, as necessary

Note: SYNC is a low power, bi-directional control signal. Connecting to the synchronize signal of any Whelen LED anti-collision assembly will cause the lights to flash at the same time. If syncronization is not

necessary, the connection may be left open.

The conditions and tests required for TSO approval of this article are minimum performance standards. It is the responsibility of those installing this article either on or within a specific type or class of aircraft to determine that the aircraft installation conditions are within the TSO standards. TSO articles must have separate approval for installation in aircraft. The article may be installed only if performed under 14 CFR part 43 or the applicable airworthiness requirements.

.335

3.67

3.00

.30

4X .Ø156

BY:

MODEL 7145700

ENGINEERINGCOMPANY, INC.

CHESTER,CONNECTICUT 06412-0684

4.00 3.10

OUTPUT

J2 J1

.062

Model:7145700

J1 CPC 205841-1

+28V Anti-Collision Light 2 Ground 3 SYNC (see note) 4 +28V Position Light

+28V Ground Recognition Light

5 6 No Connection 7 No Connection 8 No Connection

J2 CPC 206486-1 1 AC1 2 AC2 Anti-Collision Light 3 AC3 Anti-Collision Light 4 AC4 Anti-Collision Light 5V+ 6 7 8 9

Anti-Collision Light

VIN AC5 Anti-Collision Light AC6 Anti-Collision Light

Forward Position Light

Cathode Cathode Ground Recognition Light

4.60

INPUT

1.38

Aviation
