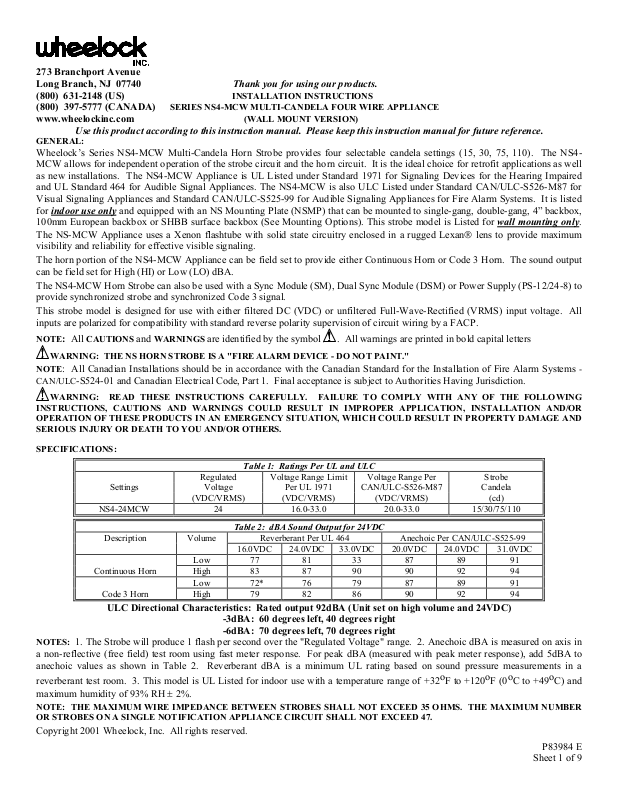

273 Branchport Avenue
Long Branch, NJ 07740 Thank you for using our products.
(800) 631-2148 (US)
(800) 397-5777 (CANADA)
SERIES NS4-MCW MULTI-CANDELA FOUR WIRE APPLIANCE
INSTALLATION INSTRUCTIONS
www.wheelockinc.com
(WALL MOUNT VERSION)
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Wheelock’s Series NS4-MCW Multi-Candela Horn Strobe provides four selectable candela settings (15, 30, 75, 110). The NS4MCW allows for independent operation of the strobe circuit and the horn circuit. It is the ideal choice for retrofit applications as well
as new installations. The NS4-MCW Appliance is UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired
and UL Standard 464 for Audible Signal Appliances. The NS4-MCW is also ULC Listed under Standard CAN/ULC-S526-M87 for
Visual Signaling Appliances and Standard CAN/ULC-S525-99 for Audible Signaling Appliances for Fire Alarm Systems. It is listed
for indoor use only
and equipped with an NS Mounting Plate (NSMP) that can be mounted to single-gang, double-gang, 4” backbox,
100mm European backbox or SHBB surface backbox (See Mounting Options). This strobe model is Listed for wall mounting only
The NS-MCW Appliance uses a Xenon flashtube with solid state circuitry enclosed in a rugged Lexan lens to provide maximum
visibility and reliability for effective visible signaling.
The horn portion of the NS4-MCW Appliance can be field set to provide either Continuous Horn or Code 3 Horn. The sound output
can be field set for High (HI) or Low (LO) dBA.
The NS4-MCW Horn Strobe can also be used with a Sync Module (SM), Dual Sync Module (DSM) or Power Supply (PS-12/24-8) to
provide synchronized strobe and synchronized Code 3 signal.
This strobe model is designed for use with either filtered DC (VDC) or unfiltered Full-Wave-Rectified (VRMS) input voltage. All
inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by a FACP.
: All
NOTE
WARNING: THE NS HORN STROBE IS A "FIRE ALARM DEVICE - DO NOT PAINT."
NOTE
CAN/ULC
CAUTIONS
: All Canadian Installations should be in accordance with the Canadian Standard for the Installation of Fire Alarm Systems
-S524-01 and Canadian Electrical Code, Part 1. Final acceptance is subject to Authorities Having Jurisdiction.
and
WARNINGS
WARNING: READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR
OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
Regulated Strobe
Settings Voltage Candela
(VDC/VRMS)
NS4-24MCW 24 16.0-33.0 20.0-33.0 15/30/75/110
Description Volume Reverberant Per UL 464 Anechoic Per CAN/ULC-S525-99
16.0VDC 24.0VDC 33.0VDC 20.0VDC 24.0VDC 31.0VDC
Low 77 81 33 87 89 91
Continuous Horn High 83 87 90 90 92 94
Low 72* 76 79 87 89 91
Code 3 Horn High 79 82 86 90 92 94
are identified by the symbol . All warnings are printed in bold capital letters
Table 1: Ratings Per UL and ULC
Voltage Range Limit
Per UL 1971
(VDC/VRMS)
Table 2: dBA Sound Output for 24VDC
Voltage Range Per
CAN/ULC-S526-M87
(VDC/VRMS) (cd)
ULC Directional Characteristics: Rated output 92dBA (Unit set on high volume and 24VDC)
-3dBA: 60 degrees left, 40 degrees right
-6dBA: 70 degrees left, 70 degrees right
NOTES:
1. The Strobe will produce 1 flash per second over the "Regulated Voltage" range. 2. Anechoic dBA is measured on axis in
a non-reflective (free field) test room using fast meter response. For peak dBA (measured with peak meter response), add 5dBA to
anechoic values as shown in Table 2. Reverberant dBA is a minimum UL rating based on sound pressure measurements in a
reverberant test room. 3. This model is UL Listed for indoor use with a temperature range of +32oF to +120oF (0oC to +49oC) and
maximum humidity of 93% RH ± 2%.
NOTE: THE MAXIMUM WIRE IMPEDANCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS. THE MAXIMUM NUMBER
OR STROBES ON A SINGLE NOTIFICATION APPLIANCE CIRCUIT SHALL NOT EXCEED 47.
Copyright 2001 Wheelock, Inc. All rights reserved.
P83984 E
Sheet 1 of 9
.
-
WARNING: OPERATING THE NS AUDIBLE APPLIANCES, SET ON "CODE 3 HORN", LOW dBA AT MINIMUM VOLTAGE
(16.0VDC) WILL NOT MEET THE 75dBA MINIMUM UL REVERBERANT SOUND LEVEL REQUIRED FOR PUBLIC MODE FIRE
PROTECTION SERVICE (NOTED BY * IN TABLE 2). THIS SETTING IS ACCEPTABLE ONLY FOR GENERAL SIGNALING (NONFIRE ALARM) USE. USE THE "HIGH" dBA SETTING WITH THIS TONE FOR PUBLIC MODE SERVICE.
WARNING: FOR ULC VERSIONS THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE OF 20.0-31.0 VOLTS
FOR 24V MODELS USING FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR). APPLY 80% AND 110% OF
THESE VOLTAGE VALUES FOR SYSTEM OPERATIONS.
WARNING: FOR UL VERSIONS THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE LIMITS OF 16.0-33.0
VOLTS FOR 24V MODELS USING FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR). DO NOT APPLY 80%
AND 110% OF THESE VOLTAGE VALUES FOR SYSTEM OPERATION.
WARNING: CHECK THE MINIMUM AND MAXIMUM OUTPUT OF THE POWER SUPPLY AND STANDBY BATTERY AND
SUBTRACT THE VOLTAGE DROP FROM THE CIRCUIT WIRING RESISTANCE TO DETERMINE THE APPPLIED VOLTAGE TO
THE STROBES.
WARNING: CANDELA SETTING WILL DETERMINE THE CURRENT DRAW OF THE PRODUCT.
UL range rating limits are 16.0-33.0VDC; ULC ratings are 20.0-31.0VDC (tested range -20% below 10% above rated voltage range).
Table 3: UL/ULC Current Ratings (AMPS)
Rated Average Current
Voltage Voltage 15cd 30cd 75cd 110cd
16.0VDC 20.0VDC 0.080 0.128 0.252 0.328
24.0VDC 24.0VDC 0.054 0.083 0.155 0.187
33.0VDC 31.0VDC 0.045 0.068 0.115 0.141
16.0VRMS 20.0VRMS 0.116 0.194 0.361 0.487
24.0VRMS 24.0VRMS 0.093 0.141 0.231 0.289
33.0VRMS 31.0VRMS 0.094 0.115 0.188 0.224
Rated Peak Current
UL Voltage ULC Voltage 15cd 30cd 75cd 110cd
16.0VDC 20.0VDC 0.136 0.186 0.360 0.452
24.0VDC 24.0VDC 0.091 0.142 0.250 0.307
33.0VDC 31.0VDC 0.140 0.190 0.306 0.458
16.0VRMS 20.0VRMS 0.432 0.675 1.415 1.610
24.0VRMS 24.0VRMS 0.525 0.640 0.930 1.240
33.0VRMS 31.0VRMS 0.920 1.000 1.130 1.210
* The time duration for the peak current is 1 millisecond. NOTE: Inrush current is less than rated peak current.
Table 3A: UL/ULC Horn Current Ratings (AMPS)
UL Voltage ULC Voltage High dBA Low dBA
16.0VDC 20.0VDC 0.019 0.012
24.0VDC 24.0VDC 0.028 0.015
33.0VDC 31.0VDC 0.039 0.018
16.0VRMS 20.0VRMS 0.029 0.016
24.0VRMS 24.0VRMS 0.044 0.019
33.0VRMS 31.0VRMS 0.061 0.022
WARNING: MAKE SURE THAT THE TOTAL AVERAGE CURRENT AND TOTAL PEAK REQUIRED BY ALL APPLIANCES
THAT ARE CONNECTED TO THE SYSTEM’S PRIMARY AND SECONDARY POWER SOURCES, NAC CIRCUITS, SM, DSM SYNC
MODULES AND PS-12/24-8 POWER SUPPLY DO NOT EXCEED THE POWER SOURCES’ RATED CAPACITY OR THE CURRENT
RATINGS OF ANY FUSES ON THE CIRCUITS TO WHICH THESE APPLIANCES ARE WIRED. OVERLOADING POWER
SOURCES OR EXCEEDING FUSE RATINGS COULD RESULT IN LOSS OF POWER AND FAILURE TO ALERT OCCUPANTS
DURING AN EMERGENCY, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
When calculating the total average or peak currents: Use Table 3 and 3A to determine the highest value of “Rated Average Current”
for an individual strobe (across the expected operating voltage range of the strobe), or use Table 3 to determine the highest value of
“Rated Peak Current” (whichever is higher) of an individual strobe (across the expected voltage range of the strobe), then multiply the
value by the total number of strobes; be sure to add the currents for any other appliances, including audible signaling appliances,
powered by the same source and include any required safety factors.
If the peak current exceeds the power supplies’ inrush capacity, the output voltage provided by the power supplies may drop below the
listed voltage range of the appliances connected to the supply and the voltage may not recover in some types of power supplies. For
example, an auxiliary power supply that lacks filtering at its output stage (either via lack of capacitance and/or lack of battery backup
across the output) may exhibit this characteristic.
CAUTION
: Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off.
P83984 E
Sheet 2 of 9
LIGHT DISTRIBUTION PER UL 1971 AND CAN/ULC-S526-M87:
Table 4: Horizontal Plane (UL 1971)
Horizontal 15cd 30cd 75cd 110cd
Angle (in deg.) UL Min. Typ. 15cd UL Min. Typ. 30cd UL Min. Typ. 75cd UL Min. Typ. 110cd
0 15.0 25 30.0 47 75.0 115 110.0 149
5 13.5 24 27.0 48 67.5 115 99.0 153
10 13.5 24 27.0 48 67.5 113 99.0 151
15 13.5 24 27.0 47 67.5 112 99.0 153
20 13.5 22 27.0 47 67.5 110 99.0 146
25 13.5 22 27.0 46 67.5 107 99.0 149
30 11.3 22 22.5 44 56.3 109 82.5 145
35 11.3 23 22.5 44 56.3 104 82.5 140
40 11.3 22 22.5 44 56.3 104 82.5 135
45 11.3 24 22.5 48 56.3 110 82.5 152
50 8.3 23 16.5 44 41.3 104 60.5 142
55 6.8 18 13.5 34 33.8 79 49.5 101
60 6.0 17 12.0 34 30.0 82 44.0 104
65 5.3 16 10.5 32 26.3 78 38.5 102
70 5.3 15 10.5 31 26.3 75 38.5 95
75 4.5 13 9.0 27 22.5 66 33.0 81
80 4.5 9 9.0 18 22.5 40 33.0 56
85 3.8 4 7.5 9 18.8 22 27.5 31
90 3.8 8 7.5 15 18.8 38 27.5 48
Table 4A: Vertical Plane (UL 1971)
Vertical 15cd 30cd 75cd 110cd
Angle (in deg.) UL Min. Typ. 15cd UL Min. Typ. 30cd UL Min. Typ. 75cd UL Min. Typ. 110cd
0 15.0 23 30.0 49 75.0 116 110.0 155
5 13.5 26 27.0 51 67.5 123 99.0 166
10 13.5 21 27.0 42 67.5 105 99.0 139
15 13.5 19 27.0 39 67.5 95 99.0 134
20 13.5 19 27.0 36 67.5 82 99.0 116
25 13.5 17 27.0 34 67.5 83 99.0 114
30 13.5 16 27.0 32 67.5 79 99.0 107
35 9.8 16 19.5 33 48.8 86 71.5 114
40 6.9 13 13.8 27 34.5 61 50.6 84
45 5.1 7 10.2 14 25.5 34 37.4 48
50 4.1 6 8.1 13 20.3 32 29.7 43
55 3.3 6 6.6 13 16.5 31 24.2 42
60 2.7 6 5.4 12 13.5 30 19.8 39
65 2.4 6 4.8 12 12.0 28 17.6 37
70 2.3 6 4.5 12 11.3 28 16.5 39
75 2.0 5 3.9 11 9.8 26 14.3 36
80 1.8 5 3.6 10 9.0 25 13.2 33
85 1.8 5 3.6 11 9.0 27 13.2 35
90 1.8 2 3.6 5 9.0 11 13.2 16
Table 4B: ULC Light Output on Axis Rating
CAN/ULC- 15cd Setting 30cd Setting 75cd Setting 110cd Setting
S526-M87 Min. Typ. Min. Typ. Min. Typ. Min. Typ.
Min. 2cd 15.0 25.0 30.0 47.0 75.0 115.0 110.0 149.0
P83984 E
Sheet 3 of 9
WARNING: THE NS4-MCW APPLIANCE MUST BE FIELD SET TO THE DESIRED TONE AND dBA SOUND OUTPUT LEVEL
BEFORE THEY ARE INSTALLED. THIS IS DONE BY PROPERLY INSERTING JUMPER PLUGS IN ACCORDANCE WITH THESE
INSTRUCTIONS. INCORRECT SETTINGS WILL RESULT IN IMPROPER PERFORMANCE, WHICH COULD RESULT IN
PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
WARNING: THE CANDELA SELECT SWITCH MUST BE FIELD SET TO THE REQUIRED CANDELA INTENSITY BEFORE
INSTALLATION. WHEN CHANGING THE SETTING OF THE CANDELA SELECT SWITCH, MAKE CERTAIN THAT IT
“CLICKS” IN PLACE. AFTER CHANGING THE CANDELA SETTING, THE APPLIANCE MUST BE RETESTED TO VERIFY
PROPER OPERATION (FLASH RATE MUST BE BETWEEN 60-64 FLASHES PER MINUTE). IMPROPER SETTING OF THE
CANDELA SELECT SWITCH, WHETHER IT IS ON AN INCORRECT SETTING OR IN BETWEEN TWO CANDELA POSITIONS,
MAY RESULT IN DEGRADED OPERATION OR DAMAGE TO THE PRODUCT, WHICH COULD RESULT IN PROPERTY
DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SETTINGS:
: The Code 3 Horn incorporates the temporal pattern (1/2 second on, 1/2 second off, 1/2 second on, 1/2 second off, 1/2 second
NOTE
on, 1-1/2 off and repeat) specified by ANSI/NFPA for standard emergency evacuation signaling. The Code 3 Horn should be used
only for fire evacuation signaling and not for any other purpose.
Figure 1: Showing Location of Jumper Plug and Candela Selector.
TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE
THIS COVER. NO USER SERVICEABLE PARTS INSIDE.
TOP
HI
PLUG
CODE 3
NO PLUG
LOW
Figure 2: Jumper plug settings for High dB and Code 3. Figure 3: Jumper plug settings for Low dB and Continuous Horn.
JUMPER
HORN
PLUGS
: Factory setting is on High dB, Code 3 and 15cd.
NOTE
CENTER PIN
IS NOT USED
WARNING:
CANDELA
SELECTOR
STB
AUD
15
1301
75
0
BOTTOM VIEW
CANDELA
POINTER
CENTER PIN
IS NOT USED
SHOWN
SHOWN
SET ON
SHOWN
CODE 3
SET ON
HI dB
Figure 4: Jumper plug settings for Low dB and Code 3. Figure 5: Jumper plug settings for High dB and Continuous Horn.
CENTER PIN
IS NOT USED
SHOWN
SET ON
LOW dB
CENTER PIN
IS NOT USED
SET ON
CONT' HORN *
SHOWN
SHOWN
SET ON
SHOWN
CODE 3
SET ON
LOW dB
(Use needle nose pliers to pull and properly set the jumper
plugs.)
: The NS4-MCW must be set for Code 3 horn when used with the sync module.
NOTE
SHOWN
SET ON
HI dB
No jumper plugs are needed for Continuous Horn and low dB settings.
However, it is recommended that the jumper plug be retained in the unit
for future use (if needed) as shown in Figure 3, 4 and 5.
SET ON
CONT' HORN *
* Continuous horn operation without sync module.
P83984 E
Sheet 4 of 9
WIRING INFORMATION:
Figure 6: Audible signal and strobe operate independently.
FROM FIRE ALARM
CONTROL PANEL (FACP)
PRECEDING APPLIANCE
OR SYNC MODULE *
FROM FACP OR
PRECEDING APPLIANCE
Figure 7: Audible signal and strobe operate in unison . Red and black shunt wires are supplied.
FROM FACP
PRECEDING APPLIANCE
OR SYNC MODULE
+
-
- +
- +
STROBE
AUDIBLE
-
+
+
-
RED SHUNT WIRE
+
STROBE
-
-
TO NEXT APPLIANCE
OR END OF LINE
+
RESISTOR (EOLR).
-
TO NEXT APPLIANCE
OR EOLR
+
+
-
BLACK SHUNT WIRE
* When the sync module is used, the audible tone will be Code 3 sound only. Refer to Sync Module Installation Instruction sheets
SM (P83123), DSM (P83177) or PS-12/24-8 (P83862) for additional information. Audible will operate only with power applied to
both strobe and audible.
Figure 8.
1) The NS4-MCW Appliance has in-out wiring terminals that accepts two #12 to 18 American Wire Gauge
(AWG) wires at each screw terminal. Strip leads 3/8” inches for connection to screw terminals.
2) Break all in-out wire runs on supervised circuit supervision as shown in Figures 6 and 7. The polarity
shown in the wiring diagrams is for the operation of the appliances. The polarity is reversed by the
FACP during supervision.
AUDIBLE
+
TO NEXT APPLIANCE
OR EOLR
-
P83984 E
Sheet 5 of 9
MOUNTING OPTIONS:
CAUTION: The following figures show the maximum number of field wires (conductors) that can enter the backbox used with
each mounting option. If these limits are exceeded, there may be insufficient space in the backbox to accommodate the field wires and
stresses from the wires could damage the product.
Although the limits shown for each mounting option comply with the National Electrical Code (NEC), Wheelock recommends use of
the largest backbox option shown and the use of approved stranded field wires, whenever possible, to provide additional wiring room
for easy installation and minimum stress on the product from wiring.
FLUSH MOUNTING
A
NS MOUNTING PLATE
(NSMP)
NS BEAUTY PLATE (SUPPLIED)
MAXIMUM NUMBER OF CONDUCTORS
BACKBOX
DEPTH
2-1/2" 8 4 4 4
3-1/8" 8 8 8 8
AWG #18 AWG#16 AWG#14 AWG#12
FLUSH OR SURFACE MOUNTING
C
STD. SINGLE-GANG
BACKBOX
#6-32 X 7/8"
SCREWS
DOUBLE-GANG X 2-1/4"
DEEP BACKBOX
#6-32 X 7/8"
SCREWS
FLUSH OR SURFACE MOUNT
B
4" SQ. X 1-1/2" DEEP BACKBOX
OR 100mm X 37.5mm
EUROPEAN BACKBOX
NS MOUNTING PLATE
(NSMP)
NS BEAUTY PLATE (SUPPLIED)
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG#16 AWG#14 AWG#12
8 8 8 8
SURFACE MOUNT
D
5" SQ. X 1-9/16" DEEP
SHBB BACKBOX
#8-32 X 7/8"
SCREWS
#8-32 X 7/8"
SCREWS
NS MOUNTING PLATE
(NSMP)
NS BEAUTY PLATE (SUPPLIED)
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG#16 AWG#14 AWG#12
8 8 8 8
NS MOUNTING PLATE
(NSMP)
NS BEAUTY PLATE (SUPPLIED)
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG#16 AWG#14 AWG#12
8 8 8 8
P83984 E
Sheet 6 of 9
MOUNTING PROCEDURES:
CAUTION: Check that the installed product will have sufficient clearance and wiring room prior to installing backboxes and
conduit, especially if sheathed multiconductor cable or 3/4" conduit fittings are used.
1. The NS4-MCW model has an integrated NS Mounting Plate (NSMP).
2. The NS Mounting Plate (NSMP) must be oriented correctly when it is mounted to the backbox. Turn the NSMP so that the
arrow below the word “Top” points to the top side of the NSMP.
3. The NS4-MCW model can be flush mounted to a standard single-gang backbox (Figure A), 4” or 100mm backbox (Figure B) or
double-gang backbox (Figure C). The NS4-MCW can also be surface mounted to a 4” or 100mm backbox (Figure B), doublegang backbox (Figure C) or the SHBB (Figure D).
4. Mount the NSMP first to the backbox. Next slide the Beauty Plate over the NSMP until the 2 side snaps of the NS Beauty Plate
engage with the NSMP.
5. The NS Beauty Plate can be removed from the strobe assembly once engaged. First, gently insert a screwdriver into one of the
slots located on the side edges of the NS Beauty Plate. Second, gently pull away from the wall with the inserted screwdriver to
disengage the snap. Third, repeat the first and second steps for the second slot. Finally, gently lift the Beauty Plate away from
the NSMP.
6. Mounting hardware for each mounting option is supplied.
7. Conduit entrances to the backbox should be selected to provide sufficient wiring clearance for the installed product.
8. When terminating field wires, do not use more lead length than required. Excess lead length could result in insufficient wiring
space for the signaling appliance.
9. Use care and proper techniques to position the field wires in the backbox so that they use minimum space and produce minimum
stress on the product. This is especially important for stiff, heavy gauge wires and wires with thick insulation or sheathing.
10. Do not pass additional wires (used for other than the signaling appliances) through the backbox. Such additional wires could
result in insufficient wiring space for the signaling appliance.
11. The effect of shipping and storage temperatures shall not adversely affect the performance of the appliance when stored in
original cartons and are not subjected to misuse or abuse. The NS4-MCW strobe is listed for indoor use.
WARNING: WHEN INSTALLING STROBES IN AN OPEN OFFICE OR OTHER AREAS CONTAINING
PARTITIONS OR OTHER VIEWING OBSTRUCTIONS, SPECIAL ATTENTION SHOULD BE GIVEN TO THE
LOCATION OF THE STROBES SO THAT THEIR OPERATING EFFECT CAN BE SEEN BY ALL INTENDED
VIEWERS, WITH THE INTENSITY, NUMBER, AND TYPE OF STROBES BEING SUFFICIENT TO MAKE SURE
THAT THE INTENDED VIEWER IS ALERTED BY PROPER ILLUMINATION, REGARDLESS OF THE VIEWER'S
ORIENTATION. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR
DEATH TO YOU AND/OR OTHERS.
P83984 E
Sheet 7 of 9
CAUTION: If these appliances are operated within 15 inches of a person's ear, they can produce a sound pressure level that
exceeds the maximum 120dBA permitted by ADA and OSHA rules. Exposure to such sound levels can result in damage to a person's
hearing.
The 110 candela strobe model is Listed for use in sleeping or non-sleeping areas when installed in accordance with appropriate NFPA
Standards and the Authority Having Jurisdiction.
WARNING: INSTALLATION OF WHEELOCK 110 CANDELA STROBE PRODUCTS IN SLEEPING AREAS
SHOULD BE WALL MOUNTED AT LEAST 24" BELOW THE CEILING AS FOLLOWS: (1) THE ON AXIS
(DIRECTLY IN FRONT OF LENS) LIGHT OUTPUT SHOULD BE DIRECTED AT THE EYE-LIDS OF THE SLEEPING
PERSON, E.G. PILLOW END OF BED, BED HEAD; (2) NO PART OF THE BED SHALL BE MORE THAN SIXTEEN (16)
FEET FROM THE STROBE NOTIFICATION APPLIANCE. INSTALLERS MUST ADVISE OWNERS AND
OPERATORS OF BUILDINGS WITH SLEEPING OCCUPANTS, E.G. HOTELS AND MOTELS, TO WARN GUESTS,
RESIDENTS AND EMPLOYEES TO NOT MOVE THE BED LOCATION TO A POSITION VIOLATING POINTS (1)
AND (2) ABOVE OR SERIOUS INJURY AND/OR LOSS OF LIFE MAY OCCUR DURING A FIRE EMERGENCY.
WARNING: A SMALL POSSIBILITY EXISTS THAT THE USE OF MULTIPLE STROBES WITHIN A PERSON'S
FIELD OF VIEW, UNDER CERTAIN CIRCUMSTANCES, MIGHT INDUCE A PHOTO-SENSITIVE RESPONSE IN
PERSONS WITH EPILEPSY. STROBE REFLECTIONS IN A GLASS OR MIRRORED SURFACE MIGHT ALSO
INDUCE SUCH A RESPONSE. TO MINIMIZE THIS POSSIBLE HAZARD, WHEELOCK STRONGLY RECOMMENDS
THAT THE STROBES INSTALLED SHOULD NOT PRESENT A COMPOSITE FLASH RATE IN THE FIELD OF VIEW
WHICH EXCEEDS FIVE (5) Hz AT THE OPERATING VOLTAGE OF THE STROBES. WHEELOCK ALSO STRONGLY
RECOMMENDS THAT THE INTENSITY AND COMPOSITE FLASH RATE OF INSTALLED STROBES COMPLY
WITH LEVELS ESTABLISHED BY APPLICABLE LAWS, STANDARDS, REGULATIONS, CODES AND GUIDELINES.
NOTE: NFPA 72/ANSI 117.1 conform to ADAAG Equivalent Facilitation Guidelines in using fewer, higher intensity strobes within
the same protected area.
These appliances can produce a distinctive three pulse Temporal Pattern Fire Alarm Evacuation Signal (for total evacuation) in
accordance with NFPA 72, 1999 Edition.
CAUTION: Check the installation instructions of the manufacturers of other equipment used in the system for any guidelines or
restrictions on wiring and/or locating Notification Appliance Circuits (NAC) and notification appliances. Some system
communication circuits and/or audio circuits, for example, may require special precautions to assure electrical noise immunity (e.g.
audio crosstalk).
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna, 2) Increase the separation between the equipment and receiver, 3) Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected, and 4) Consult the dealer or an
experienced radio/TV technician for help.
The Series NS4-MCW products and these instructions are copyrighted by Wheelock and the Series NS4-MCW products contain
proprietary, confidential and trade secrets of Wheelock. No part of the Series NS4-MCW products and these instructions may be
photocopied, printed or reproduced in any form or modified, adapted, changed or enhanced, or converted to another programming
language, or used to create updated, related or derivative works, without the prior written consent of Wheelock. No part of the Series
NS4-MCW products shall be decomposed, disassembled or reverse engineered.
ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM WHEELOCK MANUALS OR OTHER
DOCUMENTS DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR
ANY OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION, INSTALLATION
AND TESTING IS USED AT THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY
FOR SUCH USE.
IMPORTANT: READ SEPARATE "GENERAL INFORMATION" SHEET FOR INFORMATION ON THE
PLACEMENT, LIMITATIONS, INSTALLATION, FINAL CHECKOUT, AND PERIODIC TESTING OF NOTIFICATION
APPLIANCES.
P83984 E
Sheet 8 of 9
Limited Warranty
Wheelock products must be used within their published specifications and must be PROPERLY specified, applied, installed, operated,
maintained and operationally tested in accordance with these instructions at the time of installation and at least twice a year or more
often and in accordance with local, state and federal codes, regulations and laws. Specification, application, installation, operation,
maintenance and testing must be performed by qualified personnel for proper operation in accordance with all of the latest National
Fire Protection Association (NFPA), Underwriters' Laboratories (UL), Underwriters’ Laboratories of Canada (ULC), National
Electrical Code (NEC), Occupational Safety and Health Administration (OSHA), local, state, county, province, district, federal and
other applicable building and fire standards, guidelines, regulations, laws and codes including, but not limited to, all appendices and
amendments and the requirements of the local authority having jurisdiction (AHJ). Wheelock products when properly specified,
applied, installed, operated, maintained and operationally tested as provided above are warranted against mechanical and electrical
defects for a period of three years from date of manufacture (as determined by date code). Correction of defects by repair or
replacement shall be at Wheelock's sole discretion and shall constitute fulfillment of all obligations under this warranty. THE
FOREGOING LIMITED WARRANTY SHALL IMMEDIATELY TERMINATE IN THE EVENT ANY PART NOT FURNISHED
BY WHEELOCK IS INSTALLED IN THE PRODUCT. THE FOREGOING LIMITED WARRANTY SPECIFICALLY
EXCLUDES ANY SOFTWARE REQUIRED FOR THE OPERATION OF OR INCLUDED IN A PRODUCT. WHEELOCK
MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS, IMPLIED OR STATUTORY
WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.
USERS ARE SOLELY RESPONSIBLE FOR DETERMINING WHETHER A PRODUCT IS SUITABLE FOR THE USER'S
PURPOSES, OR WHETHER IT WILL ACHIEVE THE USER'S INTENDED RESULTS. THERE IS NO WARRANTY AGAINST
DAMAGE RESULTING FROM MISAPPLICATION, IMPROPER SPECIFICATION, ABUSE, ACCIDENT OR OTHER
OPERATING CONDITIONS BEYOND WHEELOCK'S CONTROL.
SOME WHEELOCK PRODUCTS CONTAIN SOFTWARE. WITH RESPECT TO THOSE PRODUCTS, WHEELOCK DOES
NOT WARRANTY THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE OR THAT
THE SOFTWARE WILL MEET ANY OTHER STANDARD OF PERFORMANCE, OR THAT THE FUNCTIONS OR
PERFORMANCE OF THE SOFTWARE WILL MEET THE USER'S REQUIREMENTS. WHEELOCK SHALL NOT BE LIABLE
FOR ANY DELAYS, BREAKDOWNS, INTERRUPTIONS, LOSS, DESTRUCTION, ALTERATION, OR OTHER PROBLEMS IN
THE USE OF A PRODUCT ARISING OUT OF OR CAUSED BY THE SOFTWARE.
THE LIABILITY OF WHEELOCK ARISING OUT OF THE SUPPLYING OF A PRODUCT, OR ITS USE, WHETHER ON
WARRANTIES, NEGLIGENCE, OR OTHERWISE, SHALL NOT IN ANY CASE EXCEED THE COST OF CORRECTING
DEFECTS AS STATED IN THE LIMITED WARRANTY AND UPON EXPIRATION OF THE WARRANTY PERIOD ALL
SUCH LIABILITY SHALL TERMINATE. WHEELOCK IS NOT LIABLE FOR LABOR COSTS INCURRED IN REMOVAL,
REINSTALLATION OR REPAIR OF THE PRODUCT BY ANYONE OTHER THAN WHEELOCK OR FOR DAMAGE OF ANY
TYPE WHATSOEVER, INCLUDING BUT NOT LIMITED TO, LOSS OF PROFIT OR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE EXCLUSIVE
LIABILITY OF WHEELOCK.
IN NO CASE WILL WHEELOCK'S LIABILITY EXCEED THE PURCHASE PRICE PAID FOR A PRODUCT.
Limitation of Liability
WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND, INCLUDING NEGLIGENCE AND BREACH OF WARRANTY,
FOR ANY LOSS OR DAMAGE RESULTING FROM, ARISING OUT OF, OR CONNECTED WITH THIS CONTRACT, OR
FROM THE MANUFACTURE, SALE, DELIVERY, RESALE, REPAIR OR USE OF ANY PRODUCT COVERED BY THIS
ORDER SHALL BE LIMITED TO THE PRICE APPLICABLE TO THE PRODUCT OR PART THEREOF WHICH GIVES RISE
TO THE CLAIM. WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND SHALL CEASE IMMEDIATELY UPON THE
INSTALLATION IN THE PRODUCT OF ANY PART NOT FURNISHED BY WHEELOCK. IN NO EVENT SHALL
WHEELOCK BE LIABLE FOR ANY CLAIM OF ANY KIND UNLESS IT IS PROVEN THAT OUR PRODUCT WAS A DIRECT
CAUSE OF SUCH CLAIM. FURTHER, IN NO EVENT, INCLUDING IN THE CASE OF A CLAIM OF NEGLIGENCE, SHALL
WHEELOCK BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE PRECEDING LIMITATION
MAY NOT APPLY TO ALL PURCHASERS.
8/01
P83984 E
Sheet 9 of 9
Loading...
