273 Branchport Avenue
Long Branch, NJ 07740 Thank you for using our products.
(800) 631-2148 (USA) INSTALLATION INSTRUCTIONS
(800) 397-5777 (CANADA) MULTITONE APPLIANCES
www.wheelockinc.com MT-12/24, MT4-12/24
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Multitone Appliances are UL Listed under Standard 464 for Audible Signal Appliances and ULC Listed under Standard
CAN/ULC-S525-99 for Audible Signal Appliances for Fire Alarm Systems for Fire Protective Service and for General Signaling
Service. They are listed for both indoor and outdoor use with the backboxes specified in these instructions. See Mounting
Options A,B,C,D,E,F,G for MT models and H for MT4 models. Multitone Appliances can be field set to produce any one of
eight commonly used alarm tones. Sound output can be field set to provide either HIGH (HI) dBA or STANDARD (STD) dBA
sound output level. Multitone Appliances can be field set for either 12VDC or 24VDC operation and are designed for use with
either filtered or unfiltered Full-Wave-Rectified (FWR) input voltage. All inputs are polarized for compatibility with standard
reverse polarity supervision of circuit wiring by a Fire Alarm Panel.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol . All warnings are printed in bold capital letters.
NOTE: All Canadian installations should be in accordance with the Canadian Standard for the Installation of Fire Alarm
Systems, CAN/ULC-S524-01 and the Canadian Electrical Code, Part 1. Final acceptance is subject to authorities having
jurisdiction.
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS
COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE
PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
WARNING: THE MT APPLIANCE IS A “FIRE ALARM DEVICE – DO NOT PAINT”.
SPECIFICATIONS:
Table 1: UL/ULC Listed Models
UL Ratings ULC Ratings
Model Regulated
Voltage
(VDC/VRMS)
Voltage
Range
(VDC/VRMS)
MT-12/24 12/24 8.0-17.5 or 16.0-33.0 76-94 10.5-15.6 or 20.0-31.0 85-100 A-G
MT4-12/24 12/24 8.0-17.5 or 16.0-33.0 76-94 10.5-15.6 or 20.0-31.0 85-100 H
Reverberant
dBA
At 10 Feet
Voltage
Range
(VDC/VRMS)
Anechoic
dBA
at 10 Feet
Mounting
Options
NOTE: All models are UL and ULC Listed for indoor and outdoor use with a temperature range of -40°C to +66°C (-40°F to
+151°F) and maximum humidity of 98% ± 2% RH
WARNING: FOR UL APPLICATIONS THESE APPLIANCES WERE TESTED AT UL TO THE OPERATING
VOLTAGE LIMITS OF 16-33VDC FOR 24VDC OPERATION AND 8-17.5VDC FOR 12VDC OPERATION USING
FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR). DO NOT APPLY 80% AND 110% OF
THESE VOLTAGE VALUES FOR SYSTEM OPERATION.
WARNING: FOR UL APPLICATIONS THESE APPLIANCES WERE TESTED AT ULC TO THE OPERATING
VOLTAGE LIMITS OF 20-31VDC FOR 24VDC OPERATION AND 10.5-15.6VDC FOR 12VDC OPERATION USING
FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR). APPLY 80% AND 110% OF THESE
VOLTAGE VALUES FOR SYSTEM OPERATION.
WARNING: CHECK THE MINIMUM AND MAXIMUM OUTPUT OF THE POWER SUPPLY AND STANDBY
BATTERY AND SUBTRACT THE VOLTAGE DROP FROM THE CIRCUIT WIRING RESISTANCE TO
DETERMINE THE APPLIED VOLTAGE TO THE STROBES.
Copyright 2005 Wheelock, Inc. All rights reserved.
P82467-001 L
Sheet 1 of 8
Table 2: UL Current Ratings for Multitone Audible Appliances
Maximum RMS Current
(AMPS)
Tone Tone
Description 24VDC 24VRMS 12VDC 12VRMS
HI STD HI STD HI STD HI STD
Horn Broadband Horn (Continuous) 0.108 0.044 0.087 0.045 0.177 0.034 0.172 0.034
Bell 1560 Hz Modulated (0.07 Sec. ON/Repeat) 0.053 0.024 0.051 0.028 0.095 0.020 0.095 0.023
March Time Horn Horn (0.25 Sec. ON/0.25 Sec. OFF/Repeat) 0.104 0.087 0.087 0.045 0.142 0.034 0.142 0.039
Code 3 Horn Horn (ANSI S3.41 Temporal Pattern) 0.091 0.035 0.087 0.045 0.142 0.034 0.142 0.039
Code 3 Tone 500 Hz (ANSI S3.41 Temporal Pattern) 0.075 0.035 0.056 0.029 0.105 0.021 0.105 0.023
Slow Whoop 500-1200Hz Sweep (4.0 Sec. ON/0.5 Sec. OFF/Repeat) 0.098 0.037 0.092 0.042 0.142 0.035 0.142 0.038
Siren 600-1200Hz Sweep (1.0 Sec. ON/Repeat) 0.104 0.036 0.092 0.040 0.152 0.030 0.152 0.034
HI/LO 1000/800 Hz (0.25 Sec. ON/Alternate) 0.057 0.025 0.058 0.032 0.114 0.026 0.114 0.029
Table 2A: ULC Average Current Ratings for 24VDC and 12VDC Multitone Audible Appliances
Tone
Horn
Bell
March
Time
Code 3
Horn
Code 3
Tone
Slow
Whoop
Siren
HI/LO
HI/LO
Volume
20VDC 24VDC 31VDC 10.5VDC 12VDC 15.6VDC
HI 0.036 0.040 0.050 0.090 0.100 0.125
STD 0.021 0.023 0.029 0.018 0.020 0.025
HI 0.013 0.014 0.018 0.028 0.031 0.039
STD 0.011 0.012 0.015 0.009 0.010 0.013
HI 0.036 0.040 0.050 0.090 0.100 0.125
STD 0.021 0.023 0.029 0.018 0.020 0.025
HI 0.036 0.040 0.050 0.090 0.100 0.125
STD 0.021 0.023 0.029 0.018 0.020 0.025
HI 0.025 0.028 0.035 0.054 0.060 0.075
STD 0.015 0.017 0.021 0.014 0.015 0.019
HI 0.043 0.048 0.060 0.090 0.100 0.125
STD 0.023 0.026 0.033 0.023 0.025 0.031
HI 0.032 0.036 0.045 0.074 0.082 0.103
STD 0.021 0.023 0.029 0.018 0.020 0.025
HI 0.018 0.020 0.025 0.040 0.044 0.055
STD 0.013 0.014 0.018 0.011 0.012 0.015
24VDC Models 12VDC Models
P82467-001 L
Sheet 2 of 8
WARNING: MAKE SURE THAT THE TOTAL RMS CURRENT AND TOTAL AVERAGE CURRENT
REQUIRED BY ALL APPLIANCES THAT ARE CONNECTED TO THE SYSTEM’S PRIMARY AND SECONDARY
POWER SOURCES, NAC CIRCUITS, SM, DSM SYNC MODULES OR WHEELOCKS POWER SUPPLIES DO NOT
EXCEED THE POWER SOURCES’ RATED CAPACITY OR THE CURRENT RATINGS OF ANY FUSES ON THE
CIRCUITS TO WHICH THESE APPLIANCES ARE WIRED. OVERLOADING POWER SOURCES OR
EXCEEDING FUSE RATINGS COULD RESULT IN LOSS OF POWER AND FAILURE TO ALERT OCCUPANTS
DURING AN EMERGENCY, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR
DEATH TO YOU AND/OR OTHERS.
When calculating the total currents: Use Table 2 to determine the highest value of “RMS Current” for an individual multitone.
Use Table 2A to determine the highest value of “Rated Average Current” for an individual multitone, then multiply these values
by the total number of multitones; be sure to add the currents for any other appliances powered by the same source and include
any required safety factors.
If the peak current exceeds the power supplies’ peak capacity, the output voltage provided by the power supplies may drop
below the listed voltage range of the appliances connected to the supply and the voltage may not recover in some types of power
supplies. For example, an auxiliary power supply that lacks filtering at its output stage (either via lack of capacitance and/or
lack of battery backup across the output) may exhibit this characteristic.
Table 3: dBA Ratings
dBA Reverberant Ratings Per UL 464 dBA Anechoic Ratings Per CAN/ULC S525-99
UL 24VDC UL 12VDC ULC 24VDC ULC 12VDC
16V 24V 33V 8V 12V 17.5V 20V 24V 31V 10.5V 12V 15.6V
Tone
Horn
Bell
HI/LO
Volume
HI 89 92 94 89 92 94 97 99 100 97 99 100
STD 84 87 90 84 87 90 91 93 94 91 93 94
HI 83 86 88 83 86 88 90 92 93 90 92 93
STD 76 80 83 76 80 83 85 87 88 85 87 88
HI 86 89 91 86 89 91 97 99 100 97 99 100 March
Time
STD 80 84 87 80 84 87 91 93 94 91 93 94
HI 85 88 90 85 88 90 97 99 100 97 99 100 Code 3
Horn
STD 79 83 86 79 83 86 91 93 94 92 93 94
HI 81 85 86 81 85 86 93 95 96 93 95 96 Code 3
Tone
STD 76 80 82 76 80 82 88 90 91 88 90 91
HI 87 90 92 87 90 92 97 99 100 97 99 100 Slow
Whoop
Siren
HI/LO
STD 81 85 87 81 85 87 92 94 95 92 94 95
HI 86 89 92 86 89 92 96 98 99 96 98 99
STD 81 84 87 81 84 87 91 93 94 91 93 94
HI 83 86 89 83 86 89 91 93 94 91 93 94
STD 77 81 84 77 81 84 86 88 89 86 88 89
ULC Directional Characteristics:
-3 dBA: 48 degrees left, 41 degrees right -6 dBA: 50 degrees left, 58 degrees right.
P82467-001 L
Sheet 3 of 8
SETTINGS:
The Jumper Plug (DP1) and Switch (SW1) of the Multitone Appliance, shown in Figure 1, are used to set the desired input
voltage, dBA sound output level and alarm tone. The factory settings are shown below. Read these instructions carefully before
changing any of these factory settings.

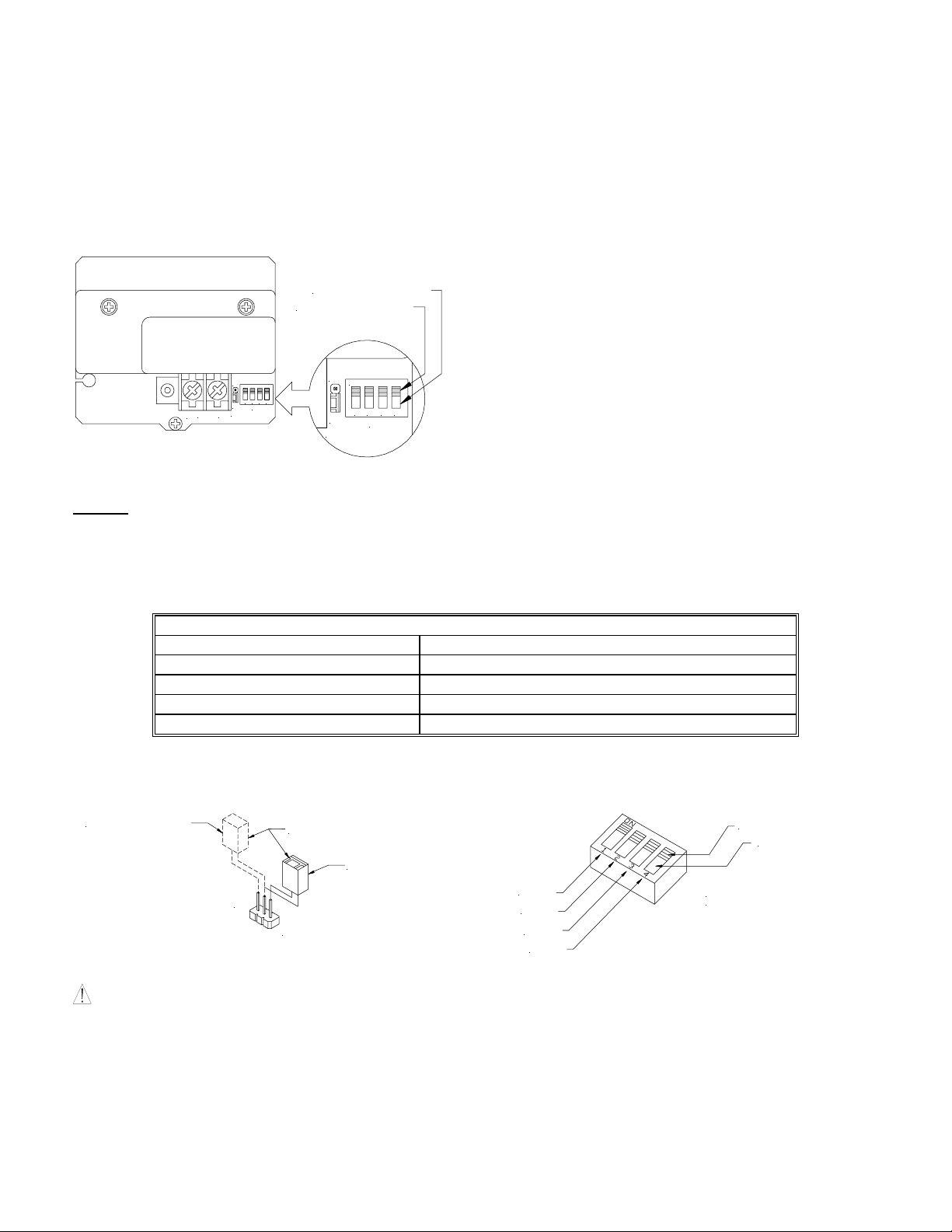

Figure 1:
PC Board Layout Showing Location
of Jumper Plug (DP1) and Switch (SW1)
The factory settings are:
SLIDE HERE FOR (0)
SLIDE HERE FOR ( 1)
24VDC DP1 set on 24
HIGH dBA SW1 POS 1 set on 1
12
24
DP1
ON
432
1
SW1
12
ON
234
1
24
SW1
DP1
-
AUD
+
HORN TONE SW1 POS 2, 3, 4 set on 1, 1, 1
STEP 1:
Set desired input voltage and dBA sound output level as follows (Refer to Figures 2 and 3):
Multitone Appliances are field set for input voltage and dBA sound output level by inserting a Jumper Plug (DP1) and adjusting
a four position Switch (SW1) as shown in Table 4 and Figures 2 and 3. Use DP1 to select the desired voltage and SW1 Position
1 to select the dBA sound output level.
Table 4: Input Voltage and dBA Sound Output Level Settings
Input Voltage and Decibel Level DP1 and SW1 Settings
24 VDC/HIGH dBA:
24 VDC/STD dBA:
12 VDC/HIGH dBA:
12 VDC/STD dBA:
Set DP1 on 24; set SW1 POS 1 on 1 (Factory Setting)
Set DP1 on 24; set SW1 POS 1 on 0
Set DP1 on 12; set SW1 POS 1 on 1
Set DP1 on 24; set SW1 POS 1 on 1
Figure 2: Figure 3:
Jumper Plug (DP1) Settings
SHOWN SET ON 12
12
JUMPER PLUG
SHOWN SET ON 24
24
(Use Needle Nose Pliers to Lift and Properly Insert the Jumper Plug)
Switch (SW1) Settings
POS 1
POS 2
POS 3
POS 4
SLIDE HERE FOR (1)
SLIDE HERE FOR (0)
USE A SMALL SCREWDRIVER TO
CHANGE THE SWITCH POSITION.
WARNING: DO NOT APPLY 24VDC INPUT IF THE JUMPER PLUG (DP1) IS SET ON 12. THIS CAN
DAMAGE THE UNIT. DOUBLE CHECK THE JUMPER PLUG (DP1) AND SWITCH (SW1) SETTINGS TO MAKE
SURE THEY ARE CORRECT. IMPROPER SETTINGS CAN DAMAGE THE UNIT OR RESULT IN NO SOUND
OUTPUT OR A dBA SOUND OUTPUT LEVEL THAT IS BELOW CODE REQUIREMENTS FOR PUBLIC MODE
FIRE PROTECTION. THIS COULD RESULT IN PROPERTY DAMAGE, SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
P82467-001 L
Sheet 4 of 8
STEP 2:
Set desired alarm tone as follows (refer to Figure 3 and Table 5).
Multitone Appliances are field set for any one of eight alarm tones by setting a four-position switch (SW1) as shown in Figure 3
and Table 5. Use SW1 POS 2, 3, 4 to select the desired alarm tone (refer to Table 5 below).
Table 5: Alarm Tones
SW1
Switch Settings
Tone Pattern Description POS POS POS
2 3 4
Horn Broadband Horn (Continuous) 1 1 1
Bell 1560 Hz Modulated (0.07 Sec. ON/Repeat) 1 0 1
March Time Horn Horn (0.25 Sec. ON/0.25 Sec. OFF/Repeat) 0 0 1
Code 3 Horn Horn (ANSI S3.41 Temporal Pattern) 1 1 0
Code 3 Tone 500 Hz (ANSI S3.41 Temporal Pattern) 0 1 1
Slow Whoop 500-1200 Hz Sweep (4.0 Sec. ON/0.5 Sec. OFF/Repeat) 0 1 0
Siren 600-1200 Hz Sweep (1.0 Sec.ON/Repeat) 1 0 0
HI/LO 1000/800 Hz (0.25 Sec. ON/Alternate) 0 0 0

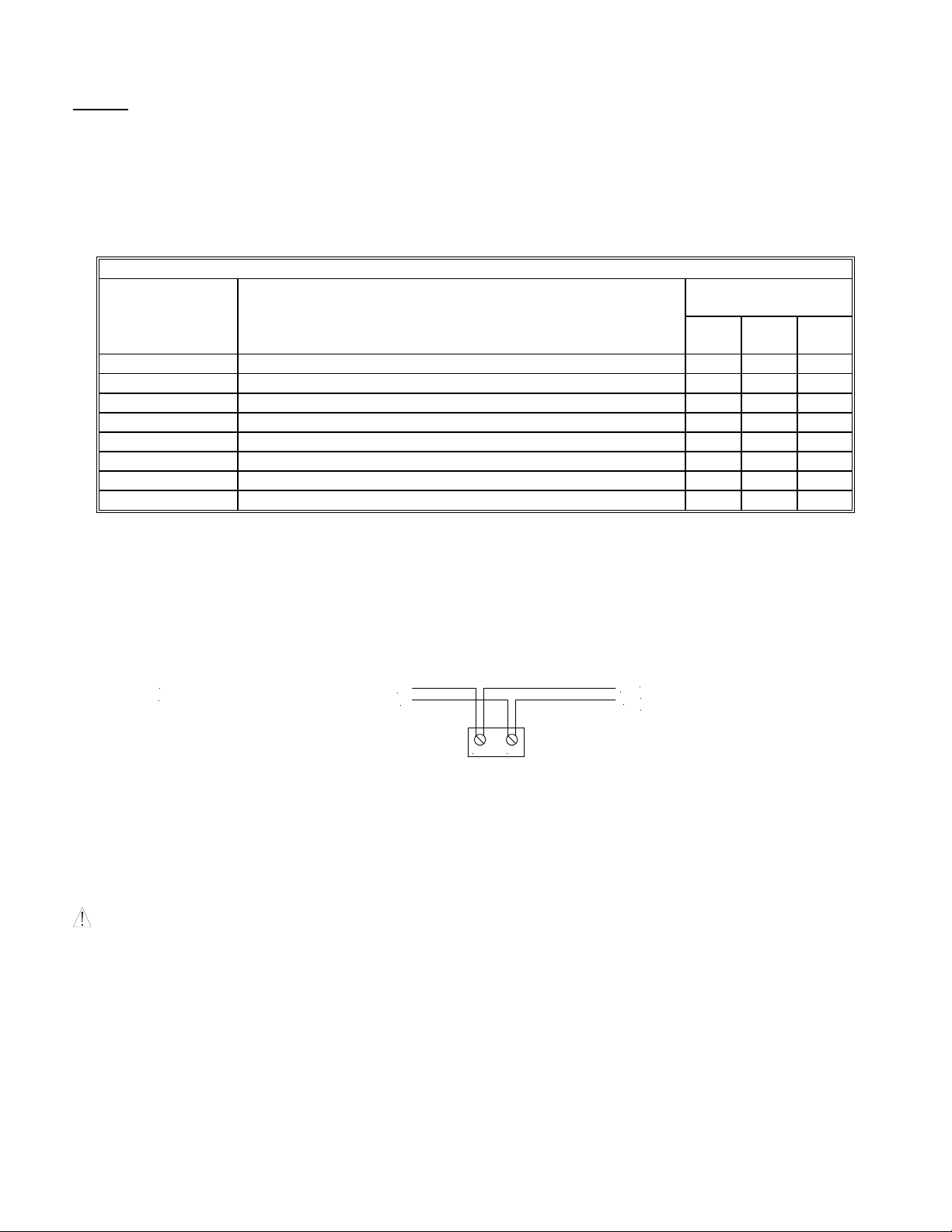

WIRING INFORMATION:
Figure 4:
Multitone Appliance Wiring Diagram
FROM PRECEDING APPLIANCE OR
FIRE ALARM CONTROL PANEL (FACP)
+
-
TO NEXT APPLIANCE OR
+
END OF LINE
-
RESISTOR (EOLR)
(+)
(-)
1. Strip leads 3/8 inches and connect to screw terminals. Multitone Appliances have in-out wiring terminals that accepts two
#12 to #18 American Wire Gauge (AWG) wires at each screw terminal.
2. Break all in-out wire runs on supervised circuits to assure integrity of circuit supervision. The polarity shown in the wiring
diagram is for operation of the appliances. The polarity is reversed by the Fire Alarm Control Panel (FACP) during
supervision

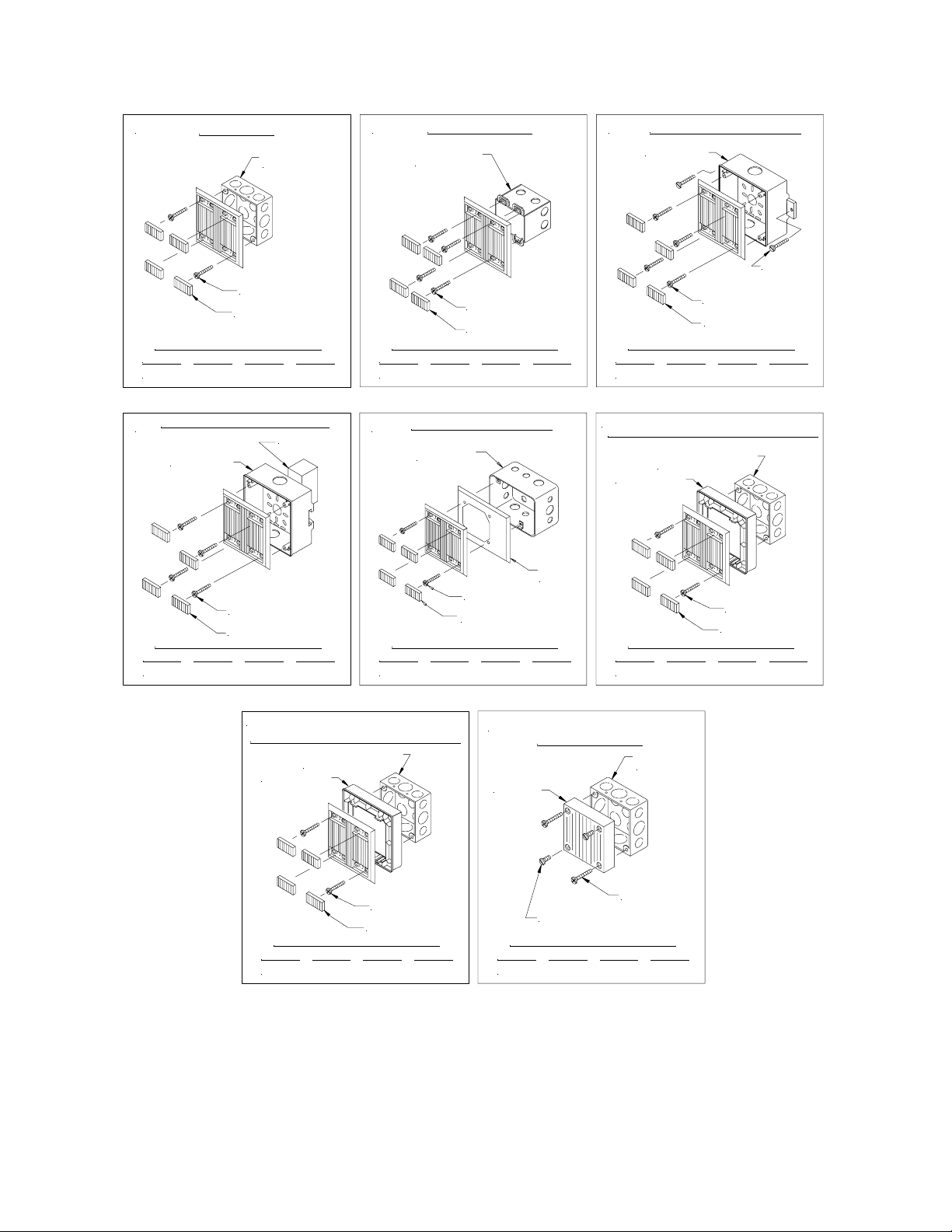

MOUNTING OPTIONS:
CAUTION: The following figures show the maximum number of field wires (conductors) that can enter the backbox used
with each mounting option. If these limits are exceeded, there may be insufficient space in the backbox to accommodate the
field wires and stresses from the wires could damage the product.
Although the limits shown for each mounting option comply with the National Electrical Code (NEC), Wheelock recommends
use of the largest backbox option shown and the use of approved stranded field wires, whenever possible, to provide additional
wiring room for easy installation and minimum stress on the product from wiring.
P82467-001 L
Sheet 5 of 8
A
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
D
FLUSH (4" BOX)
4" SQ. X 2-1/8"
DEEP BACKBOX
#8-32 SCREWS
SCREW COVERS
MAXIMUM NUMBER OF CONDUCTORS
CONCEALED CONDUIT MOUNTING
EXISTING BOX
IOB BACKBOX
B
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
FLUSH (2-GANG BOX)
2-GANG X 2-1/2"
DEEP BACKBOX
#6-32 SCREWS
SCREW COVERS
MAXIMUM NUMBER OF CONDUCTORS
RETROFIT PLATE MOUNTING
E
EXISTING FSB
BOX
SURFACE (INDOOR/OUTDOOR)
C
IOB BACKBOX
WOOD SCREWS
#8-18 SCREWS
SCREW COVERS
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
F
SURFACE OR SEMI-FLUSH (4" X 2-1/8" BOX)
DBB OR 4" SQ. X 2-1/8"
DEEP BACKBOX
ISP EXTENDER
#8 - 18 SCREWS
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
SCREW COVERS
G
SURFACE OR SEMI-FLUSH (4" X 2-1/2" BOX)
DBB OR 4" SQ. X 2-1/2"
DEEP BACKBOX
ISP EXTENDER
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
Multitone Appliances can be ceiling or wall mounted.
#8-32 SCREWS
COVERS SCREWS
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
H
APPLIANCE
#8-32 SCREWS
SCREWS COVERS
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
RETROFIT
PLATE
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
4 4 4 4
SURFACE MOUNTING
#8-32 SCREWS
#10-32 SCREWS
4" SQ. X 2-1/8
SCREWS
#8-32 SCREWS
SCREWS COVERS
P82467-001 L
Sheet 6 of 8
APPLICATION NOTES:
CAUTION: If sheated multiconductor cable or 3/4" conduit fittings are used, check that installed product has sufficient
clearance and wiring room prior to installing backboxes and conduit.
1. Multitone Appliances can be flush mounted to a standard 4 inch square by 2-1/8 inch deep electrical box (Figure A or H) or a
standard 2-gang by 2-1/2 inch minimum deep electrical box (Figure B).
2. Select largest backbox shown in Mounting Options where possible, to provide additional wiring room for easy installation.
3. Conduit entrance to backboxes should be selected to insure sufficient wiring clearance for installed equipment. When
extension rings are required, conduit should enter through backbox, not extension ring. Use Steel City #53151/1-1/2" deep
or #53171/2-1/8" deep extension rings or equal with same area cut out in back.
4. The MT-12/24 model can also be surface mounted to Wheelock's Indoor/Outdoor Backbox (Model IOB) for indoor/outdoor
use (Figure C). The IOB is NOT
intended for use with the MT4-12/24.
5. The MT-12/24 model is supplied with four snap-in covers to hide the mounting holes and provide an attractive installation.
The snap-in covers are interchangeable and have slots on each end so they can be removed if necessary (by prying them up
with a thin blade screwdriver). To insert snap-in cover, slide one side partially into mounting hole recess; align the cover so
that snap-in cover and grille are parallel to each other (not tilted) and snap cover into place.
6. The IOB surface backbox has 1/2 inch conduit knockouts on two sides. It has a variety of knockouts on the back for
mounting it to recessed electrical boxes and for wire entrances (Figure D). It can also be mounted to a surface with the two
mounting ears that are supplied. The ears slide into slots on the back of the box. Use appropriate anchors for the wood
screws that are supplied with the box (if necessary).
7. For outdoor use, the IOB includes a prefastened gasket and four hole plugs. Use the mounting ears to secure the box (do not
use the back knockouts). Use the hole plugs to seal the unused mounting holes on the Multitone grille (press them in
securely from the back side of the grille). Mount the unit to the IOB with the four #8-18 screws supplied with the box.
8. The Code 3 Horn and Code 3 Tone incorporate the temporal pattern specified by ANSI/NFPA/ISO for standard emergency
evacuation signaling. They should be used only for fire evacuation signaling and not for any other purpose.
9. The Horn and Bell Tones can be used on coded systems with a minimum On-Time of 1/4 second. All other tones are
recommended for use only on continuous (non-coded) systems.
The Multitone products and these instructions are copyrighted by Wheelock and contain proprietary, confidential and trade
secrets of Wheelock. No part of the Multitone products and these instructions may be photocopied, printed or reproduced in any
form or modified, adapted, changed or enhanced, or converted to another programming language, or used to create updated,
related or derivative works, without the prior written consent of Wheelock. No part of the Multitone shall be decompiled,
disassembled or reverse engineered.
CAUTION: If Multitone appliances are operated within 15 inches of a person's ear, they can produce a sound pressure level
that exceeds the maximum 120 dBA permitted by ADA and OSHA rules. Exposure to such sound levels can result in damage to
a person's hearing.
These appliances can produce a distinctive three pulse Temporal Pattern Fire Alarm Evacuation Signal for total evacuation in
accordance with NFPA 72.
CAUTION: Check the installation instructions of the manufacturers of other equipment used in the system for any
guidelines or restrictions on wiring and/or locating Notification Appliance Circuits (NAC) and notification appliances. Some
system communication circuits and/or audio circuits, for example, may require special precautions to assure immunity from
electrical noise (e.g. audio crosstalk).
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures: 1) Reorient or relocate the receiving antenna, 2) Increase the separation between the
equipment and receiver, 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected, and 4) Consult the dealer or an experienced radio/TV technician for help.
P82467-001 L
Sheet 7 of 8
ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM WHEELOCK MANUALS OR OTHER
DOCUMENTS DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR ANY
OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION, INSTALLATION AND
TESTING IS USED AT THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY FOR SUCH
USE.
IMPORTANT: READ SEPARATE "GENERAL INFORMATION" SHEET FOR INFORMATION ON THE PLACEMENT,
LIMITATIONS, INSTALLATION, FINAL CHECKOUT AND PERIODIC TESTING OF NOTIFICATION APPLIANCES.
Limited Warranty
Wheelock products must be used within their published specifications and must be PROPERLY specified, applied, installed,
operated, maintained and operationally tested in accordance with these instructions at the time of installation and at least twice a
year or more often and in accordance with local, state and federal codes, regulations and laws. Specification, application,
installation, operation, maintenance and testing must be performed by qualified personnel for proper operation in accordance
with all of the latest National Fire Protection Association (NFPA), Underwriters' Laboratories (UL), Underwriters’ Laboratories
of Canada (ULC), National Electrical Code (NEC), Occupational Safety and Health Administration (OSHA), local, state,
county, province, district, federal and other applicable building and fire standards, guidelines, regulations, laws and codes
including, but not limited to, all appendices and amendments and the requirements of the local authority having jurisdiction
(AHJ). Wheelock products when properly specified, applied, installed, operated, maintained and operationally tested as
provided above are warranted against mechanical and electrical defects for a period of three years from date of manufacture (as
determined by date code). Correction of defects by repair or replacement shall be at Wheelock's sole discretion and shall
constitute fulfillment of all obligations under this warranty.
THE FOREGOING LIMITED WARRANTY SHALL
IMMEDIATELY TERMINATE IN THE EVENT ANY PART NOT FURNISHED BY WHEELOCK IS INSTALLED IN THE
PRODUCT. THE FOREGOING LIMITED WARRANTY SPECIFICALLY EXCLUDES ANY SOFTWARE REQUIRED FOR THE
OPERATION OF OR INCLUDED IN A PRODUCT. WHEELOCK MAKES NO REPRESENTATION OR WARRANTY OF ANY
OTHER KIND, EXPRESS, IMPLIED OR STATUTORY WHETHER AS TO MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE OR ANY OTHER MATTER.
USERS ARE SOLELY RESPONSIBLE FOR DETERMINING WHETHER A PRODUCT IS SUITABLE FOR THE USER'S
PURPOSES, OR WHETHER IT WILL ACHIEVE THE USER'S INTENDED RESULTS. THERE IS NO WARRANTY AGAINST
DAMAGE RESULTING FROM MISAPPLICATION, IMPROPER SPECIFICATION, ABUSE, ACCIDENT OR OTHER
OPERATING CONDITIONS BEYOND WHEELOCK'S CONTROL.
SOME WHEELOCK PRODUCTS CONTAIN SOFTWARE. WITH RESPECT TO THOSE PRODUCTS, WHEELOCK DOES NOT
WARRANTY THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE OR THAT THE
SOFTWARE WILL MEET ANY OTHER STANDARD OF PERFORMANCE, OR THAT THE FUNCTIONS OR PERFORMANCE
OF THE SOFTWARE WILL MEET THE USER'S REQUIREMENTS. WHEELOCK SHALL NOT BE LIABLE FOR ANY
DELAYS, BREAKDOWNS, INTERRUPTIONS, LOSS, DESTRUCTION, ALTERATION, OR OTHER PROBLEMS IN THE USE
OF A PRODUCT ARISING OUT OF OR CAUSED BY THE SOFTWARE.
THE LIABILITY OF WHEELOCK ARISING OUT OF THE SUPPLYING OF A PRODUCT, OR ITS USE, WHETHER ON
WARRANTIES, NEGLIGENCE, OR OTHERWISE, SHALL NOT IN ANY CASE EXCEED THE COST OF CORRECTING
DEFECTS AS STATED IN THE LIMITED WARRANTY AND UPON EXPIRATION OF THE WARRANTY PERIOD ALL SUCH
LIABILITY SHALL TERMINATE. WHEELOCK IS NOT LIABLE FOR LABOR COSTS INCURRED IN REMOVAL,
REINSTALLATION OR REPAIR OF THE PRODUCT BY ANYONE OTHER THAN WHEELOCK OR FOR DAMAGE OF ANY
TYPE WHATSOEVER, INCLUDING BUT NOT LIMITED TO, LOSS OF PROFIT OR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE EXCLUSIVE
LIABILITY OF WHEELOCK.
IN NO CASE WILL WHEELOCK'S LIABILITY EXCEED THE PURCHASE PRICE PAID FOR A PRODUCT.
Limitation of Liability
WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND, INCLUDING NEGLIGENCE AND BREACH OF WARRANTY, FOR ANY
LOSS OR DAMAGE RESULTING FROM, ARISING OUT OF, OR CONNECTED WITH THIS CONTRACT, OR FROM THE
MANUFACTURE, SALE, DELIVERY, RESALE, REPAIR OR USE OF ANY PRODUCT COVERED BY THIS ORDER SHALL BE
LIMITED TO THE PRICE APPLICABLE TO THE PRODUCT OR PART THEREOF WHICH GIVES RISE TO THE CLAIM.
WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND SHALL CEASE IMMEDIATELY UPON THE INSTALLATION IN THE
PRODUCT OF ANY PART NOT FURNISHED BY WHEELOCK. IN NO EVENT SHALL WHEELOCK BE LIABLE FOR ANY CLAIM
OF ANY KIND UNLESS IT IS PROVEN THAT OUR PRODUCT WAS A DIRECT CAUSE OF SUCH CLAIM. FURTHER, IN NO
EVENT, INCLUDING IN THE CASE OF A CLAIM OF NEGLIGENCE, SHALL WHEELOCK BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE PRECEDING LIMITATION MAY NOT APPLY TO ALL PURCHASERS.
11/05
P82467-001 L
Sheet 8 of 8
Loading...
